Astra 1H/1KR/1L/1M at 19.2°E : Technical data

                          satellite : Astra 1KR - orbit : 19.2°W - TP : 32 KU - lifetime : from 20.4.2006 - 15 years

Update - Astra 1L/1H at 19.2°E - european footprint : quality of income as defined in the spectral analysis

                 Astra 1L/1H at 19.2°E - european footprint : measurements results at intake Lučenec_central Slovakia
                                               geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                                                                 elevation angle  : 34.8°

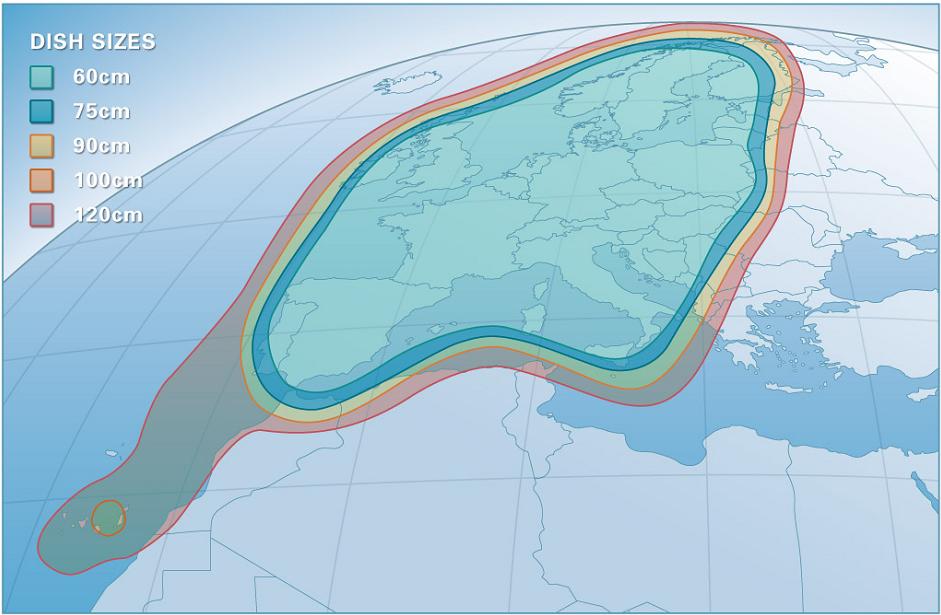

                                                 Astra 1L footprint                                          Astra 1H footprint
                         the availability of guaranteed signal <120 cm  the availability of guaranteed signal <120 cm
                                    Europe,Canary islands,north Africa              Europe,Canary islands,north Africa

                                                               +                                                                     +
                                          Astra 1L spectral analysis                              Astra 1H spectral analysis
                                      11 068 V : PAL HR Fernsehen                             12 247 V : Packet Astra


                                               Astra 1H : Measuring the quality of income in the zone "BEAM PEAK"


                                             Astra 1H at 19.2°E - european footprint : 12 051 H Packet Pro 7
                       IF data                                                         Q data                                                  NIT data

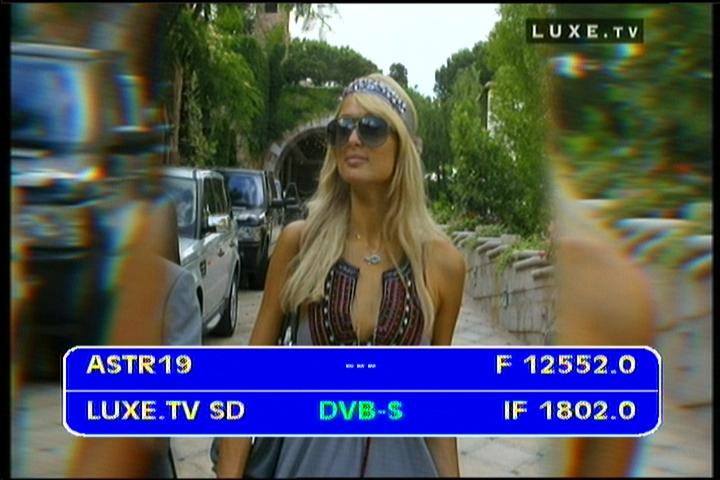

                                         Astra 1H at 19.2°E - european footprint : 12 552 H Packet Astra
                       IF data                                                         Q data                                                  NIT data

                                          Astra 1KR : Measuring the quality of income in the zone "BEAM PEAK"

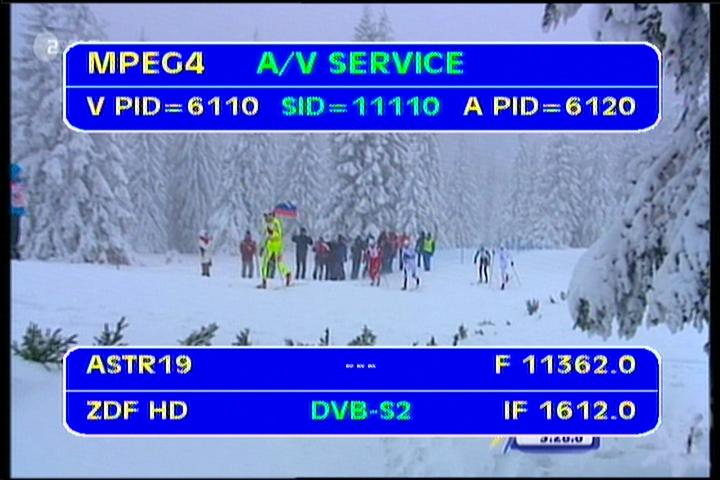

                                    Astra 1KR at 19.2°E - european footprint : 11 362 H Packet Astra HDTV
                       IF data                                                         Q data                                                  NIT data

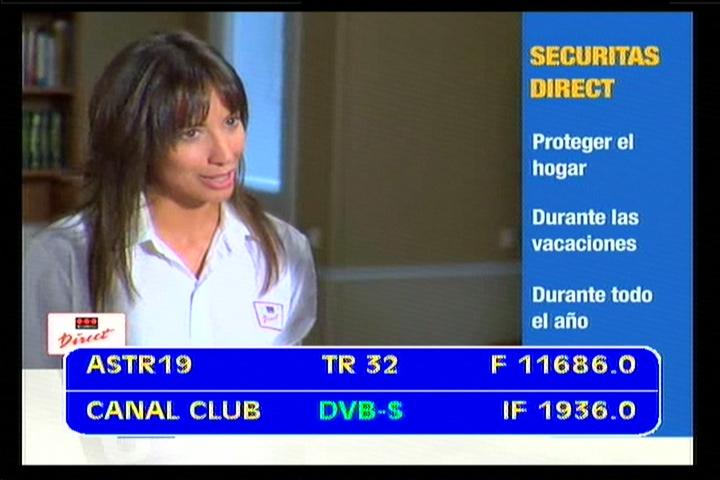

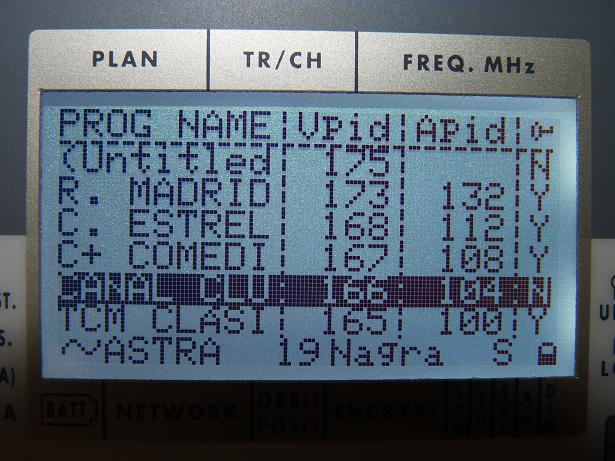

                                        Astra 1KR at 19.2°E - european footprint : 11 686 V Packet Digital +
                       IF data                                                         Q data                                                  NIT data

                                               Astra 1L : Measuring the quality of income in the zone "BEAM PEAK"

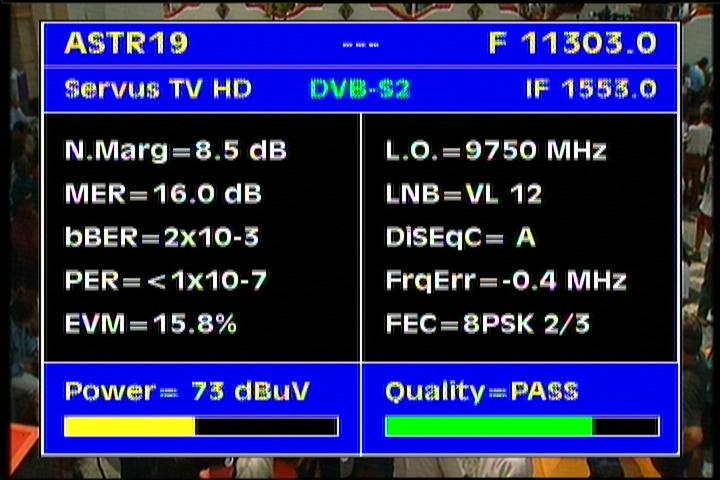

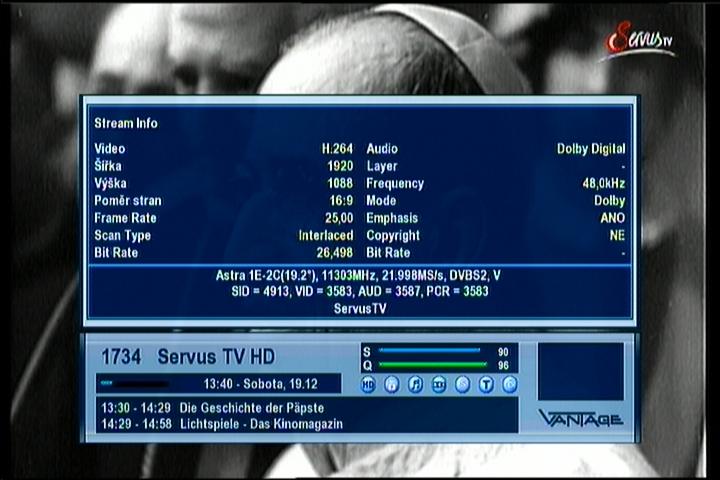

                                     Astra 1L at 19.2°E - european footprint : 11 303 H Packet Astra HDTV
                       IF data                                                         Q data                                                  NIT data

                                        Astra 1L at 19.2°E - european footprint : 11 597 V Packet Astra
                       IF data                                                         Q data                                                  NIT data

                                            Astra 1M  : Measuring the quality of income in the zone "BEAM PEAK"


                                        Astra 1M at 19.2°E - wide footprint : 11 568 V Packet Astra
                       IF data                                                         Q data                                                  NIT data

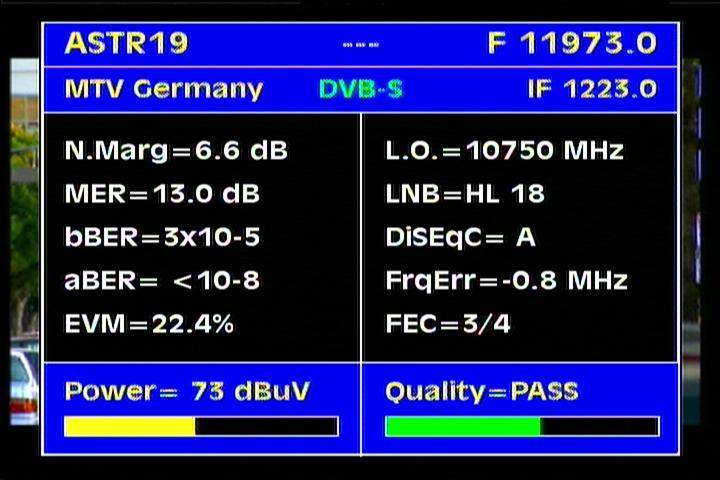

                                     Astra 1M at 19.2°E - wide footprint : 11 973 V Packet MTV Networks
                       IF data                                                         Q data                                                  NIT data



Astra 1H/1KR/1L/1M at 19.2°E : TV List
