Insat 4B at 93.5°E-Indian footprint in KU band : Insat 4B satellite_technical data
Insat 4B at 93.5°E-Indian footprint in KU band : Insat 4B satellite_technical data
.
Insat 4B : before launch Insat 4B : launch Insat 4B : satellite
source : ISRO India source : Arianspace source : ISRO India
- Name : Insat 4B
- Orbital position : 93.5°E
- Launched : 11.3.2007_Centre Spatial Guayanais
- Launch vehicle : Ariane 5 ECA
- Manufacturer/Provider : Indian Space Research Organization (ISRO)
- Transponders in KU band : 12xKU (14/12 GHz,12x36 MHz) EIRP=52 dBW
- Transponders in C band : 12xC (6/4 GHz,12x36 MHz) EIRP=39 dBW
.
Insat 4B at 93.5°E-Indian footprint : DD Direct plus India-point measurements and research
.
click to enlarge
.
Insat 4B at 93.5°E - Indian footprint : DD Direct plus India_installed antenna Prodelin 3.7m
.
PF Prodelin 3.7 m+UNI LNB+dxsatcs waveguide line
.
Insat 4B at 93.5°E-Indian footprint : DD Direct plus India_value of the elevation angle
.
- green_EL>=0°,red_EL<0°- theoretical possibility of receiving satellite in terms of elevation angle -
click to enlarge
.

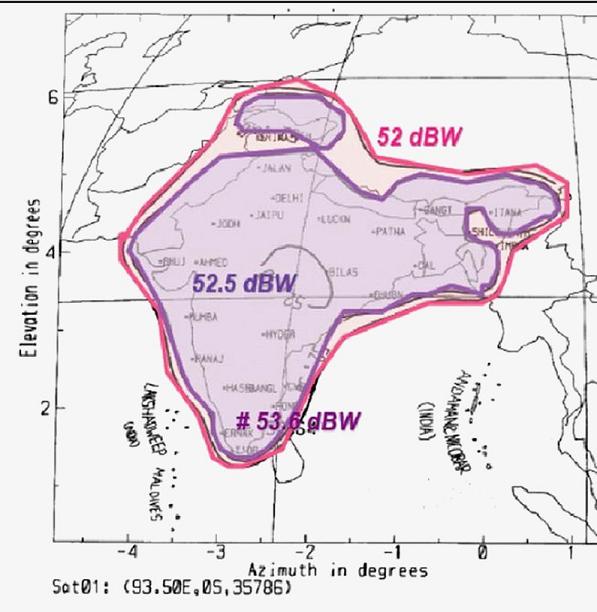

Insat 4B at 93.5°E : theoretically defined footprint by the operator ISRO/Antrix Corporation
.
--- Insat 4B at 93.5°E-footprint : theoretically defined satellite footprint for KU band ---
click to enlarge
