Atlantic Bird 3 at 5.0°W

Atlantic Bird 3 at 5.0°W : Technical data

.
                                       --- Atlantic Bird 3 at 5.0°W-panatlantic beam : 3 661 R 2M Monde-MERp=9 dB ---
                                                                                    click for enlarge

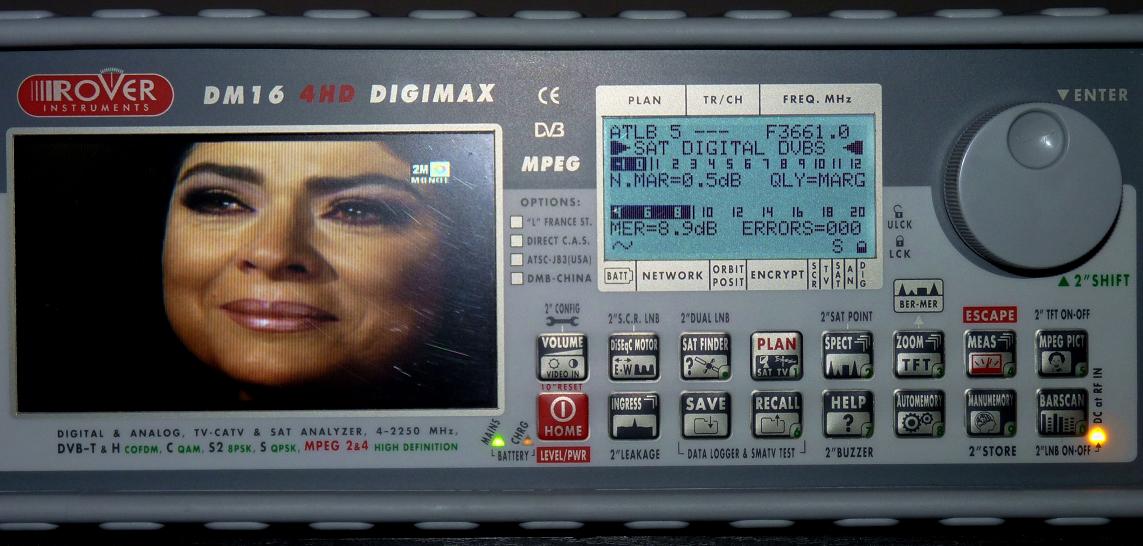

Atlantic Bird 3 at 5.0 w_panatlantic footprint_3 661 R -n                                     satellite : Atlantic Bird 3 - orbit : 5.0°W - TP : 10 C - lifetime : from 5.7.2002 - 12 years
.

Atlantic Bird 3 at 5.0°W - panatlantic footprint : spectrum analysis & measurement results

.
      Atlantic Bird 3 at 5.0°W - panatlantic footprint : measurements at the center Lučenec/central Slovakia
                                         geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                     measurement results are derived from the 3.7 m diameter antenna
                                                            date of measurement : 13.11.2010
                                                                       Elevation angle : 29.5°

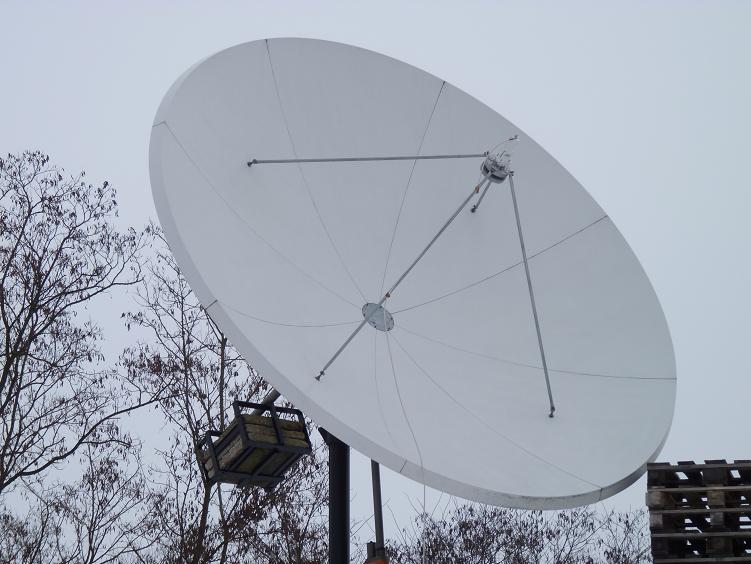

  Atlantic Bird 3 footprint : panatlantic      Atlantic Bird 3 : installed system           Atlantic Bird 3 : research point
  Africa,Middle East,Europe,America ...      Prodelin 3.7 m,LNB Norsat 8215                     48.33° _ 19.72°
AB 3 at 5.0w-pan atlantic beam Arabsat 5A at 30.5e-Hemi Mea beam-PF Prodelin 3.7 m-00Arabsat 5A at 30.5e-Hemi Mea beam-measurement point

             --- Atlantic Bird 3 at 5.0°W-Panatlantic beam : 3 727 R / TP C7 - spectral analysis of the unnamed packet  ---
                                                                                click for enlarge
          Atlantic Bird 3 at 5.0 w_panatlantic footprint_3 727 R-spectral analysis-n

                                                        - time of measurement : 13.11.2010 -
                                                             - defining the status of reception -

                              - 3 727 R : Unnamed network_MER=11.9 dB_N.MAR=3.6 dB_bBER=2x10-4 -

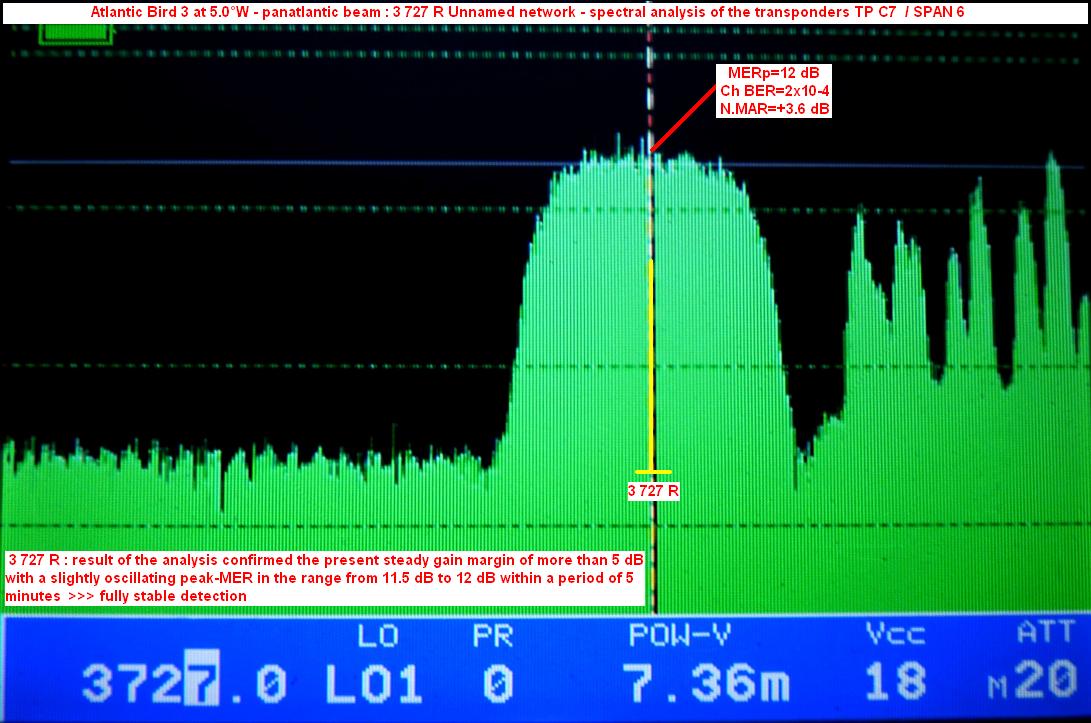

3 727 R : result of the analysis confirmed the present steady gain margin of more than 5 dB with a slightly oscillating pak-MER
in the range from 11.5 dB to 12 dB within a period of 5 min _ fully stable detection

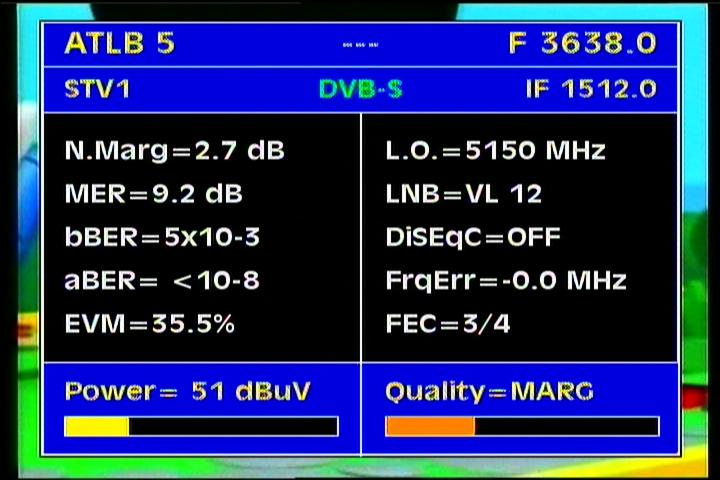

                                Atlantic Bird 3 at 5.0°W - panatlantic footprint : 3 638 R Packet STV
                       VA pids                                                          Q data                                                  NIT data

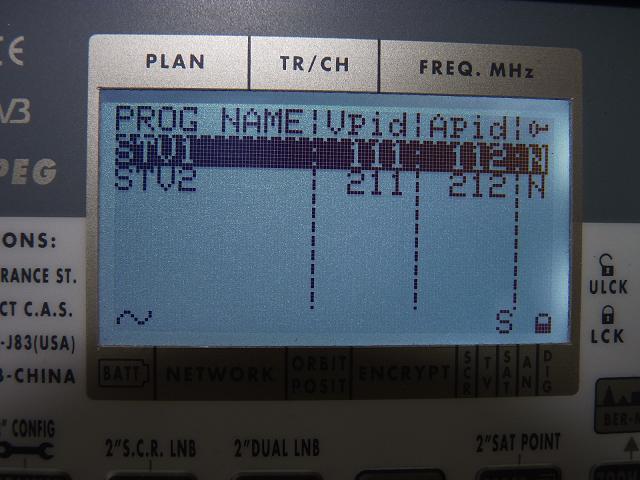

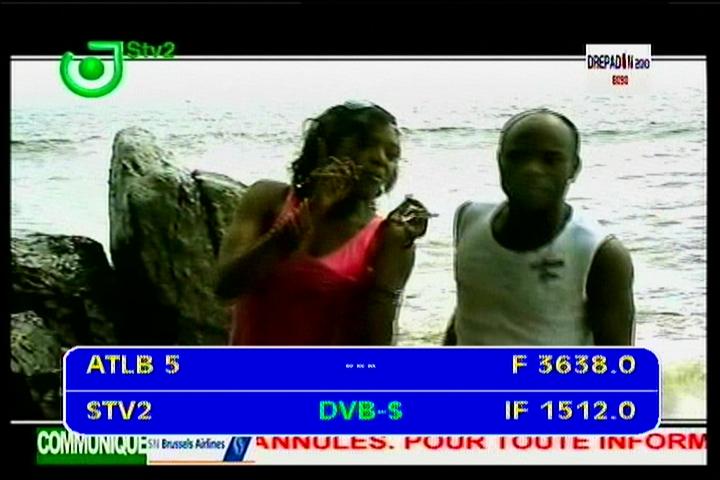

Atlantic Bird 3 at 5.0 w _C band footprint_3 638 R Packet STV_IF dataAtlantic Bird 3 at 5.0 w _C band footprint_3 638 R Packet STV_Q dataAtlantic Bird 3 at 5.0 w _C band footprint_3 638 R Packet STV_NIT data

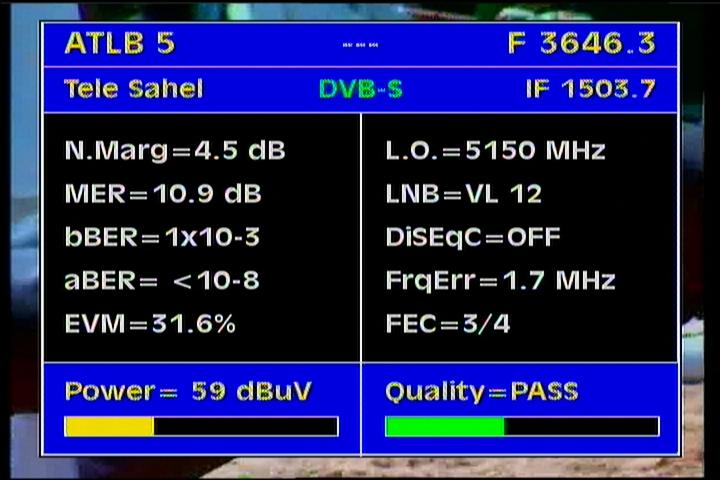

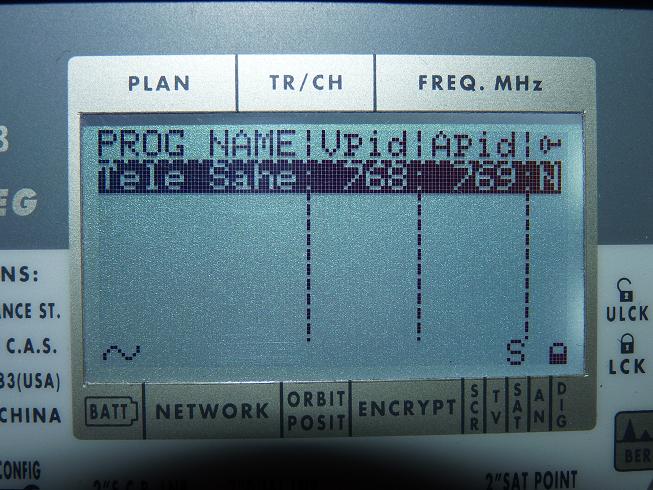

                                   Atlantic Bird 3 at 5.0°W - panatlantic footprint : 3 646 R Télé Sahel
                       VA pids                                                          Q data                                                  NIT data

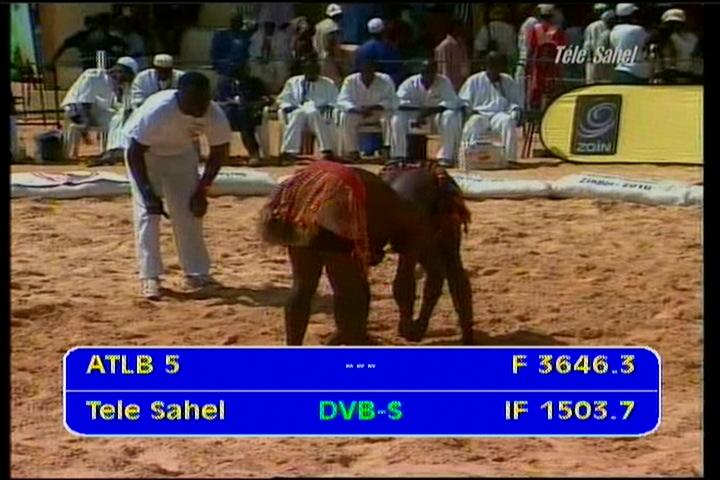

Atlantic Bird 3 at 5.0 w_panatlantic footprint_3 646 R Tele Sahel_IF dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_3 646 R Tele Sahel_Q dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_3 646 R Tele Sahel_NIT data

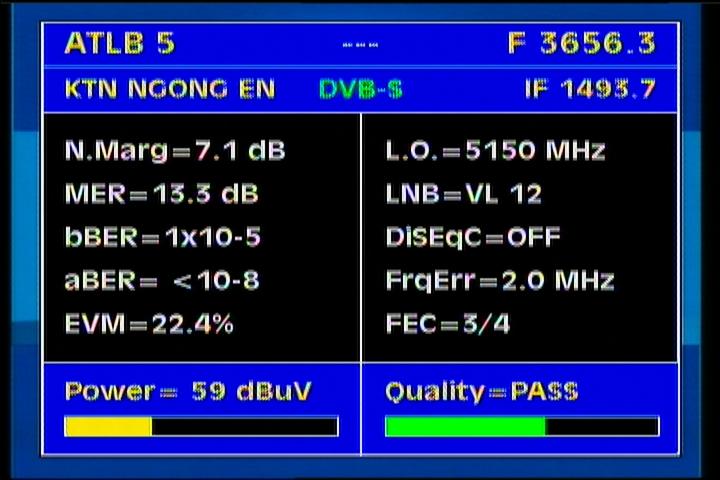

                                     Atlantic Bird 3 at 5.0°W - panatlantic footprint : 3 656 R KTN Kenya
                       VA pids                                                          Q data                                                  NIT data

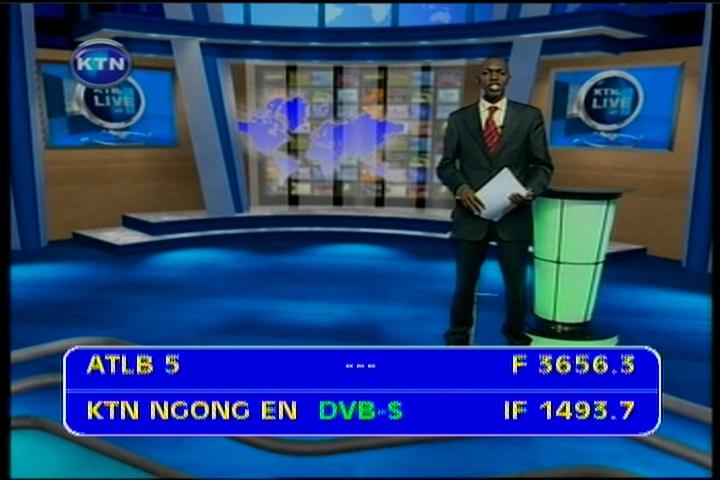

Atlantic Bird 3 at 5.0 w_panatlantic footprint_3 656 R KTN_IF dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_3 656 R KTN_Q dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_3 656 R KTN_NIT data

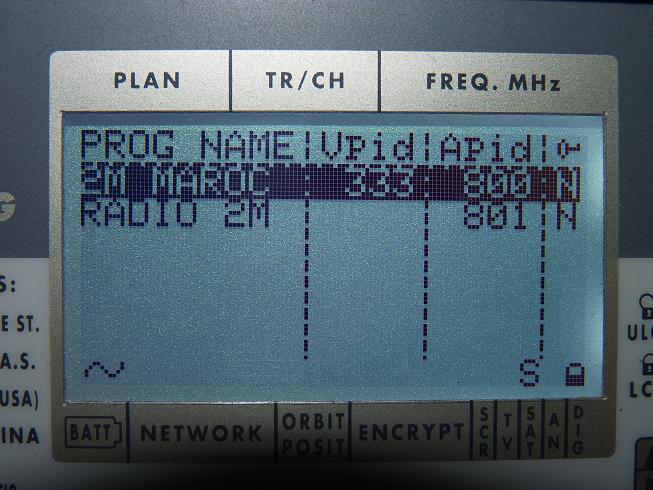

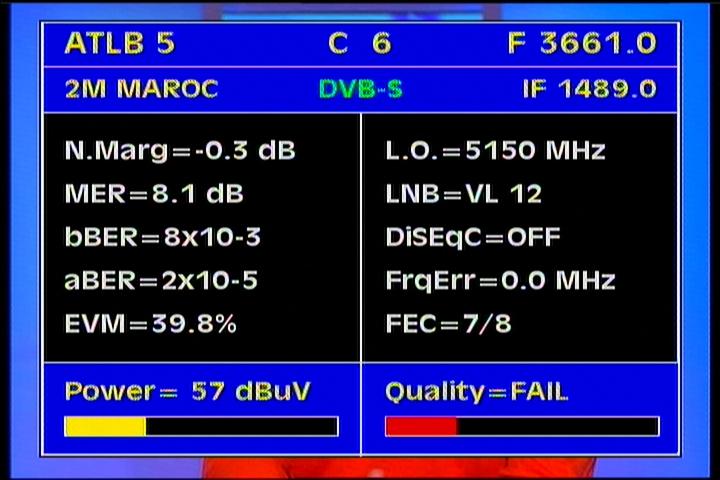

                                Atlantic Bird 3 at 5.0°W - panatlantic footprint : 3 661 R 2M Monde Maroc
                       VA pids                                                          Q data                                                  NIT data

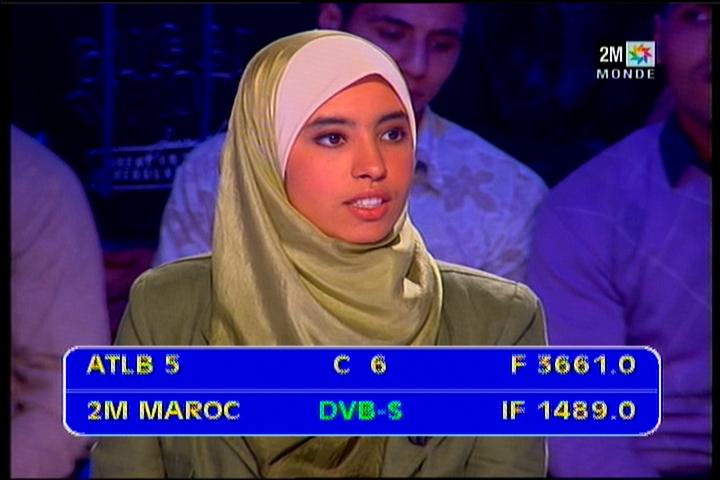

Atlantic Bird 3 at 5.0 w_panatlantic footprint_3 661 R 2M Monde_IF dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_3 661 R 2M Monde_Q dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_3 661 R 2M Monde_NIT data

                                 Atlantic Bird 3 at 5.0°W - panatlantic footprint : 3 712 L CRTV Cameroon
                       VA pids                                                          Q data                                                  NIT data

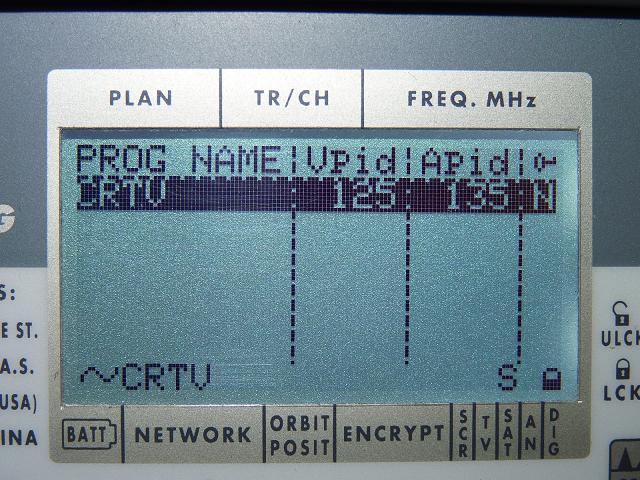

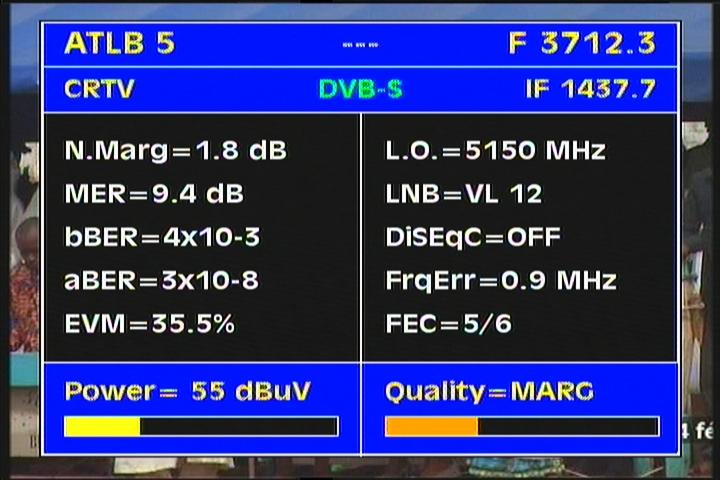

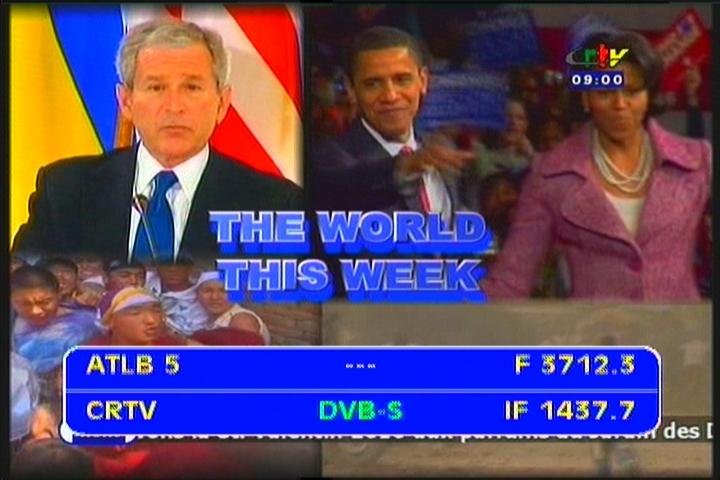

Atlantic Bird 3 at 5.0 w_panatlantic footprint_3 712 L CRTV_IF dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_3 712 L CRTV_Q dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_3 712 L CRTV_NIT data

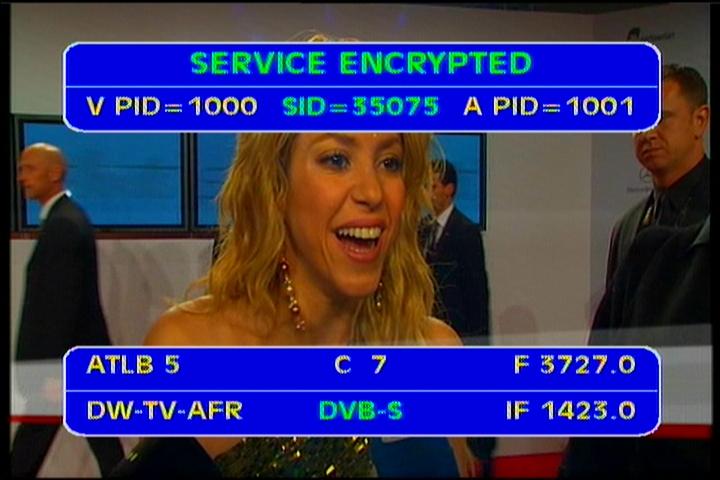

                                  Atlantic Bird 3 at 5.0°W - panatlantic footprint : 3 727 R Unn.Network
                       VA pids                                                          Q data                                                  NIT data

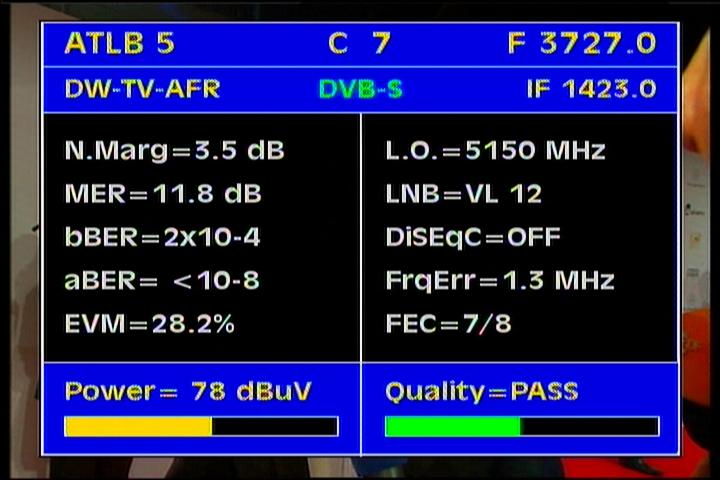

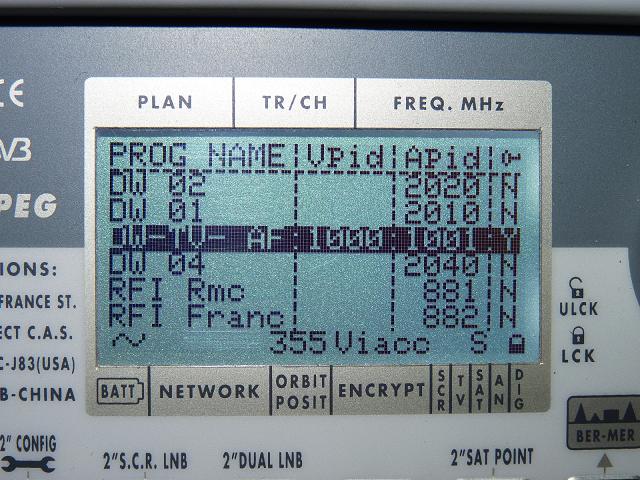

Atlantic Bird 3 at 5.0 w_panatlantic footprint_3 727 R unn netw-IF dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_3 727 R unn netw-Q dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_3 727 R DW Africa_NIT data

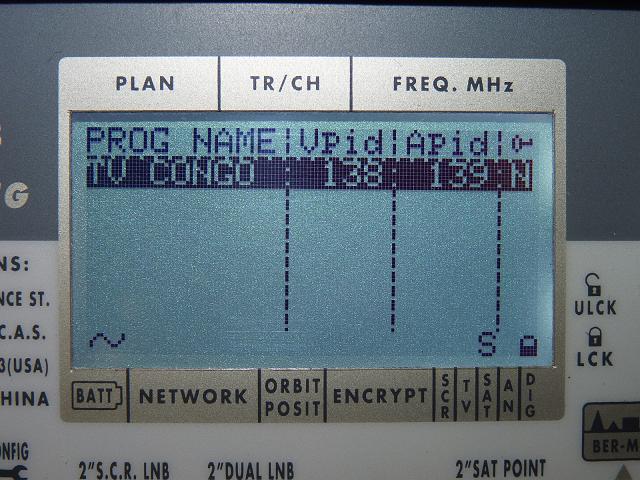

                                      Atlantic Bird 3 at 5.0°W - panatlantic footprint : 4 023 R TV Congo
                       VA pids                                                          Q data                                                  NIT data
Atlantic Bird 3 at 5.0 w_panatlantic footprint_4 023 R TV Congo_IF dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_4 023 R TV Congo_Q dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_4 023 R TV Congo_NIT data

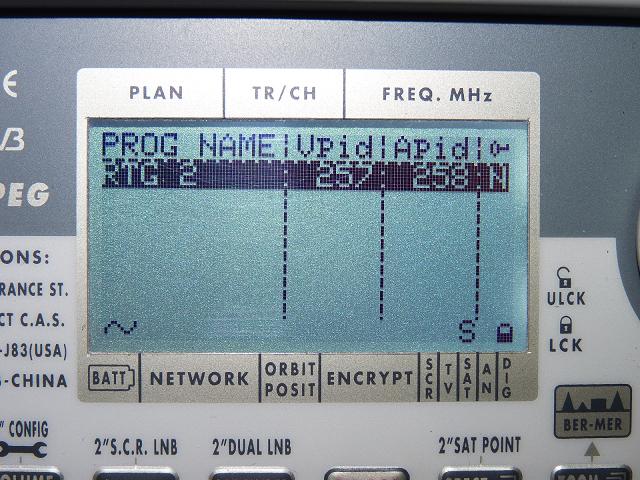

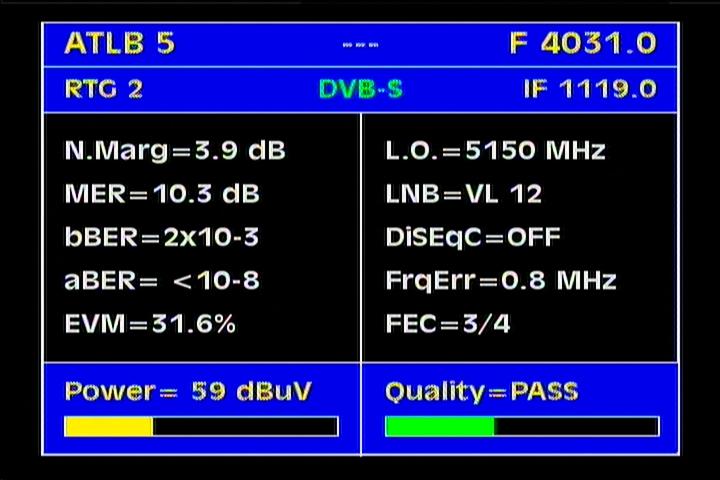

                                   Atlantic Bird 3 at 5.0°W - panatlantic footprint : 4 031 L RTG 2 Gabon
                      VA pids                                                          Q data                                                  NIT data

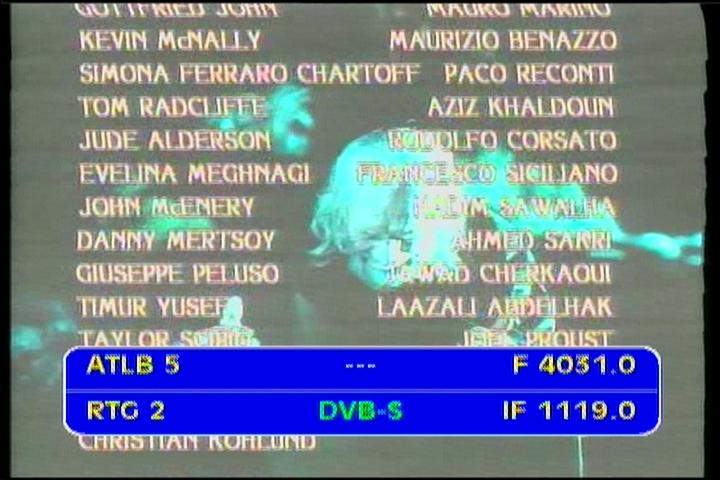

Atlantic Bird 3 at 5.0 w_panatlantic footprint_4 031 L RTG 2_IF dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_4 031 L RTG 2_Q data  Atlantic Bird 3 at 5.0 w_panatlantic footprint_4 031 L RTG 2_NIT data

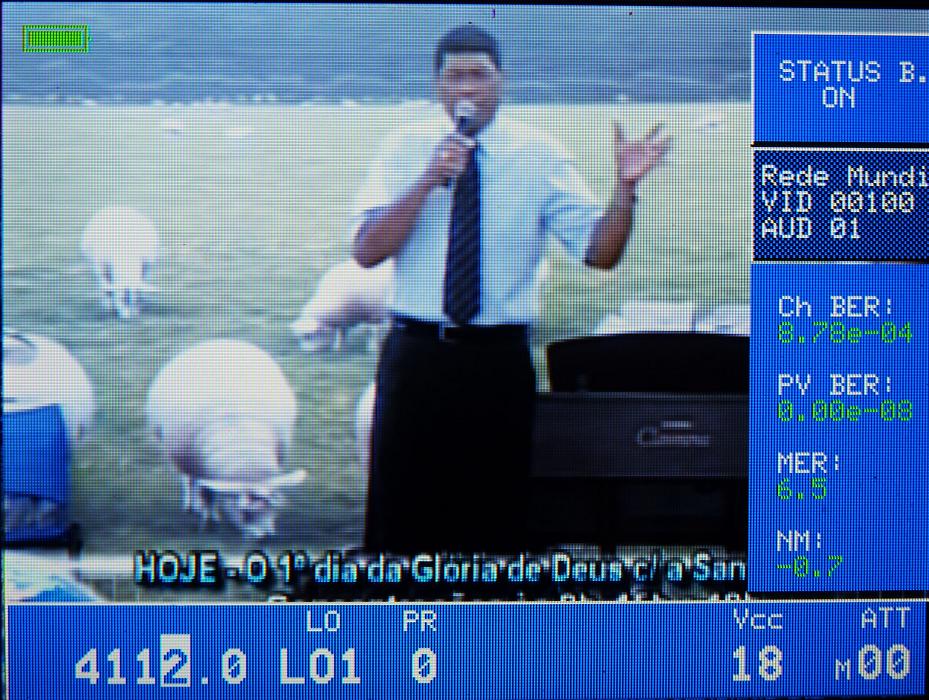

                   Atlantic Bird 3 at 5.0°W - panatlantic footprint : 4 112 L DVB-S2 Rede Mundial International
                       VA pids                                                          Q data                                                  NIT data

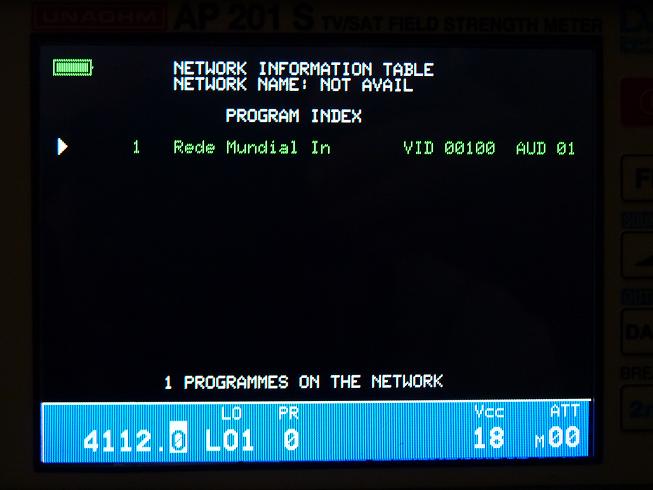

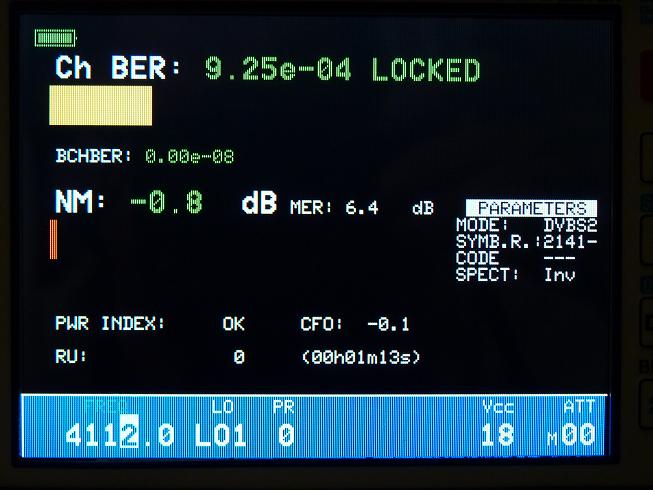

Atlantic Bird 3 at 5.0 w_panatlantic footprint_4 112 L Rede Mundial Brazil_IF dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_4 112 L Rede Mundial Brazil_Q dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_4 112 L Rede Mundial Brazil_NIT data

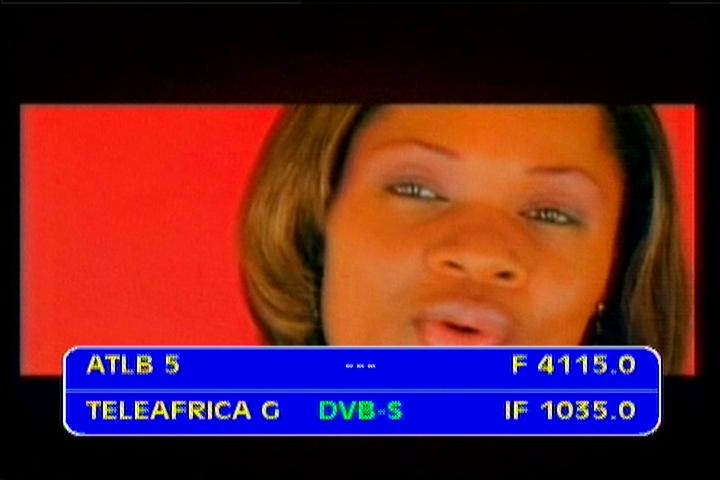

                                Atlantic Bird 3 at 5.0°W - panatlantic footprint : 4 115 L Télé Africa Gabon
                       VA pids                                                          Q data                                                  NIT data

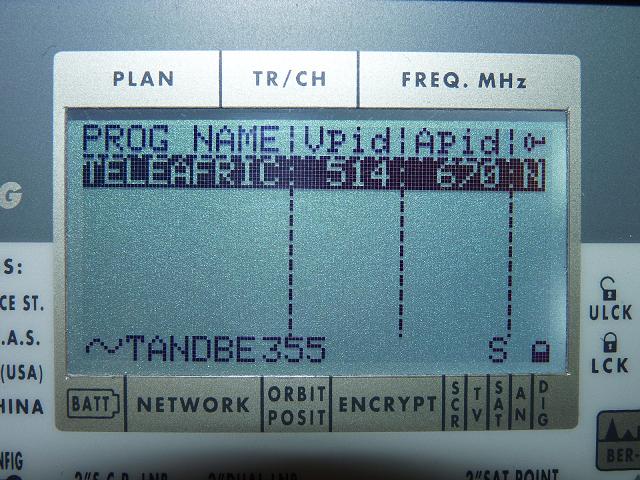

Atlantic Bird 3 at 5.0 w_panatlantic footprint_4 115 L Tele Africa Gabon_IF dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_4 115 L Tele Africa Gabon_Q dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_4 115 L Tele Africa Gabon_NIT data

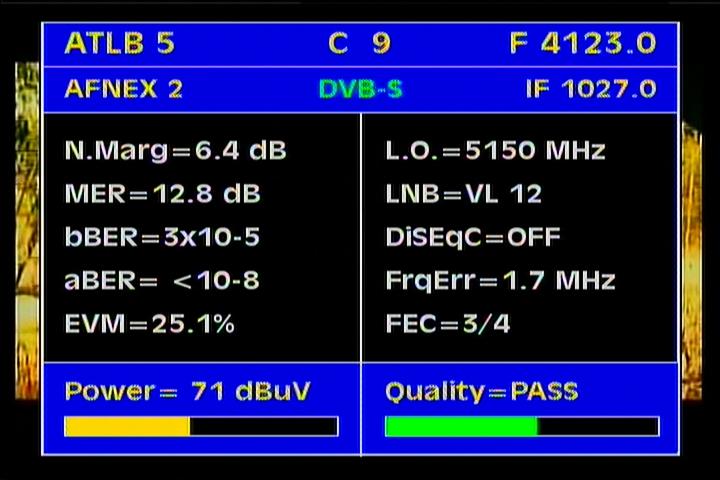

                                  Atlantic Bird 3 at 5.0°W - panatlantic footprint : 4 123 R Packet Afnex
                       IF data                                                         Q data                                                  NIT data

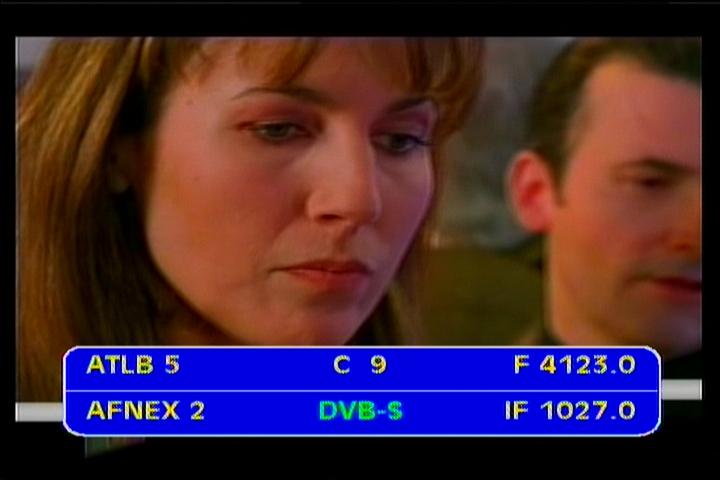

Atlantic Bird 3 at 5.0 w_panatlantic footprint_4 123 R La Chaine 2 plus-IF dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_4 123 R La Chaine 2 plus-Q dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_4 123 R La Chaine 2 plus-NIT data

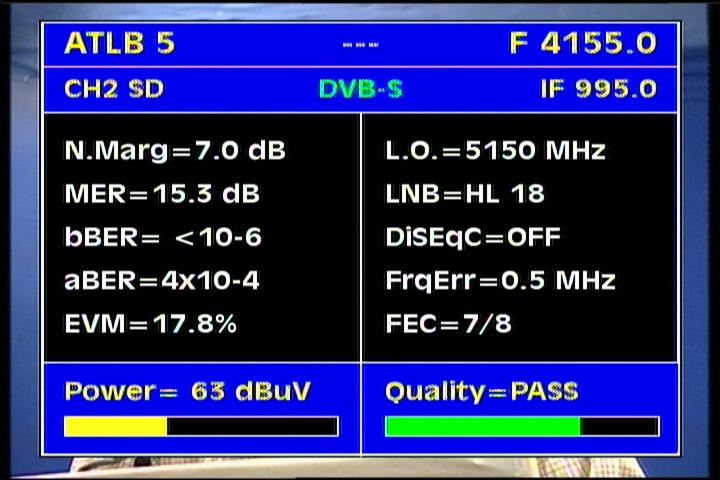

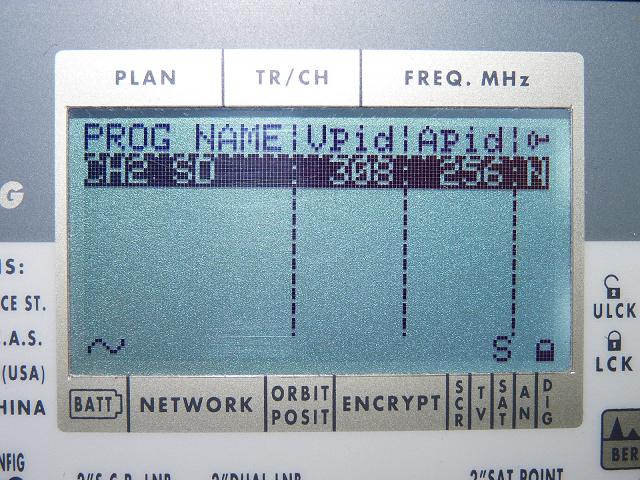

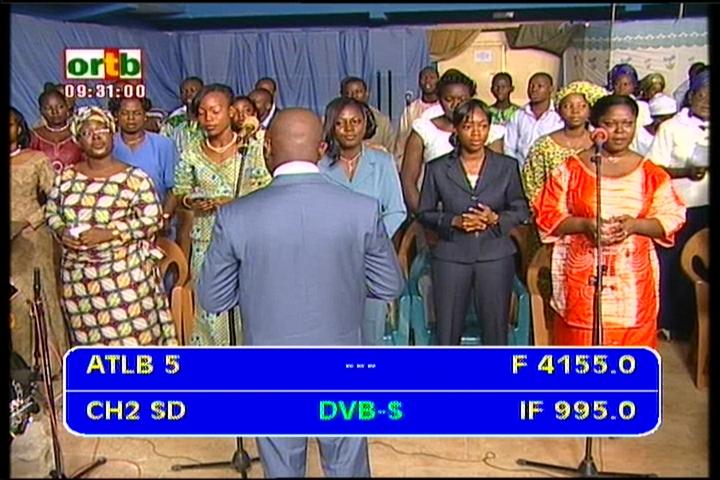

                                   Atlantic Bird 3 at 5.0°W - panatlantic footprint : 4 155 L ORTB Benin
                       VA pids                                                          Q data                                                  NIT data
Atlantic Bird 3 at 5.0 w_panatlantic footprint_4 155 L ORTB_IF dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_4 155 L ORTB_Q dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_4 155 L ORTB_NIT data

                                   Atlantic Bird 3 at 5.0°W - panatlantic footprint : 4 157 R LJBC Network
                       VA pids                                                          Q data                                                  NIT data

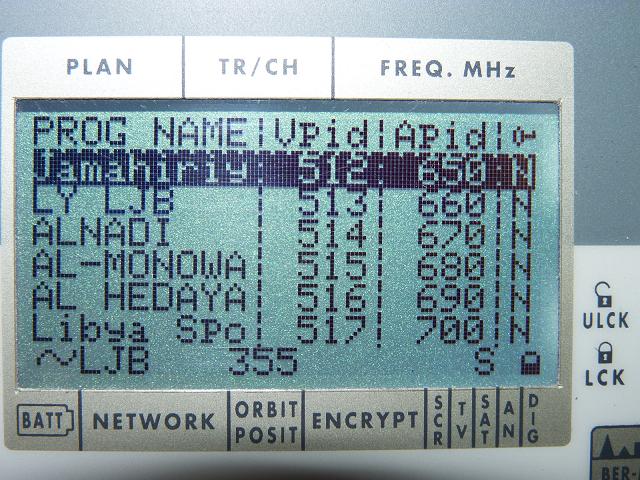

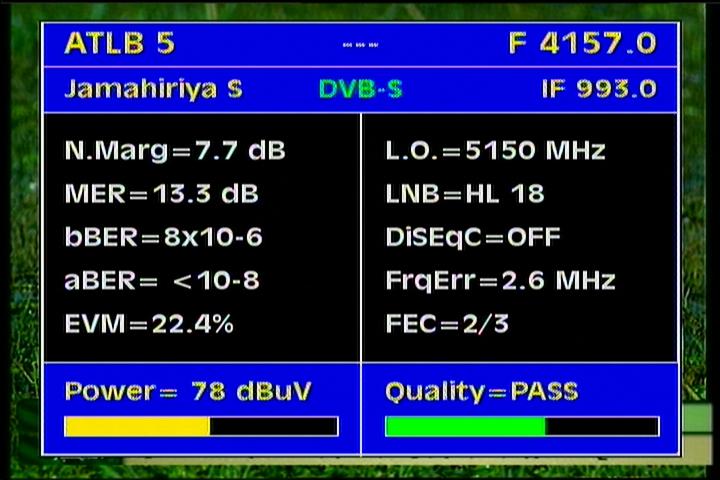

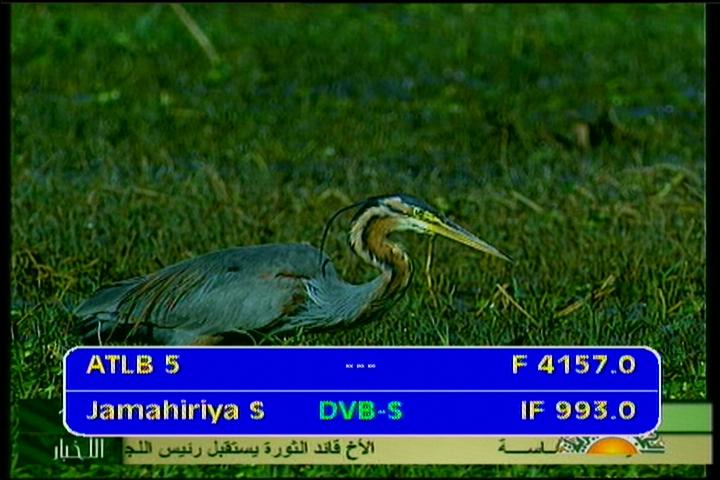

Atlantic Bird 3 at 5.0 w_panatlantic footprint_4 157 R packet LJBC_IF dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_4 157 R packet LJBC_Q dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_4 157 R packet LJBC_NIT data

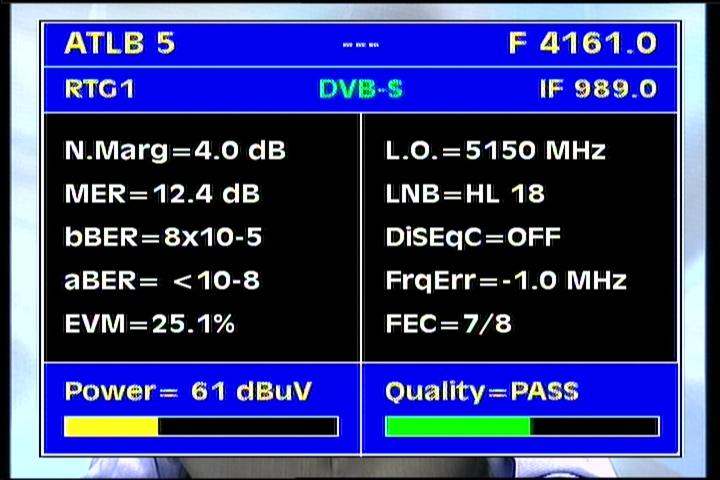

                                    Atlantic Bird 3 at 5.0°W - panatlantic footprint : 4 161 L RTG 1 Gabon
                       VA pids                                                          Q data                                                  NIT data

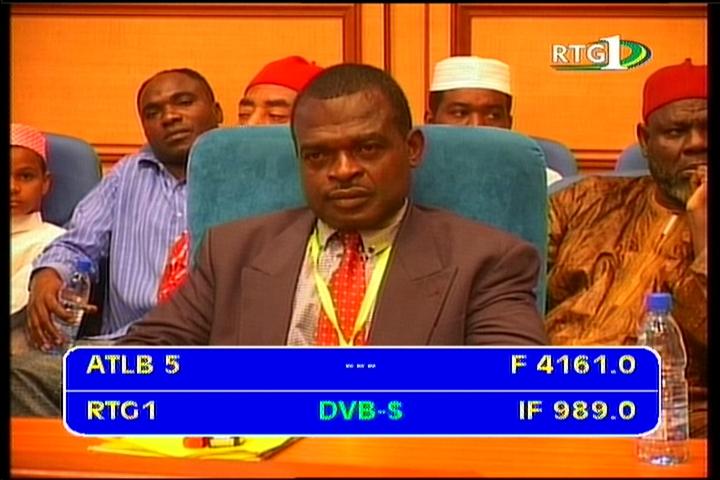

Atlantic Bird 3 at 5.0 w_panatlantic footprint_4 161 L RTG 1 Gabon_IF dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_4 161 L RTG 1 Gabon_Q dataAtlantic Bird 3 at 5.0 w_panatlantic footprint_4 161 L RTG 1 Gabon_NIT data

Atlantic Bird 3 at 5.0°W : TV List

 Atlantic Bird 3 at 5.0 w_panatlantic footprint_PF Prodelin 3.7 m


---Frequency---


----------Provider/Channel----------

---SR--- ---FEC--- ---Footprint--- ---Antenna--- ---Video/Encryption---

3 630 -R- tp C6

 feeds Reversible Mayotte,Reunion ... 3 255 2/3 Panatlantic 140-180+ cm DVB/Biss

3 633 -R- tp C6

 RFO 2 100 5/6 Panatlantic 140-180+ cm DVB-S2/MPEG-4
  Remontee_Guyane / Télé Guyane         Biss

3 638 -R- tp C6

STV Network

 4 074 3/4 Panatlantic 180-220+ cm DVB
  STV 1         FTA
  STV 2  watch video         FTA

3 642 -R- tp C6

 Remontee-Reunion_Télé Reunion  watch video 2 100 5/6 Panatlantic 140-180+ cm DVB-S2/MPEG-4/Biss

3 646 -R- tp C6

 Télé Sahel  2 170 3/4 Panatlantic 140-180+ cm DVB FTA

3 656 -R- tp C6

 KTN NGONG ENC B_KTN Kenya   watch video 2 893 3/4 Panatlantic 140-180+ cm DVB FTA

3 661 -R- tp C6

 2M MAROC  watch video watch videos 2 170 7/8 Panatlantic 240+ cm DVB FTA

3 712 -L- tp C2

 CRTV    watch video  watch videos 2 785 5/6 Panatlantic 140+ cm DVB FTA

3 727 -R- tp C7

 unn.service 29 950 7/8 Panatlantic 180+ cm DVB
  feeds RFO / DOM1         Biss
  Télé Guyane / DOM2         Biss
  France O / DOM3         Biss
  feeds RFO / DOM4         Biss
  Télé Réunion / DOM5         Biss
  Télé Mayotte / DOM6         Biss
  RFO Tempo / DOM7         Biss
  feeds RFO Tempo ... / DOM8         Biss
  CFI Pro Afrique         Viaccess 2.6
  feeds CFI ... / DOM8         -
  CFI Pro Amérique         Viaccess 2.6
  Deutsche Welle Africa   watch video         FTA

4 023 -R- tp C8

 TV Congo   watch video 2 018 7/8 Panatlantic 140+ cm DVB FTA

4 030 -L- tp C3

RTG 2 Gabon  - no signal

 1 654 3/4 Panatlantic 140+ cm DVB FTA

4 112 -L- tp C4

Rede Mundial Internacional Brazil watch video

 2 141 5/6 Panatlantic 300+ cm DVB-S2/MPEG-2/FTA

4 115 -L- tp C4

Télé Africa G   watch video  watch video

 2 143 5/6 Panatlantic 120-140+ cm DVB FTA

4 116 -R- tp C9

Canal 2 Cameroon

 1 598 3/4 Panatlantic 140+ cm DVB-S2/8PSK
  Canal 2         MPEG-4 / FTA
  Canal 2 Infos         MPEG-4 / FTA

4 123 -R- tp C9

 Afnex Africa 8 319 3/9 Panatlantic 140+ cm DVB
  AFNEX 1 feed / test card         Biss
  AFNEX 2 / LC2 La Chaine plus   watch video         Viaccess 2.5

4 154 -L- tp C5

 No Name / ORTB   watch video 2 289 7/8 Panatlantic 140+ cm DVB FTA

4 158 -L- tp C5

feeds SCOPUS-NET-TECH Benin watch video

 1 793 3/4 Panatlantic 180+ cm DVB-S / feeds

4 158 -R- tp C10

 LJBC Libya 20 327 2/3 Panatlantic 140+ cm DVB
  Jamahiriya Sat         FTA
  LY LJB         FTA
  Watani Alkabeer         FTA
  Al Jamahiriya 2         FTA
  Al Hedaya         FTA
  ALNADI / Libya sports 2   watch videos         FTA
  Al Malouma         FTA
  Al Badeel         FTA

4 161 -L-tp C5

RTG 1 Gabon  watch video     watch video		 1 944 7/8 Panatlantic 140+ cm DVB FTA

4 163 -L-tp C5

Africa N°1 Gabon / radio network

 1 500 3/4 Panatlantic 140+ cm DVB FTA

4 169 -L-tp C5

RIT TV

 2 222 5/6 Panatlantic 140+ cm DVB-S2/8PSK/MPEG-4



Atlantic Bird 3 at 5.0°W : relative Q

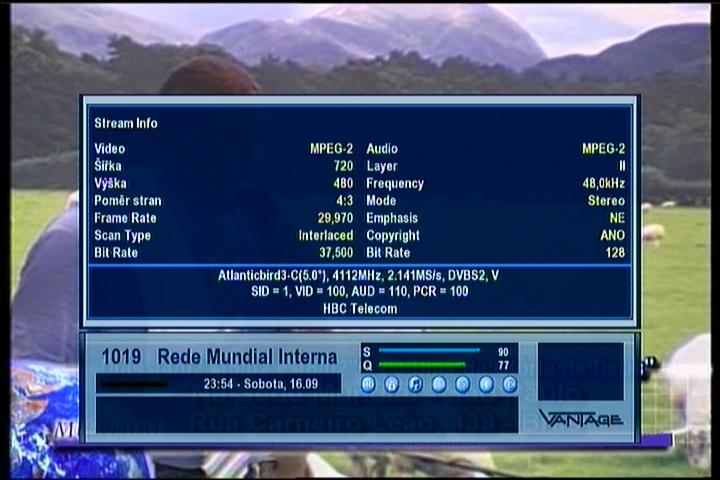

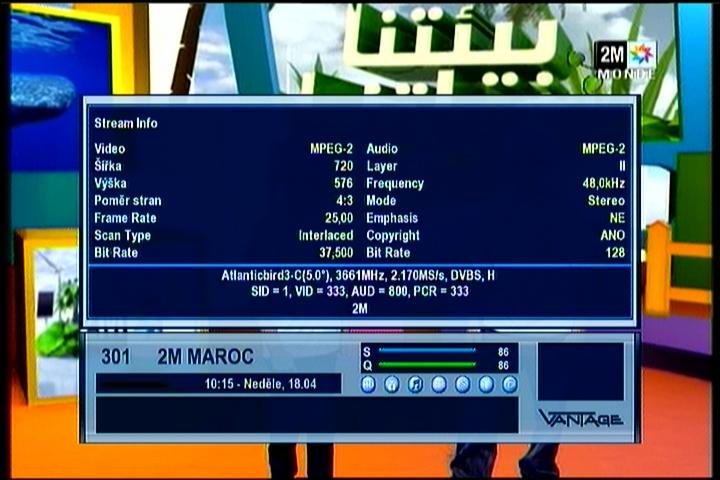

relative Q 02relative q 01relative q 02

Atlantic Bird 3 at 5.0°W : video presentations

  Go to Video Section
Video button

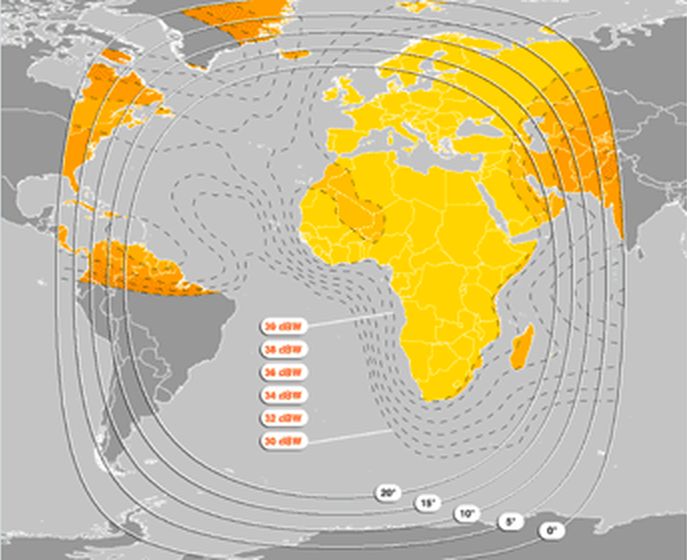

Atlantic Bird 3 at 5.0°W footprint : Panatlantic

                                 atlantic bird 3 footprint

                     Atlantic Bird 3 at 5.0 w_panatlantic footprint

Atlantic Bird 3 at 5.0°W : snapshots

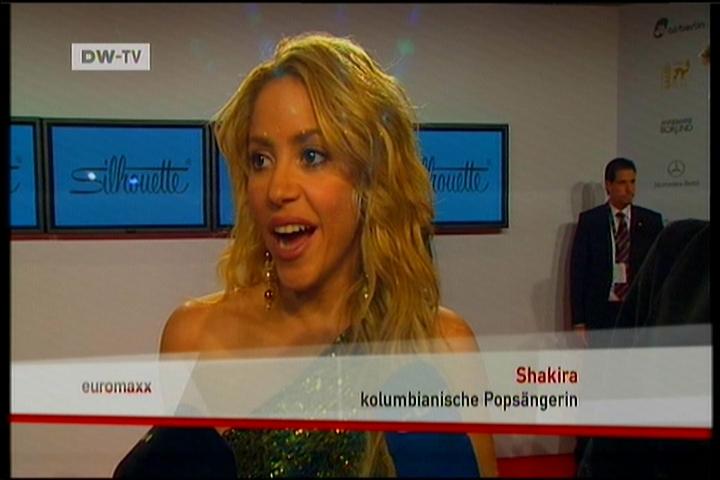

2M Monde 03DW TV Africa 04KTN Kenya 02
