►►Eutelsat 7A at 7°E-KA band reception : orbital location , coverage , polarisation , transponders ...
HDTV Satellite reception in KA band : 21 465.75 MHz : DVB-S2-8PSK CCTV Africa HD Nairobi-Kenya / Stream Traffic V=8.8 Mbit/s
last update : 4.3.2013
Eutelsat 7A ex. W3A : orbital location , coverage , polarisation , transponders , frequency plan
Eutelsat 7A ex. W3A : orbital location , coverage , polarisation , transponders , frequency plan

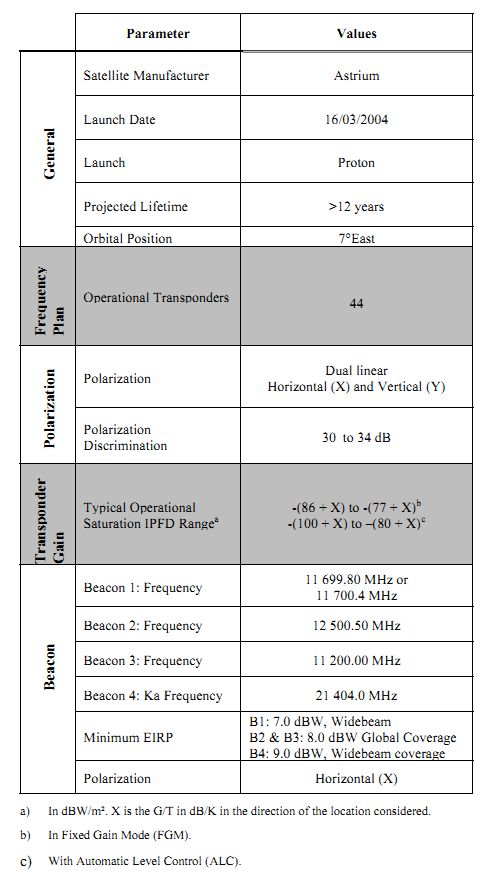

7A - datasheet
source : Eutelsat communications
►►Eutelsat 7A at 7°E-KA band reception : the HF string , footprint , geographical location ...
| geographical location of the measurement in the KA band | N48°19719' , E19°40148' , Lučenec,Slovak republic |
| secondary radiant -D- | 300 cm |
| HF system | original proposal for linear vectors |

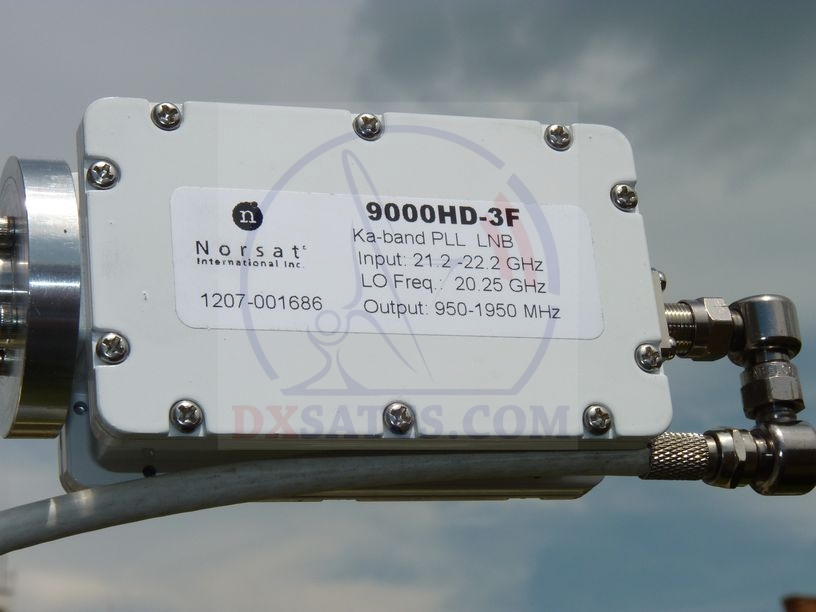

| LNB for KA band nr.1 | PLL Norsat 9000 HD-3F,L.O.stability +/- 60 kHz,NF=1,6 dB,range 21 200-22 200 MHz |
| Analyzed frequency spectrum + polarisation | 21 400-21 700 MHz / linear V+H |
| Field strenght meters | Televes H60 Advanced , Rover DM16 4HD Digimax , TBS 5925 , Unaohm AP 201 S+ |

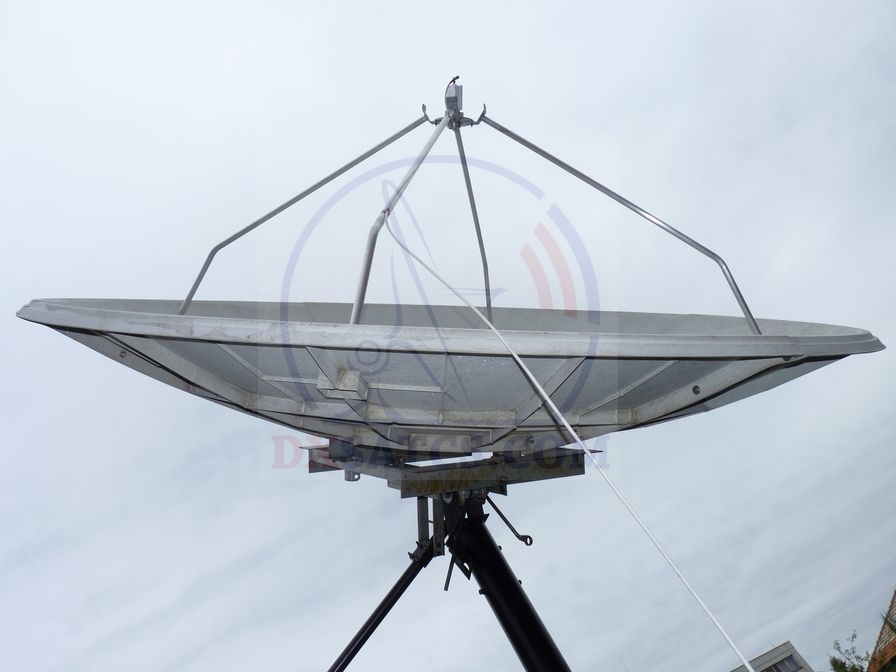

secondary radiant original proposal for the H/V vectors KA band LNB PLL Norsat 9000 HD-3F
Europe C downlink coverage_KA band Downlink coverage-South Africa geographical location of the measurement
►►Eutelsat 7A at 7°E-reception and measurement in the KA band: analysis of the spectrum and the quality
►The complete range of the -H- vector in the KA band from 21 400 to 21 700 MHz : quantification of vertical carrier spectrum
21 465.75 MHz→21 475 MHz→21 493.5 MHz→21 501.5 MHz→21 511.5 MHz→21 563.2 MHz→21 565.2 MHz→21 574 MHz→
21 580.8 MHz→21 601.9 MHz→21 605.4 MHz→21 641.7 MHz
►Quality analysis for the carrier in the -H- frequency spectrum from 21 400 to 21 700 MHz

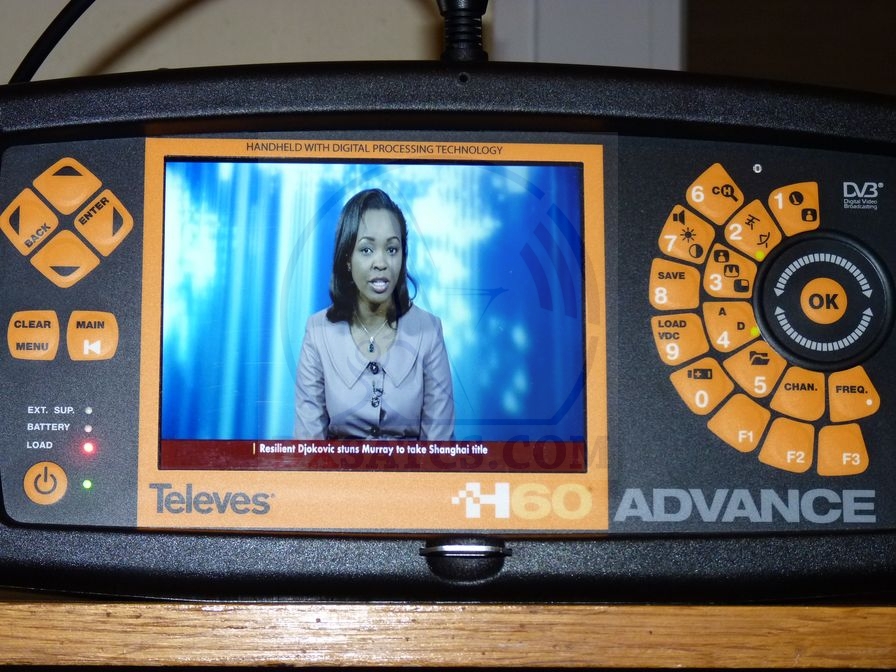

21 465.75 MHz : DVB-S2-8PSK-HDTV CCTV Africa / regular broadcasts in the range 1-3 hours a day

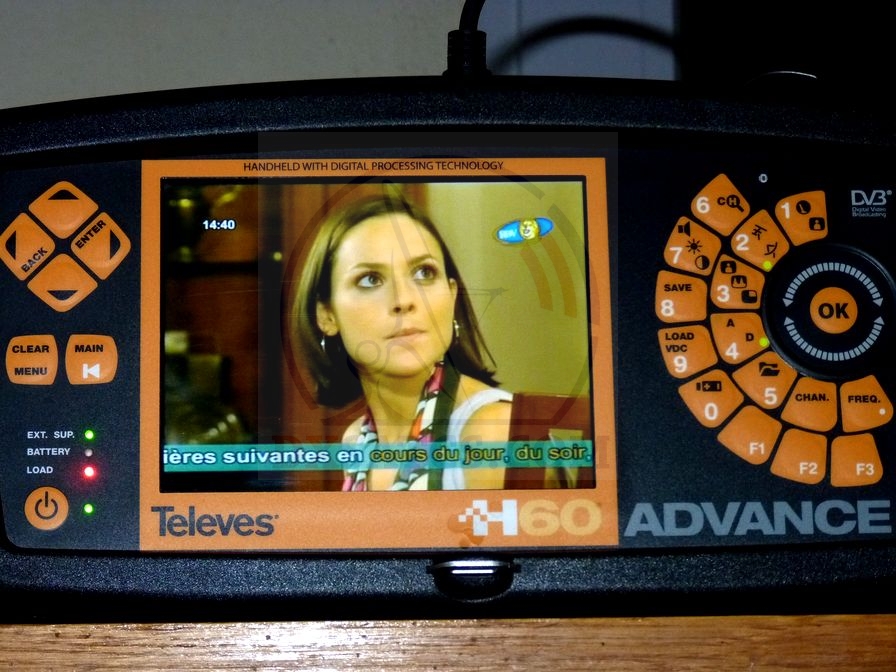

Televes H60 Advanced
weather conditions in the analysis-10.2.2013 : heavy snowfall
21 465.75 MHz : DVB-S2-8PSK-HDTV CCTV Africa / regular broadcasts in the range 1-3 hours a day
USB DVB-S2 TV Tuner TBS 5925
weather conditions in the analysis-10.2.2013 : heavy snowfall
21 475 MHz : DVB-S-QPSK Megawatt Park / LIVE feed from Lilonqwe-Malawi
21 493.5 MHz : DVB-S-QPSK Telemedia-VITO 3:2 FEED / occasional broadcasts over the FEEDS line
!!! ideal status of quality in KA band_operators of equivalence: bBER⇔CBER⇔Pre-Viterbi BER <1Ex10-6 or 1*10-6 !!!
21 493.5 MHz : DVB-S-QPSK Vcs Voyager 2 FEED / occasional broadcasts over the FEEDS line
21 501.5 MHz : DVB-S-QPSK TPA Angola / regular broadcast_TS-V=2.5 Mbps , 4:3
21 511.5 MHz : DVB-S-QPSK TELEMEDIA T12 / KA band feeds
21 511.5 MHz : DVB-S-QPSK ANG-4 Encoder 1 / KA band feeds

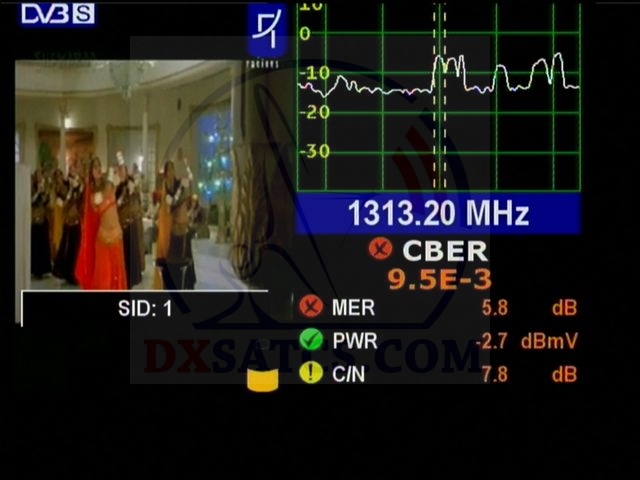

21 563.2 MHz : DVB-S-QPSK 2Si Racines Senegal / regular broadcast_TS-V=2.2 Mbps , 4:3

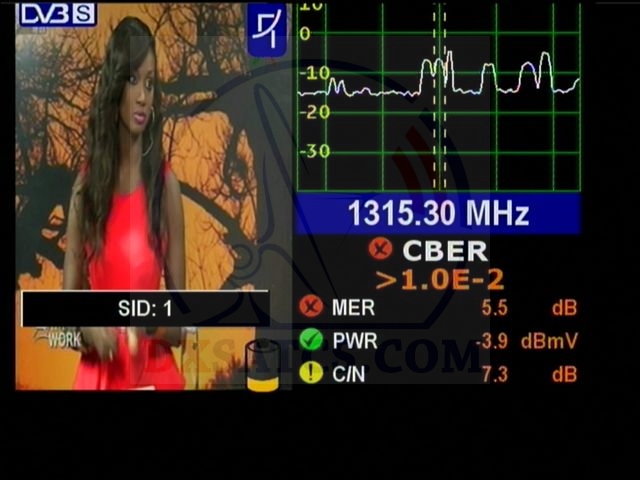

21 565.3 MHz : DVB-S-QPSK 2S TV Senegal / regular broadcast_TS-V=2.2 Mbps , 4:3
21 574 MHz : DVB-S-QPSK RDV EXCAF Senegal / regular broadcast_TS-V=1.7 Mbps , 4:3
21 580.8 MHz : DVB-S-QPSK tvge Equatorial Guinea / regular broadcast_TS-V=2.8 Mbps , 4:3

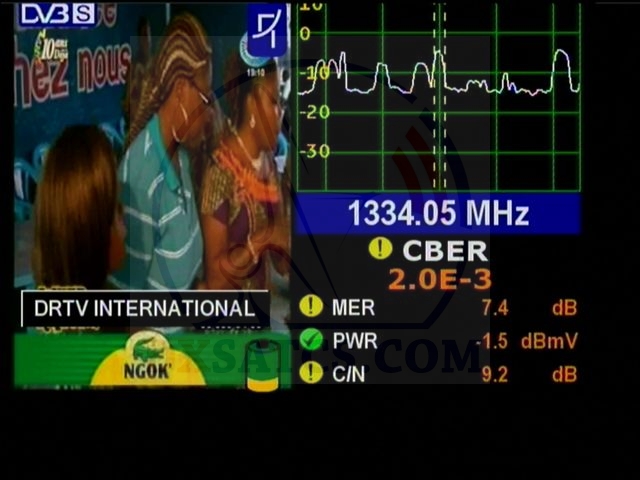

21 583.9 MHz : DVB-S-QPSK DRTV International Congo / regular broadcast_TS-V=1.4 Mbps , 4:3

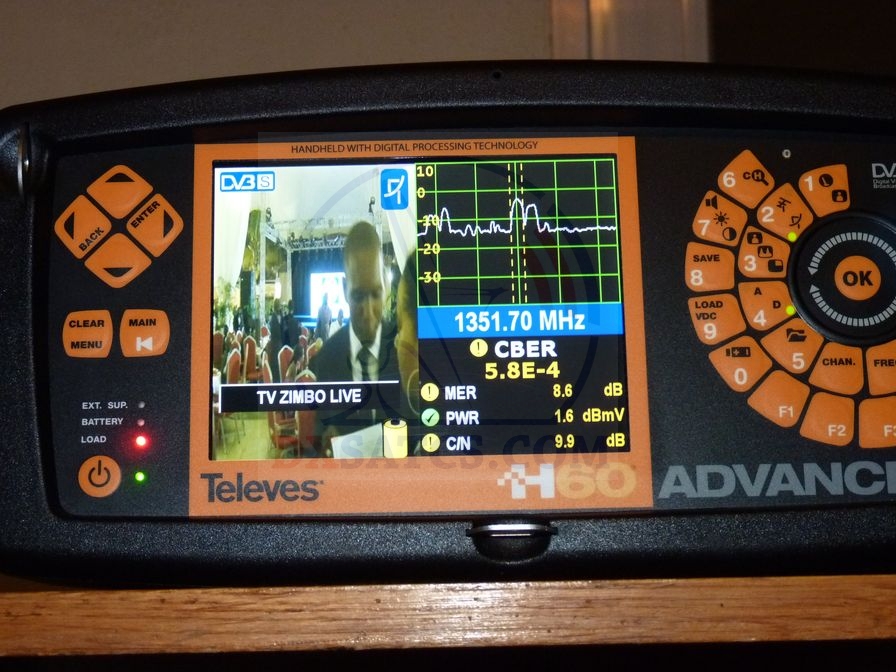

21 601.9 MHz : DVB-S-QPSK feed TV ZIMBO Live feed / often used transmission line
21 605.4 MHz : DVB-S-QPSK Zimbo TV Angola-ANG-4_ENC1 / regular broadcast
21 611.7 MHz : DVB-S2-8PSK-MPEG-4 feed SATNET-SID-1 / occasional broadcasts over the FEEDS line
21 641.7 MHz : DVB-S-QPSK Data stream / BW=1.35 MHz
►►Eutelsat 7A at 7°E-reception and measurement in the KA band: list of identified carrier
.
-Frequency/Polarisation
|
----------Provider/Channel----------
|
---SR--- | ---FEC--- | ---Footprint--- | ---Antenna--- | ---DVB/Encryption--- |
| 21 465.75 MHz-H.pol BW=8.67 MHz |
CCTV Africa Nairobi-Kenya |
6 435 Pilots ON |
2/3 | Europe C | 60+ cm depending on the location |
DVB-S2-8PSK-MPEG-4 HDTV-1920x1080-FTA |
|
21 475 MHz-H.pol BW=8.25 MHz |
Megawatt Park |
6 111 | 3/4 | Europe C | 60+ cm depending on the location |
DVB-S-QPSK-FTA |
| 21 493.5 MHz-H.pol BW=8.25 MHz |
Telemedia/Vito 3:2 Vcs Voyager 2 |
6 111 | 3/4 | Europe C | 60+ cm depending on the location |
DVB-S-QPSK-Biss-FTA |
| 21 501.5 MHz-H.pol BW=3.30 MHz |
TPA Angola |
2 442 | 2/3 | Europe C | 60+ cm depending on the location |
DVB-S-QPSK-FTA |
|
21 511.5 MHz-H.pol BW=8.25 MHz |
TELEMEDIA T12 ... ANG-4 Encoder 1_Zimbo tv test |
6 111 | 3/4 | Europe C | 60+ cm depending on the location |
DVB-S-QPSK-Biss-FTA |
|
21 563.2 MHz-H.pol BW=2.12 MHz |
2Si Racines Senegal |
1 571 | 7/8 | Europe C | 60+ cm depending on the location |
DVB-S-QPSK-FTA |
| 21 565.3 MHz-H.pol BW=2.12 MHz |
2S TV Senegal |
1 571 | 7/8 | Europe C | 60 + cm depending on the location |
DVB-S-QPSK-FTA |
| 21 574.0 MHz-H.pol BW=2.51 MHz |
RDV EXCAF Senegal |
1 860 | 7/8 | Europe C | 60+ cm depending on the location |
DVB-S-QPSK-FTA |
| 21 580.8 MHz-H.pol BW=3.35 MHz |
TVGE Internacional |
2 480 | 7/8 | Europe C | 60+ cm depending on the location |
DVB-S-QPSK-FTA |
| 21 583.9 MHz-H.pol BW=2.09 MHz |
DRTV International Congo |
1 549 | 7/8 | Europe C | 60+ cm depending on the location |
DVB-S-QPSK-FTA |
|
21 601.9 MHz-H.pol |
Zimbo TV |
2 480 | 3/4 | Europe C | 60+ cm depending on the location |
DVB-S-QPSK-FTA |
| 21 605.4 MHz-H.pol. BW=3.35 MHz |
Zimbo TV |
2 480 | 7/8 | Europe C | 60+ cm depending on the location |
DVB-S-QPSK-FTA |
|
21 611.7 MHz-H.pol BW=3.24 MHz |
SATNET-SID:1 |
2 400 Pilots OFF |
5/6 | Europe C | 60+ cm depending on the location |
DVB-S2-8PSK-MPEG-4 SDTV-720x576-FTA |
| 21 641.7 MHz-H.pol BW=1.35 MHz |
Data stream |
999 | 3/4 | Europe C | 60+ cm depending on the location |
DVB-S-QPSK-Data |
.
►►Eutelsat 7A at 7°E-KA band reception : video presentation of the results of the reception in the KA band
.
⇒ FIRST LIVE FEED BROADCAST in KA band_21 601.9 MHz TV ZIMBO LIVE - Angola _ the first video recording of a live transmission
from South Africa
⇒21 465.75 MHz_Hpol.-DVB-S2-8PSK CCTV Africa SAT and daily broadcasts from Nairobi city in length from 2 to 3 hours
CCTV service provider
⇒ Satellite-reception-in-ka-band-Eutelsat-7a-7-east-KA-band-Europe-C-footprint-21 501.5 MHz-H.pol- TPA Angola-regular broadcast
►►Eutelsat 7A at 7°E-KA band reception : footage from the broadcast
21 601.9 MHz Zimbo tv feed 21 465.75 MHz HDTV CCTV Africa 21 501.5 MHz TPA Angola
21 475 MHz : feed Megawatt park 21 611.7 MHz : feed Satnet-SID 1 21 605.4 MHz : Zimbo TV
21 465.75 MHz HDTV CCTV Africa 21 465.75 MHz HDTV CCTV Africa 21 465.75 MHz HDTV CCTV Africa
21 580.8 MHz-TVGE Internacional 21 574 MHz-RDV EXCAF Senegal 21 501.5 MHz-TPA Angola
