Eutelsat W5 at 70.5°E
Eutelsat W5 at 70.5°E : Technical data
Satellite : Eutelsat W5 - Orbit : 70.5°E - TP : 24 KU - Lifetime: from 20.11.2002 - 12 years
Update - Eutelsat W5 at 70.5°E - Wide beam : C_MER/Ch BER diagnostics of TP C1 & TP C3

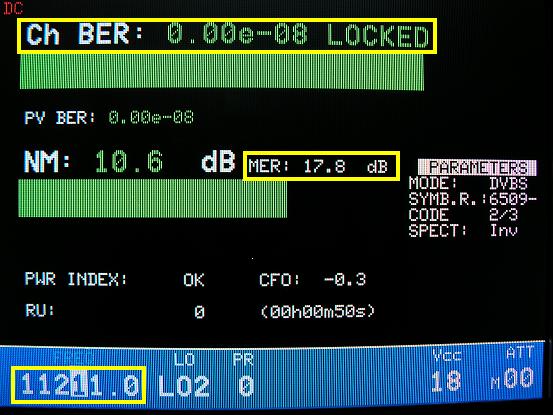

Eutelsat W5 at 70.5°E - Wide beam : 11 211 H Stellar DBS Network _ MER=17,8 dB _ Ch BER=0.00

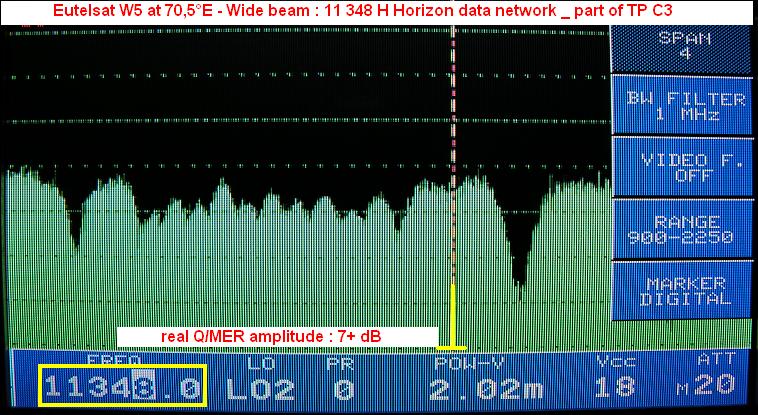

Eutelsat W5 at 70.5°E - Wide beam : 11 348 H Horizon data service _ MER=13,1 dB _ Ch BER=1.29e-06
Eutelsat W5 at 70.5°E : TV List
-Frequency-
|
----------Provider/Channel----------
|
---SR--- | ---FEC--- | ---Footprint--- | ---Antenna--- | ---DVB/Encryption--- |
|

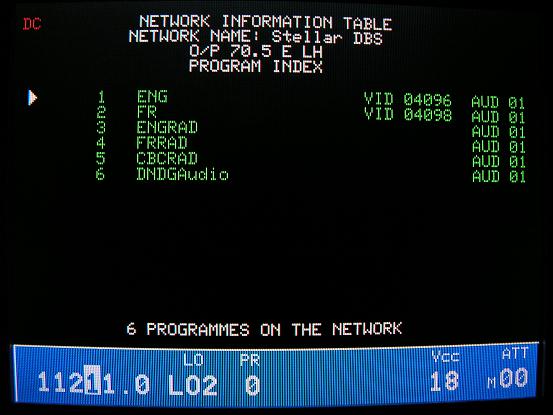

11 211 -H- tp C1 |
Stellar DBS | 6 509 | 2/3 | Wide | 80+ cm | DVB |
| ENG / CFRT | Irdeto 1 | |||||
| FR / RTFC | Irdeto 1 | |||||
| 11 348 -H- tp C3 |
Horizon data service |
5 926 | 3/4 | Wide | 80-120+ cm | data |
Eutelsat W5 at 70.5°E : Percent quality
Eutelsat W5 at 70.5°E : Video presentation
Go to Video section :
Eutelsat W5 at 70.5°E : Update prepared
CZECH & SLOVAK SATELLITE DX CLUB / http://dxsatcs.com/
SATELLITE ENGINEERING C & KU band
Roman Dávid - author http://dxsatcs.com/
town : Lučenec , Slovak Republic,East Europe
mail : roman.david@dxsatcs.com

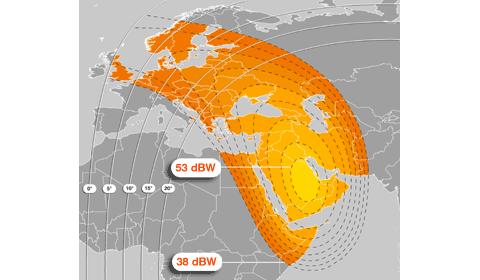

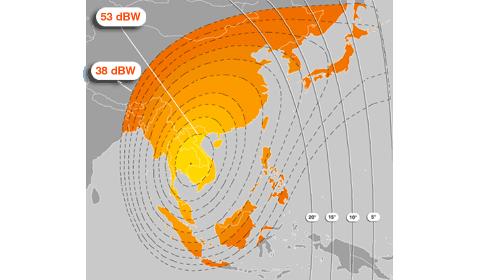

Eutelsat W5 at 70.5°E footprint : WIDE/STEERABLE Asia & Middle East
