Express AM44 at 11.0°W

Express AM44 at 11.0°W : Technical data

.

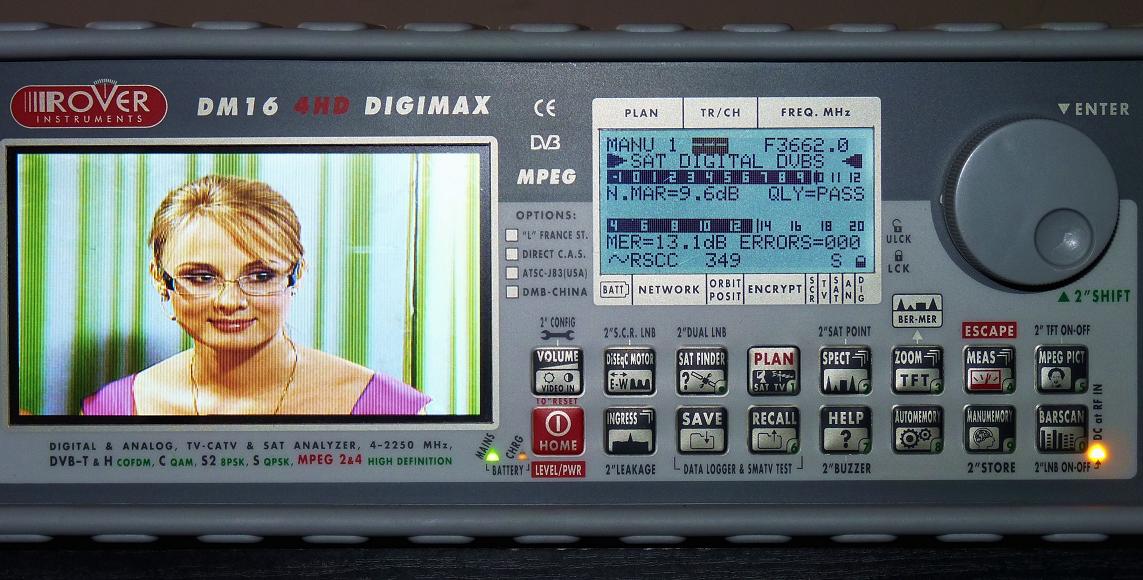

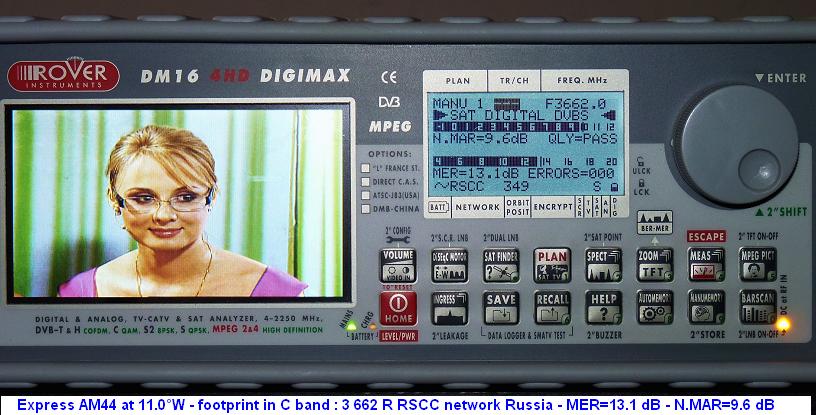

                                --- Express AM44 at 11.0°W : 3 662 R RSCC Russia / MERp=13.3 dB ---
                                                                                click for enlarge

    satellite : Express AM44 _ orbit : 11.0°W _ date of launch : 11.2.2009 _ lifetime : 12 years _ TP 10/40 MHz_16/54 MHz

Express AM44 at 11.0°W - global footprint : spectral analysis & measurement results

.
            Express AM44 at 11.0°W - global footprint : measurements at the center Lučenec_central Slovakia
                                              geographical location : Latitude: 48.33° _   Longitude: 19.72°
                             measurement results are derived from the 3.7 m diameter antenna
                                                                 date of measurement : 14.11.2010
                                                                     elevation angle : 27.0°
.
     Express AM44 footprint : global         Express AM44 : installed system    Express AM44 : research point
Africa,ME,Europe,part of N America+Asia Prodelin 3.7 m,LNB Norsat 8215                48.33° _ 19.72°

                --- Express AM44 at 11.0°W-Global beam : 3 663 R / TP 6 - spectral analysis of the RSCC packet ---
                                                                             click for enlarge

                                                                   - time of measurement : 14.11.2010 -
                                                         - defining the status of reception -

                         - Express AM44 at 11.0°W : 3 663 R RSCC network -

- high quality of reception I can derive from the measured error rate bBER=< 10-5, which is the value of the FEC 1/2
and MER=13+ dB high gain margin of about 11 dB ...

                                Express AM44 at 11.0°W - global footprint : 3 662 R RSCC Network Russia
                          VA pids                                                     Q data         NIT data

Express AM44 at 11.0°W - global footprint : 4 106 R CRBC Nigeria
VA pids Q data NIT data

Express AM44 at 11.0°W : TV list

-Frequency-	----------Provider/Channel----------	---SR---	---FEC---	---Footprint---	---Antenna---	---DVB/Encryption---
3 662 -R- tp 6	RSCC Network	10 808	1/2	Global C	120-140+ cm	DVB-S/MPEG-2
	1TV Rus zapad _ Perviy kanal USA					FTA
	RTR Planeta					FTA
4 106-R- tp 17	CRBC Nigeria	1 488	7/8	Steerable	180+ cm	DVB-S/FTA

Express AM44 at 11.0°W : relative Q

Express AM44 at 11.0°W : video presentation

Go to video section :

Express AM44 at 11.0°W : update drawn up
