Insat 4B at 93.5°E packet SUN Direct DTH quality

Insat 4B at 93.5° E-Indian footprint-SUN Direct DTH : high f. unit,footprint,measuring point

.

  Insat 4B at 93.5°E - Indian footprint : measurements taken in the town of Lučenec / central Slovakia
                                     geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                 measurement results are derived from the 3.7 m diameter antenna
                                                          date of measurement : 22.5.2010
                                                                     elevation angle : 2.0°

                                             Insat 4B at 93.5°E : theoretically defined footprint
    Insat 4B at 93.5 E_indian footprint_source antrix india_n
.
               High Frequency Unit                                 theoretical footprint                               point measurements

                 PF Prodelin 3.7 m                                      coverage area                           all research and measurements
 dxsatcs waveguide line+Norsat 4206 CF_Asia , Middle East , Africa , Europe             I carried out at this point
Insat 4B at 93.5 e_Indian footprint_sun direct_PF Prodelin 3.7 mInsat 4B at 93.5 E_indian footprint_source antrix indiaInsat 4B at 93.5 e_indian footprint_sun direct_reception point at lucenec slovakia

.

Insat 4B at 93.5° E-Indian footprint-SUN Direct : LIVE qualitative status at the measurement point

.
.
                Insat 4B at 93.5°E - Indian footprint in KU band : 11 030 V Packet SUN Direct DTH India

              > exceptional quality in the Central European context of reception in elevation angle only 2° <

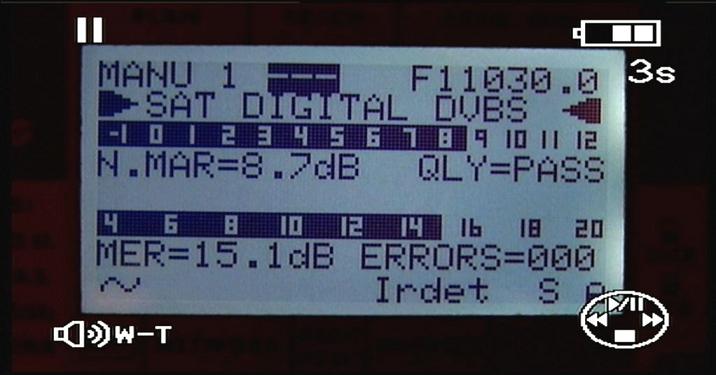

           >  MER=15.1 dB _ N.MAR=+8.7 dB _ Ch BER/bBER=<10-6 _ instantaneous gain margin=10+ dB <
Insat 4B at 93.5 E_indian footprint_11 030 V Packet SUN Direc_Ch BER zero n
.
> exceptional qualitative status on the frequency f = 11 030 MHz : I measured the exceptional qualitative status in
    central european scale with a level of ZERO for bBER=<10-6 - lasted about twenty seconds !
.
.
>  immediate or "LIVE" changes in the quality of reception for -V- frequencies : 11 675,11 530,11 110,11 030 MHz

.
                SUN Direct : 11 030 V _ 1:27                                       SUN Direct : 11 110 V  _ 1:27

.

                 SUN Direct : 11 675 V  _ 1:08                                       SUN Direct : 11 530 V  _ 1:36

.

Insat 4B at 93.5° E - SUN Direct DTH : average gain level in the period from 3 to 5 min.

.

                           Insat 4B at 93.5°E - Indian footprint in KU band : 11 030 V SUN Direct DTH India

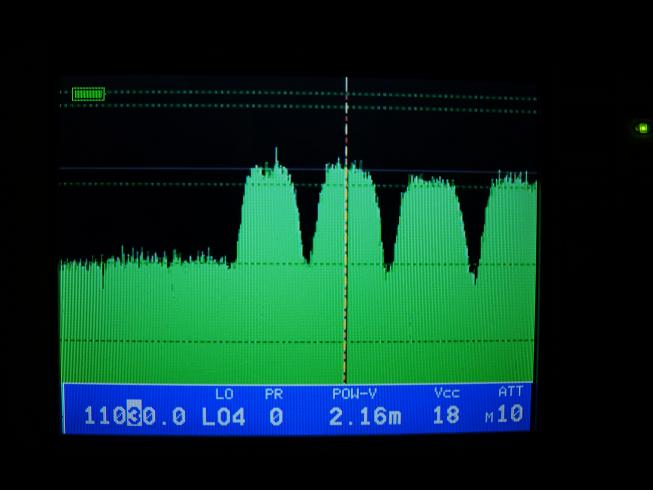

       SUN Direct : spectral analysis                 SUN Direct : quality analysis                  SUN Direct : relative quality
Insat 4B at 93.5 E_indian footprint_11 030 V Packet SUN Direct_quality analysis_01Insat 4B at 93.5 E_indian footprint_11 030 V Packet SUN Direct_quality analysis_02Insat 4B at 93.5 E_indian footprint_11 030 V Packet SUN Direct_quality analysis_03

                               Insat 4B at 93.5°E - Indian footprint in KU band : 11 110 V SUN Direct DTH India

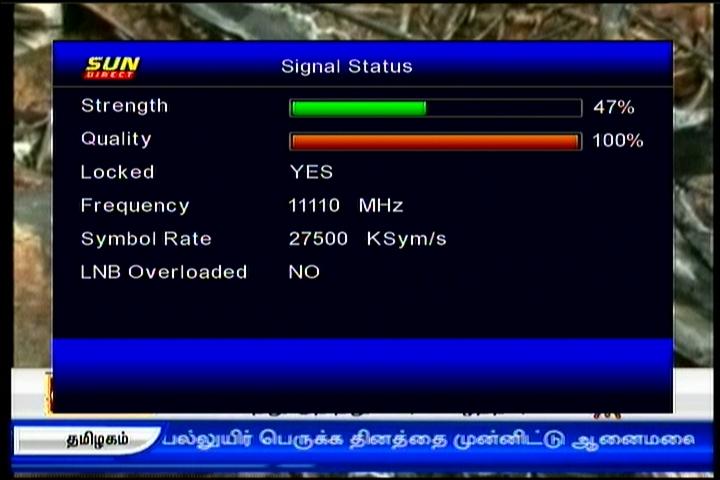

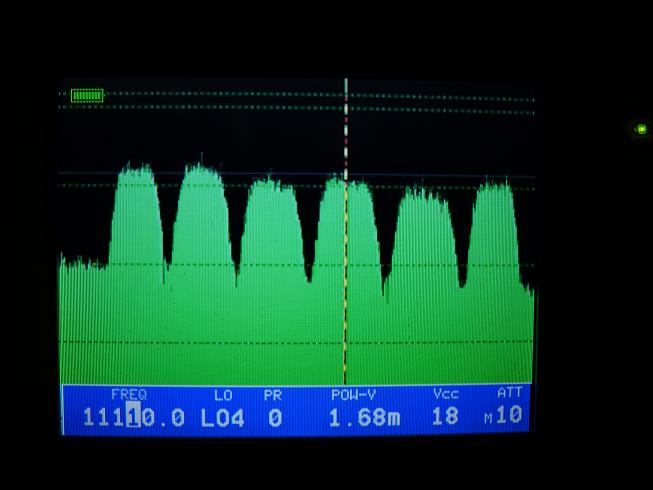

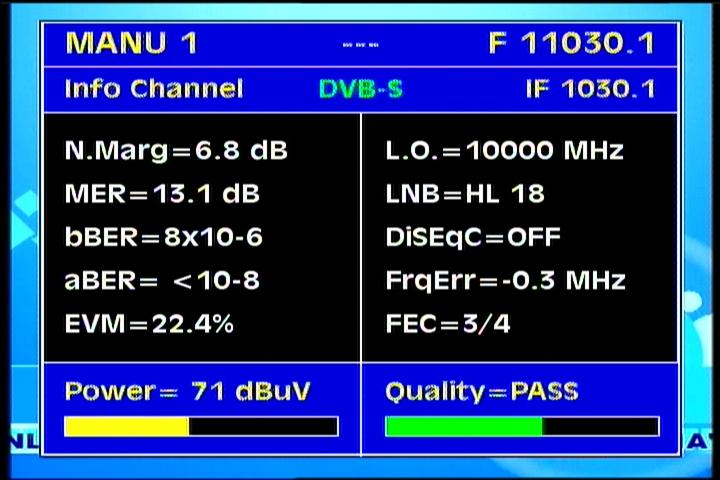

       SUN Direct : spectral analysis                 SUN Direct : quality analysis                  SUN Direct : relative quality
Insat 4B at 93.5 E_indian footprint_11 110 V Packet SUN Direct_quality analysis_01Insat 4B at 93.5 E_indian footprint_11 110 V Packet SUN Direct_quality analysis_02Insat 4B at 93.5 E_indian footprint_11 110 V Packet SUN Direct_quality analysis_03

                            Insat 4B at 93.5°E - Indian footprint in KU band : 11 185 V SUN Direct DTH India

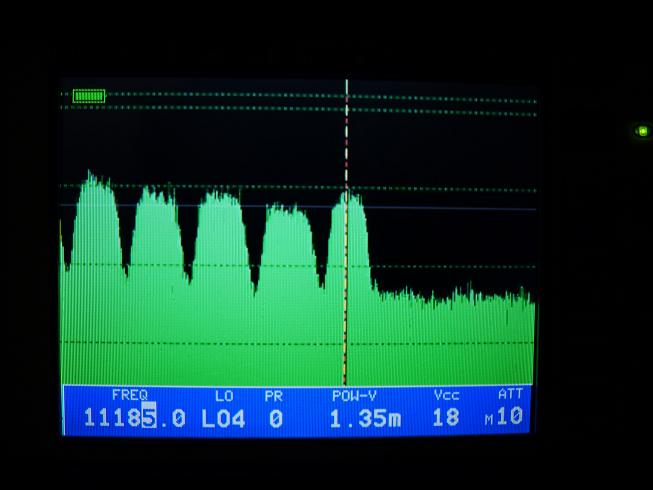

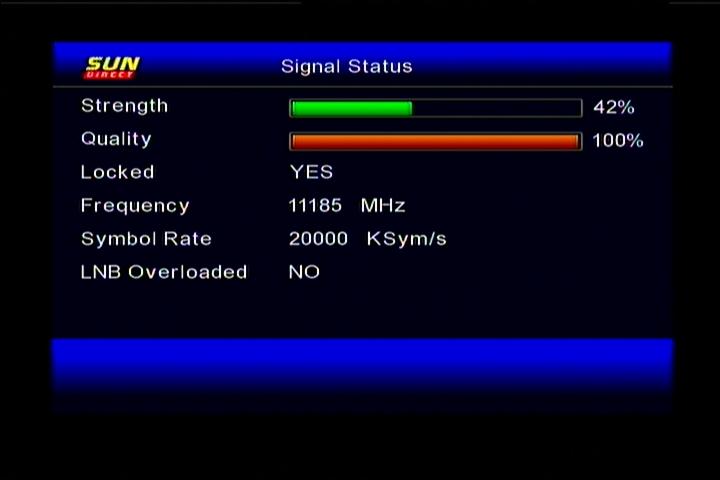

       SUN Direct : spectral analysis                 SUN Direct : quality analysis                  SUN Direct : relative quality
Insat 4B at 93.5 E_indian footprint_11 185 V Packet SUN Direct_quality analysis_01Insat 4B at 93.5 E_indian footprint_11 185 V Packet SUN Direct_quality analysis_02Insat 4B at 93.5 E_indian footprint_11 185 V Packet SUN Direct_quality analysis_03

                            Insat 4B at 93.5°E - Indian footprint in KU band : 11 530 V SUN Direct DTH India

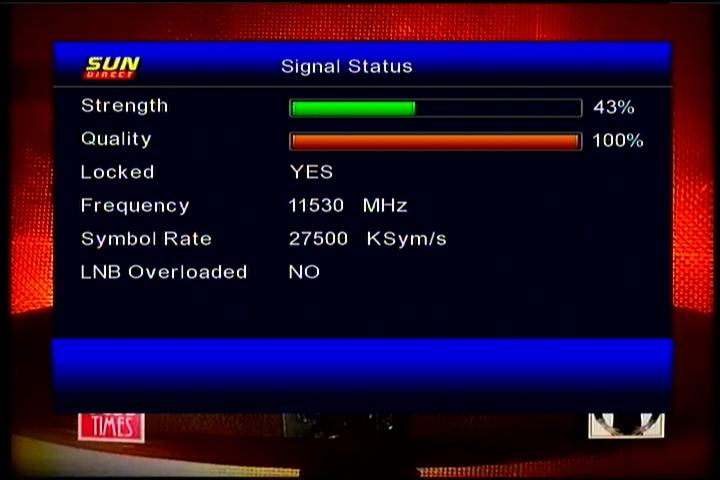

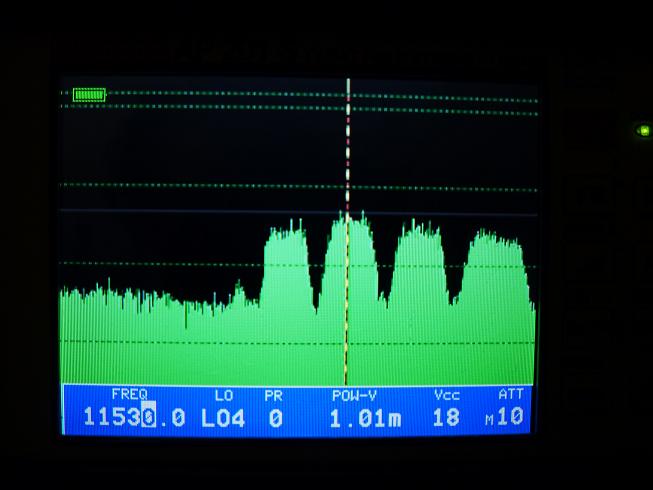

       SUN Direct : spectral analysis                 SUN Direct : quality analysis                  SUN Direct : relative quality
Insat 4B at 93.5 E_indian footprint_11 530 V Packet SUN Direct_quality analysis_01Insat 4B at 93.5 E_indian footprint_11 530 V Packet SUN Direct_quality analysis_02Insat 4B at 93.5 E_indian footprint_11 530 V Packet SUN Direct_quality analysis_03

                           Insat 4B at 93.5°E - Indian footprint in KU band : 11 610 V SUN Direct DTH India

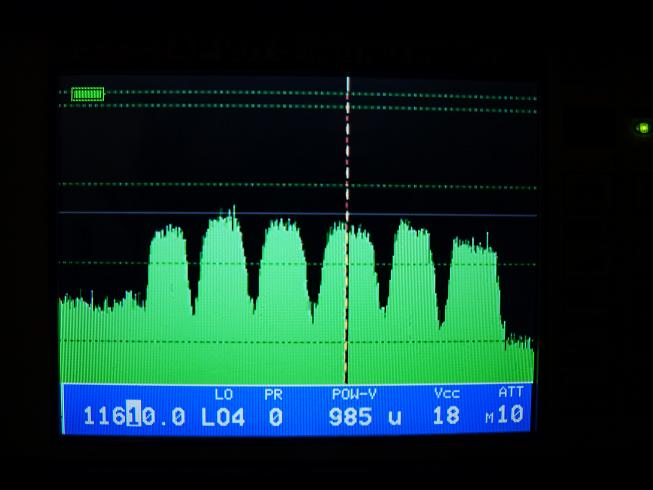

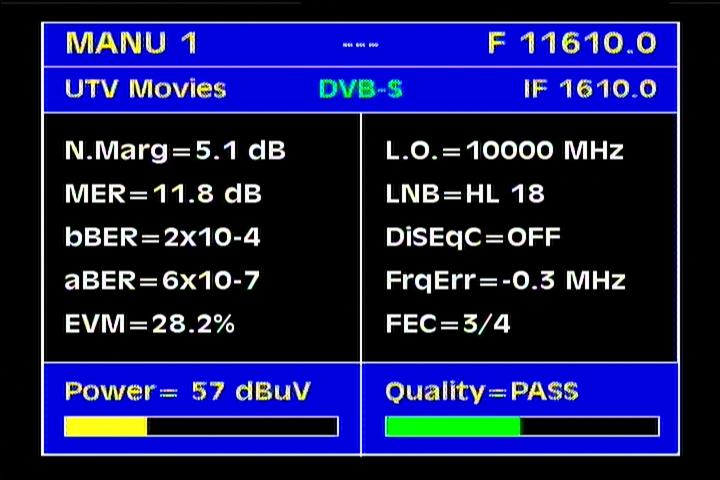

       SUN Direct : spectral analysis                 SUN Direct : quality analysis                  SUN Direct : relative quality
Insat 4B at 93.5 E_indian footprint_11 610 V Packet SUN Direct_quality analysis_01Insat 4B at 93.5 E_indian footprint_11 610 V Packet SUN Direct_quality analysis_02Insat 4B at 93.5 E_indian footprint_11 610 V Packet SUN Direct_quality analysis_03

                             Insat 4B at 93.5°E - Indian footprint in KU band : 11 645 V SUN Direct DTH India

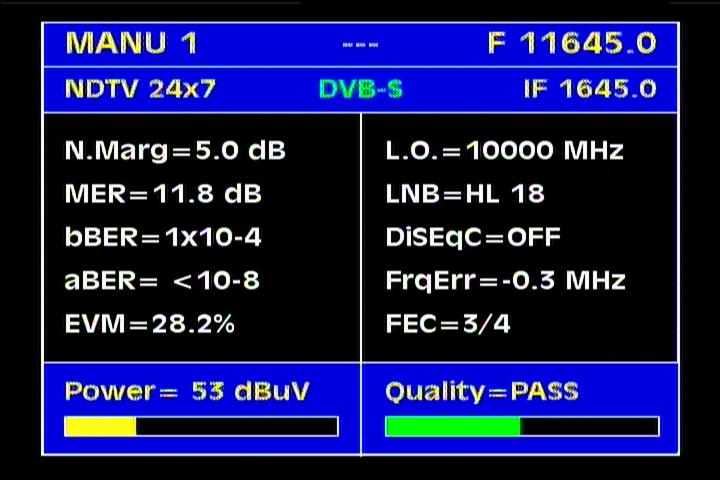

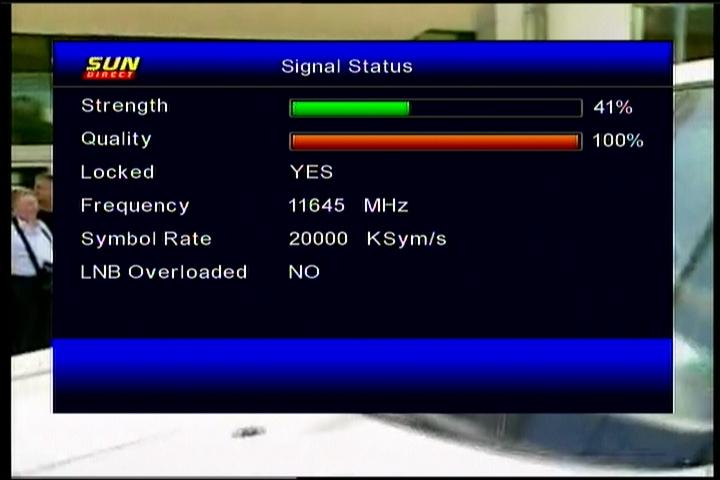

       SUN Direct : spectral analysis                 SUN Direct : quality analysis                  SUN Direct : relative quality
Insat 4B at 93.5 E_indian footprint_11 645 V Packet SUN Direct_quality analysis_01Insat 4B at 93.5 E_indian footprint_11 645 V Packet SUN Direct_quality analysis_02Insat 4B at 93.5 E_indian footprint_11 645 V Packet SUN Direct_quality analysis_03

                              Insat 4B at 93.5°E - Indian footprint in KU band : 11 675 V SUN Direct DTH India

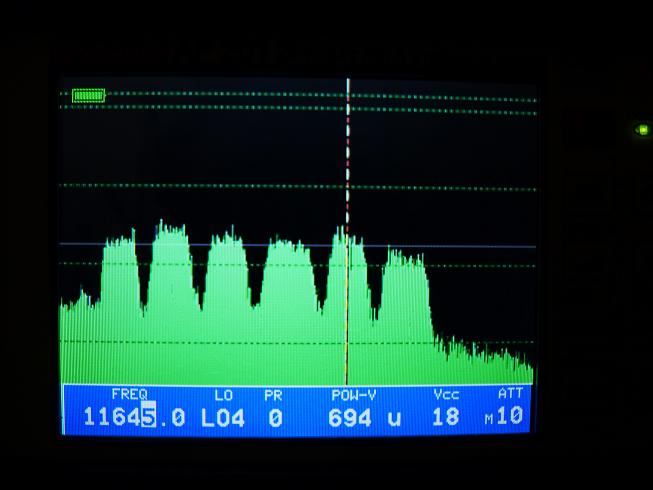

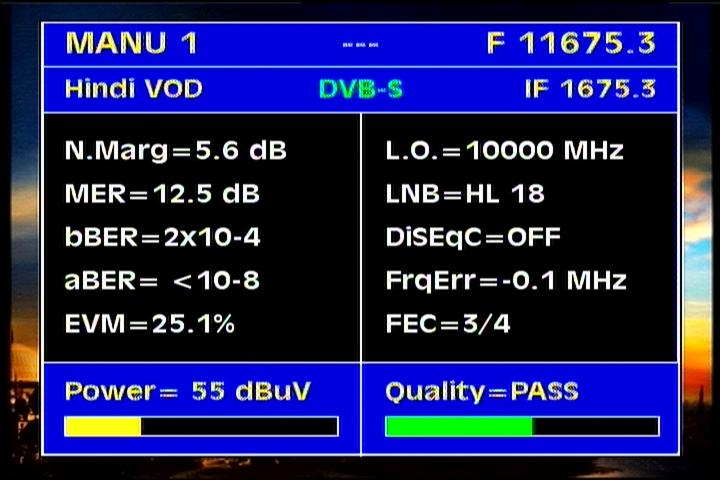

       SUN Direct : spectral analysis                 SUN Direct : quality analysis                  SUN Direct : relative quality
Insat 4B at 93.5 E_indian footprint_11 675 V Packet SUN Direct_quality analysis_01Insat 4B at 93.5 E_indian footprint_11 675 V Packet SUN Direct_quality analysis_02Insat 4B at 93.5 E_indian footprint_11 675 V Packet SUN Direct_quality analysis_03
