Intelsat 10-02 at 1.0°W

Intelsat 10-02 at 1.0°W : Technical data

.
                          --- Intelsat 10-02 at 1.0°W - global beam : 4 180 L ERTU Egypt ---
                                                                                       click for enlarge

                         satellite : Intelsat 10 02 - orbit : 1.0°W - TP : 45 C/16 KU - lifetime : from 16.6.2004 - 13 years
.

Intelsat 10-02 at 1.0°W-Global footprint : spectral analysis & measurement results of quality

           Intelsat 10-02 at 1.0°W - global footprint : measurements at the center Lučenec/central Slovakia
                                     geographical location : Latitude: 48.33° _   Longitude: 19.72°

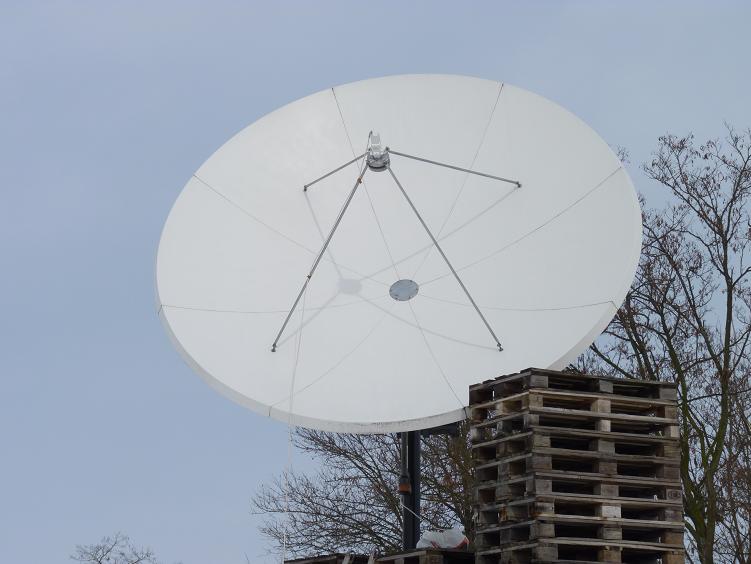

                                   measurement results are derived from the 3.7 m diameter antenna
                                                            date of measurement : 13.11.2010
                                                      Elevation angle : 31.0°
.

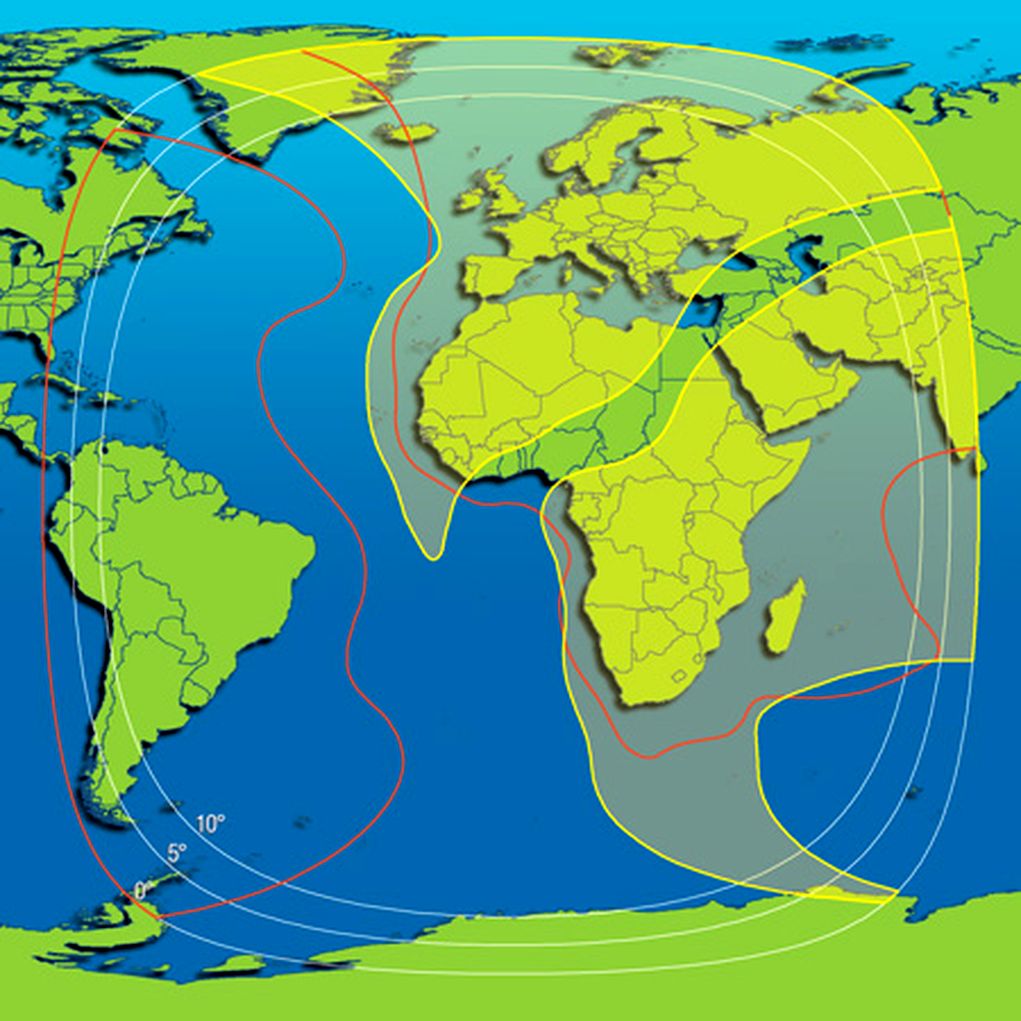

    Intelsat 10-02 footprint : Global          Intelsat 10-02 : installed system Intelsat 10-02 : research point
Europe,Africa,ME,W Asia,S America ...       Prodelin 3.7 m,LNB Norsat 8215                    48.33° _ 19.72°

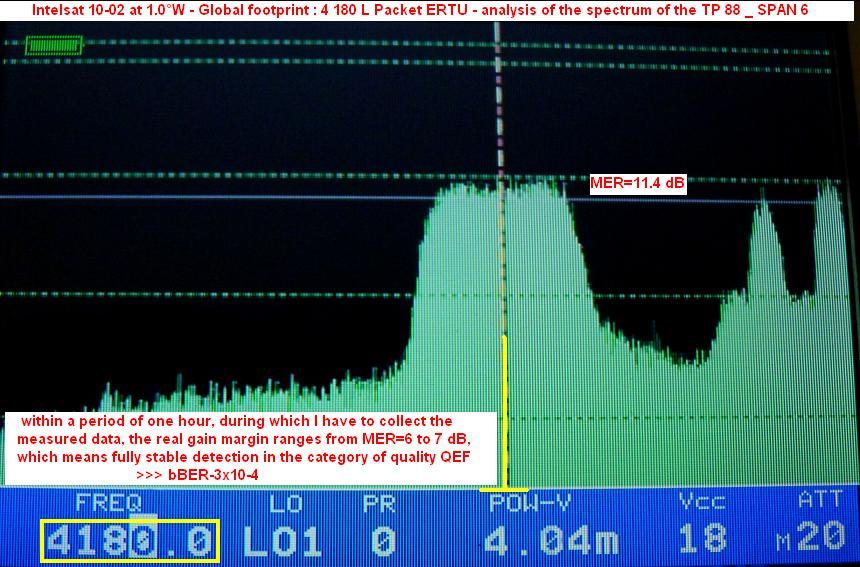

--- Intelsat 10-02 at 1.0°W-Global beam : spectral analysis of the ERTU + BBC packet ---

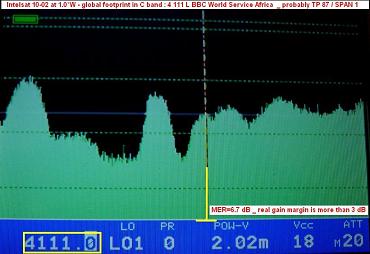

                      4 180 L : ERTU network Egypt                                      4 111 L : BBC World Service Africa
         quality analysis : MER=11.4 dB _ N.MAR=4.5 dB                    quality analysis : MER=6.7 dB _ N.MAR=1.2 dB

                                                        - time of measurement : 13.11.2010 -
                                                                   - defining the status of reception -

- 4 180 L : Packet ERTU Egypt -

- within a period of one hour, during which I have to collect the measured data, the real gain margin ranges from
MER=6 to 7 dB, which means fully stable detection in the category of quality QEF >>> bBER-3x10-4

- measurement results -

Intelsat 10-02 at 1.0°W - East Hemisphere : 4 025 R BBC World News Service
A pid Q data NIT ID

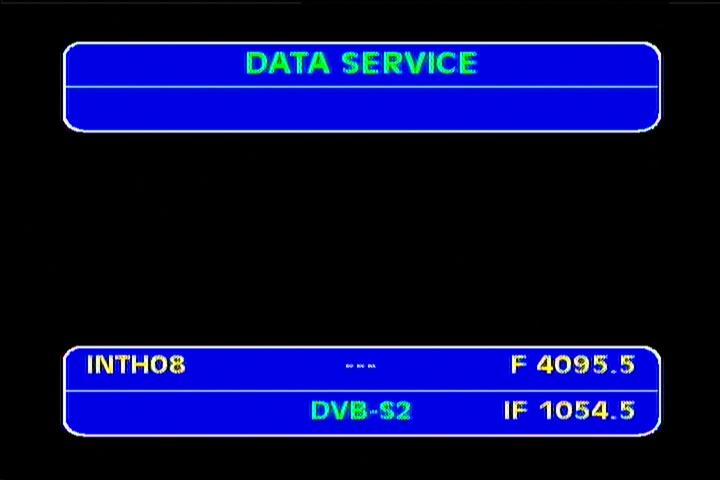

Intelsat 10-02 at 1.0°W - Global footprint : 4 095 R DVB-S2/QPSK Data
spectral analysis IF data Q data

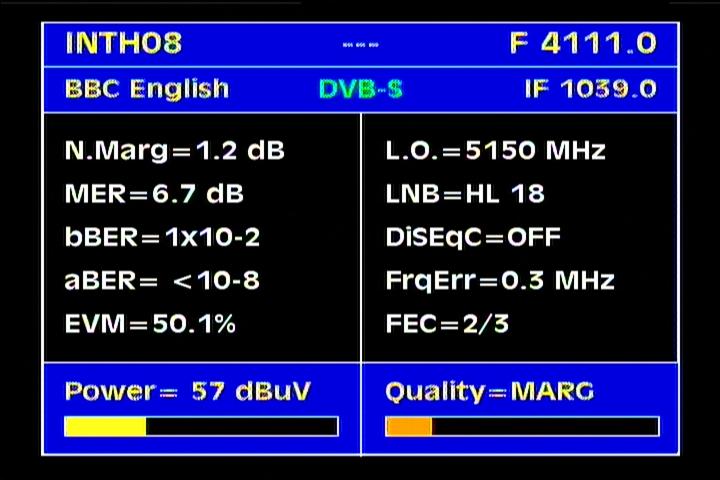

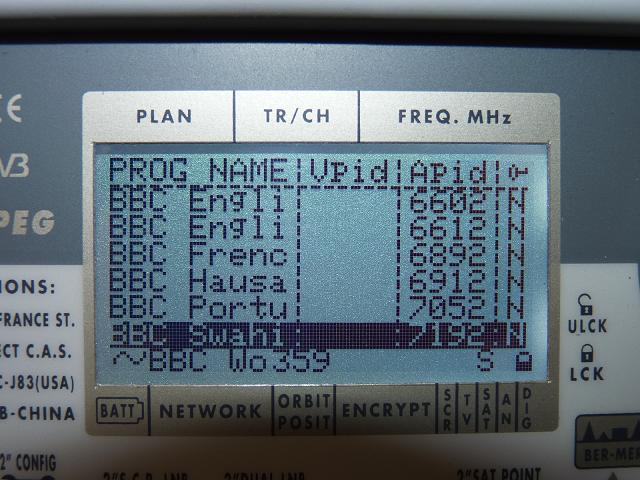

Intelsat 10-02 at 1.0°W - Global footprint : 4 111 L BBC World News Service Africa
A pid Q data NIT ID

Intelsat 10-02 at 1.0°W - Global footprint : 4 125 R DVB-S2/8PSK Data
spectral analysis av power data Q data
Intelsat 10 02 at 1.0 w _ global footprint_4 125 R DVB S2 data_Q data

Intelsat 10-02 at 1.0°W - Global footprint : 4 144 R DVB-S2/8PSK Data
spectral analysis Q data av power data

Intelsat 10-02 at 1.0°W - Global footprint : 4 175 R AFN American Forces Network
VA pids Q data NIT ID

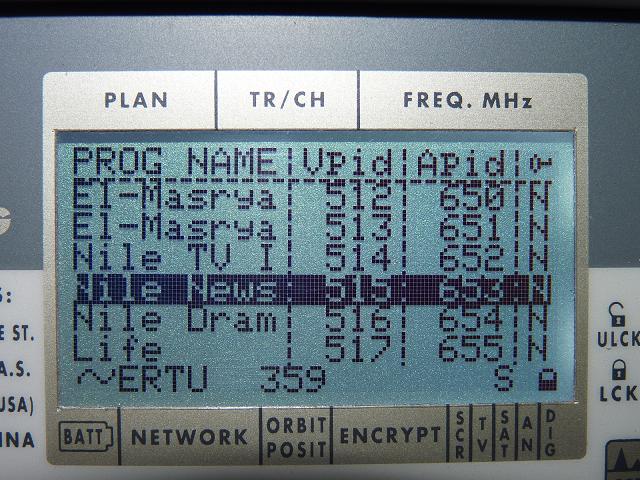

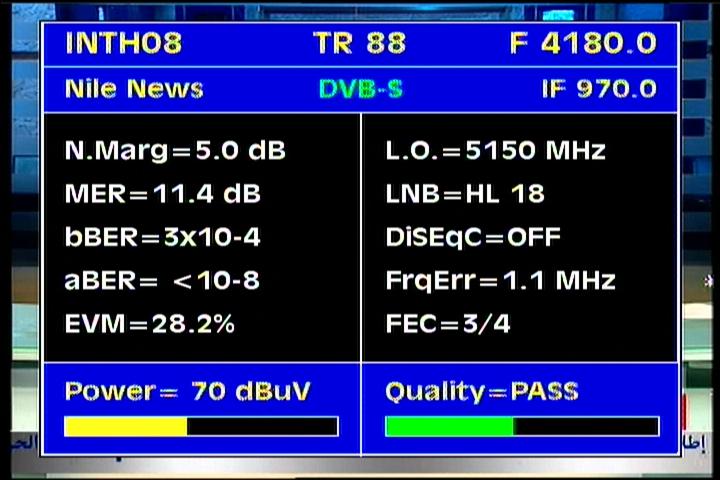

Intelsat 10-02 at 1.0°W - Global footprint : 4 180 L Packet ERTU Egypt
VA pids Q data NIT ID

Intelsat 10-02 at 1.0°W : TV List

---Frequency---	----------Provider/Channel----------	---SR---	---FEC---	---Footprint---	---Antenna---	---Video/Encryption---
3 985 -R- tp 23	left
4 025 -R- tp 24	BBC World Service	7 324	2/3	East Hemi	140-180+ cm	DVB-S/Radio network
	BBC WS English					free radio stream
	BBC WS English					free radio stream
	BBC WS English					free radio stream
	BBC WS English					free radio stream
	BBC WS English					free radio stream
	BBC WS Arabic					free radio stream
	BBC WS Dari					free radio stream
	BBC WS Farsi					free radio stream
	BBC WS French Africa					free radio stream
	BBC WS Hausa					free radio stream
	BBC WS Pashto					free radio stream
	BBC WS Portuguese					free radio stream
	BBC WS Somali					free radio stream
	BBC WS Swahili					free radio stream
	BBC WS Russian					free radio stream
4 095 -L- tp 36	DVB-S2 Data stream	30 000	3/4	Global	140-180+ cm	DVB-S2/QPSK Data
4 111 -L- tp 87	BBC World Service BBC Wo 359	1 000	2/3	Global	220-250+ cm	DVB-S/Radio network
	BBC English (East Africa)					free radio stream
	BBC English (West Africa)					free radio stream
	BBC French					free radio stream
	BBC Hausa					free radio stream
	BBC Portuguese					free radio stream
	BBC Swahili					free radio stream
4 125 -R- tp 37	DVB-S2 Data stream	14 743	5/6	Global	220-250+ cm	DVB-S2/8PSK Data
4 144 -R- tp 37	DVB-S2 Data stream	14 743	3/4	Global	220-250+ cm	DVB-S2/8PSK Data
4 176 -R- tp 38	AFN American Forces Network	28 000	3/4	Global	180-240+ cm	DVB
	AFN Sports					PowerVu
	AFN Prime Atlantic					PowerVu
	AFN Spectrum					PowerVu
	AFN Prime Pacific					PowerVu
	AFN News					PowerVu
	AFN Extra					PowerVu
	AFN Program Guide					FTA
	The Pentagon Channel					FTA
	AFN Family					PowerVu
	AFN Movie					PowerVu
	AFN Prime Freedom					PowerVu
	HD Test					MPEG-4/HD/PowerVu
	SD Test (MPEG-4)					MPEG-4/SD/PowerVu
	SD Test (MPEG-2)					MPEG-2/SD/PowerVu
4 181 -L- tp 88	ERTU Egypt	21 050	3/4	Global	180-240+ cm	DVB
	El-Masrya					FTA
	El-Masrya-USA					FTA/4.2.2
	Nile Tv Int					FTA
	Nile News					FTA
	Nile Drama					FTA
	Life					FTA
	egy tv net feed / ERTU test card					FTA/4.2.2
	egy tv net feed / ERTU test card					FTA/4.2.2
