Intelsat 905 at 24.5°W

Intelsat 905 at 24.5°W : Technical data

                                          --- Intelsat 905 at 24.5°W-Global beam : 4 111 R ORTM Mali / MERp=10.7 dB ---

      satellite : Intelsat 907 - orbit : 24.5°W - TP : 72 C/22 KU - lifetime : from 5.6.2002 - 13 years

Intelsat 905 at 24.5°W - global footprint : spectral analysis & measurement results

      Intelsat 905 at 24.5°W - Global footprint : measurements at the center Lučenec_central Slovakia
                        geographical location : Latitude: 48.33° _   Longitude: 19.72°

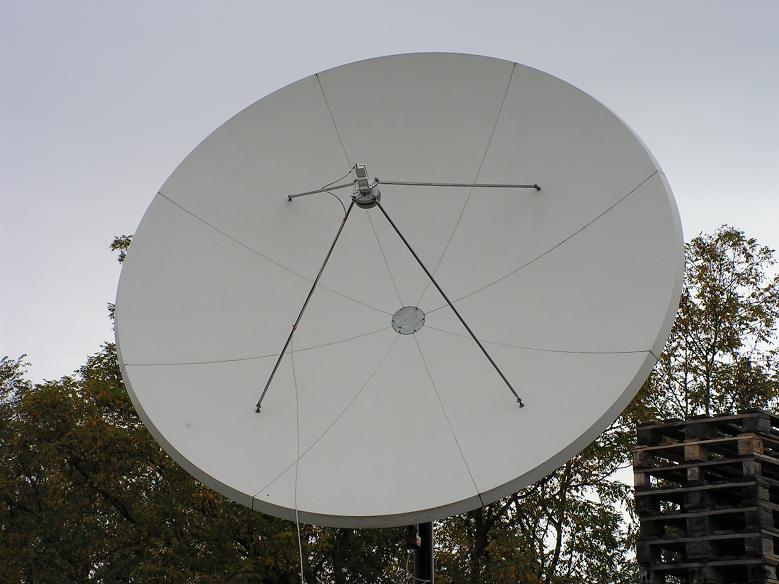

                                    measurement results are derived from the 3.7 m diameter antenna
                                                              date of measurement : 27.11.2010
                                                                    elevation angle : 20.5°
.

Intelsat 905 footprint : global Intelsat 905 : installed system Intelsat 905 : research point
N+S America , Africa , ME , Europe Prodelin 3.7 m,LNB Norsat 8215 48.33° _ 19.72°

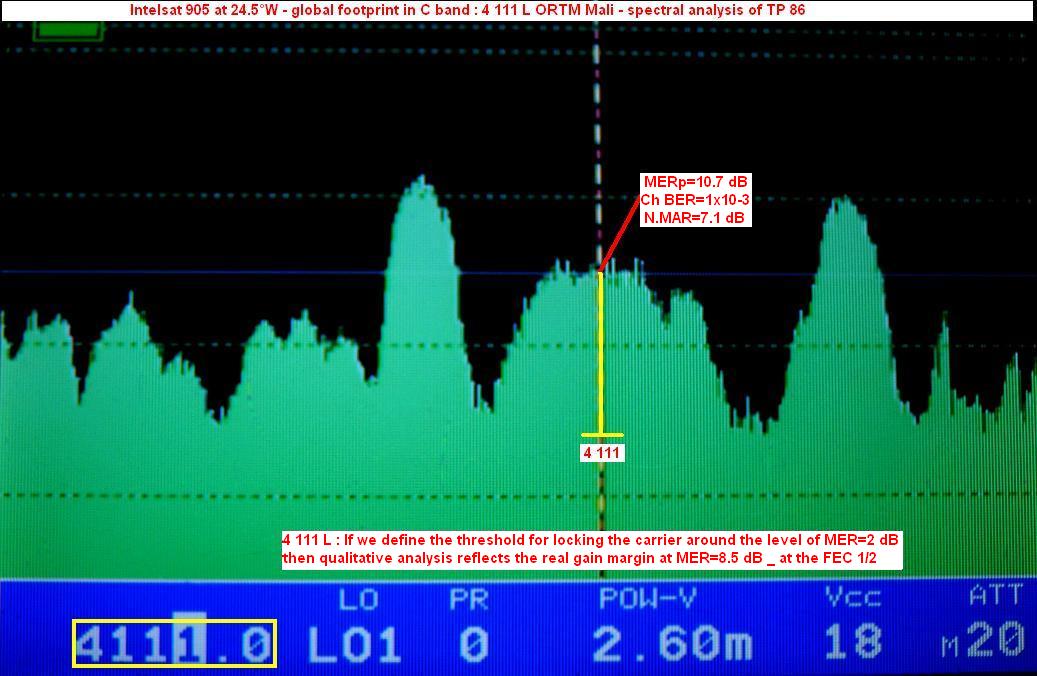

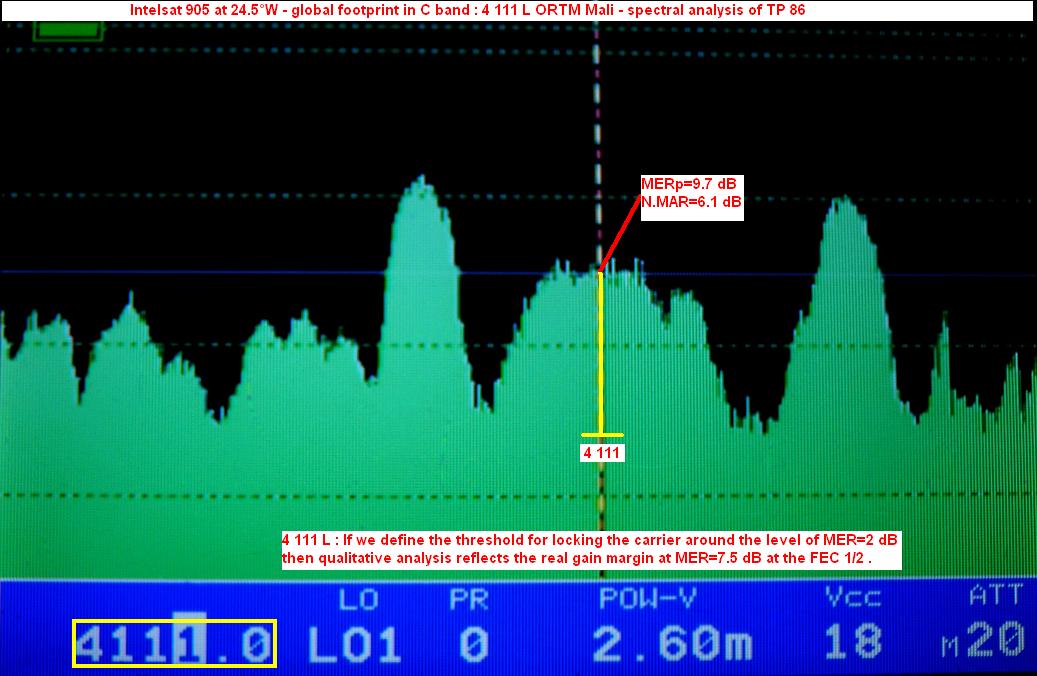

                                           --- Intelsat 905 : spectral analysis of the transponder TP 86 ---
                                                                                 click for enlarge

                                                    - time of measurement : 27.11.2010 -
                                                                    - defining the status of reception -

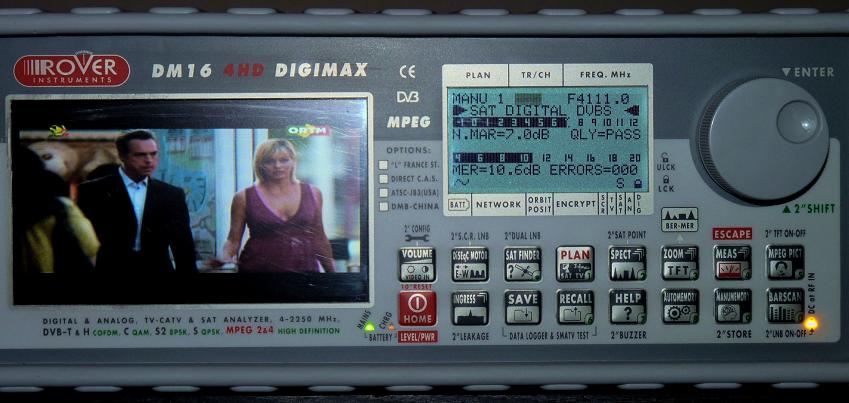

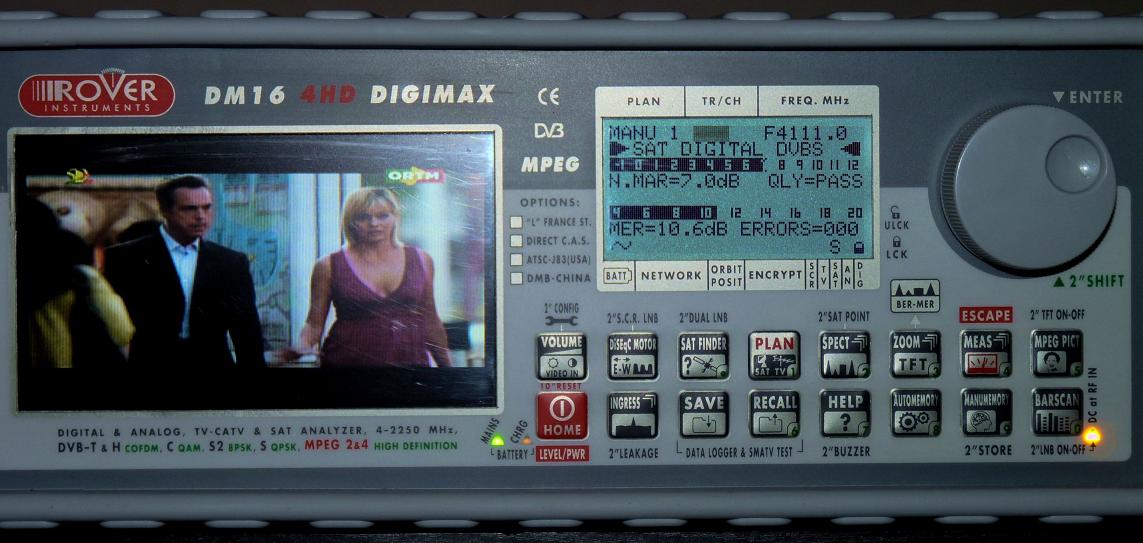

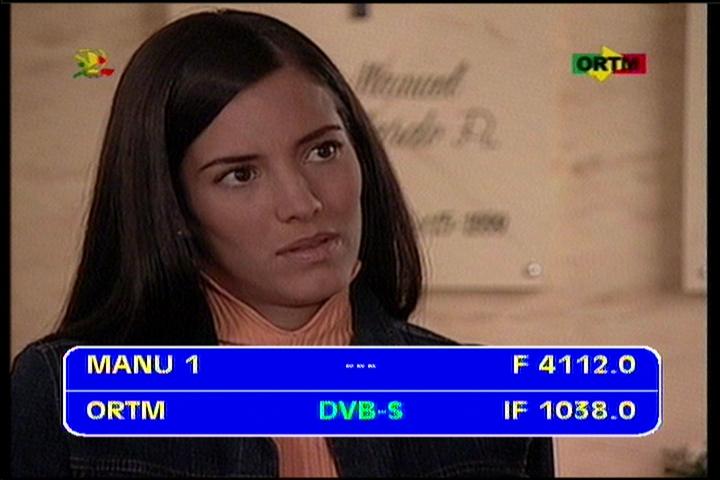

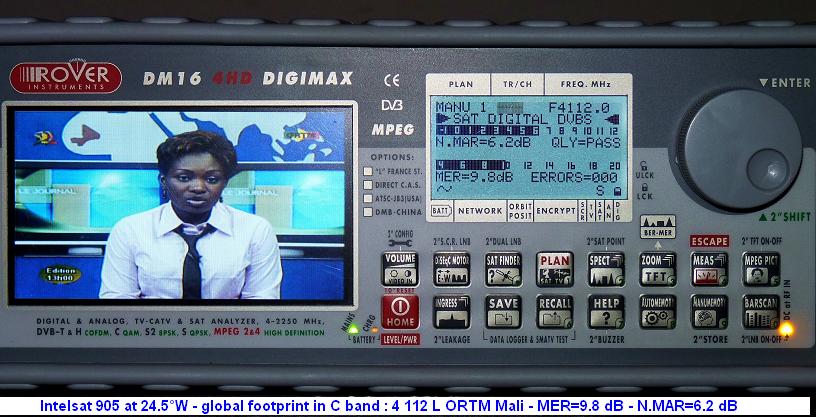

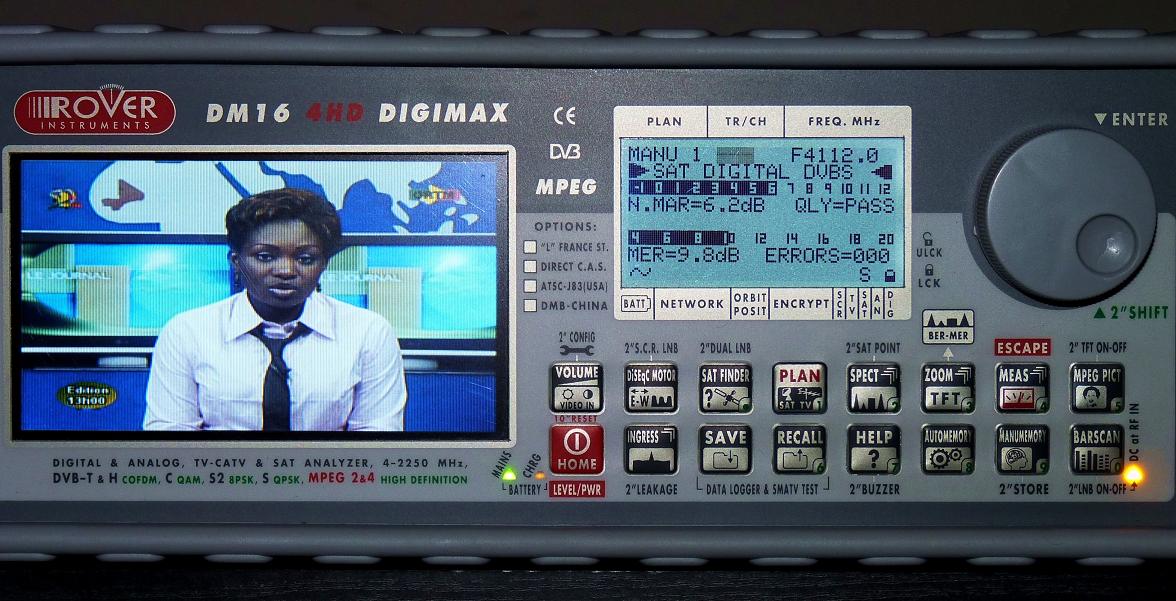

--- Intelsat 905 at 24.5°W - Global footprint : 4 111 L ORTM Mali ---

- MERp=10.7 dB _ N.MAR=7.1 dB : If we define the threshold for locking the carrier around the level of MER=2 dB
then qualitative analysis reflects the real gain margin at MER=8.5 dB _ at the FEC 1/2 .

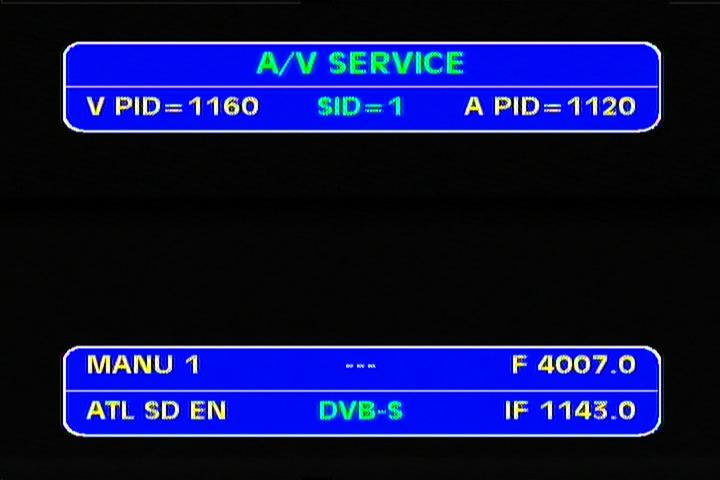

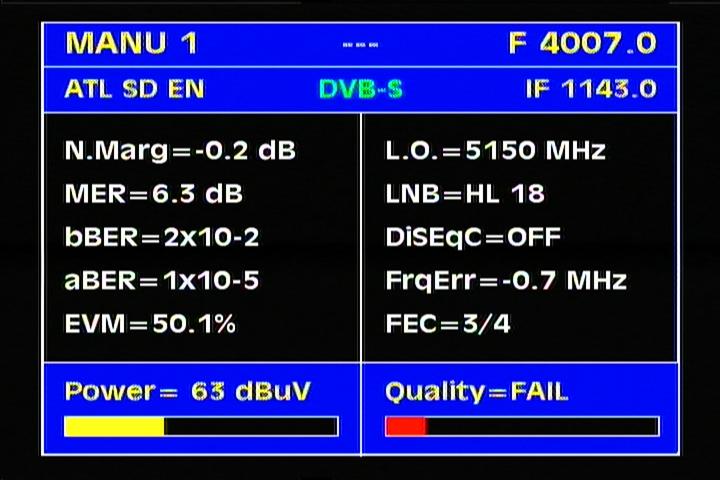

                                     Intelsat 905 at 24.5°W - ? footprint : 4 007 L ATL SD Encoder
                     IF data                                                       Q data                                                  NIT data

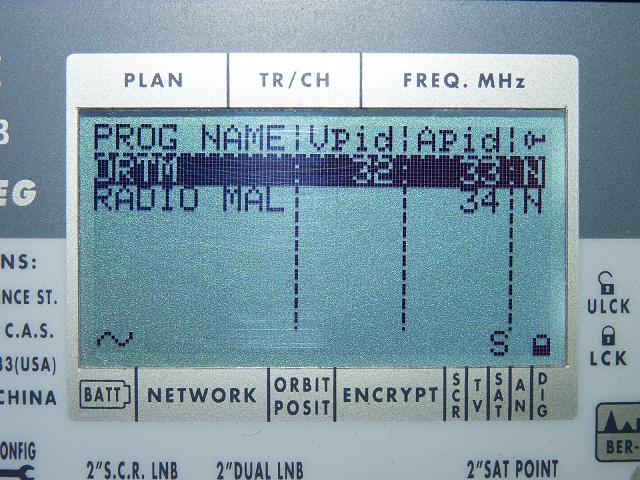

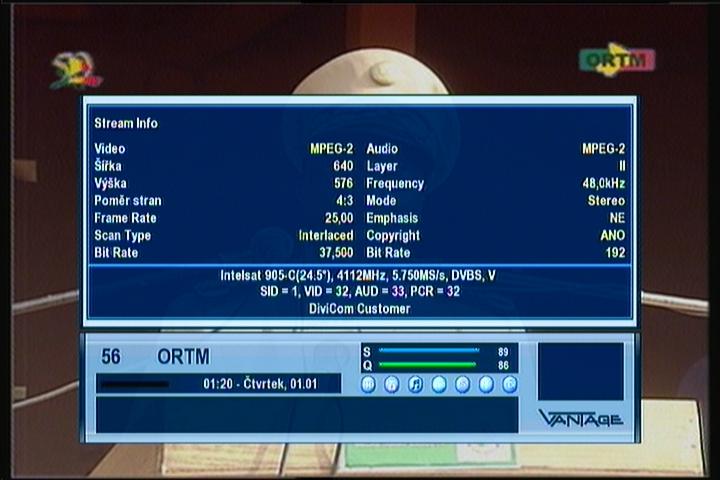

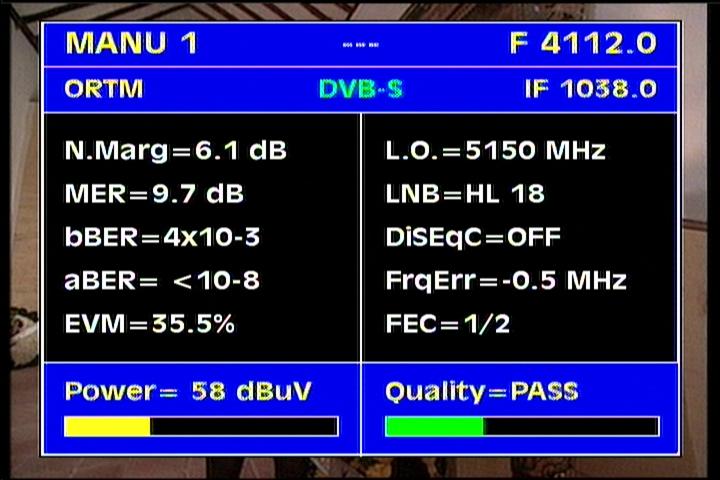

                              Intelsat 905 at 24.5°W - Global footprint : 4 111 L ORTM Mali
                     IF data                                                       Q data                                                  NIT data

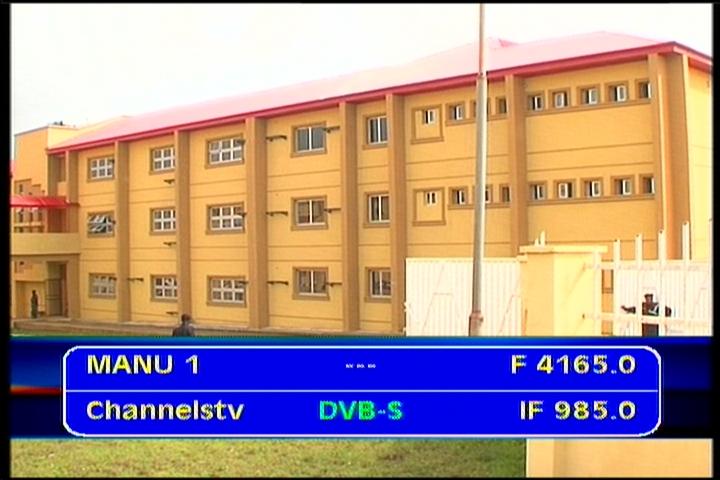

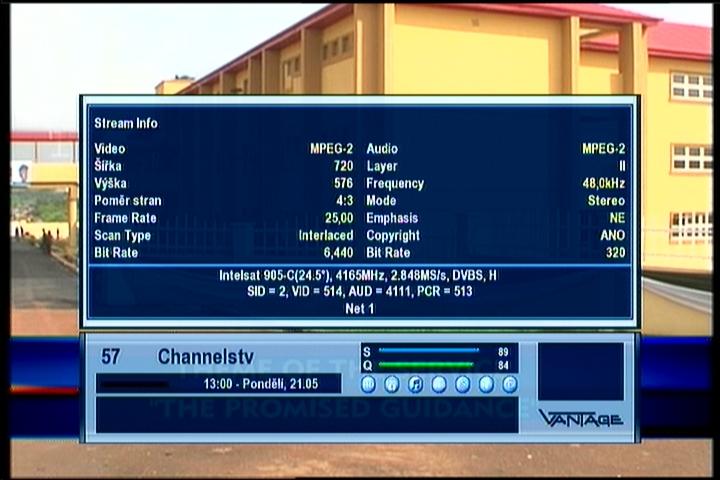

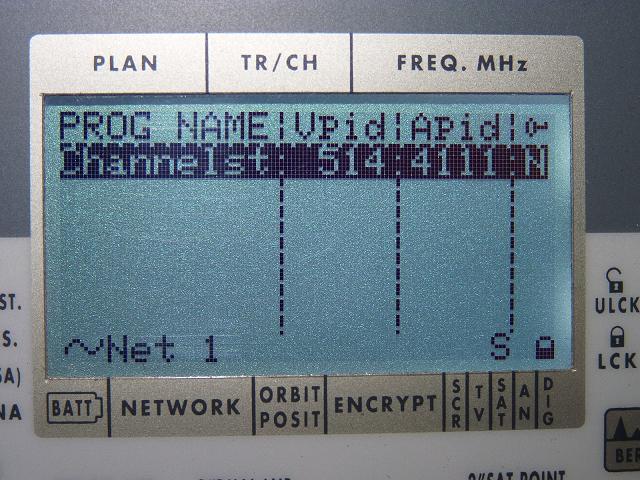

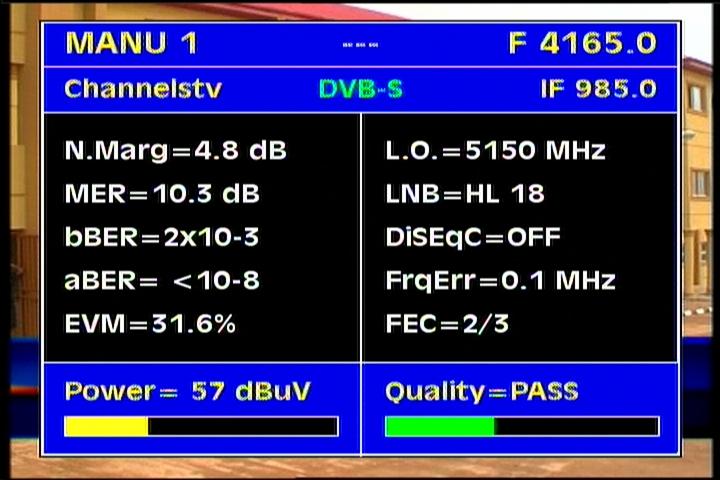

Intelsat 905 at 24.5°W - Global footprint : 4 165 R feed Channels TV
IF data Q data NIT data

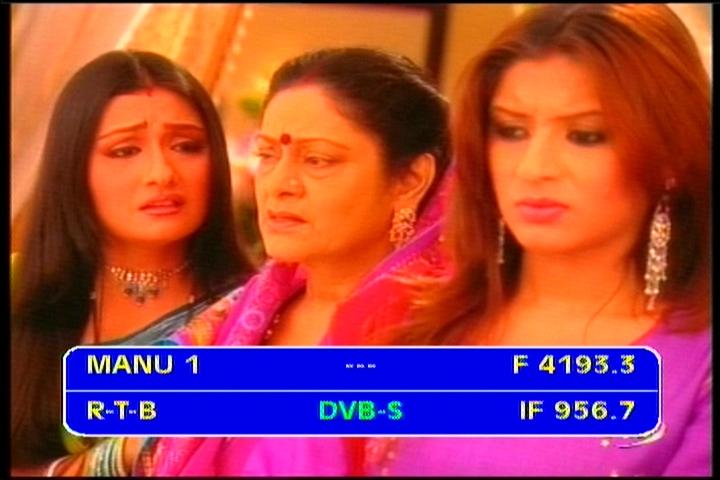

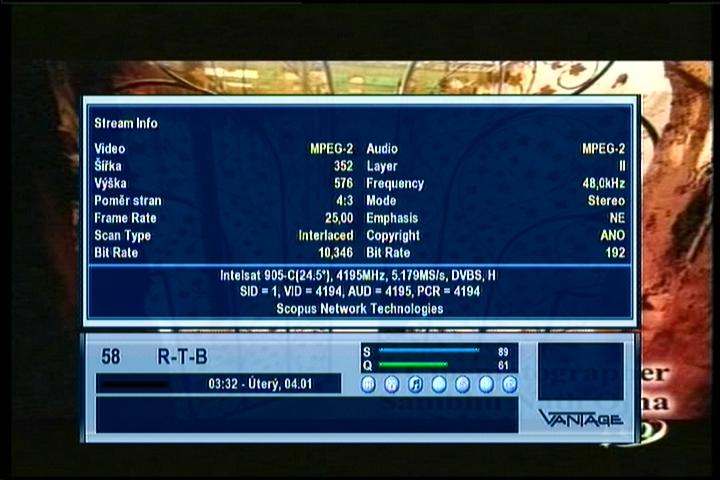

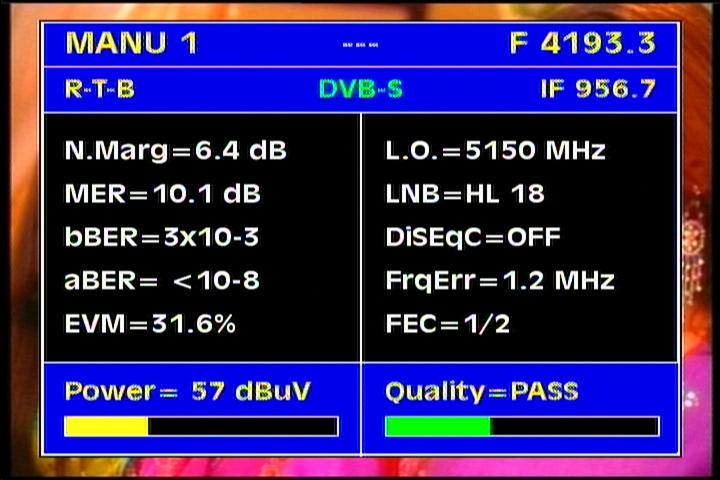

Intelsat 905 at 24.5°W - Global footprint : 4 194 R RTB Burkina Faso
VA pids Q data NIT data

Intelsat 905 at 24.5°W : TV List

---Frequency---	----------Provider/Channel----------	---SR---	---FEC---	---Footprint---	---Antenna---	---Video/Encryption---
4 007-L- tp ?	feeds Atlantic SD Encoder 7 - FNC	5 968	3/4	?	240+ cm	DVB FTA/feeds
4 111 -L- tp 86	ORTM Mali	5 750	1/2	Global	140-180+ cm	DVB FTA
4 165 -R- tp 38	feeds Channels TV DSNG 1 Nigeria	2 848	2/3	Global	200-220+ cm	DVB FTA/feeds
4 194 -R- tp 38	RTB Burkina Faso	5 179	1/2	Global	140-180+ cm	DVB FTA
