Intelsat 907 at 27.5°W
Intelsat 907 at 27.5°W : Technical data
--- Intelsat 907 at 27.5°W - NE beam : 3 773 L DVB-S2 packet KAL ---
satellite : Intelsat 907 - orbit : 27.5°W - TP : 72 C/22 KU - operating life : from 15.2.2003 /15 years

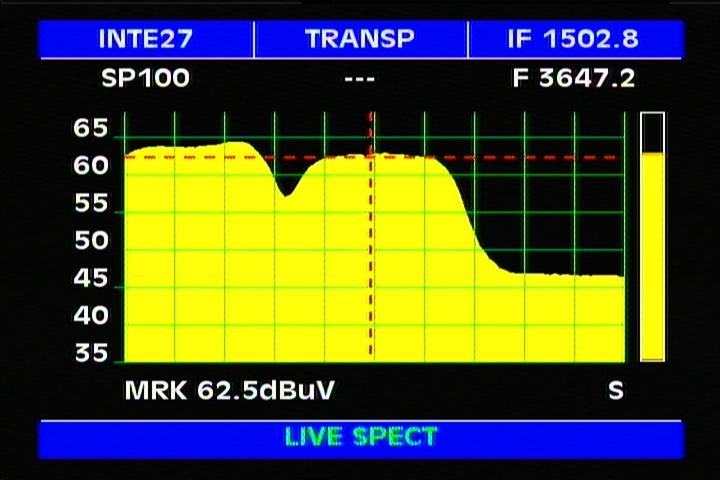

Intelsat 907 at 27.5°W - Global & East Hemi & NE Zone : spectral analysis & measurement results
Intelsat 907 at 27.5°W - Global & East Hemi & NE Zone : measurements at the center Lučenec_central Slovakia
geographical location : Latitude: 48.33° _ Longitude: 19.72°
measurement results are derived from the 3.7 m diameter antenna
date of measurement : 28.11.2010
elevation angle : 18.5°
.
Intelsat 907 footprint Intelsat 907 : installed system Intelsat 907 : research point

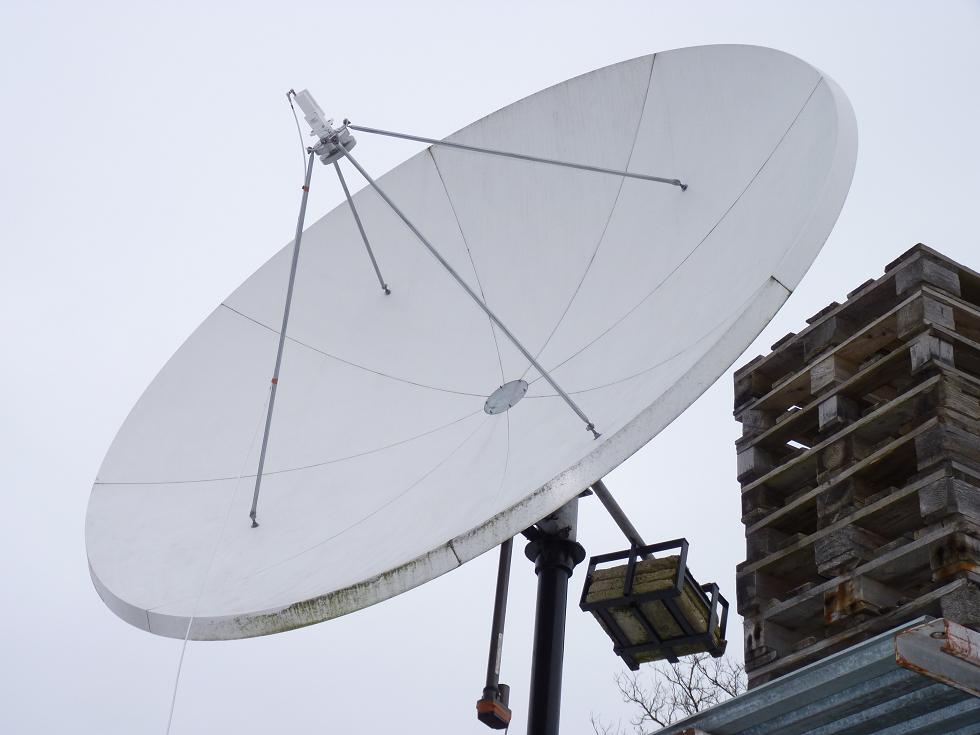

Africa,Middle East,Europe,America ... Prodelin 3.7 m,LNB Norsat 8215 48.33° _ 19.72°
.
--- Intelsat 907 at 27.5°W : spectral analysis of packets KAL , RTP , Radio Free Europe ---
.
Intelsat 907 spectral analysis No.1 Intelsat 907 spectral analysis No.2 Intelsat 907 spectral analysis No.3
North East beam East Hemi beam Global footprint
3 773 L : DVB-S2 packet KAL 3 841 R : packet RTP+feed 4 130 R :Radio Free Europe Prague
- time of measurement : 28.11.2010 -
- defining the status of reception -
--- Intelsat 907 at 27.5°W - North East footprint : 3 773 L DVB-S2 packet KAL ---
DVB-S2/PER=<1x10-7 : less than one error packet from a total of ten million defines full reception stability with slightly
oscillating level of gain in the range from 5.5 to 6 dB.
DVB-S2/EVM=35.5% : EVM value clearly determines that the value of the voltage levels of demodulated symbols in QPSK
constellation quadrant shows a relatively high distortion compared to the expected voltage level

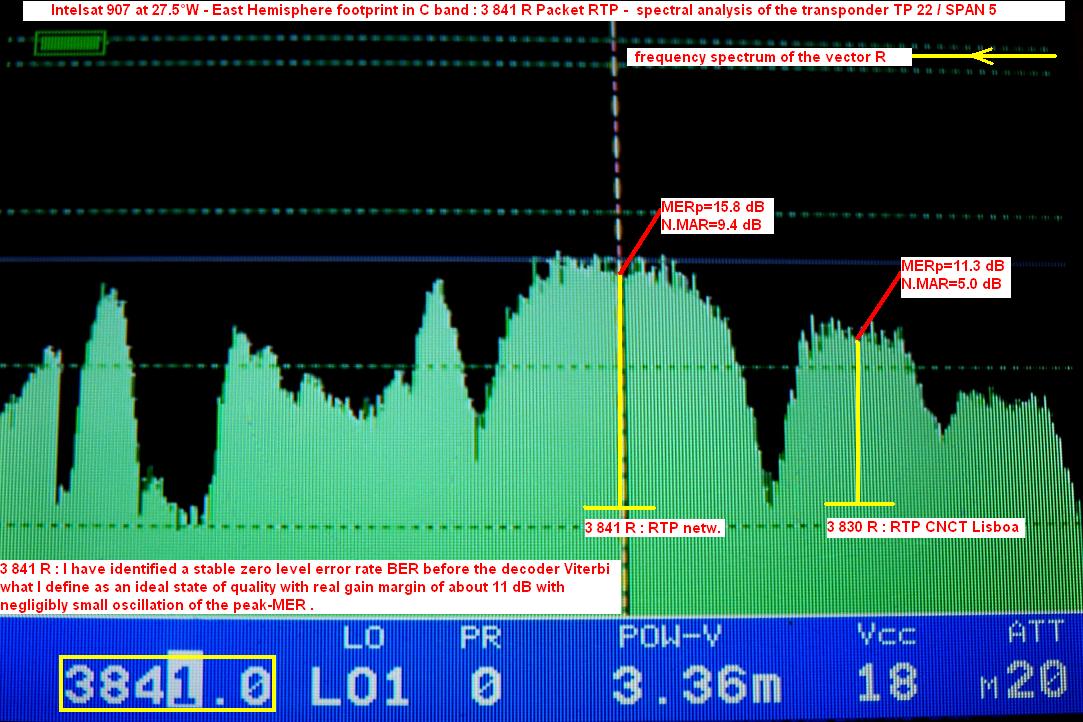

--- Intelsat 907 at 27.5°W - East Hemi footprint : 3 841 R Packet RTP ---

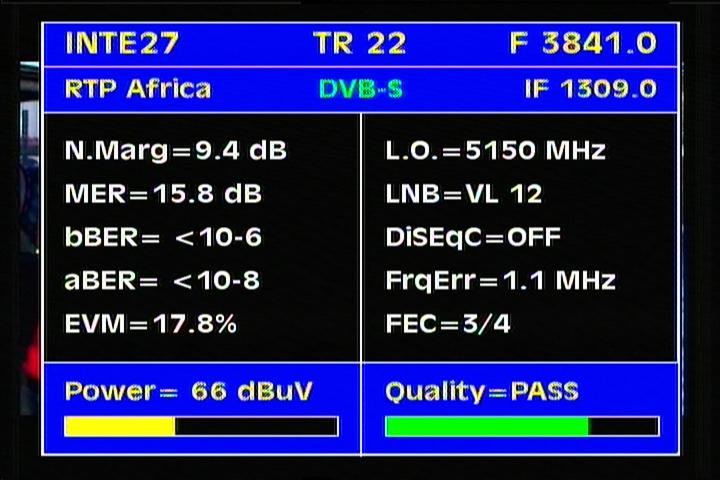

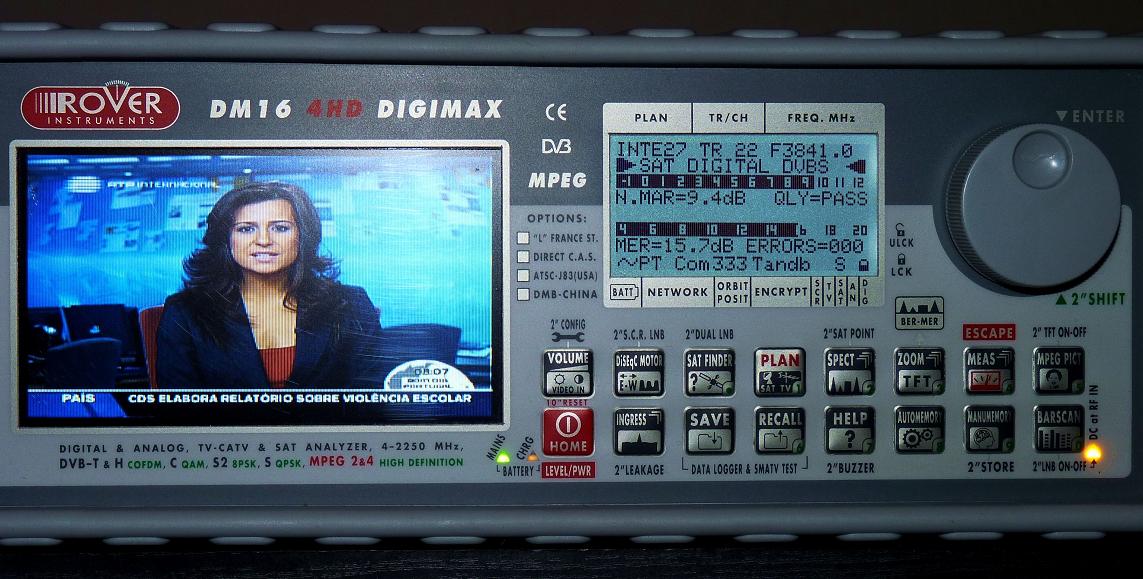

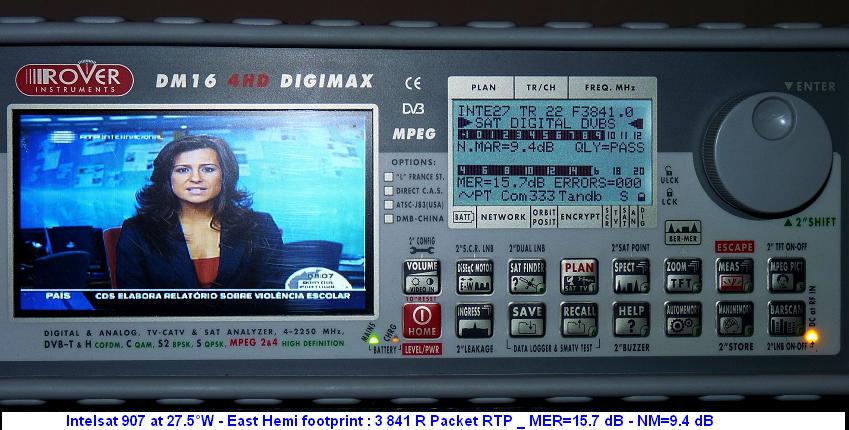

MERp=15.8 dB_N.MAR=9.4 dB : I have identified a stable zero level error rate BER before the decoder Viterbi what I
define as an ideal state of quality with real gain margin of about 11 dB with negligibly small oscillation of the peak-MER .

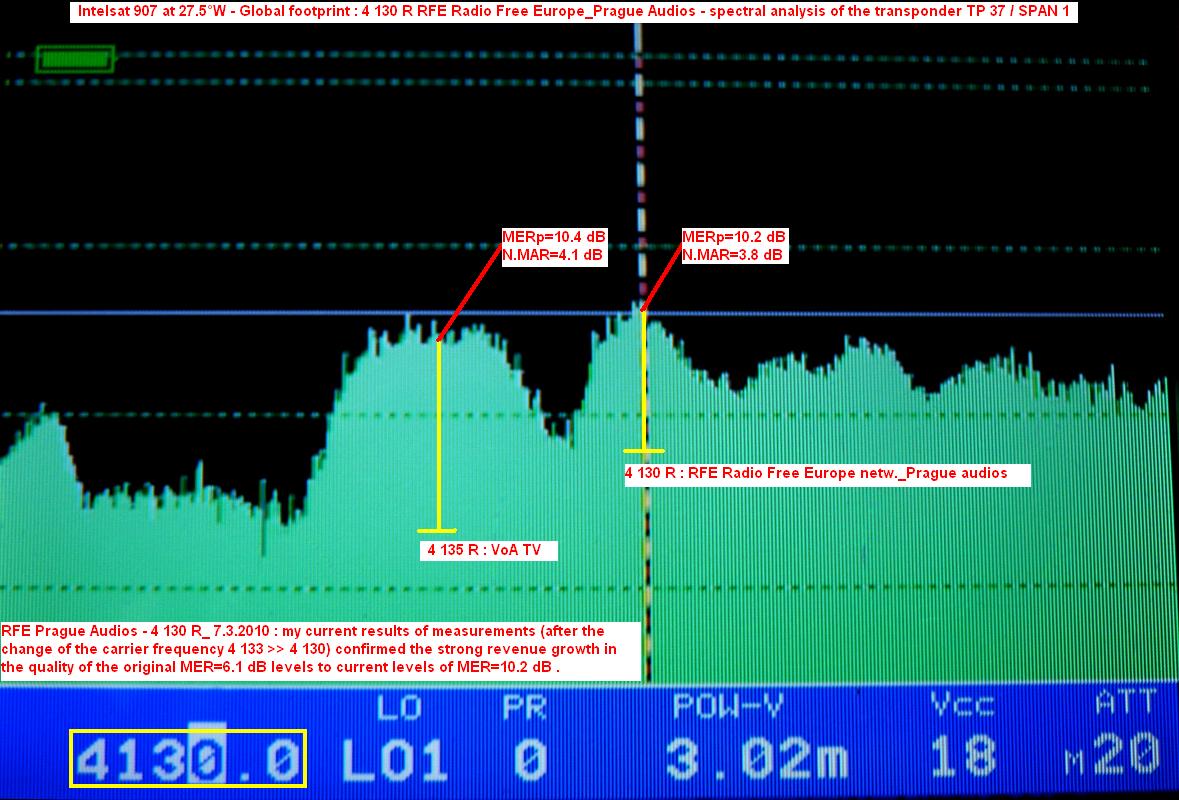

--- Intelsat 907 at 27.5°W - Global footprint : 4 130 R Packet RFE Radio Free Europe Prague ---
MERp=10.2 dB_N.MAR=3.8 dB : RFE Prague Audios - 4 130 R_ 7.3.2010 : my current results of measurements
(after the change of the carrier frequency 4 133 >> 4 130) confirmed the strong revenue growth in the quality of the
original MER=6.1 dB levels to current levels of MER=10.2 dB .
--- Intelsat 907 : measurement results ---

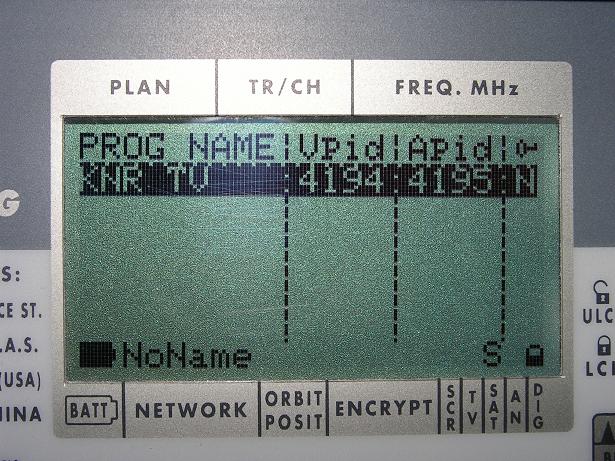

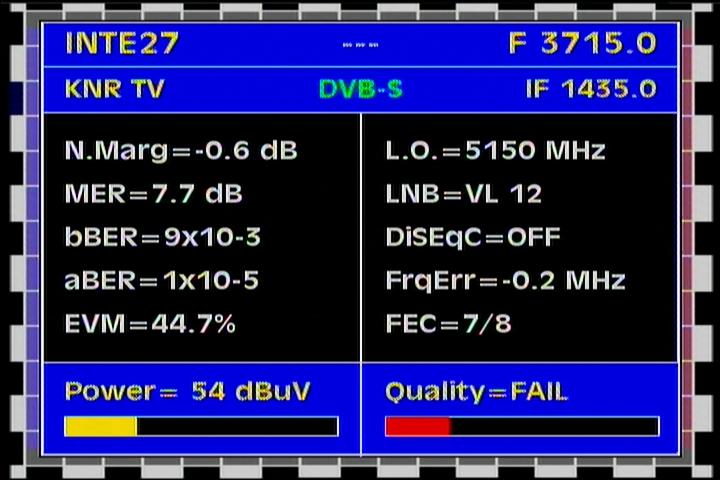

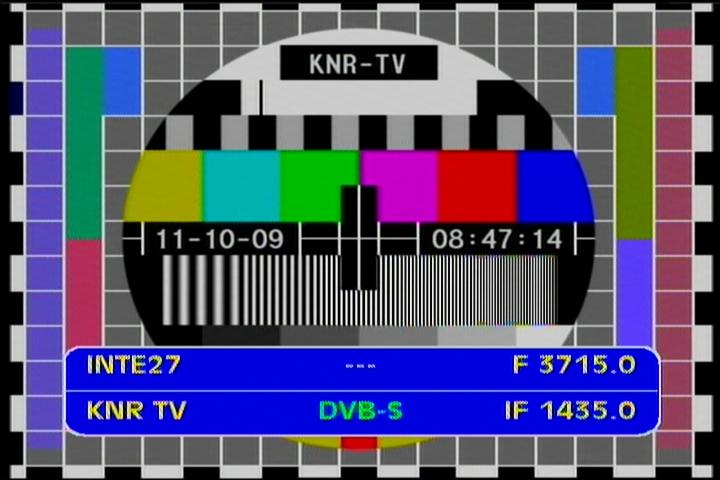

Intelsat 907 at 27.5°W - NE zone footprint : 3 715 L KNR TV Greenland
IF data Q data NIT data

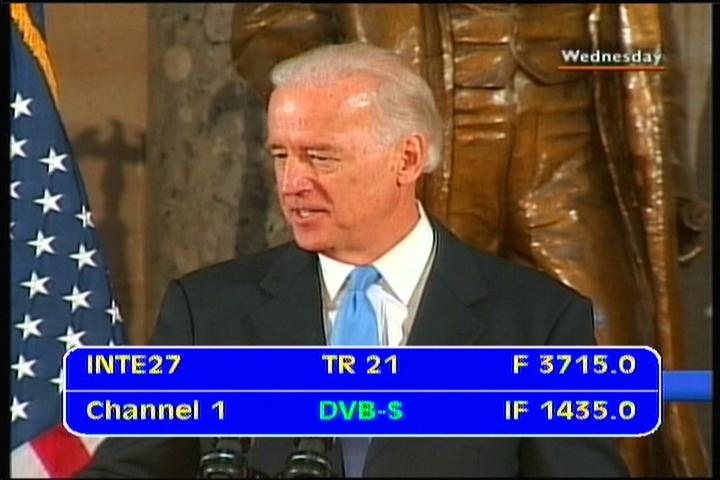

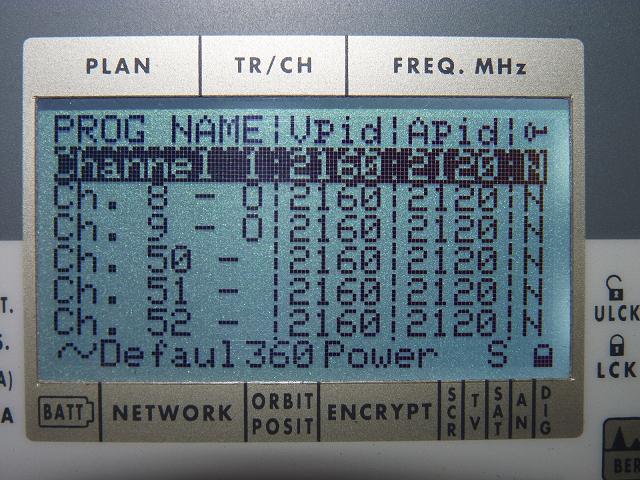

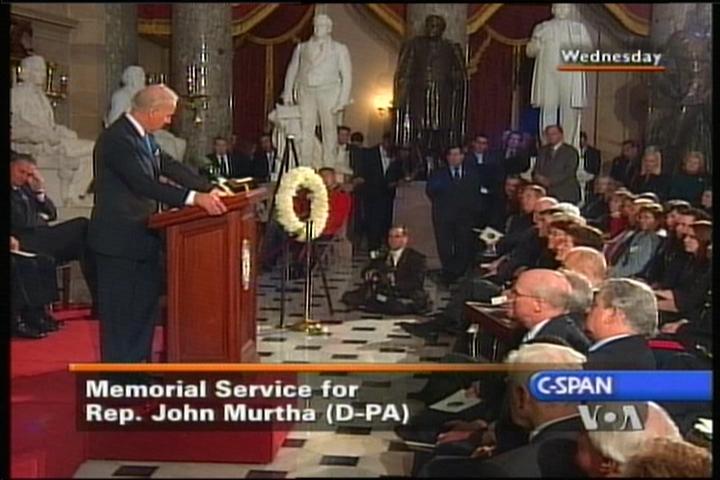

Intelsat 907 at 27.5°W - East hemi footprint : 3 715 R VoA Voice of America
IF Data Q data NIT data

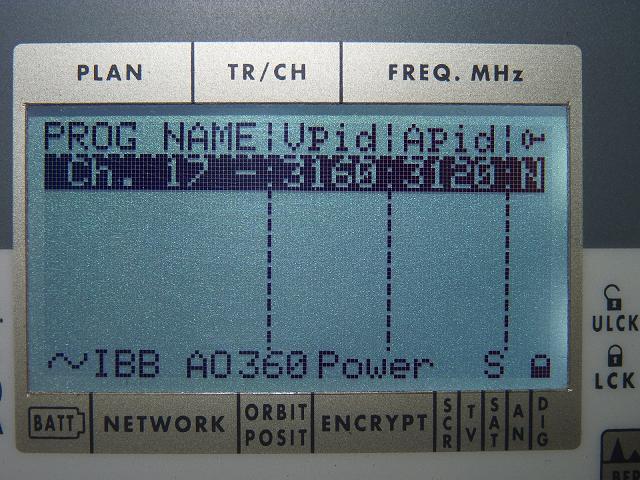

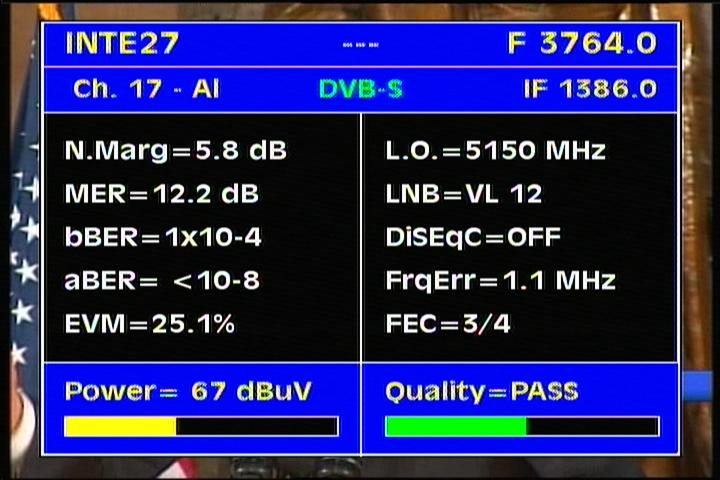

Intelsat 907 at 27.5°W - East hemi footprint : 3 764 R VoA Voice of America
snapshot Q data NIT data

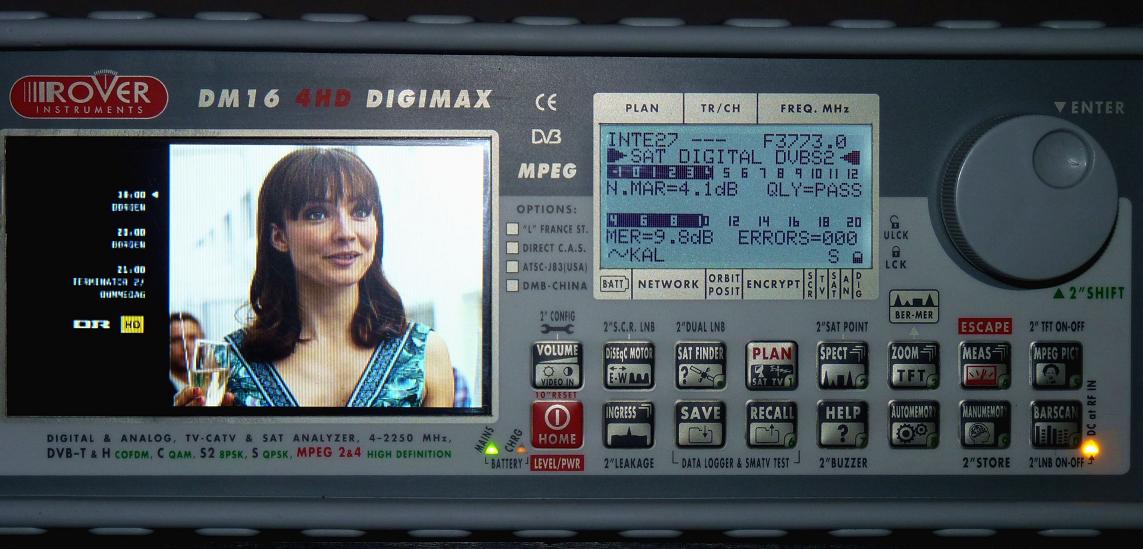

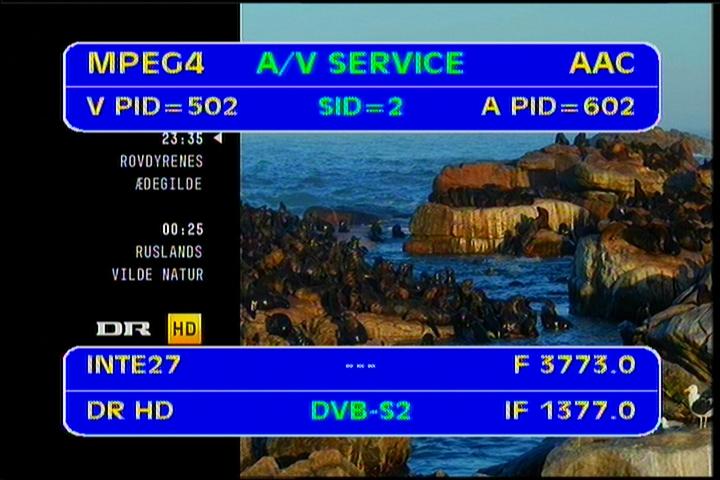

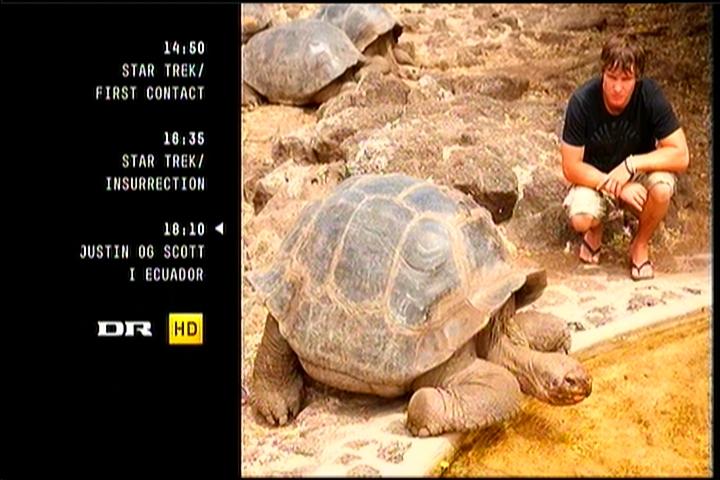

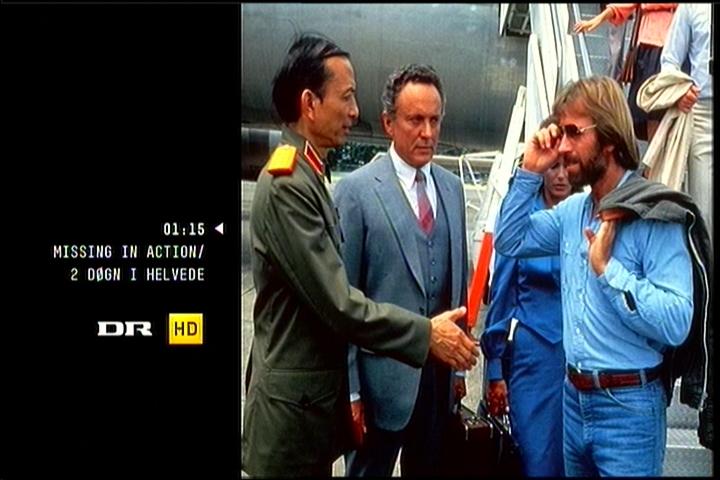

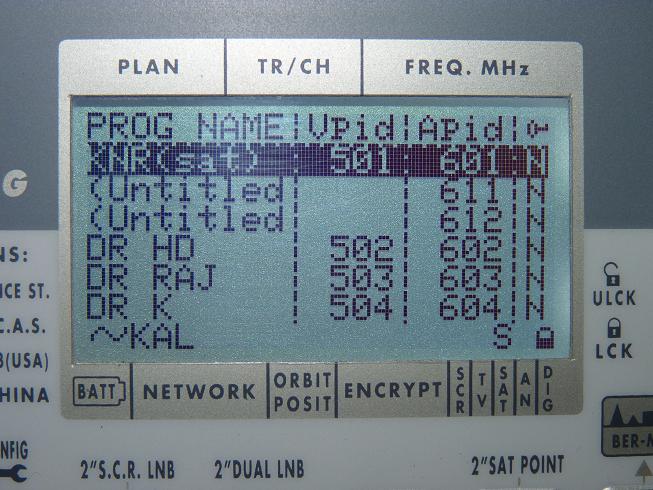

Intelsat 907 at 27.5°W - NE zone footprint : 3 773 L DVB-S2 packet KAL
IF data Q data NIT data

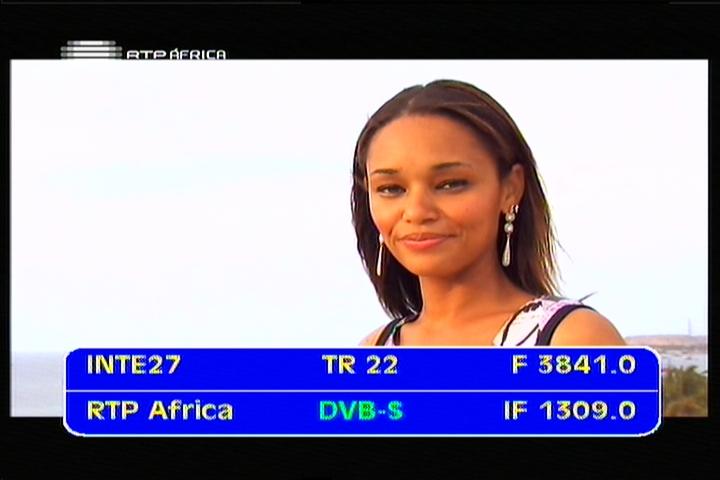

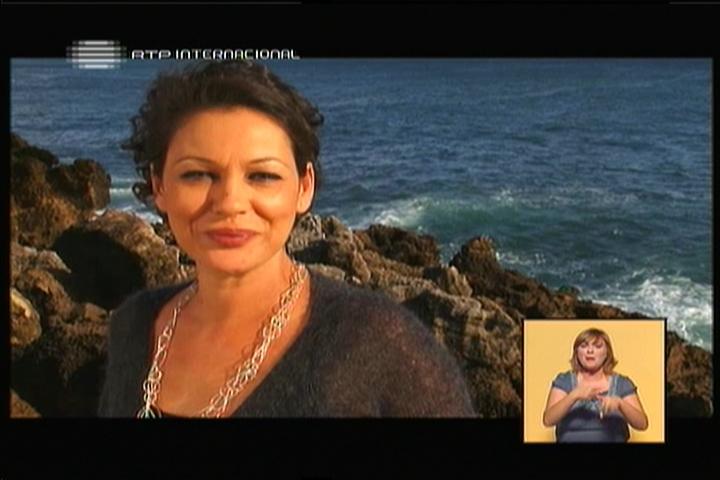

Intelsat 907 at 27.5°W - East hemi footprint : 3 841 R RTP Internacional
IF Data Q data NIT data

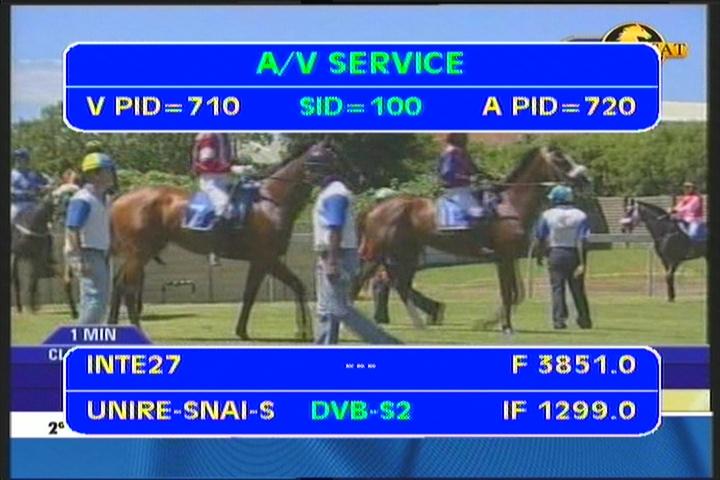

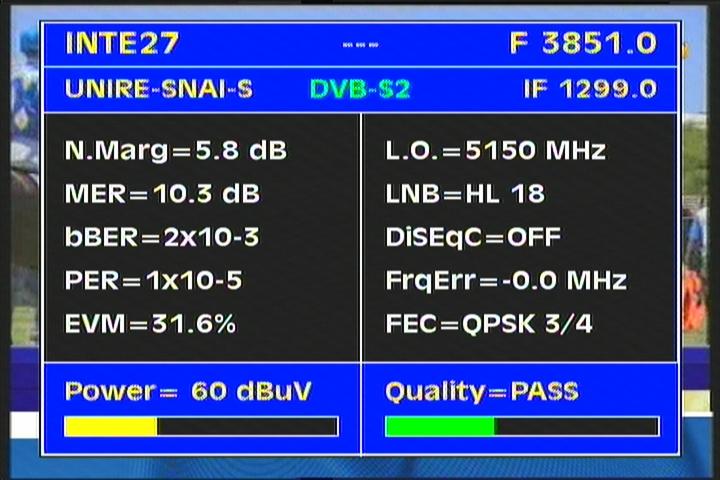

Intelsat 907 at 27.5°W - NE zone footprint : 3 851 L DVB-S2/QPSK feed UNIRE-SNAI Italy
VA pids data Q data NIT data

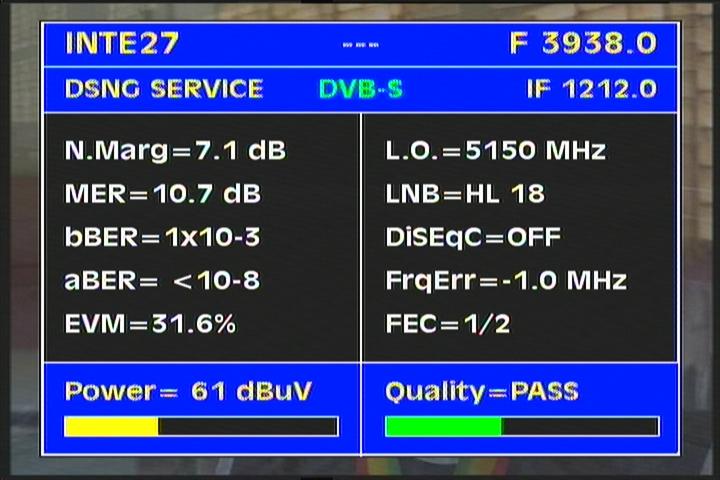

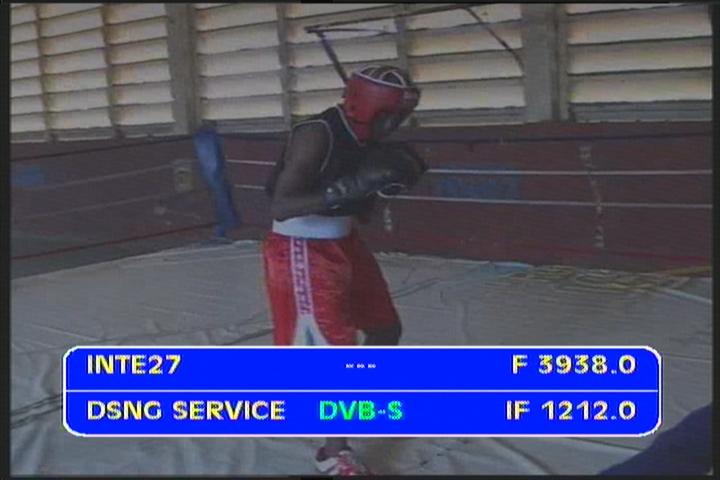

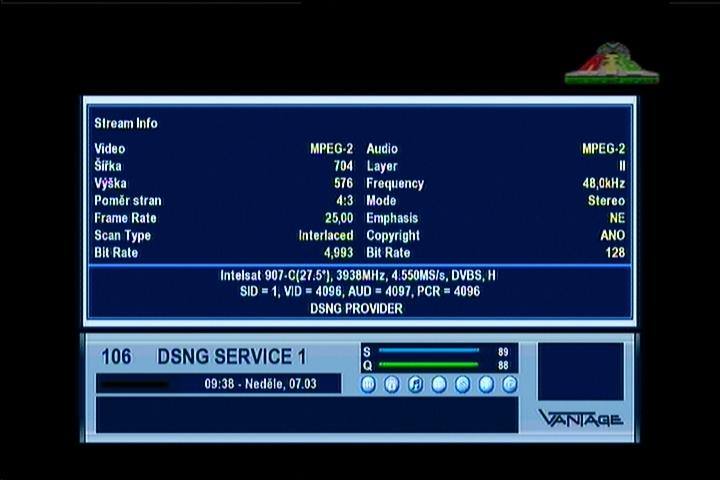

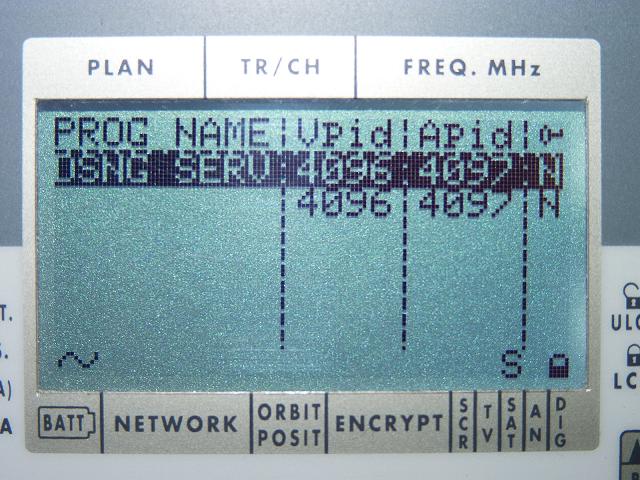

Intelsat 907 at 27.5°W - East Hemi footprint : 3 938 R RTG Guinea
IF data Q data NIT data

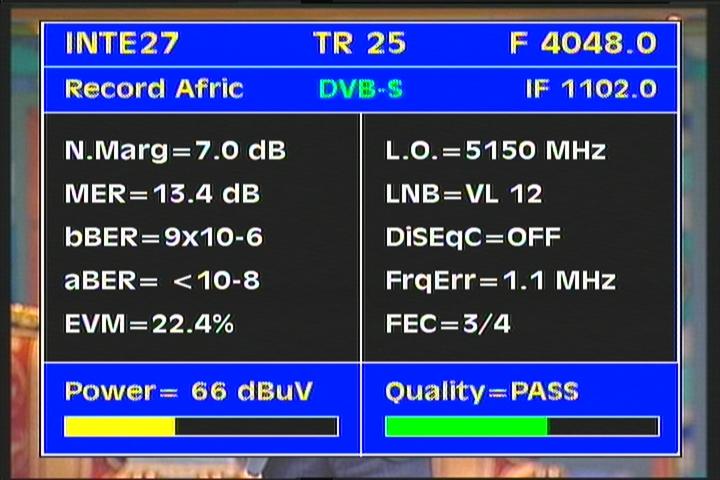

Intelsat 907 at 27.5°W - East hemi footprint : 4 048 R Record Internacional Europa
IF data Q data NIT data

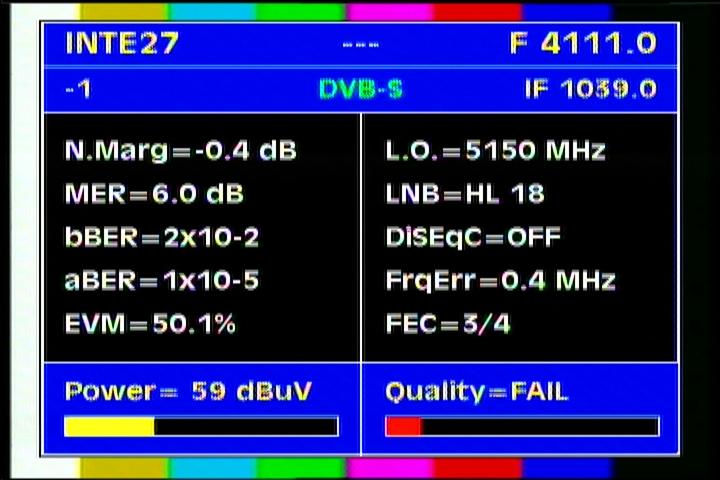

Intelsat 907 at 27.5°W - East hemi footprint : 4 111 L feed United Nations Hague
IF data Q data NIT data

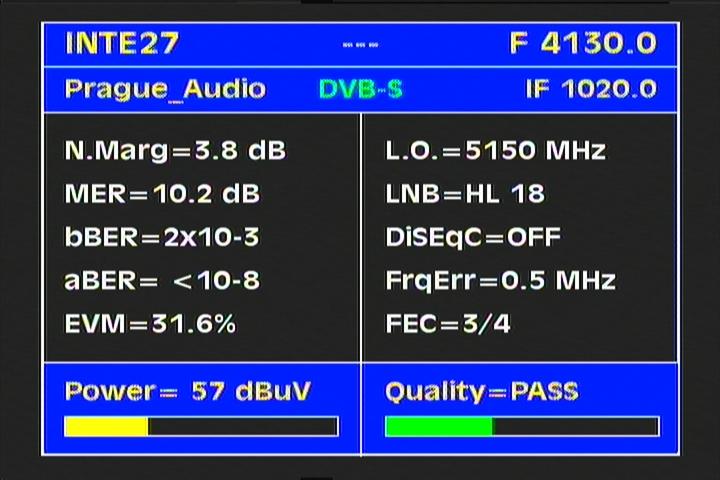

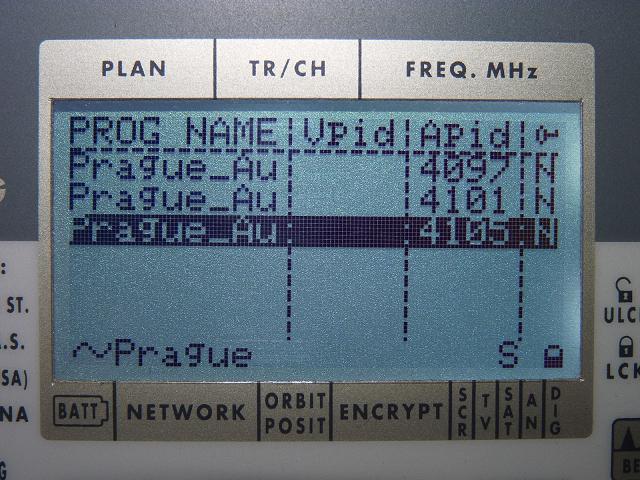

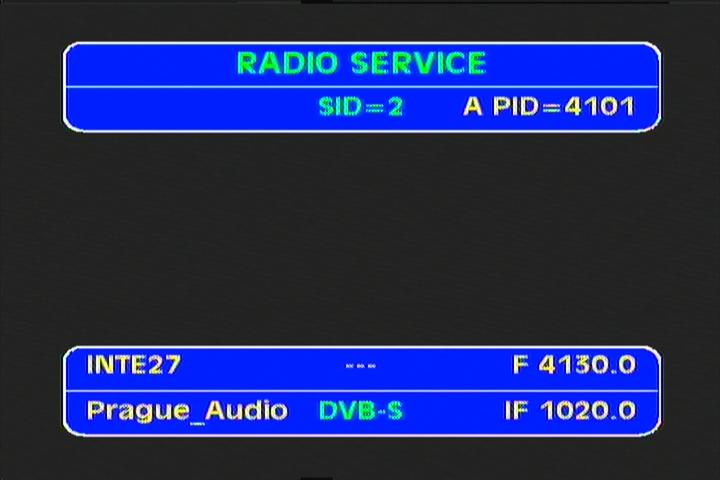

Intelsat 907 at 27.5°W - Global footprint : 4 130 R RFE Radio Free Europe Prague
A pid Q data NIT data

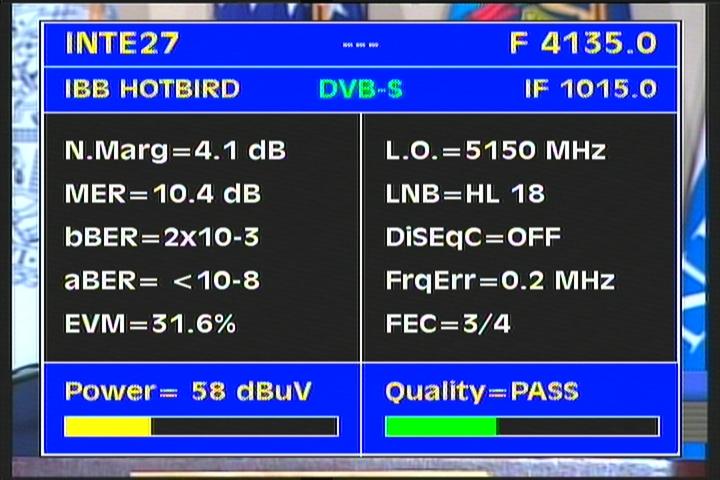

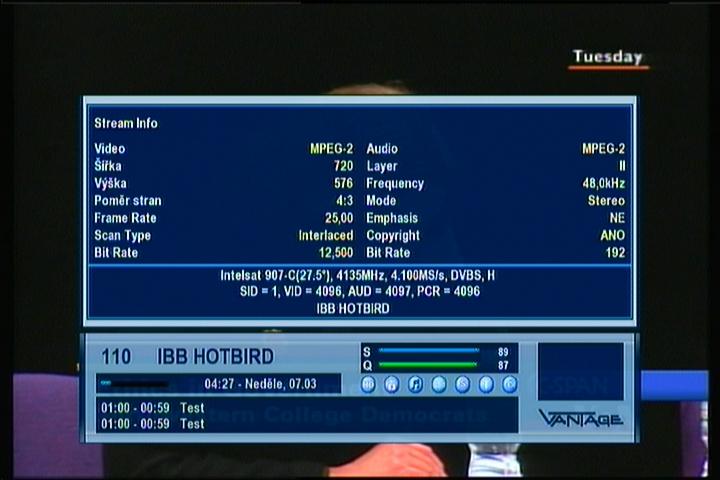

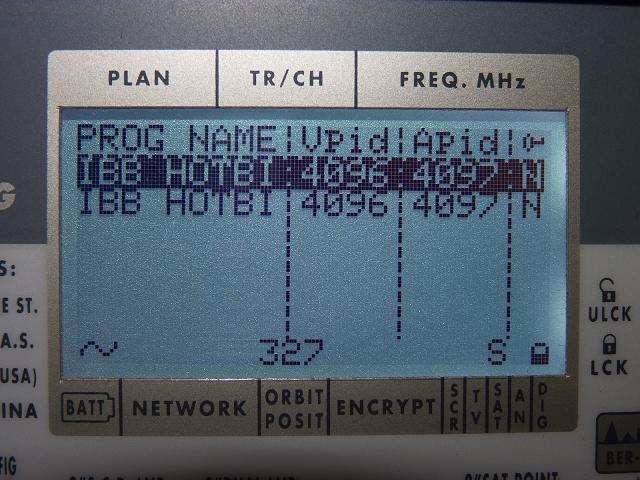

Intelsat 907 at 27.5°W - Global footprint : 4 135 R VoA Voice of America
IF data Q data NIT data

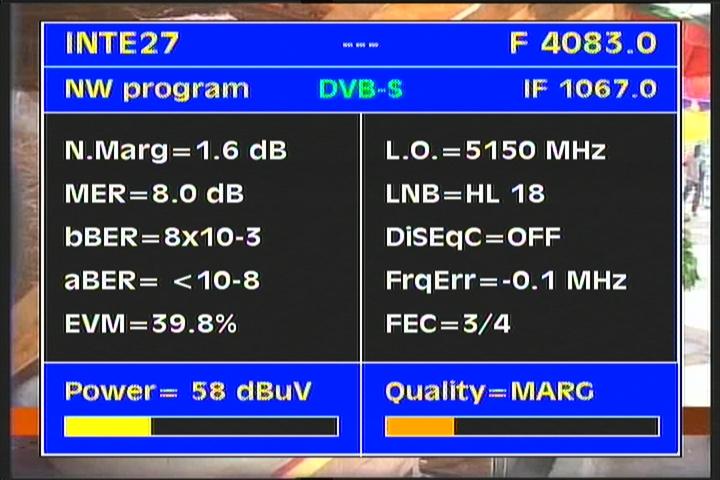

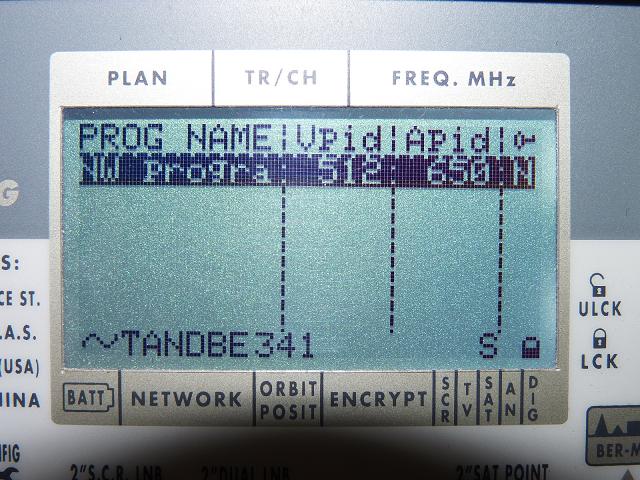

Intelsat 907 at 27.5°W - Global footprint : 4 143 R NTA Int
IF data Q data NIT data
Intelsat 907 at 27.5°W : TV List
---Frequency---
|
----------Provider/Channel----------
|
---SR--- | ---FEC--- | ---Footprint--- | ---Antenna--- | ---Video/Encryption--- |
|

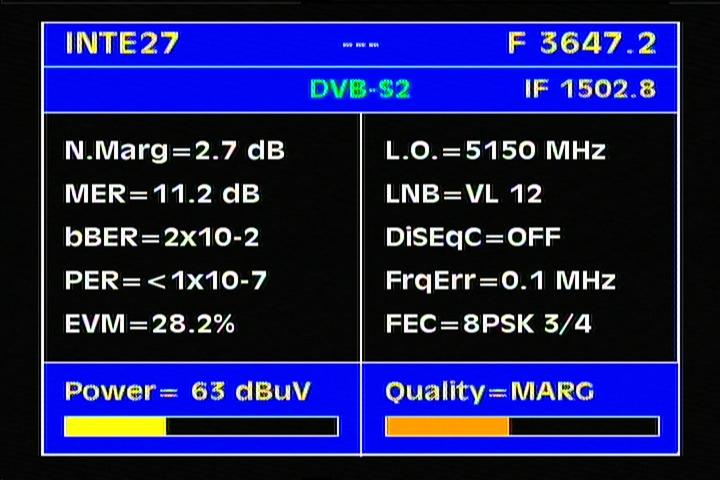

3 647 -R- |
left |
29 900 | 8PSK 3/4 |
East Hemi | 180+ cm | DVB-S2/8PSK |
|

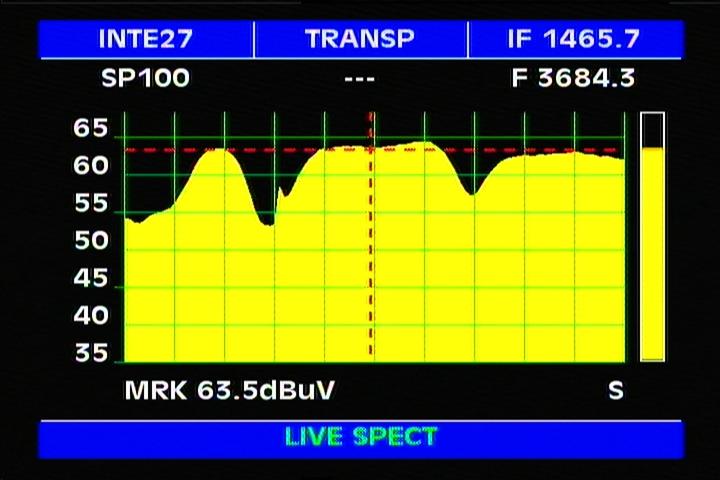

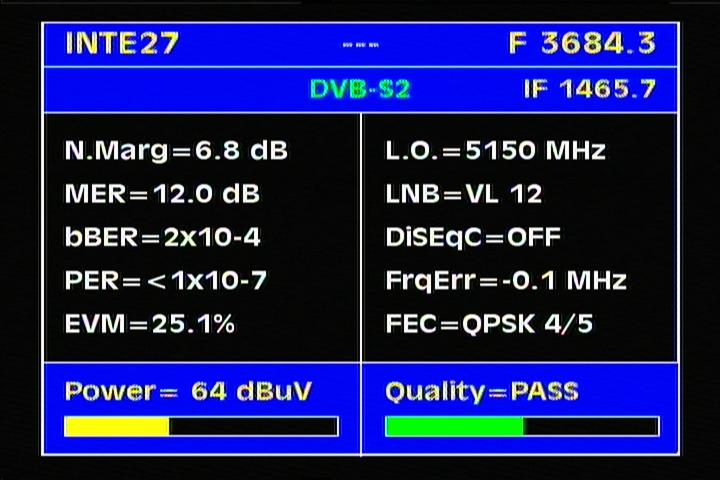

3 684 -R- |
left |
29 612 | QPSK 4/5 |
East Hemi | 180+ cm | DVB-S2/QPSK |
|
3 708 -L- tp 51 |
feeds KNR TV |
4 600 | 3/4 | NE zone | 270+ cm | DVB FTA |
|
3 715 -L- tp 51 |
2 914 | 7/8 | NE zone | 240+ cm | DVB FTA | |
|
3 715 -R- tp 21 |
8 448 | 1/2 | East hemi | 180+ cm | DVB FTA | |
|
3 764 -R- tp 21 |
24 450 | 3/4 | East hemi | 180+ cm | DVB | |
| VoA TV / Channel #1 | FTA | |||||
| VoA TV / Ch 90-91 AOR | FTA | |||||
| VoA TV / Ch 8-9 OS | FTA | |||||
ch.20 / MBN quad video mosaic  |
MPEG-4/FTA | |||||
| ch.15 / Al Hurra |
MPEG-4/FTA | |||||
| ch.19 / Al Hurra Iraq |
MPEG-4/FTA | |||||
| ch.17 / Al Hurra Europe | MPEG-4/FTA | |||||
|
3 773 -L- tp 52 |
10 000 | 5/6 | NE Zone | 180-220+ cm | DVB-S2/QPSK/MPEG-4 | |

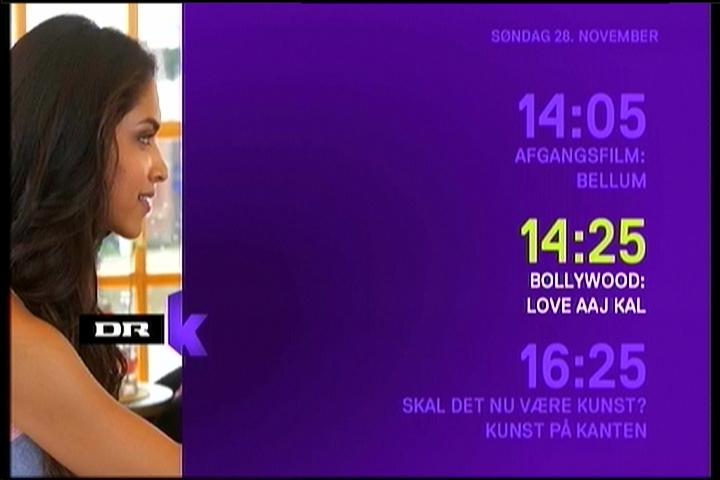

| KNR (sat) _ update | MPEG-4/FTA | |||||
| DR HD_ update | MPEG-4/FTA | |||||
| DR Ramasjang_ update | MPEG-4/FTA | |||||
| DR K_ update | MPEG-4/FTA | |||||
|
3 831 -R- tp 22 |
5 787 | 3/4 | East hemi | 180+ cm | DVB FTA | |
|
3 842 -R- tp 22 |
RTP Int. network | 10 850 | 3/4 | East hemi | 140+ cm | DVB |
| RTPi Europa |
FTA | |||||
| RTP Africa | FTA | |||||
| RTPi Asia |
FTA | |||||
|
3 851 -L- tp 52 |
3 701 | 3/4 | NE zone | 180+ cm | DVB-S2/QPSK+8PSK | |
|
3 856 -L- tp 52 |
4 600 4 134 |
3/5 | NE zone | 180+ cm | DVB-S2/QPSK+8PSK | |
|
3 861 -L- tp 52 |
4 600 | 3/4 | NE zone | 180+ cm | DVB-S2/QPSK+8PSK | |
|
3 936 -R- tp 23 |
RTG Guinea / DSNG Service |
4 550 | 1/2 | East hemi | 180+ cm | DVB FTA |
|

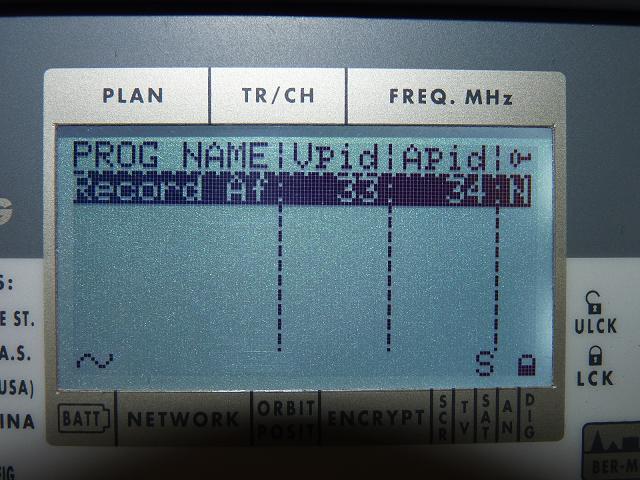

4 048 -R- tp 25 |
Record Internacional / Record Africa | 7 000 | 3/4 | East hemi | 180+ cm | DVB FTA |
|
4 111 -L- tp 86 |
1 384 | 3/4 | Global | 180+ cm | DVB FTA | |
|
4 130 -R- tp 37 |
RFE Radio Free Europe Prague |
1 517 | 3/4 | Global | 180+ cm | DVB FTA |
| Prague_Audios 1-8 |
radio services | |||||
| Prague_Audios 17-2 | radio services | |||||
| Prague_Audios 9-16 | radio services | |||||
|
4 135 -R- tp 37 |
VoA TV / IBB Hotbird |
4 100 | 3/4 | Global | 180+ cm | DVB FTA |
|
4 143 -R- tp 37 |
NTA International / NW Program |
2 893 | 3/4 | Global | 180+ cm | DVB FTA |
