►►Eutelsat 16A-W3C at 16°E-KA band reception : orbital location , coverage , polarisation , transponders ...
Satellite reception in KA band : 21 545.019 MHz : DVB-S2-8PSK-MPEG-4 STV 1 Cameroon
last update : 22.3.2013
the spectrum of the horizontal vector in the range from 5 to 50 m
Eutelsat 16A ex. W3C : orbital location , coverage , polarisation
Eutelsat 16A ex. W3C : orbital location , coverage , polarisation

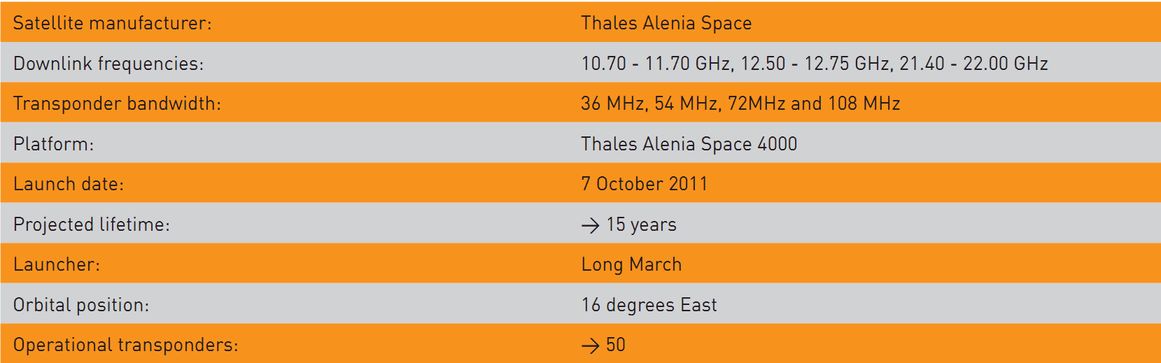

16A - datasheet
source : Eutelsat communications
►►Eutelsat 16A-W3C at 16°E-KA band reception : the HF string , footprint , geographical location ...
| geographical location of the measurement in the KA band | N48°19719' , E19°40148' , Lučenec,Slovak republic |
| secondary radiant -D- | 300 cm |
| HF system | original proposal for linear vectors |
| LNB for KA band nr.1 | PLL Norsat 9000 HD-3F,L.O.stability +/- 60 kHz,NF=1,6 dB,range 21 200-22 200 MHz |
| Analyzed frequency spectrum + polarisation | 21 400-22 000 MHz / linear V |
| Field strenght meters | Televes H60 Advanced , Rover DM16 4HD Digimax , TBS 5925 , Unaohm AP 201 S+ |
secondary radiant original proposal for the H/V vectors KA band LNB PLL Norsat 9000 HD-3F

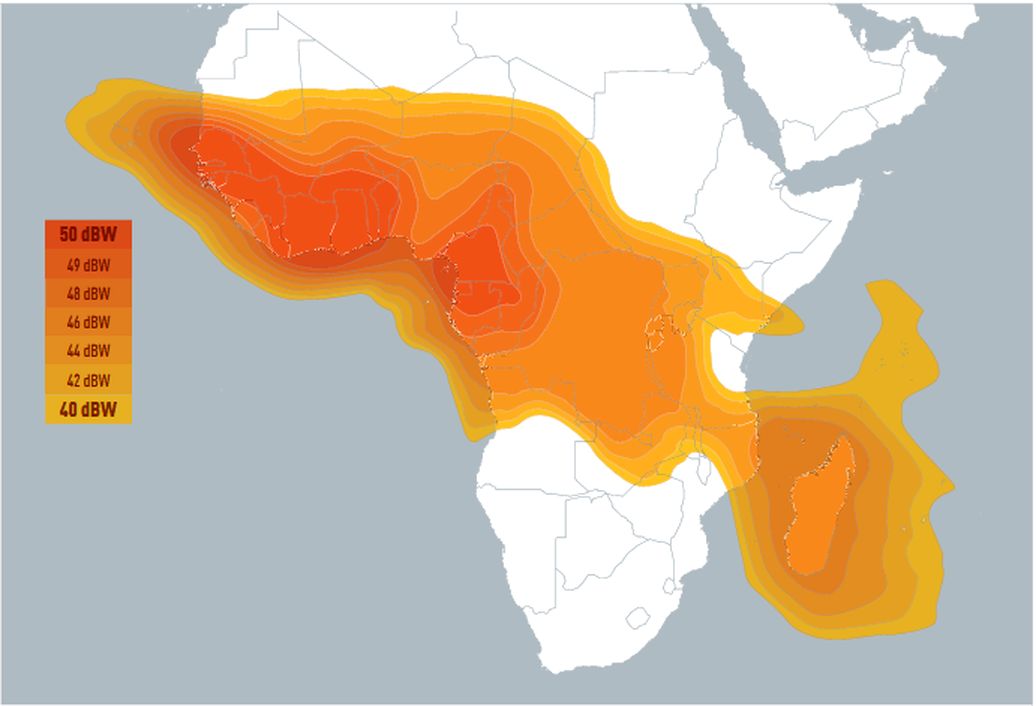

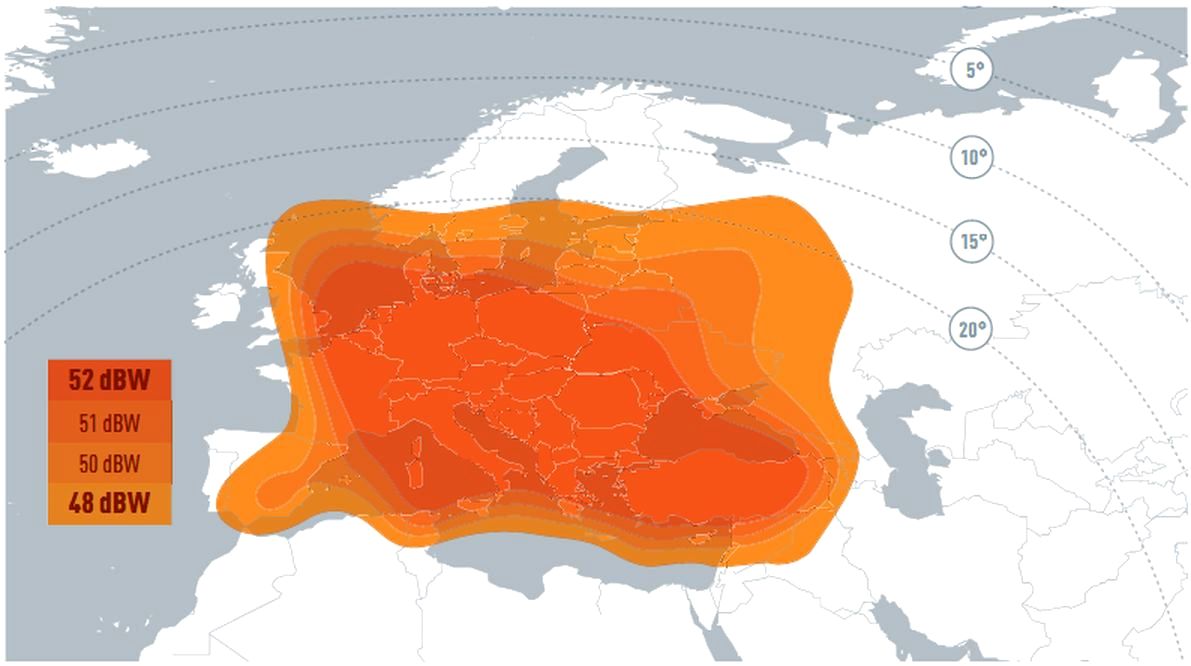

Europe C downlink coverage_KA band Downlink coverage-Africa geographical location of the measurement
►►Eutelsat 16A-W3C at 16°E-reception and measurement in the KA band: analysis of the spectrum and the quality

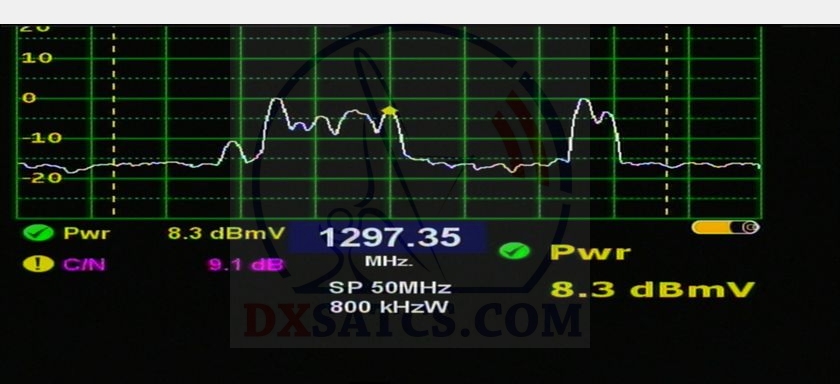

►The complete range of the -H- vector in the KA band from 21 400 to 22 000 MHz : quantification of vertical carrier spectrum
-- 21 539.77 MHz_Equinoxe TV→21 541.27 MHz_LCF TV→21 545.02 MHz_Packet STV→21 560.26 MHz_Golfe TV→21 561.73 MHz_Impac TV --
►Quality analysis for the carrier in the -H- frequency spectrum from 21 400 to 22 000 MHz

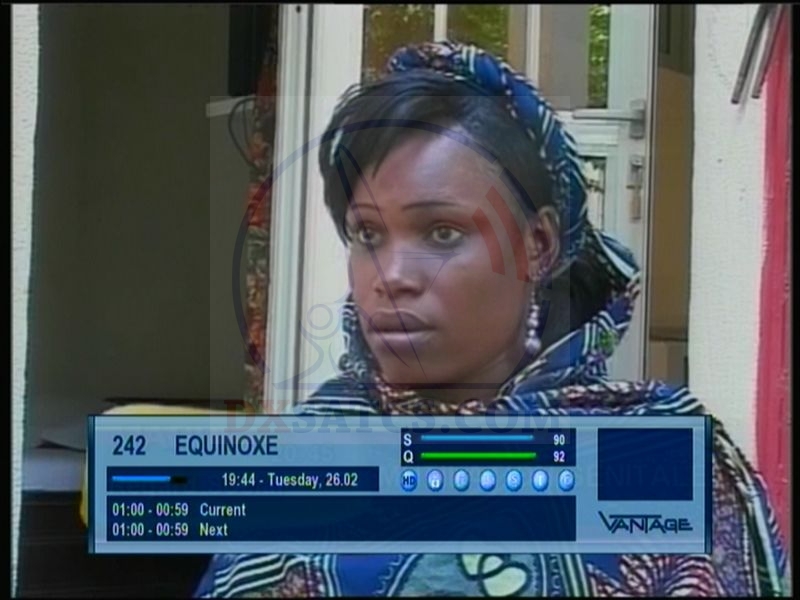

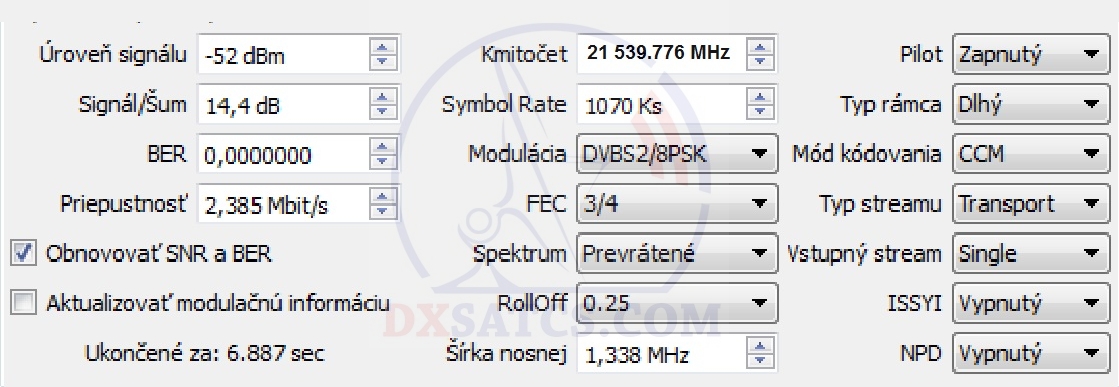

21 539.776 MHz : DVB-S2-8PSK-MPEG-4 Equinoxe TV Cameroon
USB DVB-S2 TV Tuner TBS 5925

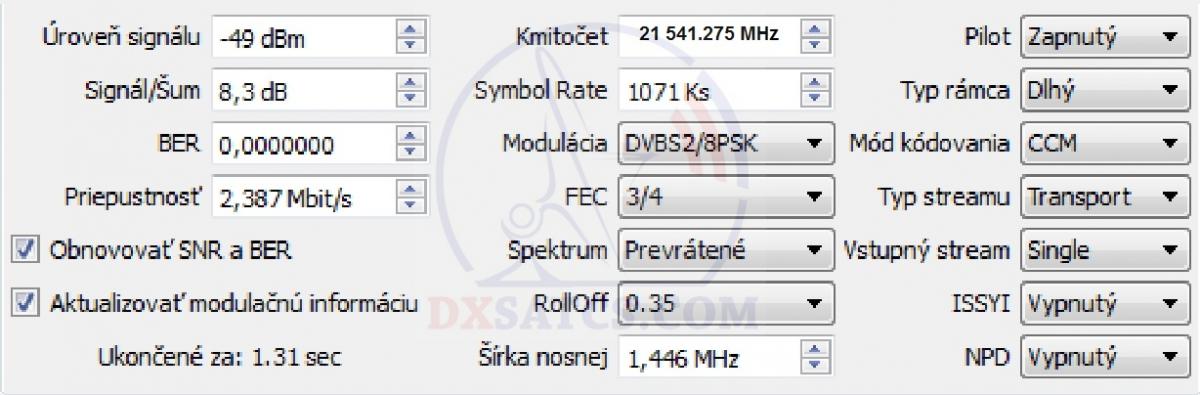

21 541.275 MHz : DVB-S2-8PSK-MPEG-4 LCF Togo
USB DVB-S2 TV Tuner TBS 5925

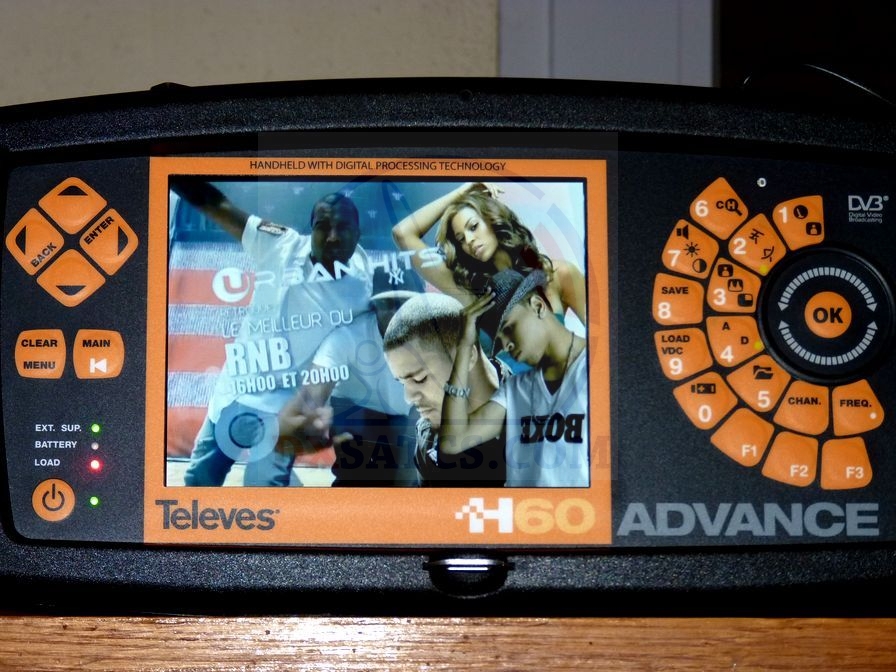

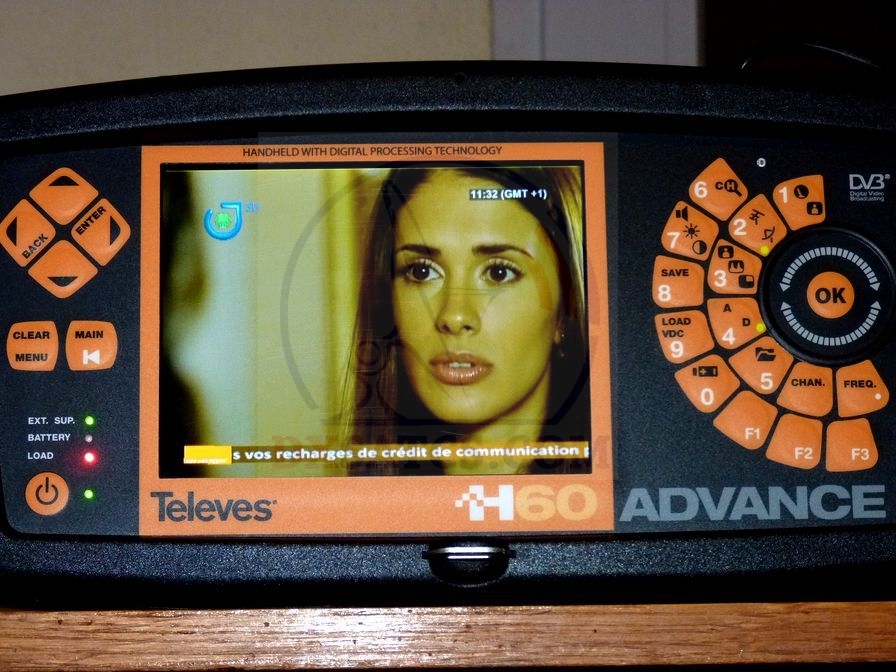

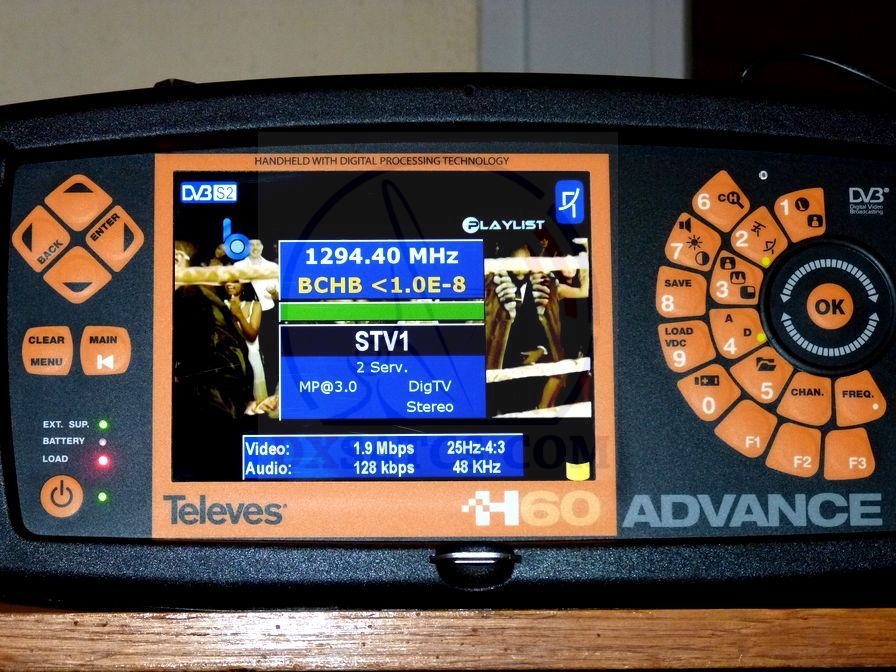

21 545.02 MHz : DVB-S2-8PSK-MPEG-4 STV 1+STV 2 Cameroon _TS-V=1.9 Mbps , 4:3
USB DVB-S2 TV Tuner TBS 5925
21 560.26 MHz : DVB-S2-8PSK-MPEG-4 Golfe TV Benin
USB DVB-S2 TV Tuner TBS 5925

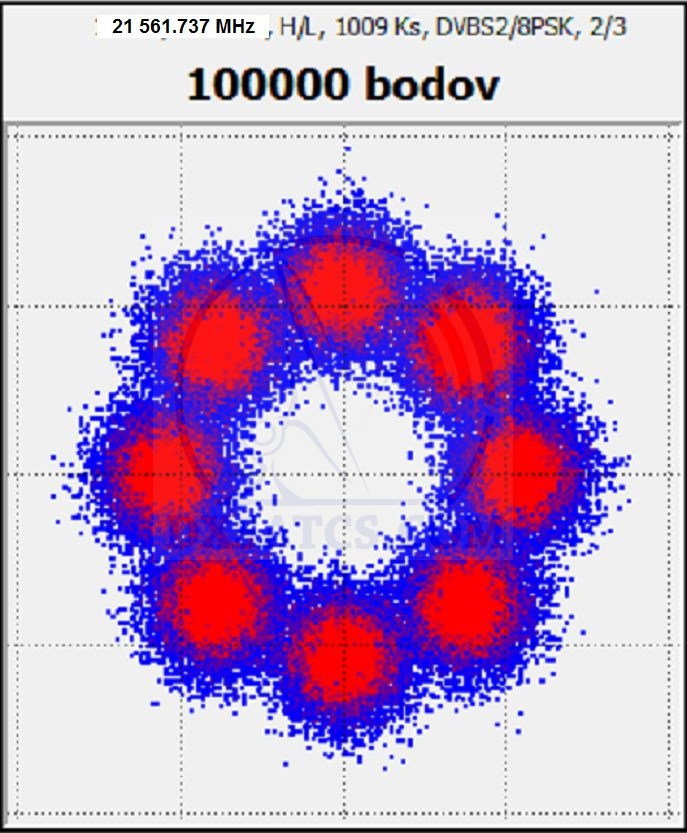

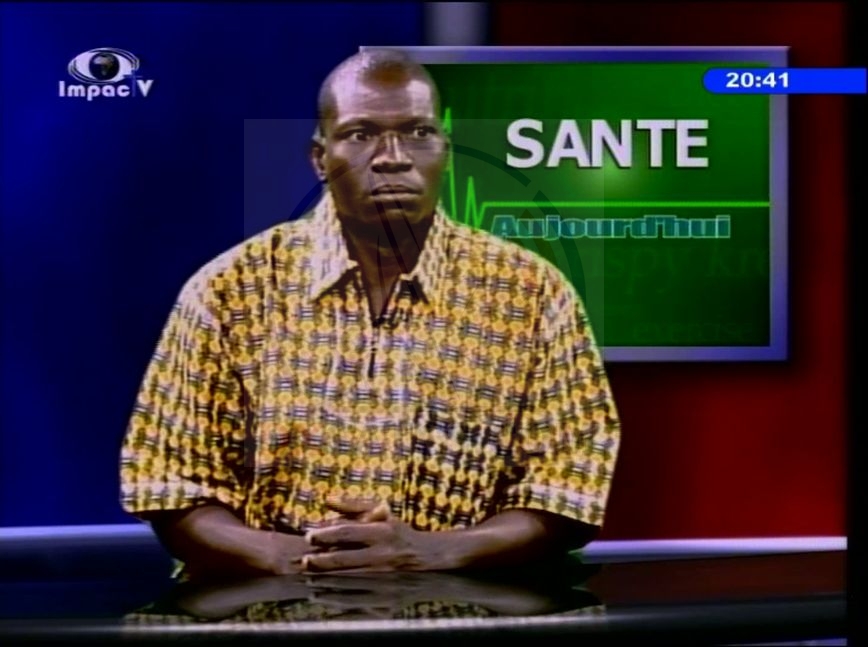

21 561.73 MHz : DVB-S2-8PSK-MPEG-4 Impac TV Burkina Faso
USB DVB-S2 TV Tuner TBS 5925
►►Eutelsat 16A-W3C at 16°E-reception and measurement in the KA band: list of identified carrier
.
-Frequency/Polarisation
|
----------Provider/Channel----------
|
---SR--- | ---FEC--- | ---Footprint--- | ---Antenna--- | ---DVB/Encryption--- |
|
|
||||||
| 21 539.776 MHz-H.pol BW=1.338 MHz |
Equinoxe TV Cameroon |
1 070 Pilot ON |
3/4 | Europe C | 60+ cm depending on the location |
DVB-S2-8PSK MPEG-4-FTA |
| 21 541.275 MHz-H.pol BW=1.446 MHz |
LCF Togo |
1 071 Pilot ON |
3/4 | Europe C | 60+ cm depending on the location |
DVB-S2-8PSK MPEG-4-FTA |
| 21 545.019 MHz-H.pol BW=2.678 MHz |
Stv Group Cameroon | 2 142 Pilot ON |
5/6 | Europe C | 60+ cm depending on the location |
DVB-S2-8PSK MPEG-4-FTA |
| STV 1 - Boom tv | FTA | |||||
| STV 2 | FTA | |||||
|
|
||||||
| 21 560.268 MHz-H.pol BW=1.365 MHz |
Golfe TV Benin |
1 011 Pilot OFF |
2/3 | Europe C | 60+ cm depending on the location |
DVB-S2-8PSK MPEG-4-FTA |
| 21 561.737 MHz-H.pol BW=1.21 MHz |
Impac TV Burkina Faso |
1 009 Pilot ON |
2/3 | Europe C | 60+ cm depending on the location |
DVB-S2-8PSK MPEG-4-FTA |
.
►►Eutelsat 16A-W3C at 16°E-KA band reception : video presentation of the results of the reception in the KA band

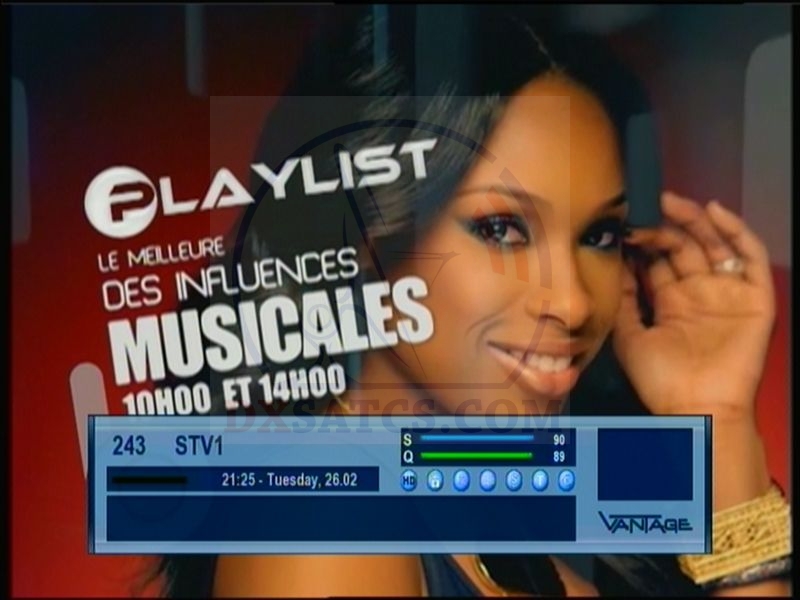

►►Eutelsat 16A-W3C at 16°E-KA band reception : footage from the broadcast

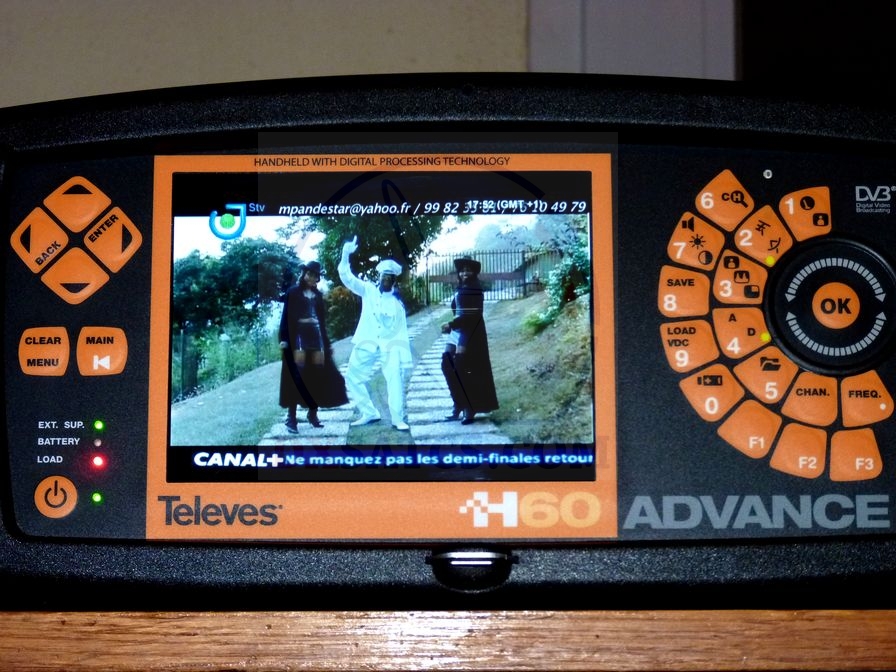

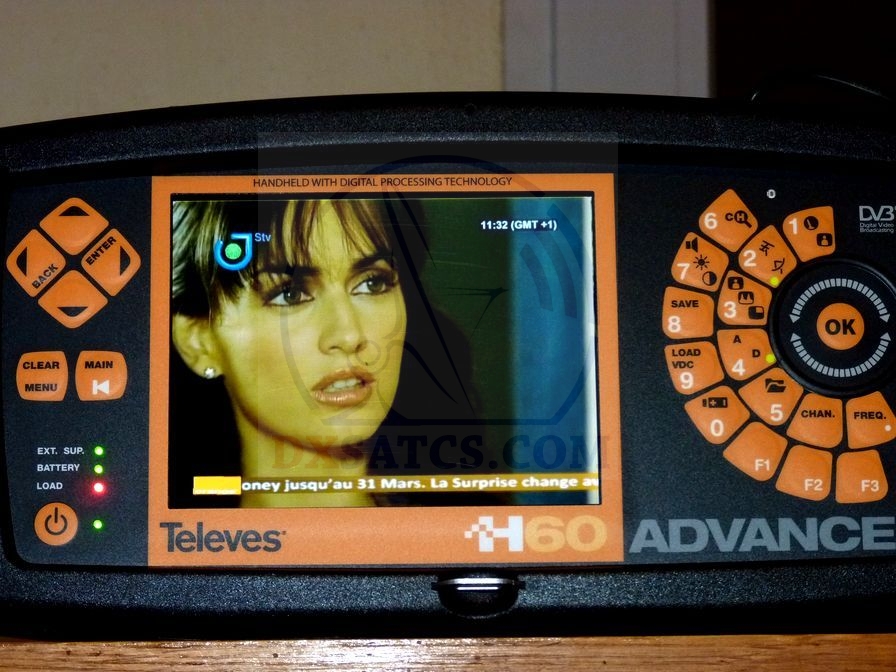

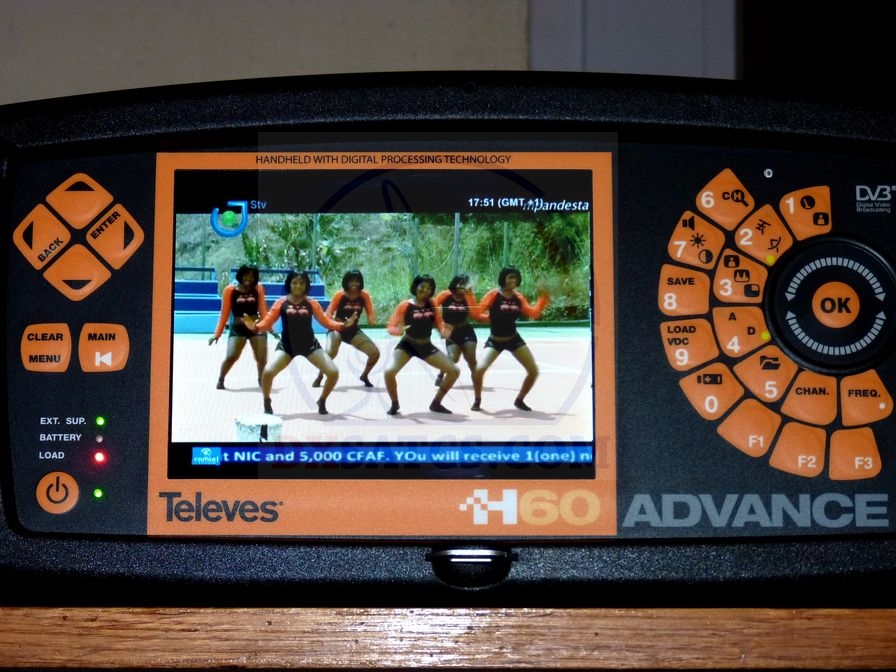

21 545 MHz : STV 1 21 545 MHz : STV 1 21 545 MHz : STV 2
21 545 MHz : STV 1 21 545 MHz : STV 2 21 545 MHz : STV 1
