►►Eutelsat Hotbird 13A-13°E-KA band reception : orbital location , coverage , polarisation , transponders ...
KA band satellite reception : Eutelsat Hotbird 13A _ full range of the circular vector from 19 700 to 20 200 MHz the spectrum of the horizontal vector in the range from 5 to 50 mhz

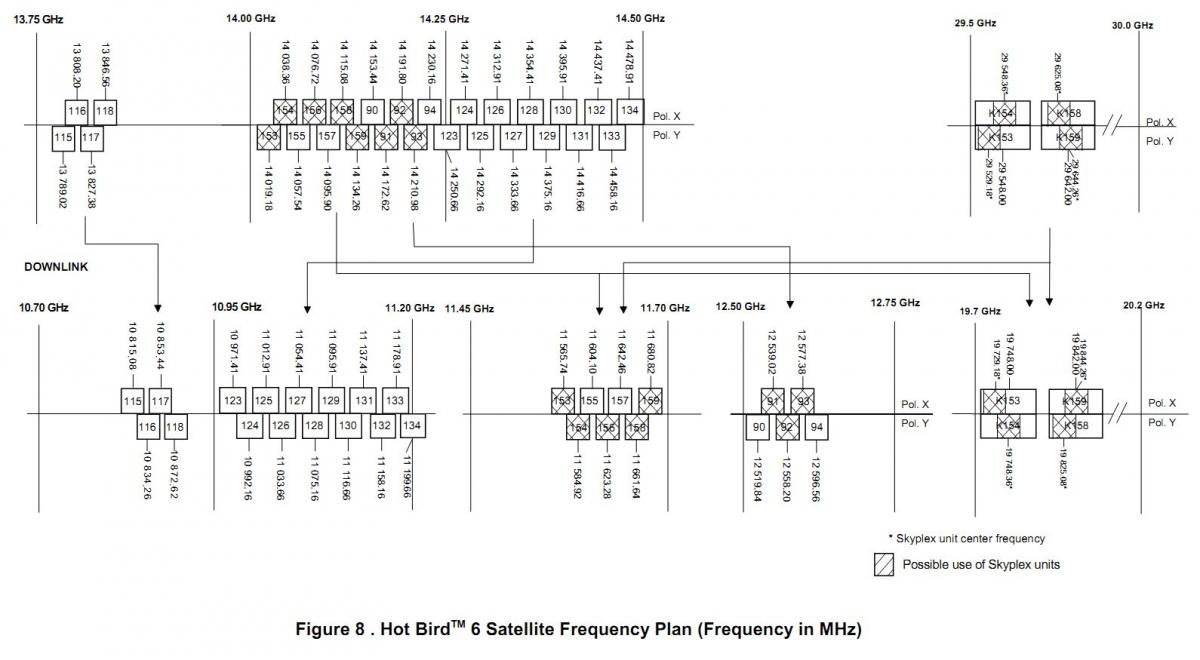

--- Eutelsat Hotbird 13A Satellite Frequency plan ( frequency in MHz ) ---
--- Eutelsat Hotbird 13A brochure : Ka-band and SKYPLEX: cost-effective broadcasting and IP business solutions ---
Eutelsat Hotbird 13A-ex.Hotbird 6 datasheet
source : Eutelsat Communications _ www.eutelsat.com
►►Eutelsat Hotbird 13A-13°E-KA band reception : the HF string , footprint , geographical location ...
geographical location of the measurement in the KA band | N48°19719' , E19°40148' , Lučenec,Slovak republic |
secondary radiant -D- | 300 cm |
HF system | original proposal for circular vectors |
LNB for KA band nr.1 | DRO Norsat 880-9000 BF,L.O.stability +/-1 MHz,NF=1,6 dB,range 19 200-20 200 MHz |
Analyzed frequency spectrum + polarisation | 19 700-20 200 MHz / circular LHCP |
Field strenght meters | Televes H60 Advanced , Rover DM16 4HD Digimax , TBS 5925 , Unaohm AP 201 S+ |

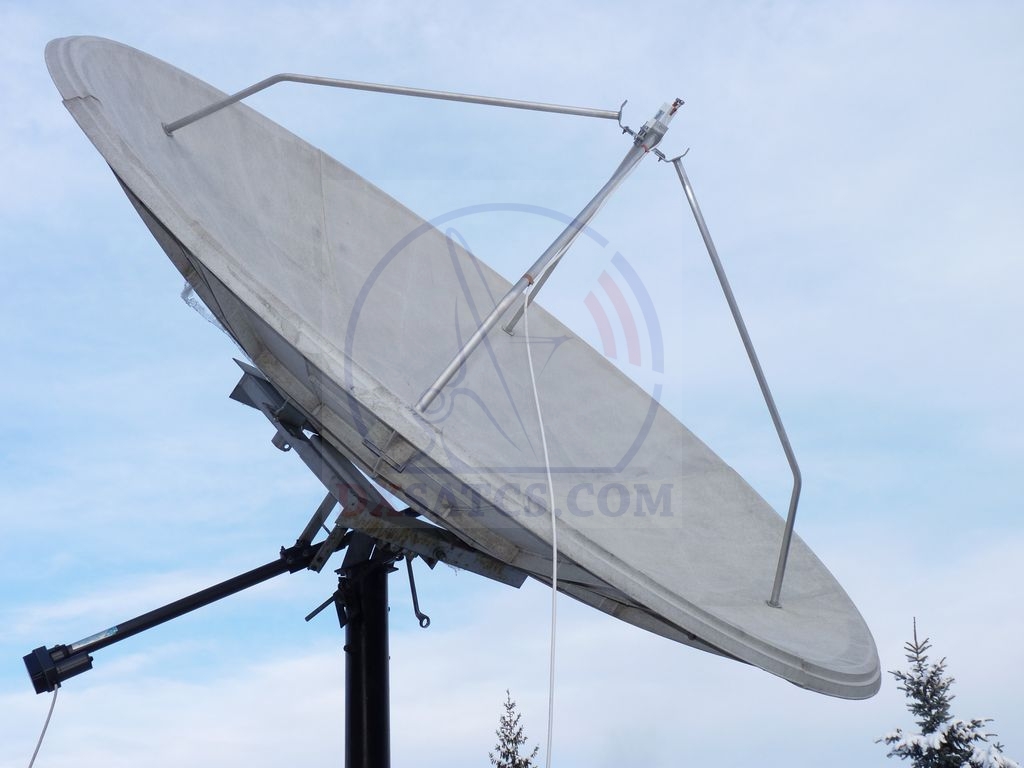

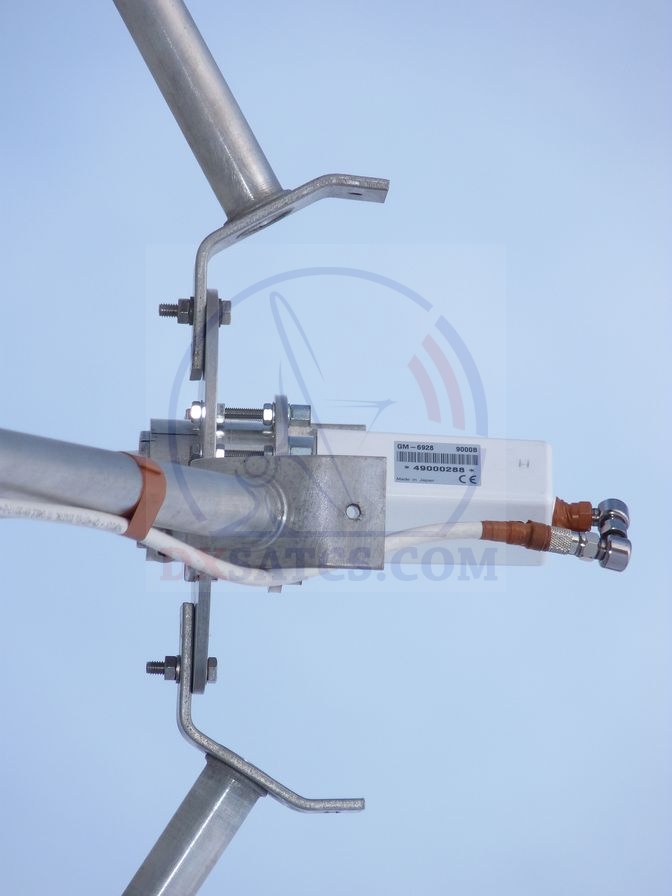

secondary radiant original proposal for the circular vectors

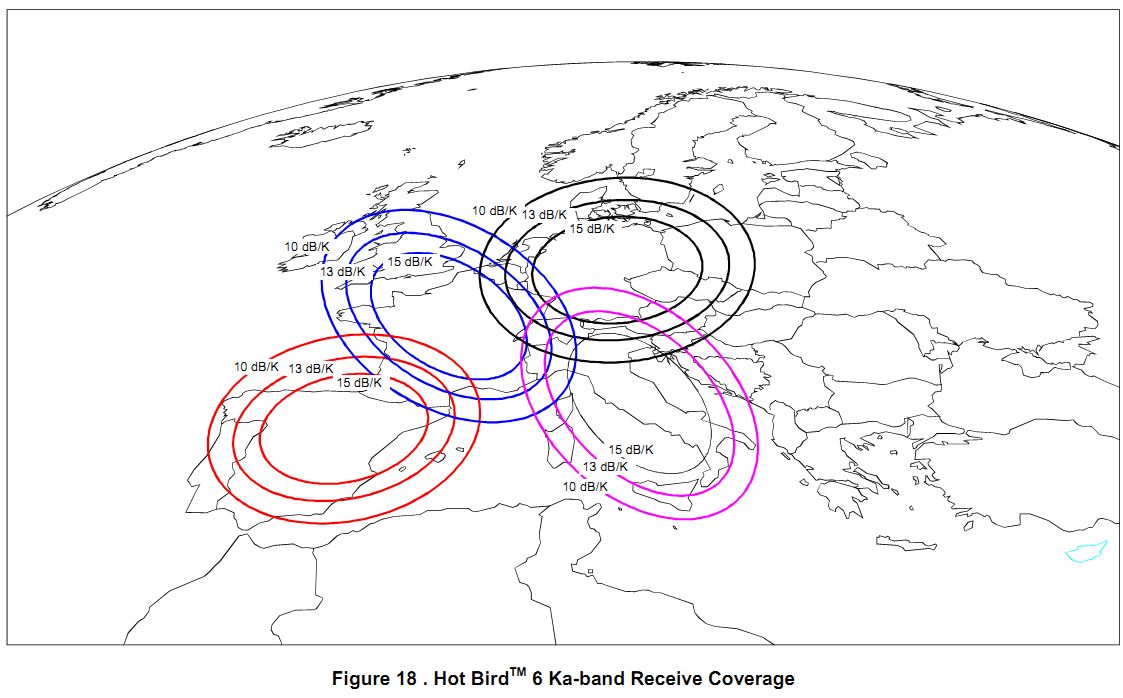

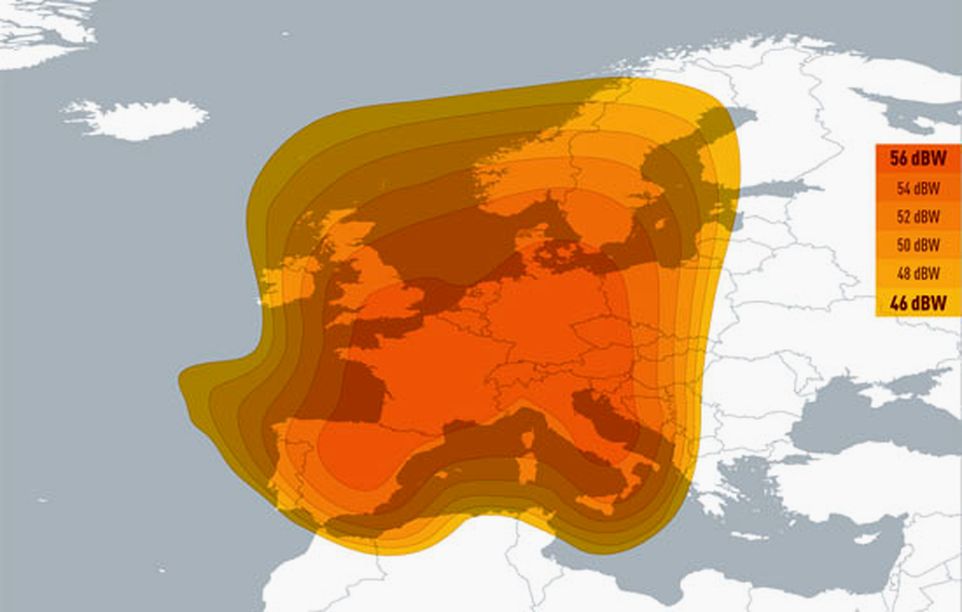

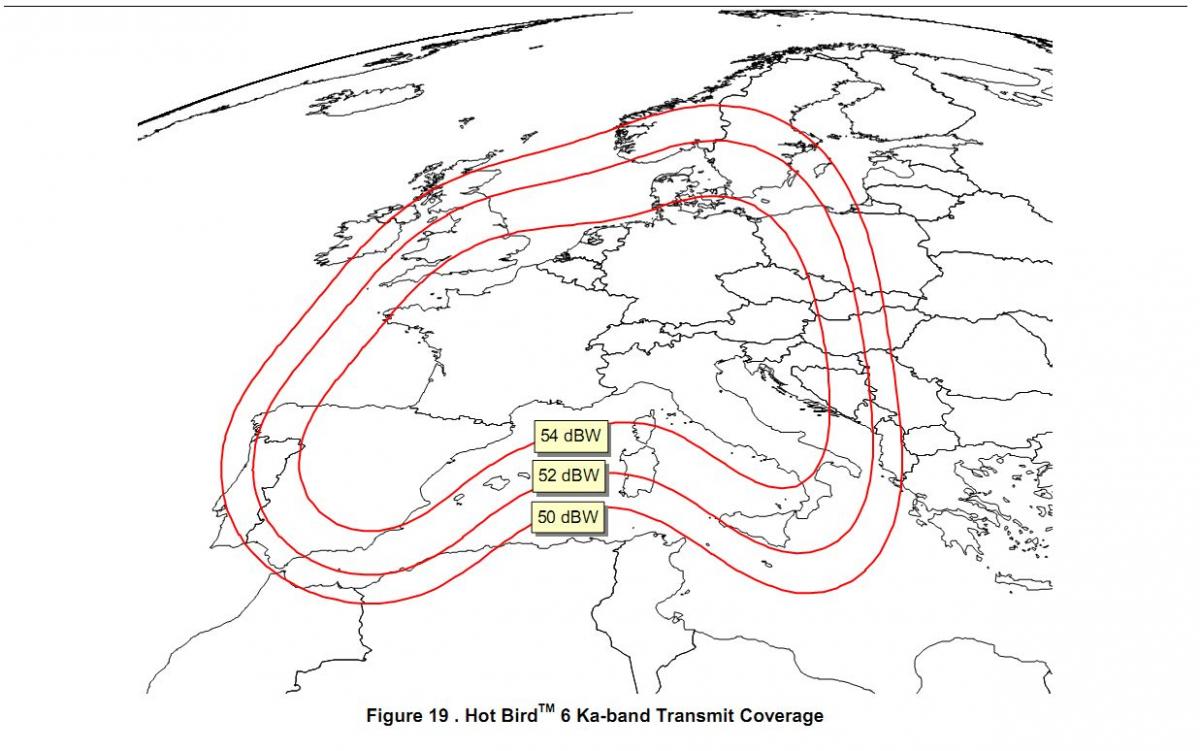

KA band superbeam KA band transmit coverage KA band receive coverage (Skyplex)
geographical location of the measurement
►►Eutelsat Hotbird 13A-13°E-reception and measurement in the KA band: analysis of the spectrum and the quality

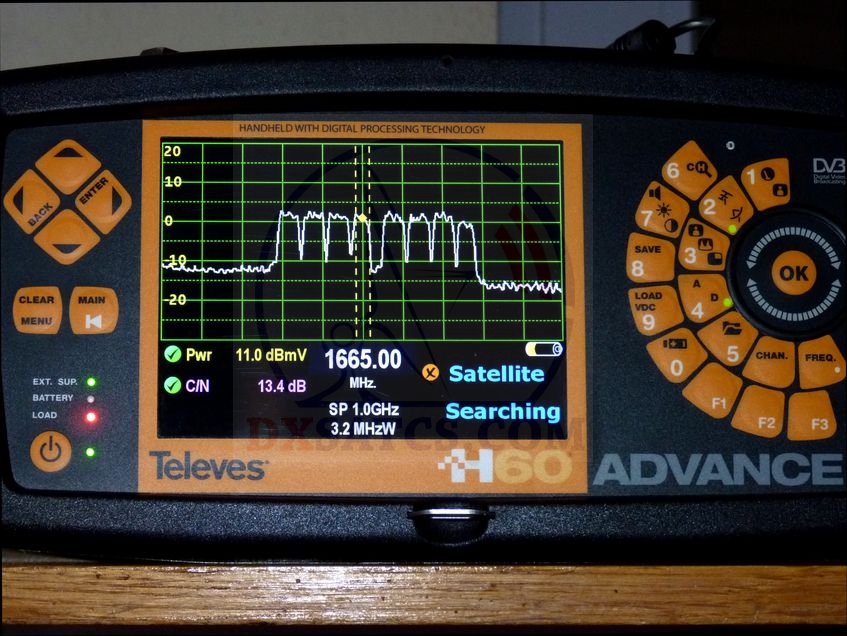

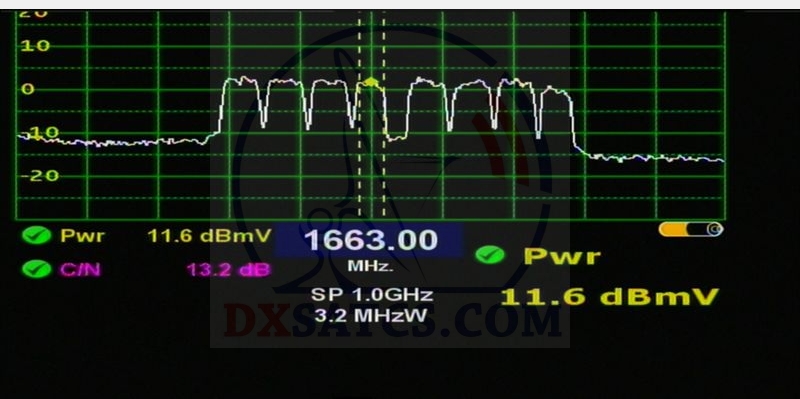

The complete range of the -CP- vector in the KA band from 19 600 to 20 200 MHz _ Televes H60

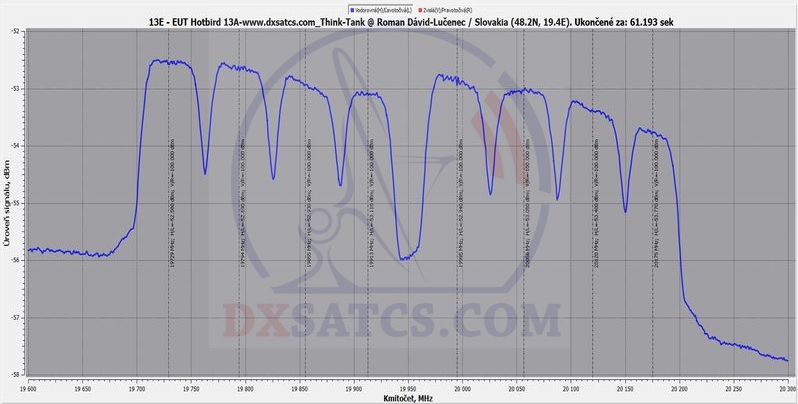

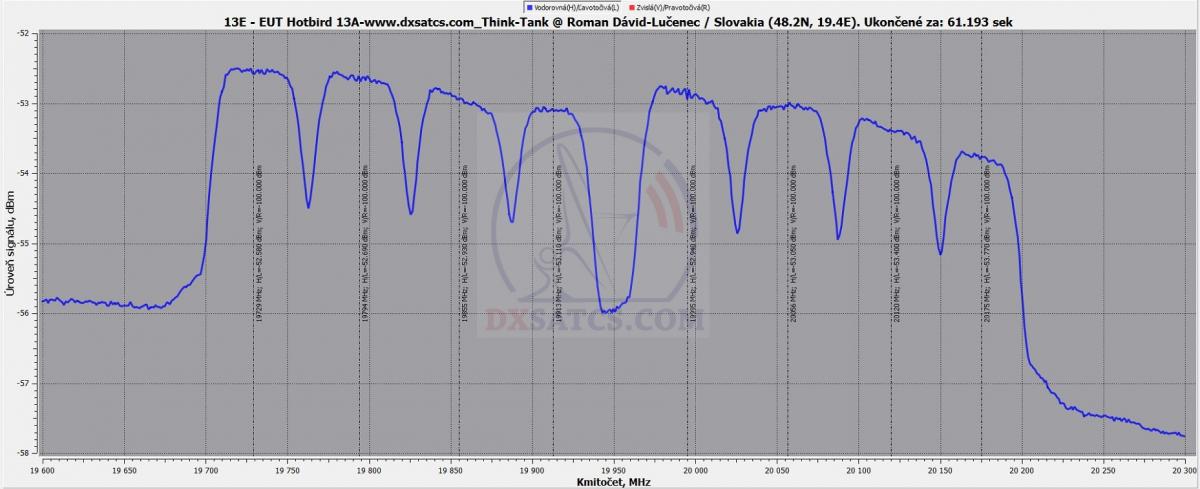

The complete range of the -CP- vector in the KA band from 19 700 to 20 200 MHz _ DVB-S2 TV tuner TBS 5925
► Without quality analysis for the 8 carrier in the -CP- frequency spectrum from 19 700 to 20 200 MHz : ( interactive IP + DVB services )
---
►►Eutelsat Hotbird 13A-13°E-reception and measurement in the KA band: list of identified carrier
.
-Frequency/Polarisation
|
----------Provider/Channel----------
|
---SR--- | ---FEC--- | ---Footprint--- | ---Antenna--- | ---DVB/Encryption--- |
19 729 MHz - CP |
IP-DVB Service |
KA band Superbeam | 80+ cm | interactive service (Skyplex) | ||
19 795 MHz - CP |
IP-DVB Service |
KA band Superbeam | 80+ cm | interactive service (Skyplex) | ||
19 855 MHz - CP |
IP-DVB Service |
KA band Superbeam | 80+ cm | interactive service (Skyplex) | ||
19 913 MHz - CP |
IP-DVB Service |
KA band Superbeam | 80+ cm | interactive service (Skyplex) | ||
19 995 MHz - CP |
IP-DVB Service |
KA band Superbeam | 80+ cm | interactive service (Skyplex) | ||
20 055 MHz - CP |
IP-DVB Service |
KA band Superbeam | 80+ cm | interactive service (Skyplex) | ||
20 120 MHz - CP |
IP-DVB Service |
KA band Superbeam | 80+ cm | interactive service (Skyplex) | ||
20 175 MHz - CP |
IP-DVB Service |
KA band Superbeam | 80+ cm | interactive service (Skyplex) |
.
►►Eutelsat Hotbird 13A-13°E-KA band reception : video presentation of the results of the reception in the KA band
►►Eutelsat Hotbird 13A-13°E-KA band satellite reception-footprint-analysis : copyright
![](/sites/default/files/uk_flag.gif)
that come exclusively from scientific research conducted by Roman Dávid - the author and the owner of www.dxsatcs.com. All the information found on
www.dxsatcs.com are protected by copyright as a part of intangible property and are protected by EU law and Slovak national legislation. Usage, copying
and distribution of any information or its parts without author's permission is strictly prohibited.
![](/sites/default/files/sk_flag.gif)
činnosti autora dxsatcs.com Roman Dávida z oblasti vlnovej fyziky a VF techniky a spadajú do jeho duševného vlastníctva,ktoré je chránené zákonmi
Európskej únie a Slovenskej republiky .Ich celkové alebo čiastočné kopírovanie, imitovanie alebo distribúcia bez súhlasu autora je výslovne zakázaná
z dôvodu výhradného vlastníctva autorom .
author : Roman Dávid_the founder of Czech & Slovak DX Satellite Club_Think-Tank © Lučenec 2013 / Slovak republic
