KA band satellite footprint-beam : inclined Astra 1H around 19,4° East - NCC Network Control centre downlink coverage area , KA band uplink and downlink footprint-beam-coverage ....

Posted September 10th, 2012 by Roman Dávid

 KA band satellite footprint-beam : inclined Astra 1H around 19,4° East - NCC Network Control centre downlink coverage area ,
                                                     KA band uplink and downlink footprint-beam-coverage ....

astra-1h-ka-band-ncc-downlink-coverage-ses-proprietary-and-confidential-01n

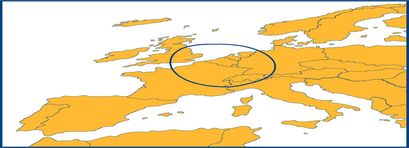

     Betzdorf network control centre NCC
KA band return channel downlink coverage

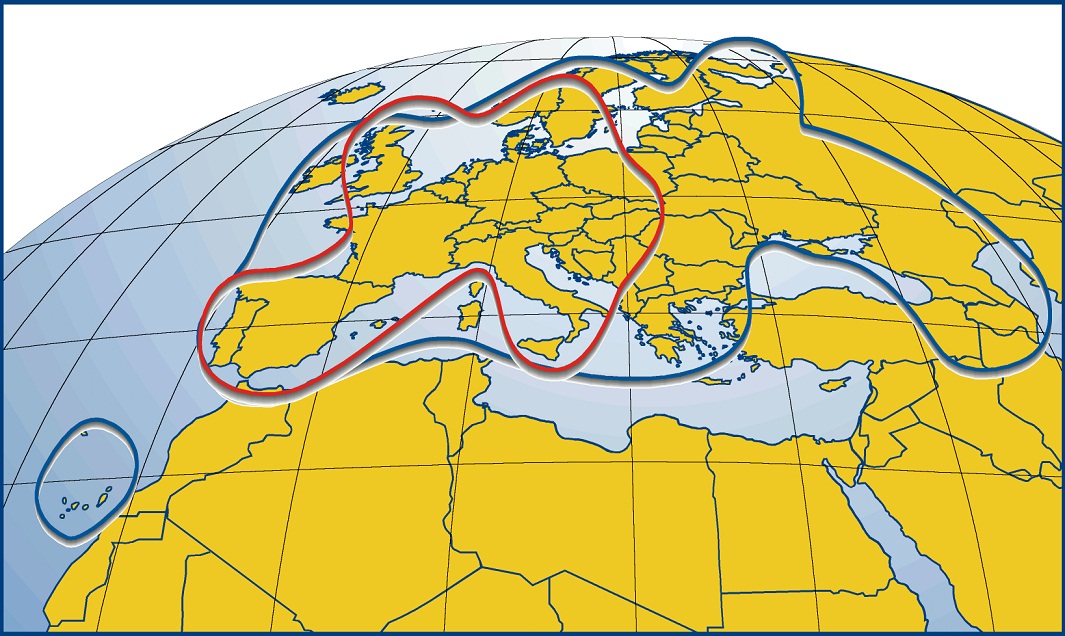

            KA band RX + KU band TX                     Astra 1H downlink footprint                        Astra 1H uplink coverage
astra-1h-ka-band-ncc-downlink-coverage-ses-proprietary-and-confidential-01wastra-1h-ka-band-downlink-coverage-ses-proprietary-and-confidential-wastra-1h-ka-band-uplink-coverage-ses-proprietary-and-confidential-w
Ka-Band Downlink Coverage for location(s)
   of NCC and gateway(s) (ASTRA-1H)

                                               data source : SES Astra - ! SES proprietary and confidential !
   An Innovative Broadband Satellite Architecture-Société Européenne des Satellites S.A.,Betzdorf,Luxembourg
