Measat 3 at 91.5°E-South Asia beam: Reliance Digital TV & reception quality

Measat 3 at 91.5°E-Reliance Digital TV : footprint , measurement point , HF system ...

.

     Measat 3 at 91.5°E - South Asia beam : measurements taken in the town of Lučenec / central Slovakia
                                   a, geographical location :
Latitude: 48.33°  _   Longitude: 19.72°
                                   b, measurement results are derived from the 3.7 m diameter antenna
                                   c, ground without obstacles in the horizon length to 1000 m
                                   d, date of measurement : 5.11.2010 & 31.12.2010
                                   e, elevation angle : 3.3°
                                   d, weather conditions : 5.11-clear skies with light winds & 31.12-light snow
                                   e, air temperature : 5.11_+10°C & 31.12_-12°C
                                   f, altitude : 185 m /asl
.

                                  --- Measat 3 at 91.5°E : HF system , geographical location of measurement ---
.
                  installed HF system                             theoretical footprint                               research point
    a, PF Prodelin 3.7 m                                                                                                 a, state : Slovak republic / Europe
    b, dxsatcs waveguide line                                                                                        b, town : Lučenec
    c, Norsat 4206 BF+ UNI LNB                                                                                     c, geo. location : 48.33°_19.72°
Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-PF Prodelin 3.7 mMeasat 3 at 91.5 e-south asia beam-Reliance Digital TV-footprint wMeasat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception point at lucenec slovakia
.

Measat 3 at 91.5°E-Reliance Digital TV : first installation of the receiver

.
                                   --- Measat 3 at 91.5°E-Reliance Digital TV : first step of installation ---

1, the first time you connect the antenna, receiver started automatically check the availability of the latest software version

2, verification process and subsequent downloading software is fully automatic and can not be stopped

3, prerequisite to successful completion of downloading the latest version of software is to reach at least 5-8 minutes,
signal quality did not decrease but remained stable at a level of gain at C/f=12 683 H, which just in terms of reception
in Central Europe is not easy
!!!

4, after two unsuccessful attempts, I reached a stable state carrier detection, which enabled me to complete the software
upgrade

5, only after successful completion of the previous step will allow the receiver to switch to the initial installation

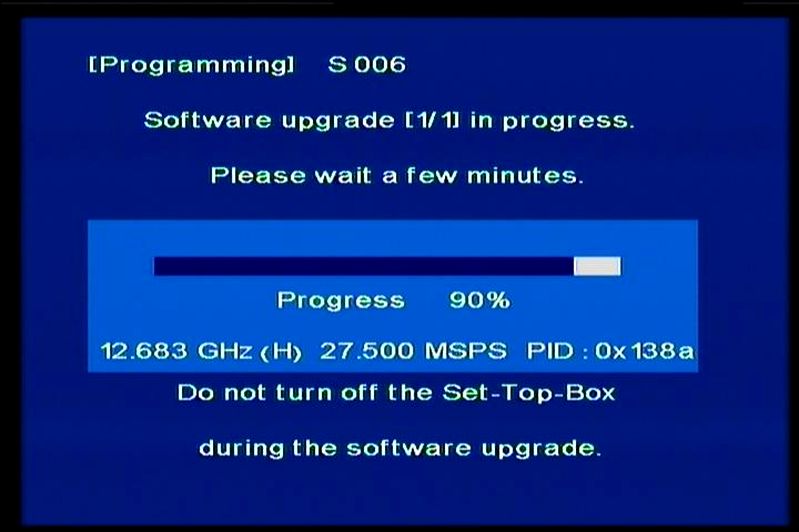

        software upgrade in progress               software upgrade in progress       successful installation of a new version
Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-software upgrade-01Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-software upgrade-02Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-software upgrade-04w

6, FIRST Installation : underlying assumption of tuning is to achieve a minimum gain level for more than MER=8 dB for the
reference transponder to f = 12 683 H, which does not fall below this level for several minutes.So then carried to the
receiver channel search is necessary to guarantee a minimum gain margin of at 3-4 dB above the locking level (green field),
otherwise blocking receiver hardware tuning and official reception is not possible !

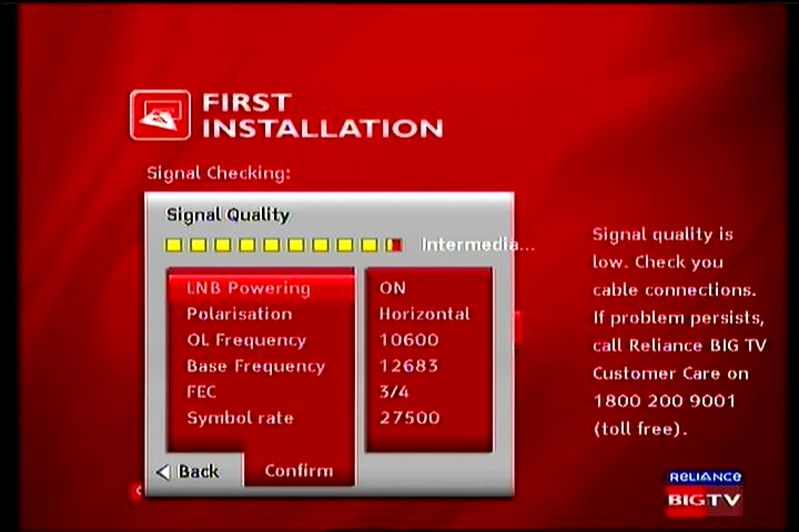

7a, even when the current signal quality at around MER=7 dB (gain margin is 2 dB-yellow field) receiver blocks searching !
                                                                       click for enlarge
          Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-first installation-01n

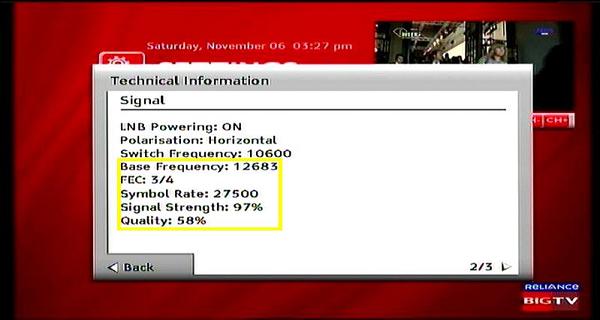

                                 7b, yellow field of signal quality in percentage terms : 97% - 58%
                                                                    click for enlarge
         Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-first installation-022n

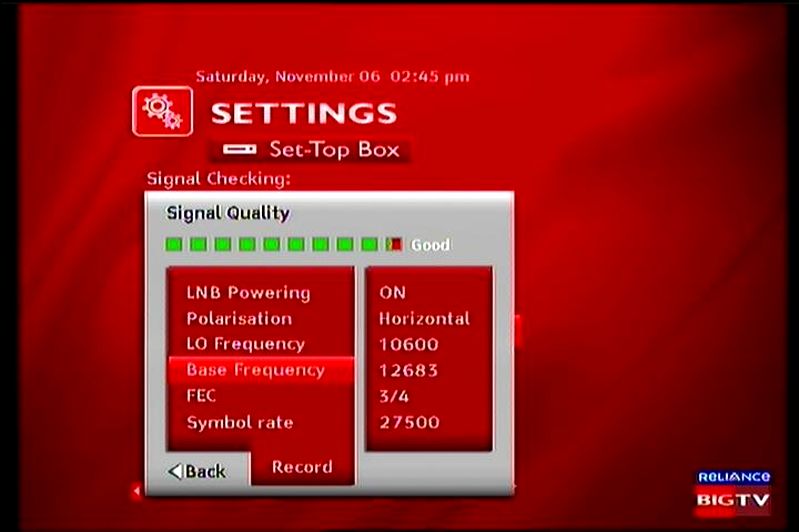

                       8, momentary signal quality around MER=9 dB enables the searching packets !
                                                                       click for enlrage
          Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-first installation-02n

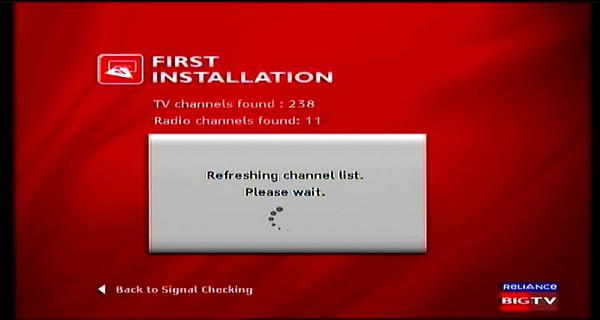

              9, first installation was completed and the system accurately identified the 238 tv channels
                                                                    click for enlarge
         Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-first installation-03n

.

Measat 3 at 91.5°E-Reliance Digital TV : qualitative peak in percentage terms / relative data

.
                            Measat 3 at 91.5°E : 12 514 H Reliance Digital TV_currently non-active TP
                  Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 514 H-01wMeasat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 514 H-02w

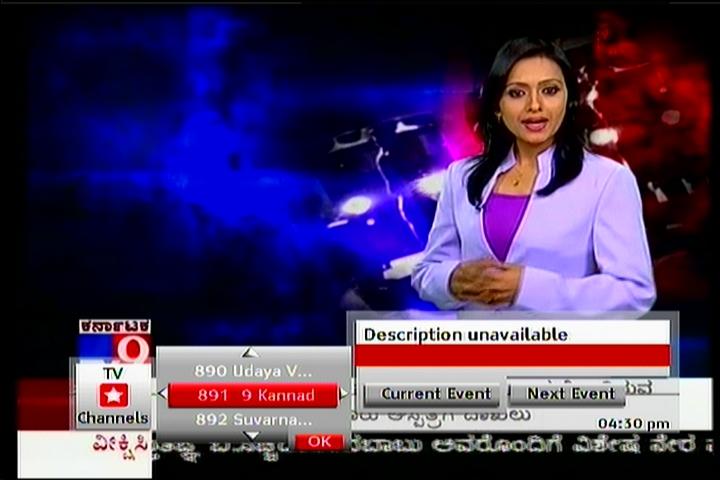

                               Measat 3 at 91.5°E : 12 523 V Reliance Digital TV_currently active TP
                     Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 523 V-01w  Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 523 V-02w

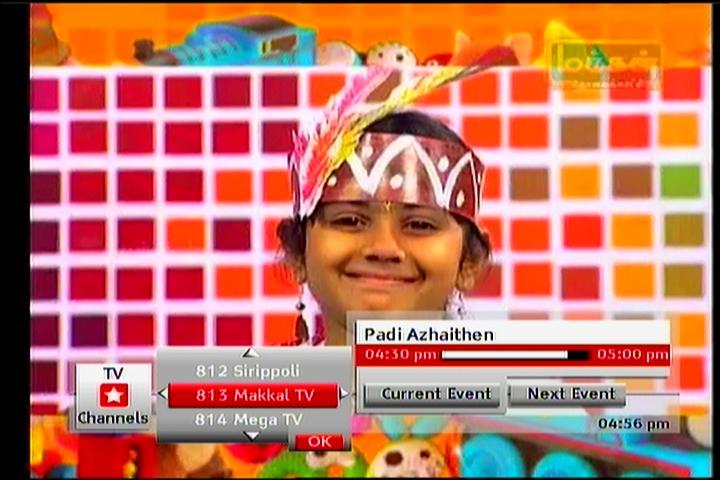

                             Measat 3 at 91.5°E : 12 563 V Reliance Digital TV_currently active TP
                    Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 563 V-01wMeasat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 563 V-02w

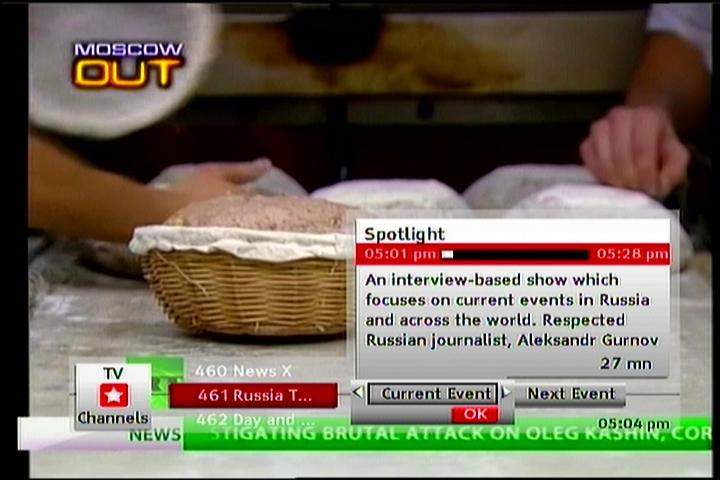

                              Measat 3 at 91.5°E : 12 603 V Reliance Digital TV_currently active TP
                    Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 603 V-01w   Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 603 V-02w

                             Measat 3 at 91.5°E : 12 643 V Reliance Digital TV_currently active TP
                   Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 643 V-01w    Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 643 V-02w

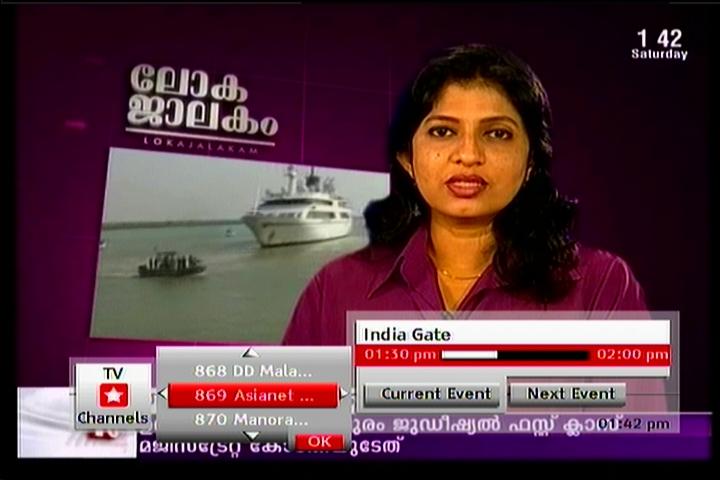

                              Measat 3 at 91.5°E : 12 683 H Reliance Digital TV_currently active TP
                   Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 683 H-01w    Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 683 H-02w

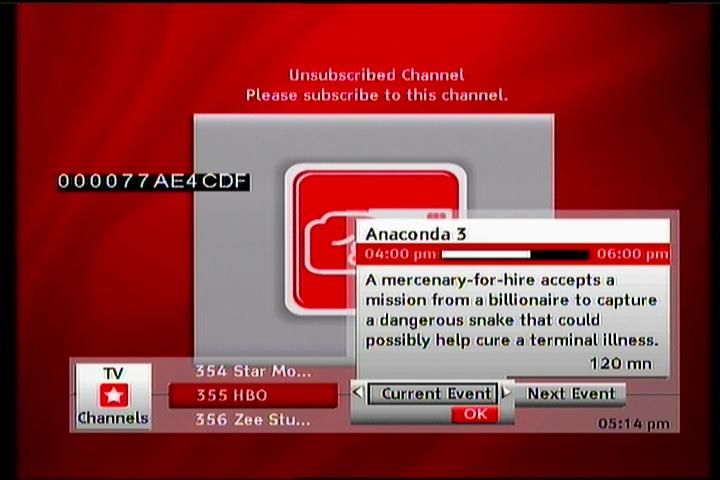

                              Measat 3 at 91.5°E : 12 683 V Reliance Digital TV_currently active TP
                  Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 683 V-01w     Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 683 V-02w

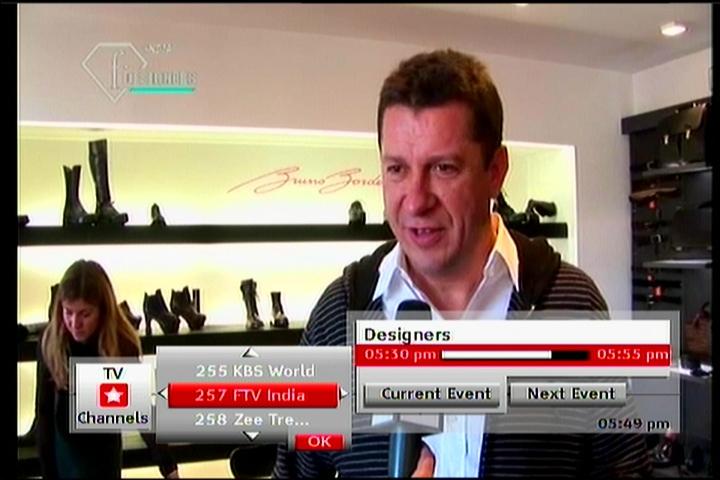

                              Measat 3 at 91.5°E : 12 723 H Reliance Digital TV_currently active TP
                 Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 723 H-01w      Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 723 H-02w

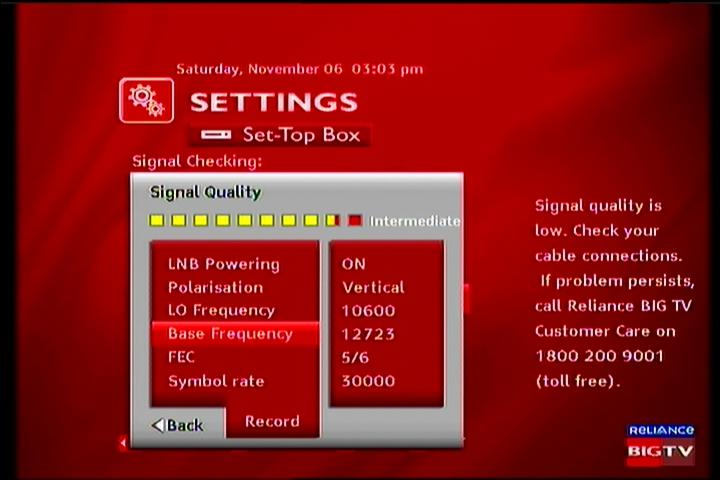

                               Measat 3 at 91.5°E : 12 723 V Reliance Digital TV_currently active TP
                 Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 723 V-01w      Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-reception quality-12 723 V-02w
.

Measat 3 at 91.5°E-Reliance Digital TV : curent quality status in central Europe

.

         RELIANCE Digital TV - simple function which defines the technical aspect of reception in Central Europe
                                                                  click for enlarge

Measat 3 at 91.5 e-south asia beam-Reliance Digital TV-status of reception-n


function expressing the signal status in Central Europe : these few features that I outlined reflect the worst quality
condition, which I identified in the time period for thirty seconds.But the vast majority of measurements, which lasted
about eight hours I have identified a significantly higher quality and excellence in the duration of the unit minutes
not seconds as defined in the function chart

curent quality status on 2011 : then the operator has made changes to transmission parameters during the last
year (FEC,SR,f), occurred in October last year to further increase the number of channels in individual packets,
which ultimately resulted in a significant decrease in quality of reception in Central Europe and the quality
condition persists to this day !
