Mr. Alberto Simao-Macau S.A.R_ Express AM33 at 96.5°E-Steerable footprint in C band : 3 675 R/RSCC & 3 808 R/TRK Sever-detailed analysis of the spectrum and quality of russian broadcasts with an antenna Vertex RSI 9.0 m and receivers Tandberg TT 1260 ...
Express AM33 at 96.5°E - steerable footprint : measurements at the center Macau - 60 km w of Hong Kong
geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
measurement results are derived from the 900 cm diameter antenna
date of measurement : 4.5.2010
elevation angle : 56.753°

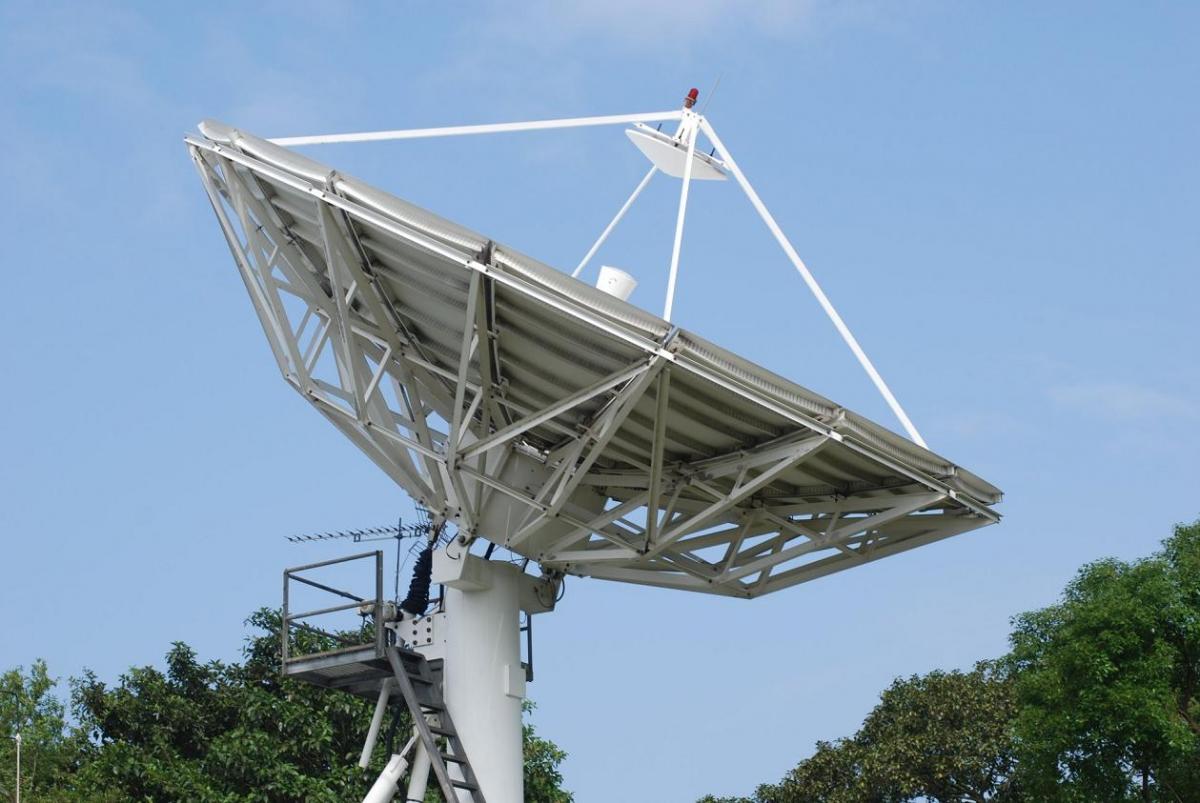

Express AM33 : PF Vertex 9.0 m Express AM33 steerable footprint Express AM33 measuring point
Express AM33 at 96.5°E : tracking antenna
Express AM33 at 96.5°E-steerable footprint : FIRST RESULTS OF MEASUREMENTS
.
a, 3 675 R Packet RSCC Russia : spectral analysis
click to enlarge
.
b, 3 675 R Packet RSCC Russia : quality analysis
.
3 675 R : quality data 3 675 R : C/N 3 675 R : Channel Power
.
c, 3 675 R Packet RSCC Russia : part of the NIT table
.
.
d, 3 675 R Packet RSCC Russia : Bit rate,Statistics,Repetition table_analyzer Rohde & Schwarz ETL
download pdf document
.

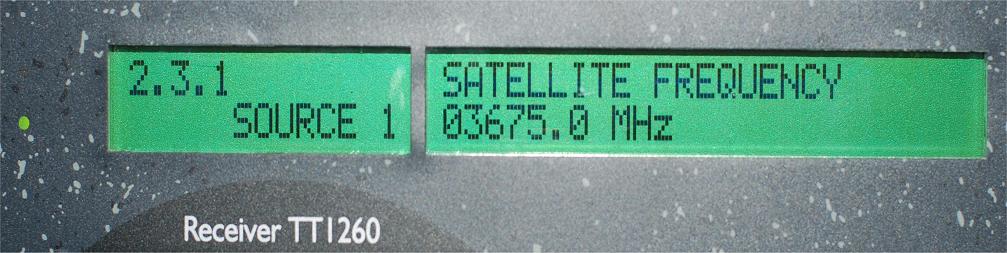

e, 3 675 R Packet RSCC Russia :Tandberg TT 1260-measurement results
.
download pdf document
.
f, 3 675 R Packet RSCC Russia : Promax Prolink 4C premium / NIT+Quality
.
.
Express AM33 at 96.5°E-steerable footprint : SECOND RESULTS OF MEASUREMENTS
.
a, 3 808 R TRK Sever : spectral analysis
click to enlarge
.

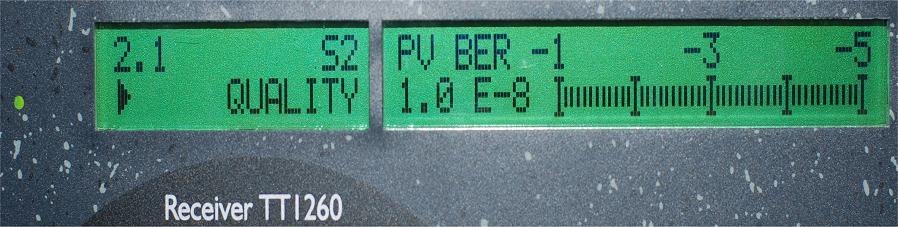

b, 3 808 R TRK Sever : quality analysis / Tandberg TT 1260
3 808 R : signal level 3 808 R : PV BER 3 808 R : C/N Margin
.
c, 3 808 R TRK Sever : NIT data
.
click to enlarge
. complete results
download pdf document
.

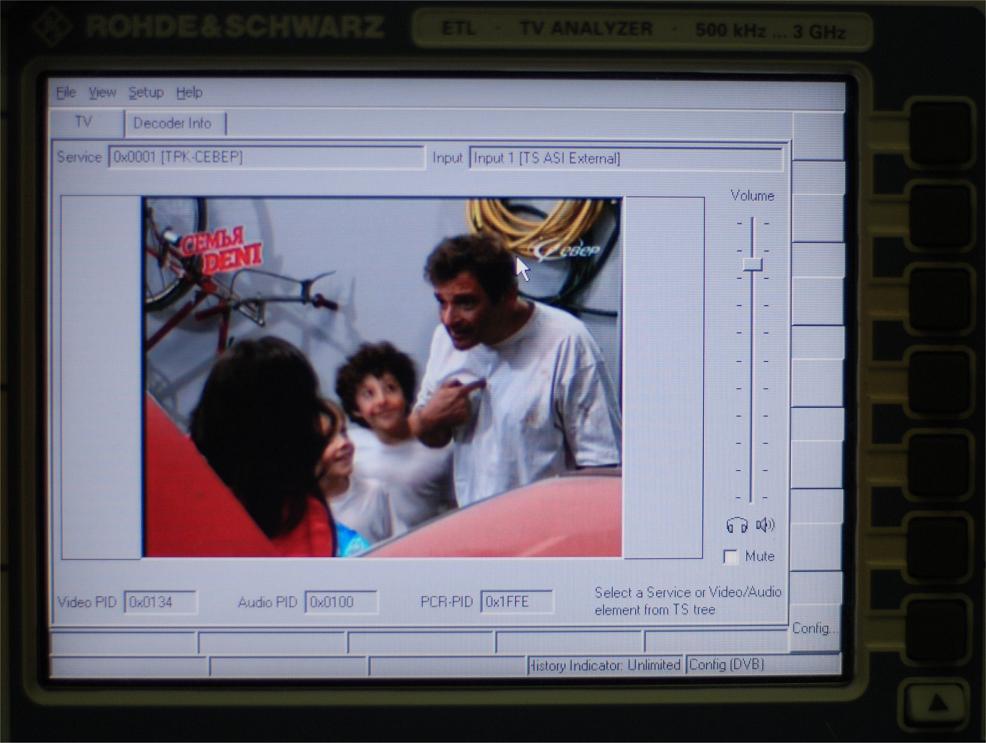

d, 3 808 R TRK Sever : transport stream data / Rohde & Schwarz ETL
.
.
Express AM33 at 96.5°E-steerable footprint : 3 675 R & 3 808 R / snapshots
.
.
Express AM33 at 96.5°E-steerable footprint : 3 675 R & 3 808 R / video presentation
.
author : Mr. Alberto Simao / Macau S.A.R.
