Mr. Alberto Simao-Macau S.A.R_ Insat 2E at 83.0°E-Asian footprint in C band : 3 581 V - TV9 Kannada India and ideal status of quality (bBER<1.0E-6) in South Asia with Vertex RSI 9.0m antenna + spectrum analyzer Rohde & Schwarz ETL + Tandberg TT 1260

Posted May 25th, 2010 by Roman Dávid.

Insat 2E at 83.0 E _3 581 V TV9 Kannada_001

Insat 2E at 83.0°E - Asian footprint : measurements at the center Macau - 60 km w of Hong Kong
                            geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
                           measurement results are derived from the 900 cm diameter antenna
                                               date of measurement : 14.4.2010
                                                         elevation angle  : 47°

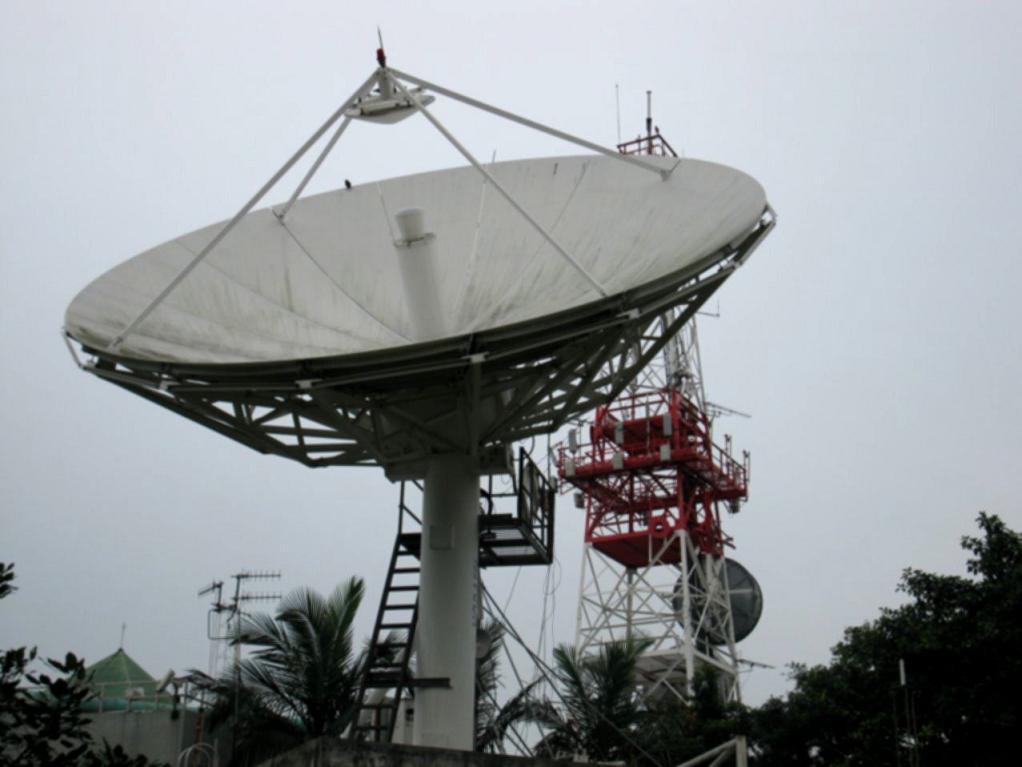

                                                     PF Vertex 9.0 m : tracking
Insat 2E at 83.0 E _asian zone footprint in C band_PF Vertex 900 cm_ tracking n.

.
  Insat 2E at 83.0°E:PF Vertex 9.0 m          Insat 2E : footprint-asian zone               Insat 2E : measuring point
Insat 2E at 83.0 E _asian zone footprint in C band_PF Vertex 900 cm.Insat 2E at 83.0 e _ C band_asian footprintInsat 2E at 83.0 E _asian zone footprint in C band_PF Vertex 900 cm_ measuring poin

.
Insat 2E at 83.0°E - Asian footprint : 3 581 V _ spectral analysis with the analyzer Rohde & Schwarz ETL

.
                                        3 581 V : TV9 Kannada India / click to enlarge

Insat 2E at 83.0 E _asian zone footprint in C band_3 581 V TV9 Kannada spectral analysis_n

.

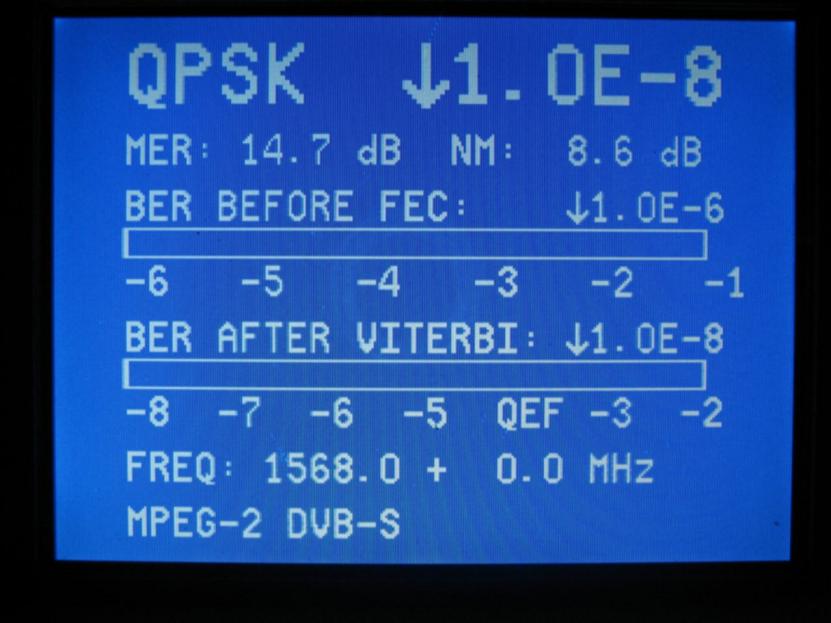

Insat 2E at 83.0°E - Asian footprint : 3 581 V _ quality analysis with the analyzer Promax Prolink 4C Premium

.
                                                             3 581 V : TV9 Kannada India

                                                                 download pdf

                                            Tandberg TT 1260 : download measurement results

      TV9 Kannada : Channel power                       TV9 Kannada : C / N                      TV9 Kannada : quality analysis
Insat 2E at 83.0 E _asian zone footprint in C band_3 581 V TV9 Kannada_q analysis_01.Insat 2E at 83.0 E _asian zone footprint in C band_3 581 V TV9 Kannada_q analysis_02.Insat 2E at 83.0 E _asian zone footprint in C band_3 581 V TV9 Kannada_q analysis_03.

.
Insat 2E at 83.0°E - Asian footprint : 3 581 V TV9 Kannada / Rohde & Schwarz transport stream data

.
Insat 2E at 83.0 E _asian zone footprint in C band_3 581 V TV9 Kannada_transport stream_01Insat 2E at 83.0 E _asian zone footprint in C band_3 581 V TV9 Kannada_transport stream_02Insat 2E at 83.0 E _asian zone footprint in C band_3 581 V TV9 Kannada_transport stream_03

Insat 2E at 83.0 E _asian zone footprint in C band_3 581 V TV9 Kannada_transport stream_04Insat 2E at 83.0 E _asian zone footprint in C band_3 581 V TV9 Kannada_transport_05Insat 2E at 83.0 E _asian zone footprint in C band_3 581 V TV9 Kannada_transport stream_06

.
Insat 2E at 83.0°E - Asian footprint : 3 581 V TV9 Kannada / snapshots

.
Insat 2E at 83.0 E _3 581 V TV9 Kannada_snapshot 01Insat 2E at 83.0 E _3 581 V TV9 Kannada_snapshot 02Insat 2E at 83.0 E _3 581 V TV9 Kannada_snapshot 03

.

Insat 2E at 83.0°E - Asian footprint : 3 581 V TV9 Kannada / video presentations

.


.
author : Mr. Alberto Simao / Macau S.A.R.
