Mr. Alberto Simao-Macau S.A.R_ ST 1 at 88.0°E-Asian footprint in C band : 3 521 H & 3 591 H - current measurements on the Thai and Taiwanese packets with Vertex RSI 9.0m antenna and with spectrum analyzer Rohde & Schwarz ETL + Tandberg TT 1260 receiver

By Roman Dávid. ,
DX Forum


ST1 at 88.0 e



ST 1 at 88.0°E - south Asian footprint : measurements at the center Macau - 60 km w of Hong Kong
                             geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
                           measurement results are derived from the 900 cm diameter antenna
                                                     date of measurement : 30.4.2010
                                                               elevation angle  : 51.2°

                                                           click for higher quality
       ST 1 at 88.0 E _asian footprint in C band_antenna tracking n

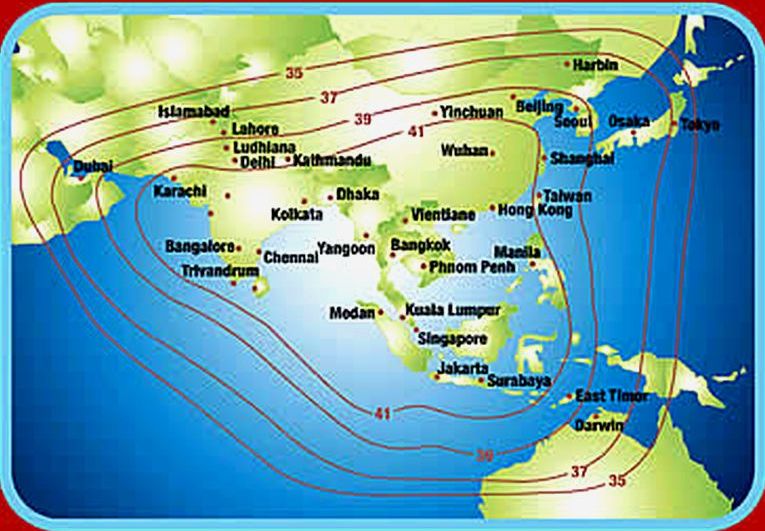

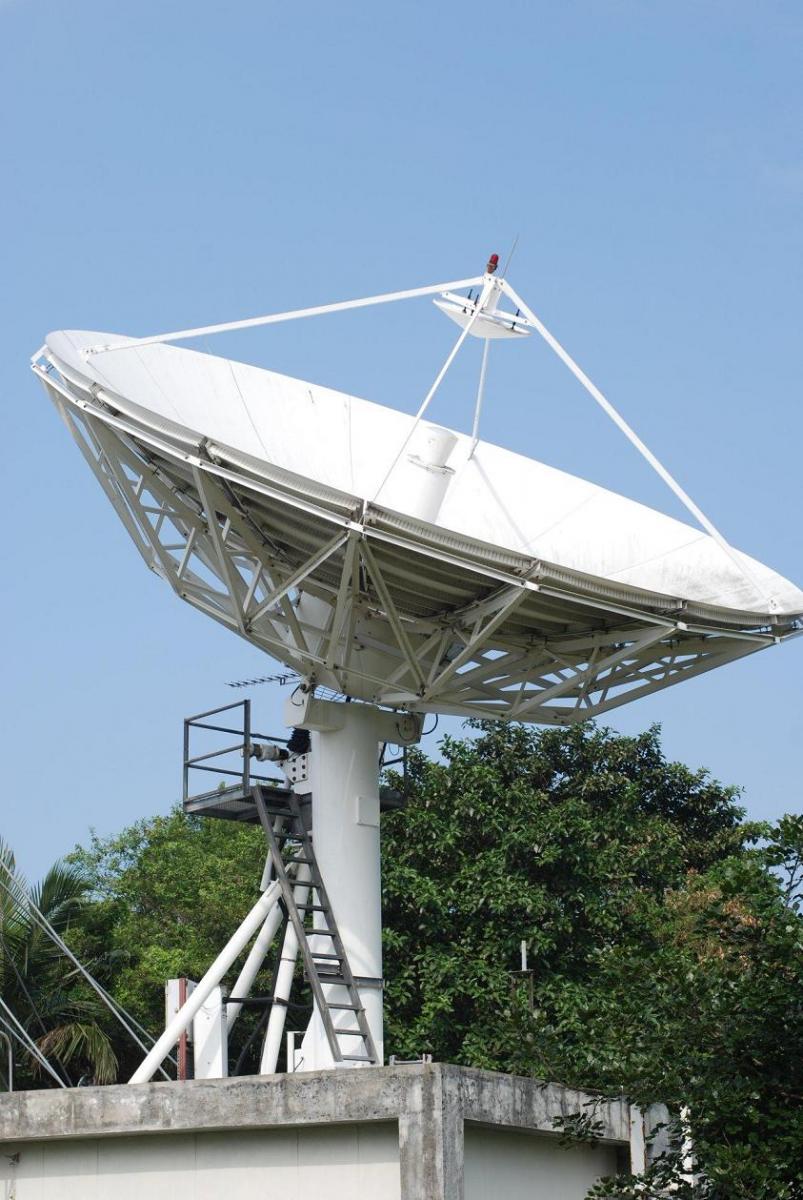

    ST 1 at 88.0°E:PF Vertex 900 cm       ST 1 at 88.0°E:footprint for C band           ST 1 at 88.0°E:measuring point
ST 1 at 88.0 E _asian footprint in C band_PF Vertex 900 cmST 1 at 88.0 E _asian footprint in C bandST 1 at 88.0 E _asian footprint in C band_PF Vertex 900 cm_ measuring poin

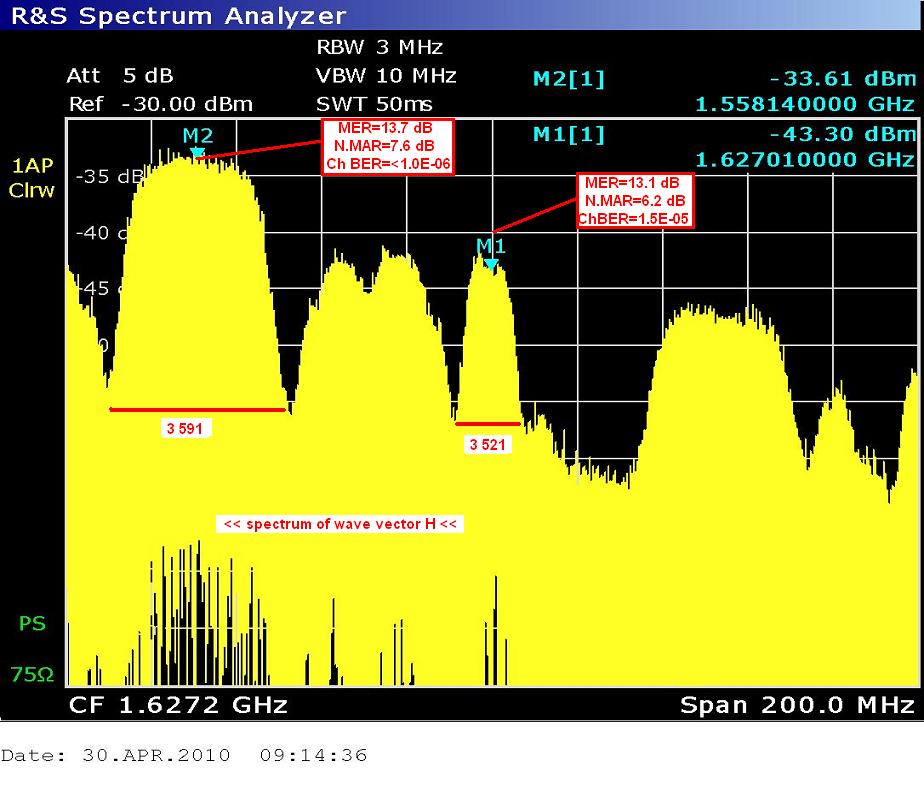

ST 1 at 88.0°E - Asian footprint : 3 521 H & 3 591 H _ spectral analysis with the analyzer Rohde & Schwarz ETL

                                                                      click for higher quality
      ST 1 at 88.0 E _asian footprint in C band_spectral analysis n
                                                         ST 1 at 88.0°E : 3 521 H Packet ABTV Thailand

                                                                               download quality data

                                                      Tandberg TT 1260 : download measurement results

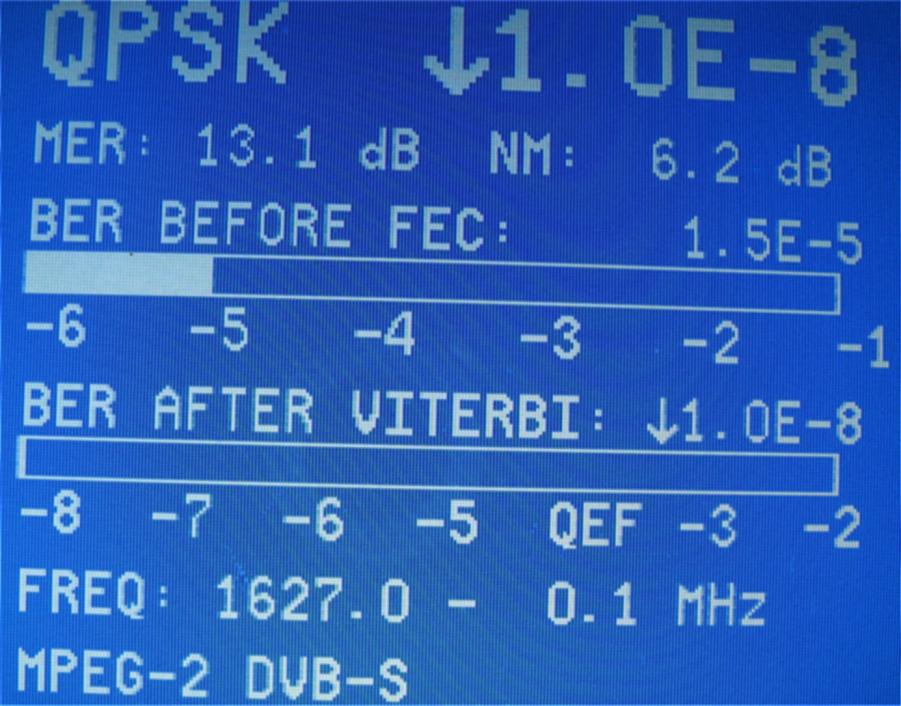

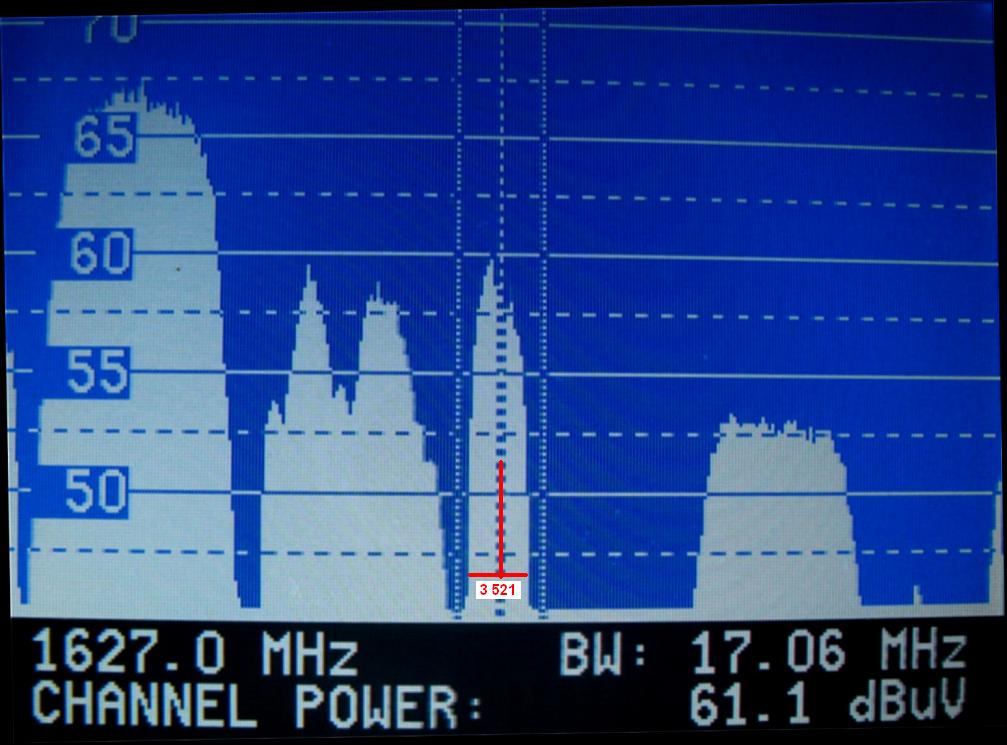

                  spectral analysis                                    channel power                                       quality analysis
ST 1 at 88.0 E _asian footprint in C band_3 521 H spectral analysisST 1 at 88.0 E _asian footprint in C band_3 521 H channel powerST 1 at 88.0 E _asian footprint in C band_3 521 H quality analysis

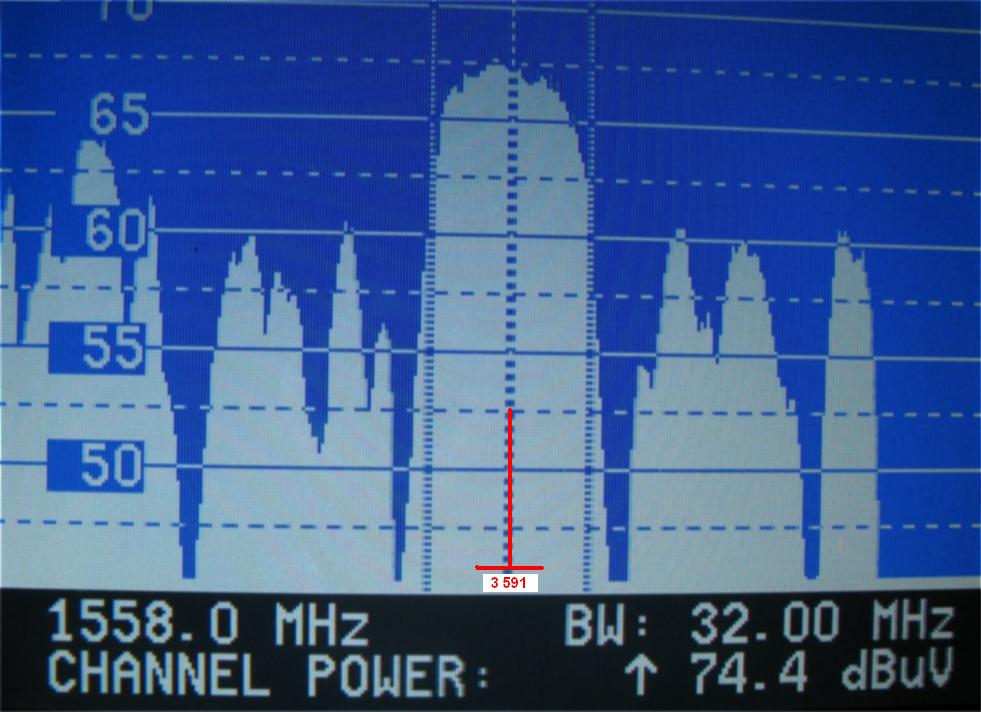

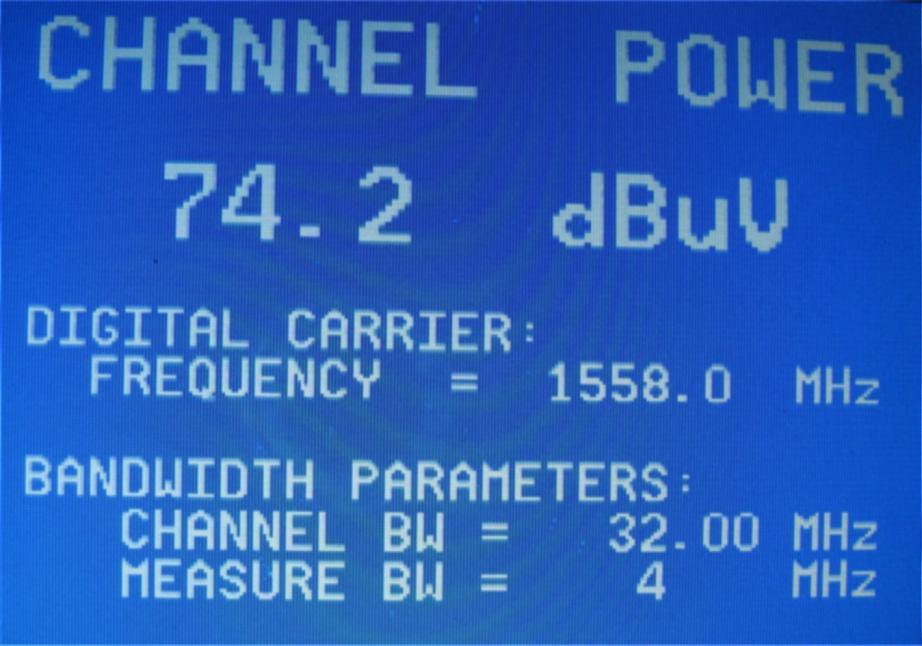

                                                                 ST 1 at 88.0°E : 3 591 H Packet Site-1



                                                      Tandberg TT 1260 : download measurement results

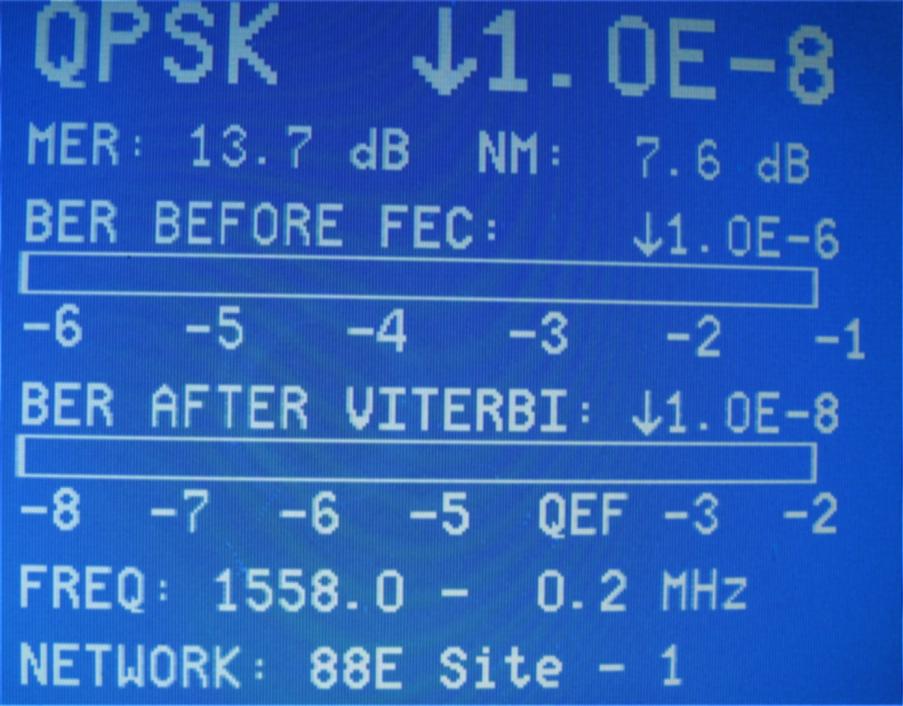

                  spectral analysis                                    channel power                                       quality analysis
ST 1 at 88.0 E _asian footprint in C band_3 591 H spectral analysisST 1 at 88.0 E _asian footprint in C band_3 591 H channel powerST 1 at 88.0 E _asian footprint in C band_3 591 H quality analysis

ST 1 at 88.0°E - Asian footprint : 3 521 H  _ network information table

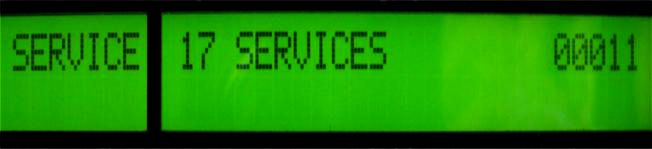

                                                                   3 521 H : first service
       ST 1 at 88.0 E _asian footprint in C band_3 521 H NIT first
                                                                   download full NIT

                                                   Tandberg TT 1260 : download actual NIT

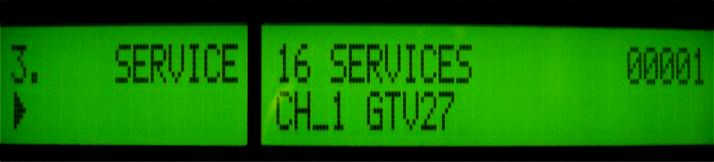

ST 1 at 88.0°E - Asian footprint : 3 591 H  _ network information table

                                                                   3 591 H : first service
ST 1 at 88.0 E _asian footprint in C band_3 591 H NIT first

                                                                      download full NIT

                                                    Tandberg TT 1260 : download actual NIT

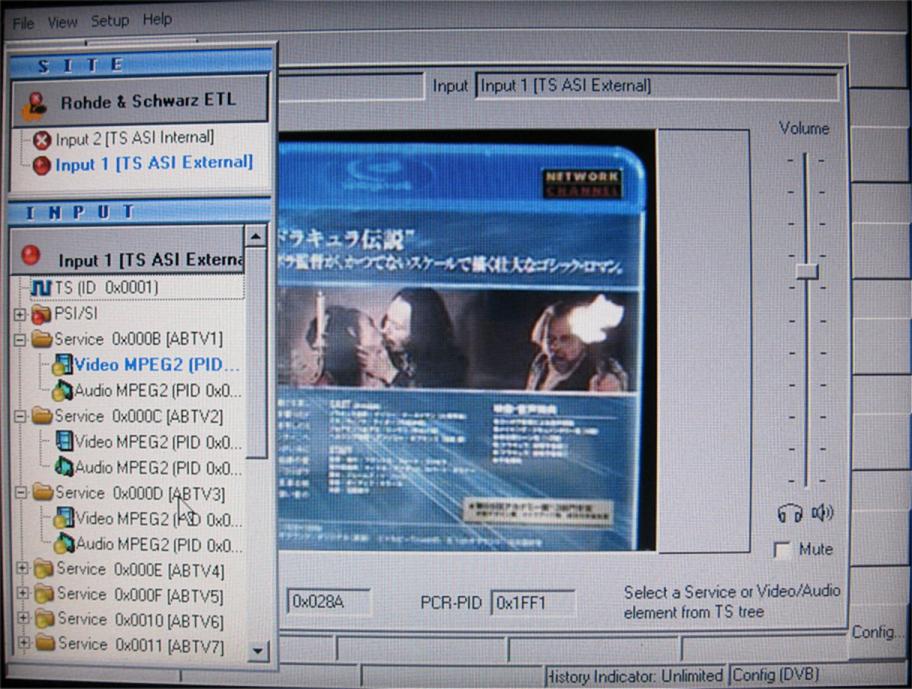

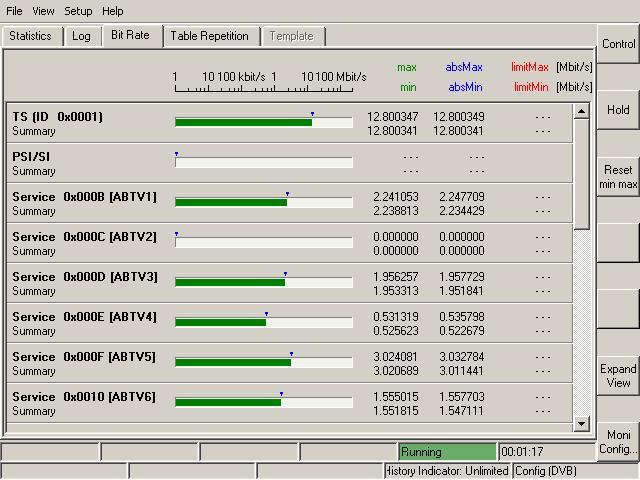

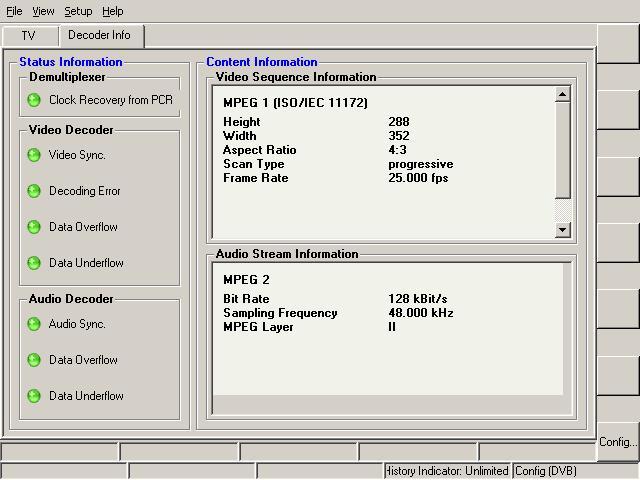

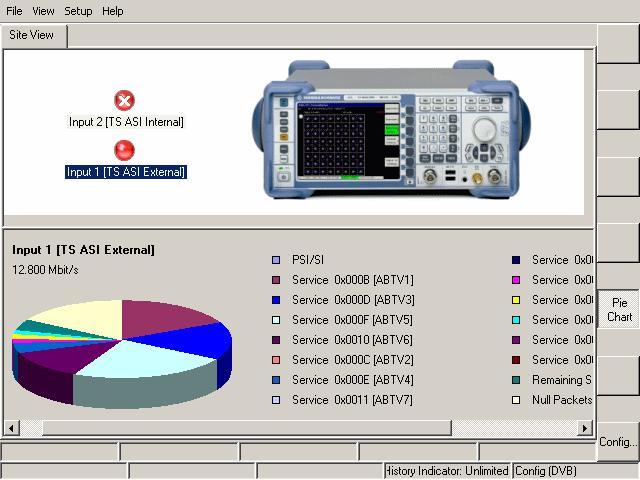

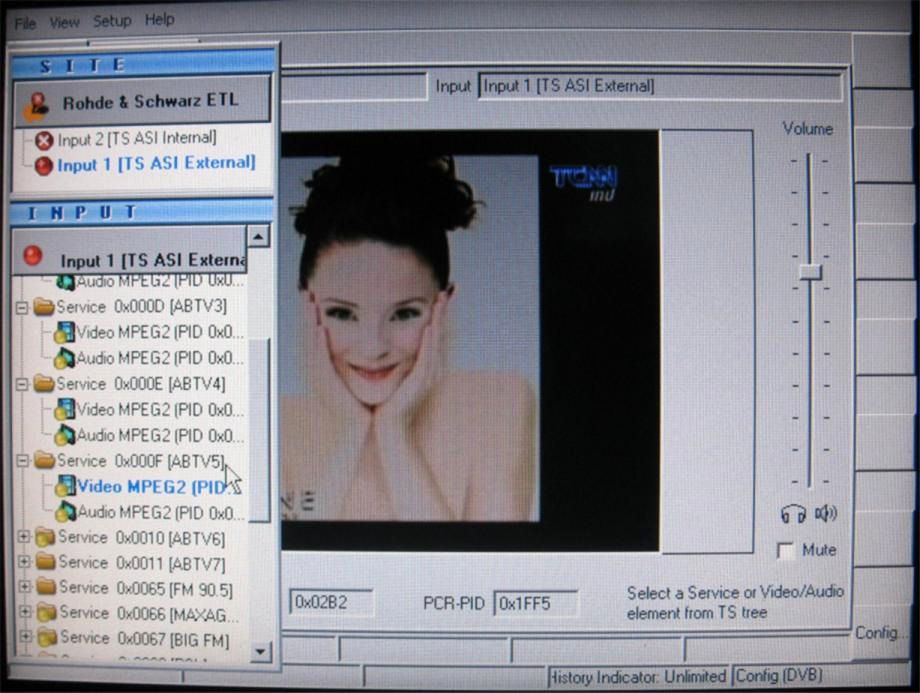

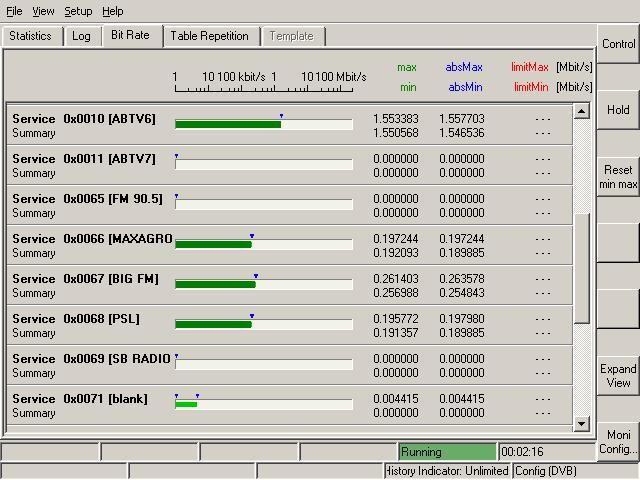

ST 1 at 88.0°E - Asian footprint : 3 521 H _ Packet ABTV Thailand > Rohde & Schwarz TS ASI External data

ST 1 at 88.0 E _asian footprint in C band_3 521 H Rohde Schwarz TS ASI Ext 01ST 1 at 88.0 E _asian footprint in C band_3 521 H Rohde Schwarz TS ASI Ext 02ST 1 at 88.0 E _asian footprint in C band_3 521 H Rohde Schwarz TS ASI Ext 03

ST 1 at 88.0 E _asian footprint in C band_3 521 H Rohde Schwarz TS ASI ABTV1 01ST 1 at 88.0 E _asian footprint in C band_3 521 H Rohde Schwarz TS ASI ABTV1 02ST 1 at 88.0 E _asian footprint in C band_3 521 H Rohde Schwarz TS ASI ABTV1 03

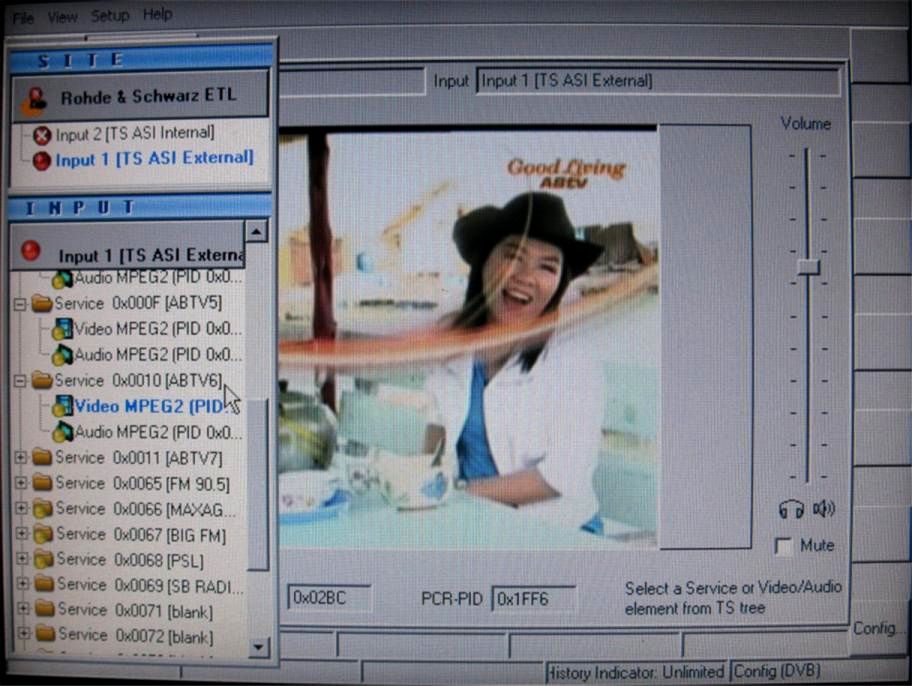

ST 1 at 88.0 E _asian footprint in C band_3 521 H Rohde Schwarz TS ASI ABTV2 01ST 1 at 88.0 E _asian footprint in C band_3 521 H Rohde Schwarz TS ASI ABTV5 01ST 1 at 88.0 E _asian footprint in C band_3 521 H Rohde Schwarz TS ASI ABTV6 01

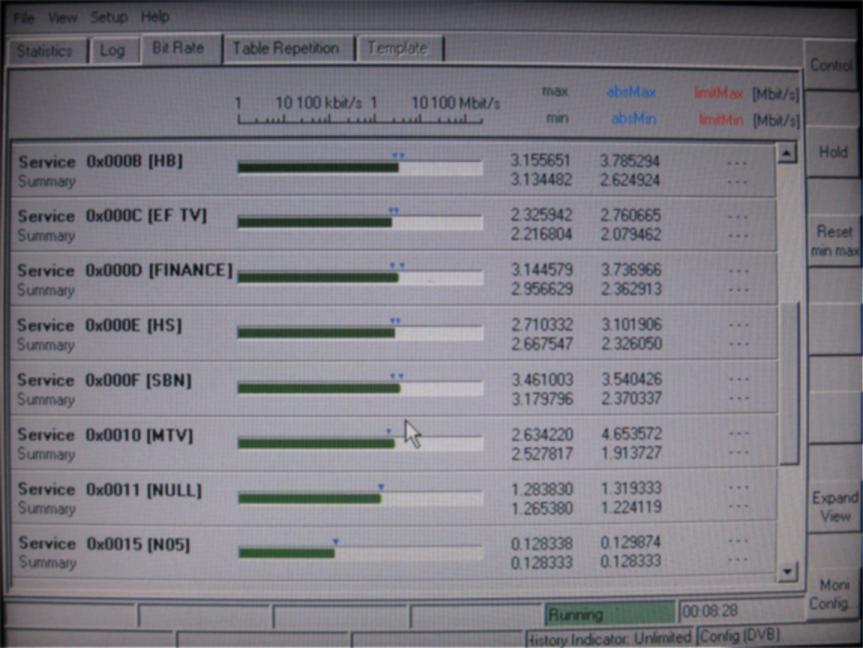

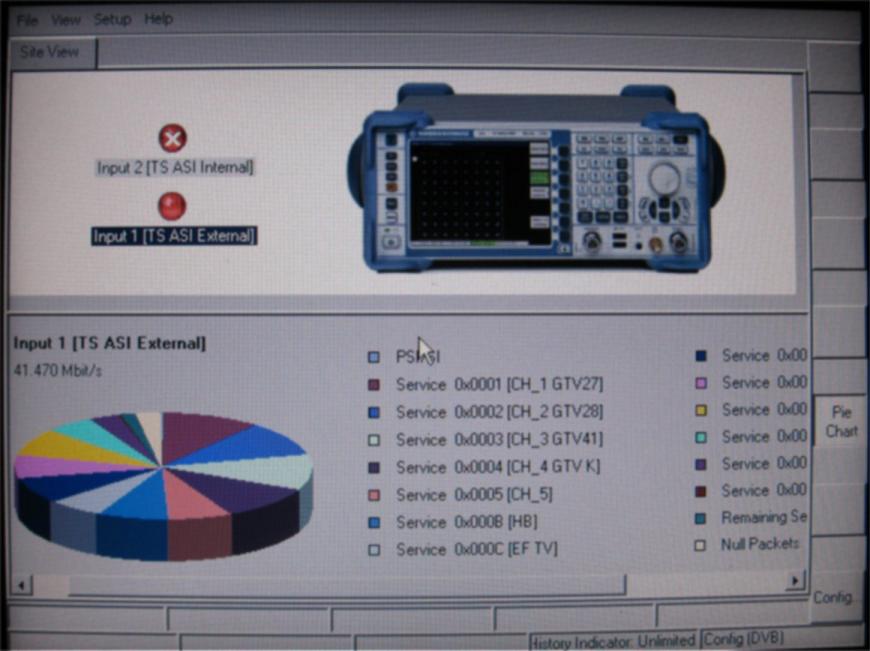

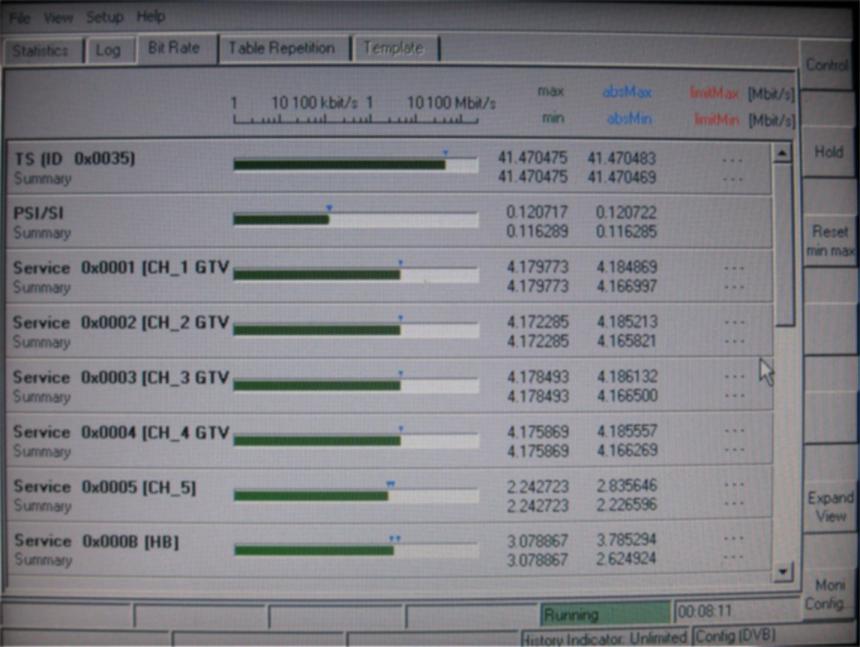

ST 1 at 88.0°E - Asian footprint : 3 591 H _ Packet Site-1 > Rohde & Schwarz TS ASI External data

ST 1 at 88.0 E _asian footprint in C band_3 591 H Rohde Schwarz TS ASI Ext 01ST 1 at 88.0 E _asian footprint in C band_3 591 H Rohde Schwarz TS ASI Ext 02ST 1 at 88.0 E _asian footprint in C band_3 591 H Rohde Schwarz TS ASI Ext 03

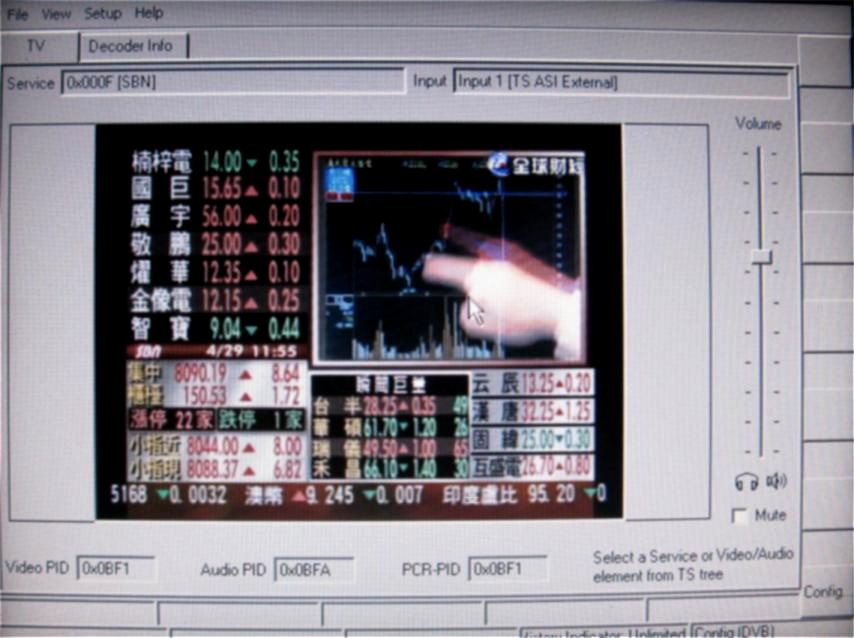

ST 1 at 88.0 E _asian footprint in C band_3 591 H Rohde Schwarz TV Finance pids 01ST 1 at 88.0 E _asian footprint in C band_3 591 H Rohde Schwarz TV SBN pids 02ST 1 at 88.0 E _asian footprint in C band_3 591 H Rohde Schwarz TV test pids 03

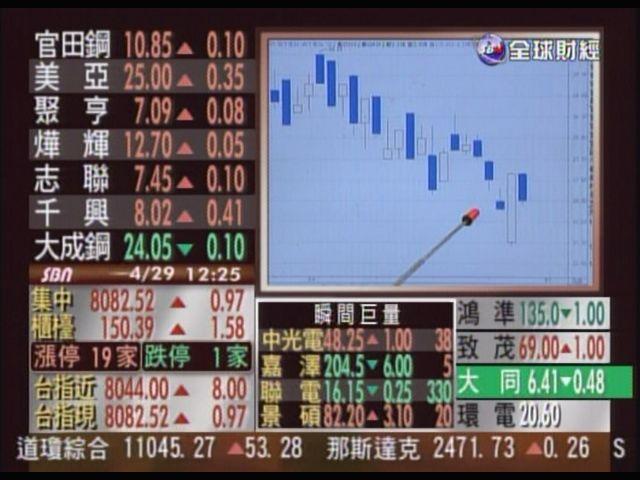

ST 1 at 88.0°E - Asian footprint : 3 521 H & 3 591 H _ snapshots

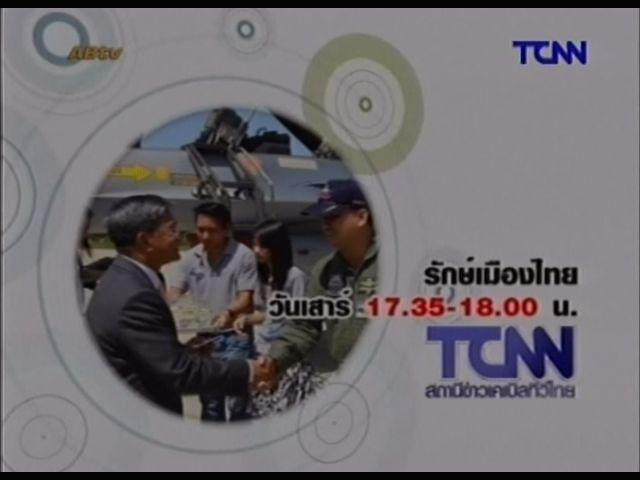

Network Channel 01Good Living 02TCNN 03
Global Financial 01Global Financial 02Global Financial 03

ST 1 at 88.0°E - Asian footprint : 3 521 H & 3 591 H _ video presentations









author : Mr. Alberto Simao / Macau S.A.R.
