Mr. Alberto Simao - Macau S.A.R_AsiaSat 5 at 100.5°E-C band footprint : Measuring the quality of reception for SD and HD broadcasts in the packet SatLink at f=4 001 H with spectrum analyzer Promax Prolink 4C Premium

Posted April 14th, 2010 by Roman Dávid.

AsiaSat 5 at 100.5 e_C band_global footprint_4 001 H Packet SatLink_first snap 02

AsiaSat 5 at 100.5°E - C band beam : 4 001 H Packet SatLink

             AsiaSat 5 at 100.5°E - C band footprint  : measurements at the center Macau-60 km west of Hong Kong
                                         geographical location : Latitude: 22.1987°   _   Longitude: 113.5439°
                                          measurement results are derived from the 120 cm diameter antenna
                                                                                 elevation angle  : 60°

      AsiaSat 5 at 100.5°E:offset 120 cm                     AsiaSat 5 footprint                       AsiaSat 5 : measurement point
    AsiaSat 5 at 100.5 e_C band_global footprint_offset 120 cm AsiaSat 5 at 100.5 e_C band_global footprintAsiaSat 5 at 100.5 e_C band_global footprint_measurement point
                                                                         - time of measurement : 8.4.2010 -

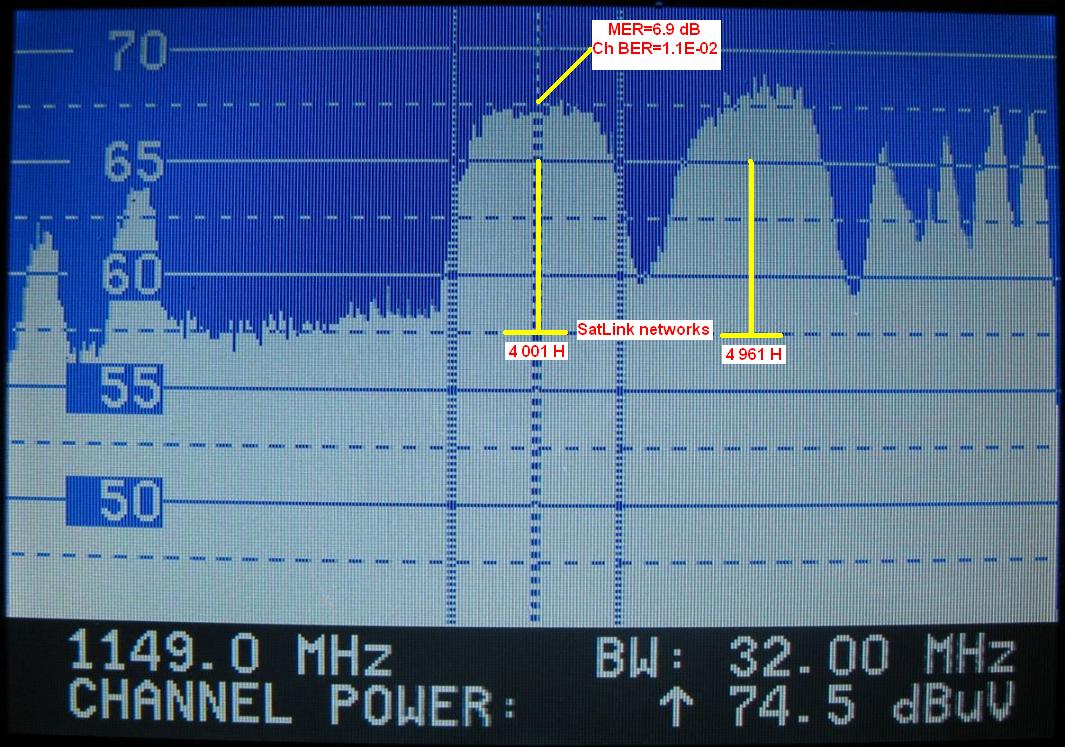

AsiaSat 5 at 100.5°E - C band beam : spectral analysis of packet SatLink at f=4 001 H

                                                                  click for higher quality
    AsiaSat 5 at 100.5 e_C band_global footprint_spectral analysis_n

AsiaSat 5 at 100.5°E - C band beam : results of measurements of quality and channel power_MER,C/N ...

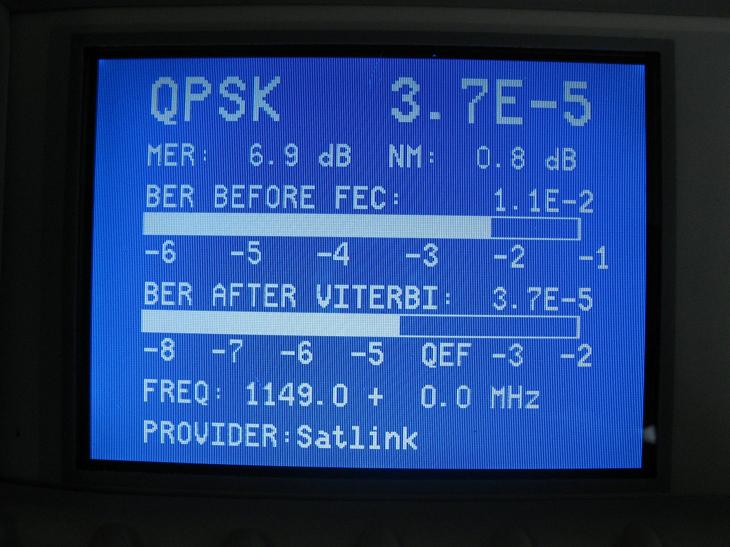

  4 001 H : Channel Power 73.3 dBuV          4 001 H : MER , a+b BER , NM                     4 001 H : C/N=4.3 dB
AsiaSat 5 at 100.5 e_C band_global footprint_4 001 H Packet SatLink_Ch POWER 02AsiaSat 5 at 100.5 e_C band_global footprint_4 001 H Packet SatLink_Q data 01AsiaSat 5 at 100.5 e_C band_global footprint_4 001 H Packet SatLink_measurement CN 03

AsiaSat 5 at 100.5°E - C band beam : 4 001 H Packet SatLink - Network Information Table NIT

                           NIT 01                                                   NIT 02                                                      NIT 03
AsiaSat 5 at 100.5 e_C band_global footprint_4 001 H Packet SatLink_NIT 01AsiaSat 5 at 100.5 e_C band_global footprint_4 001 H Packet SatLink_NIT 02AsiaSat 5 at 100.5 e_C band_global footprint_4 001 H Packet SatLink_NIT 03

AsiaSat 5 at 100.5°E - C band beam :4 001 H Packet SatLink _ snapshots

                             RTPi                                                   RTR Planeta                                              TVE
AsiaSat 5 at 100.5 e_C band_global footprint_4 001 H Packet SatLink_RTPiAsiaSat 5 at 100.5 e_C band_global footprint_4 001 H Packet SatLink_RTR PlanetaAsiaSat 5 at 100.5 e_C band_global footprint_4 001 H Packet SatLink_TVE

                       France 24                                               Cubavision                                             LUXE TV SD
AsiaSat 5 at 100.5 e_C band_global footprint_4 001 H Packet SatLink_France 24AsiaSat 5 at 100.5 e_C band_global footprint_4 001 H Packet SatLink_CubavisionAsiaSat 5 at 100.5 e_C band_global footprint_4 001 H Packet SatLink_LUXE TV SD

author : Alberto Simao_Macau S.A.R.
