Mr. Alberto Simao - Macau S.A.R_NSS 6 at 95.0°E_South East Asia footprint in KU band : 11 130 V - Measuring the quality of reception on the Thai packet IPM TV with the offset antenna 120 cm & spectrum analyzer Promax Prolink 4C Premium

Posted April 10th, 2010 by Roman Dávid.


NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_first snap 001


NSS 6 at 95.0°E - South East Asia footprint in Ku band : 11 135 V IPM TV Thailand

        NSS 6 at 95.0°E - South East Asia footprint  : measurements at the center Macau-60 km west of Hong Kong
                                    geographical location : Latitude: 22.1987°   _   Longitude: 113.5439°
                                    measurement results are derived from the 120 cm diameter antenna
                                                                          elevation angle  : 57°

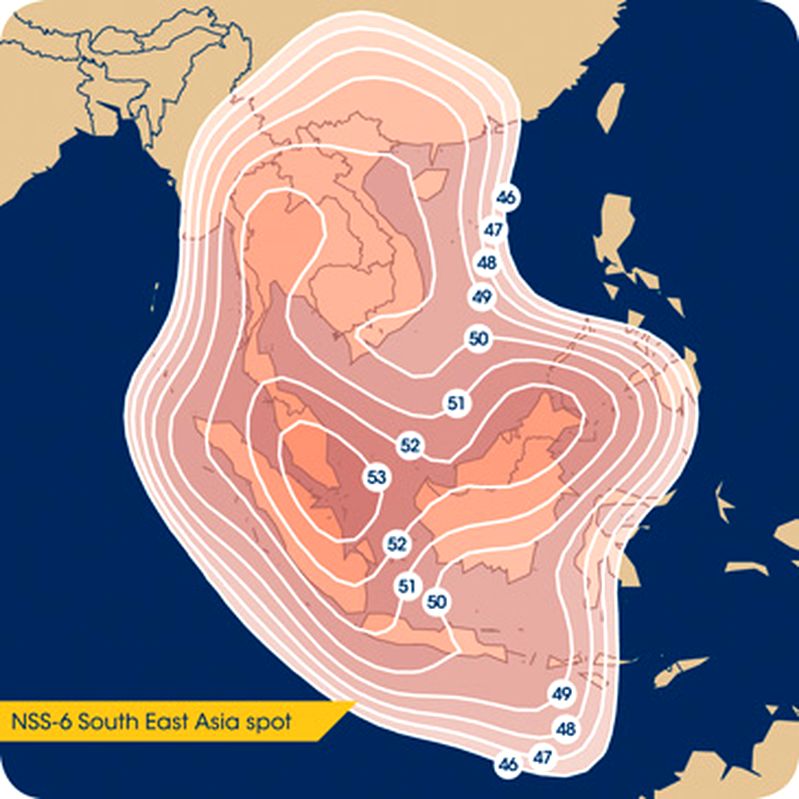

        NSS 6 at 95.0°E : offset 120 cm          NSS 6 : South East Asia footprint        NSS 6 at 95.0°E:measurement point
  NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_offset 120 cmNSS 6 at 95.0 e _ KU band_SouthEast Asia footprintNSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_measurement point

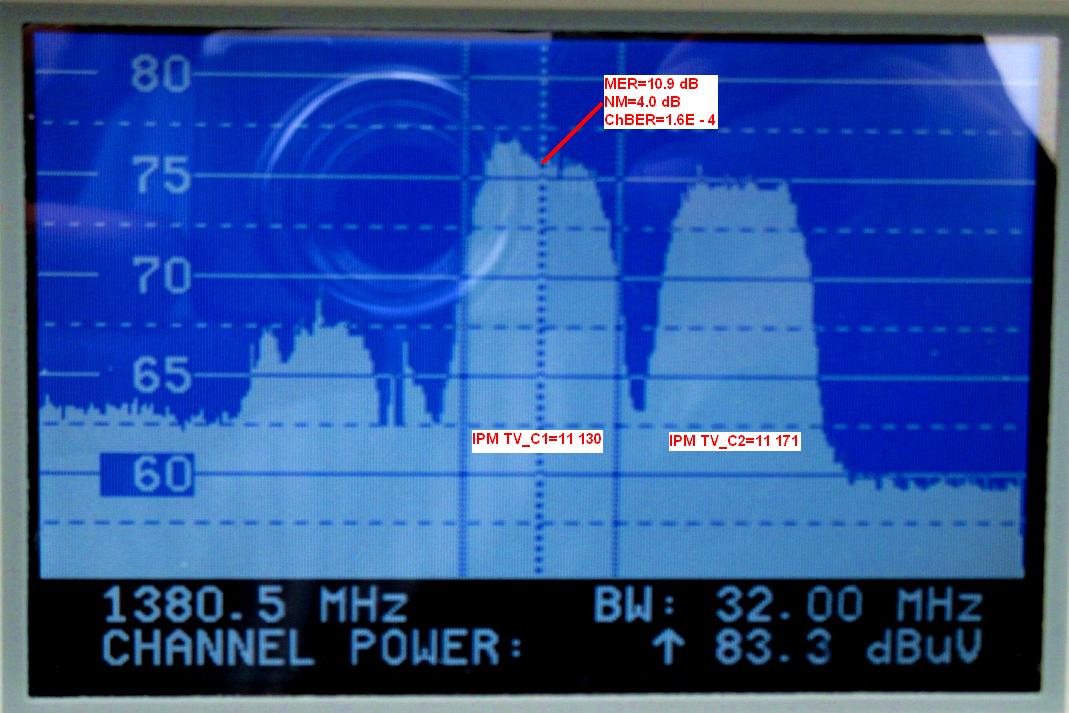

NSS 6 at 95.0°E - SE Asia spot _11 135 V IPM TV Thailand : spectral analysis & measurement results

                                                                            click for higher quality
NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_spectral analysis_n

                                    NSS 6:TP SEVA4 spectral analysis         NSS 6: 11 130 V_Quality analysis
                                 NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_spectral analysis_wNSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_Q data

NSS 6 at 95.0°E - SE Asia spot _11 135 V IPM TV Thailand : NIT > Network Information Table

NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_NIT data 01NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_NIT data 02NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_NIT data 03
                              NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_NIT data 04NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_NIT data 05

NSS 6 at 95.0°E - SE Asia spot _11 135 V IPM TV Thailand : measurement results

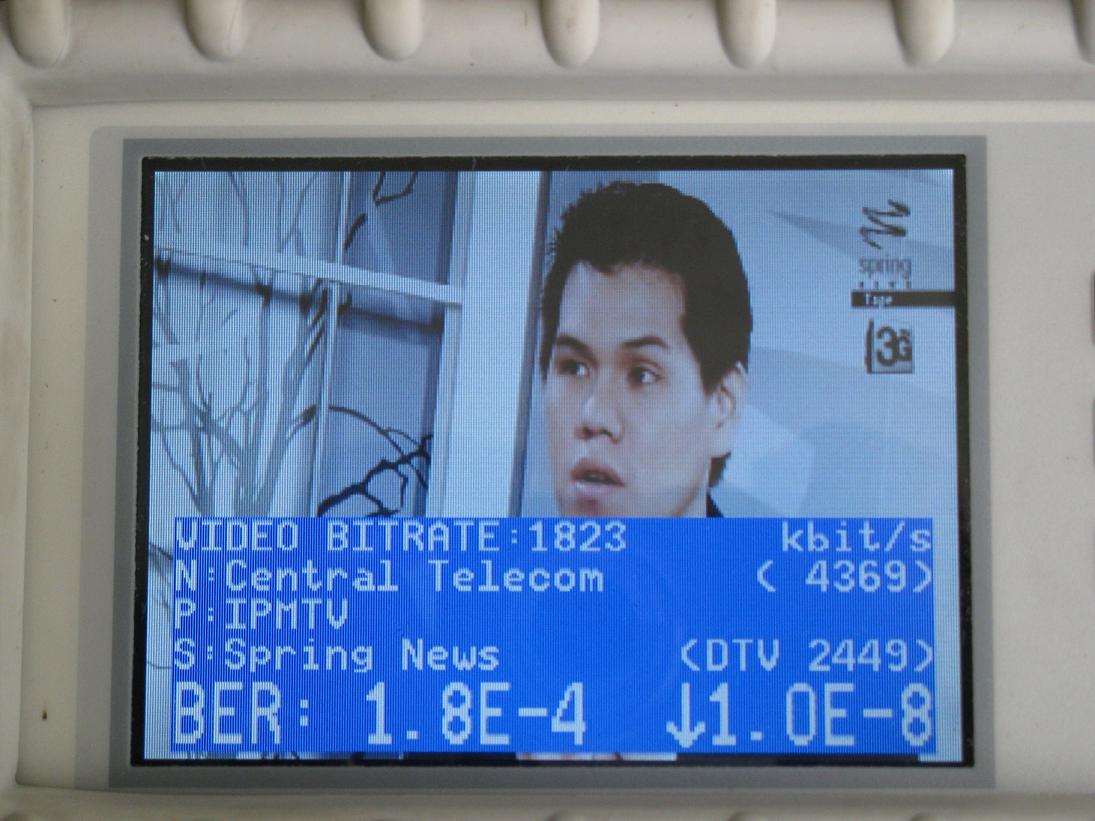

                       Line Thai TV                                          Spring News TV                                    Muslim TV Thailand
NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_Line Thai TV_01NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_Spring News TV_03NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_Muslim Tv Thailand _04

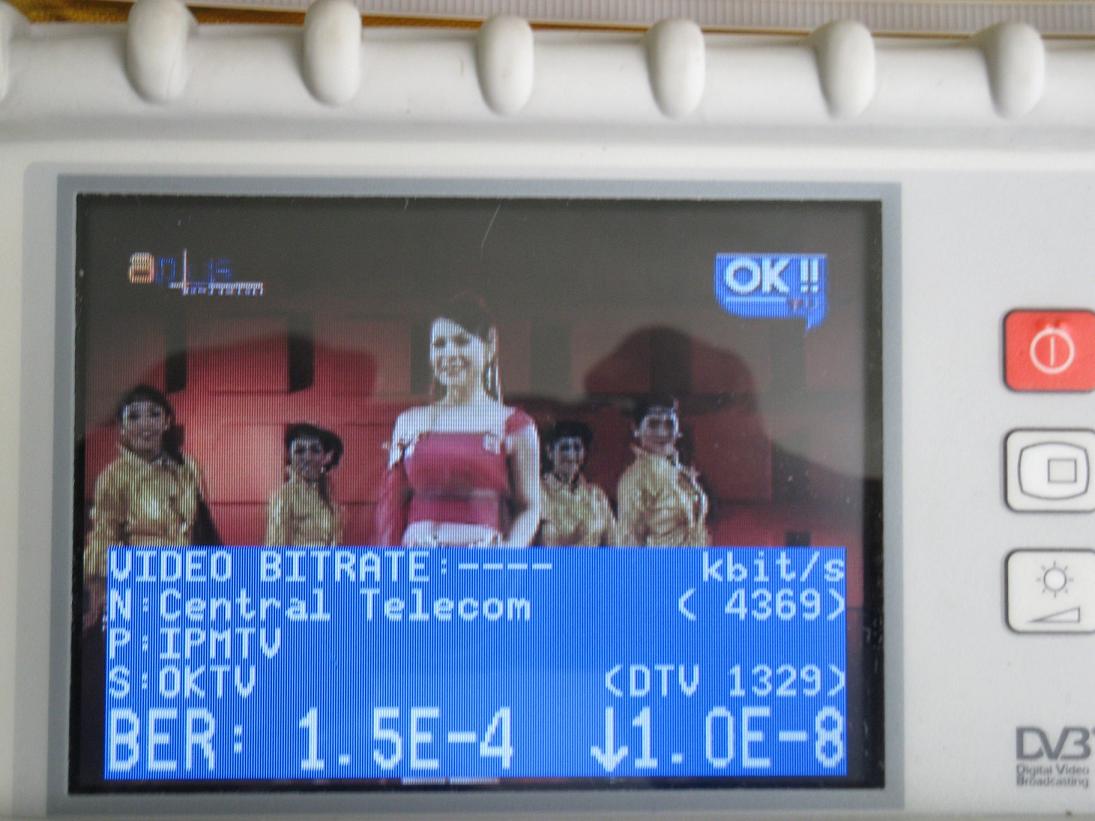

                        CSR TV                                                       OK TV                                                     AM Fine TV
NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_CSR TV _05NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_OK TV _06NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_AM Fine _07

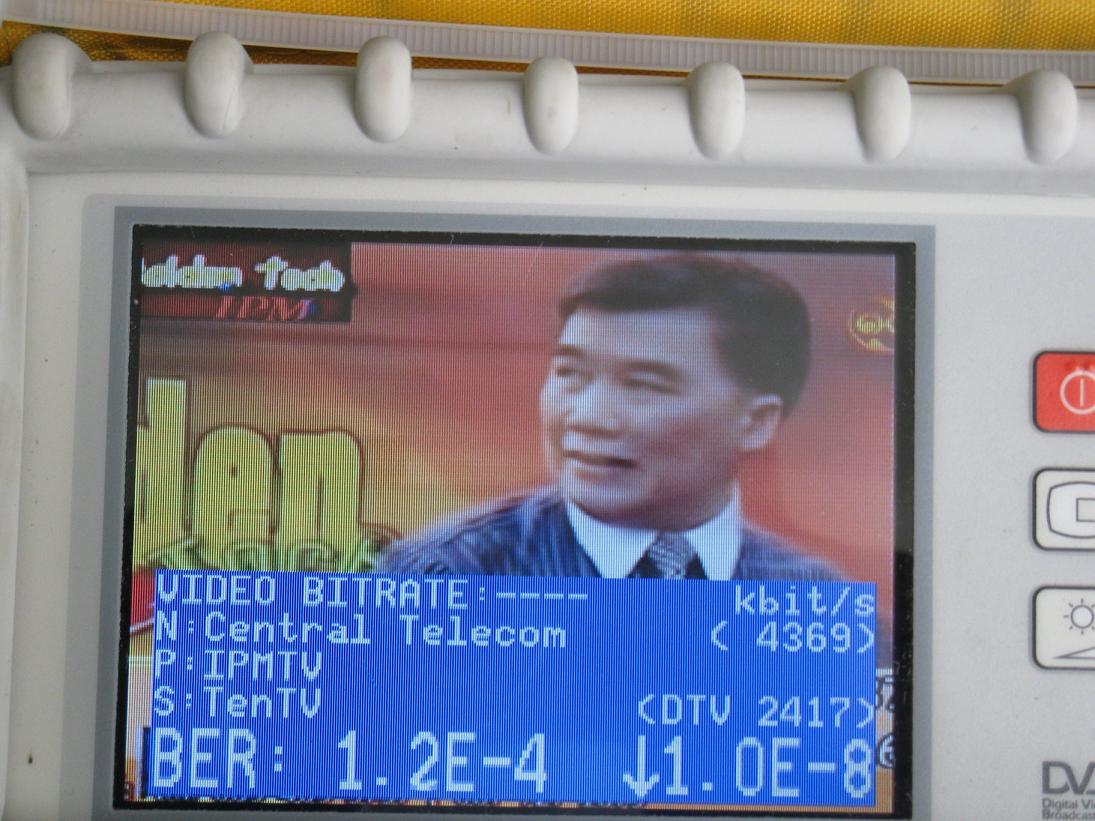

                                                            Asia TVF                                             Ten TV
                                 NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_ASia TVF_09NSS 6 at 95.0 e _ KU band_SouthEast Asia footprint_11 130 V Packet IPM TV Thailand_Ten tv_10

author : Alberto Simao_Macau S.A.R.
