Mr. A. Simao-Macau S.A.R_Insat 4A at 83.0°E-wide footprint in C band : 3 725 H Packet NSTPL_current quality measurement and spectrum analysis with instruments Rohde & Schwarz +Tandberg TT1260 and compare the quality of reception for the Asia and Slovakia

Posted June 14th, 2010 by Roman Dávid.

Insat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL

Insat 4A at 83.0°E - 4A wide footprint : measurements at the center Macau - 60 km w of Hong Kong
                            geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
                                        antenna tracking : AZ=236,076° and EL=46,299°
                           measurement results are derived from the 900 cm diameter antenna
                                                  date of measurement : 9.6.2010
                                                        elevation angle  : 46.299°

    Insat 4A : PF Vertex RSI 9.0 m                            Insat 4A footprint                           Insat 4A : measuring point
Insat 4A at 83.0 E _ wide footprint_PF Vertex RSi 9.0 m at 83.0eInsat 4A at 83.0 E _ footprintInsat 4A at 83.0 E _ wide footprint_PF Vertex RSi 9.0 m at 83.0e_ measuring poin

                                                                 Insat 4A at 83.0°E : antenna tracking
           Insat 4A at 83.0 E _ wide footprint_PF Vertex RSi 9.0 m at 83.0e_tracking n
.

Insat 4A at 83.0°E - 4A wide footprint : FIRST RESULTS OF MEASUREMENTS

.

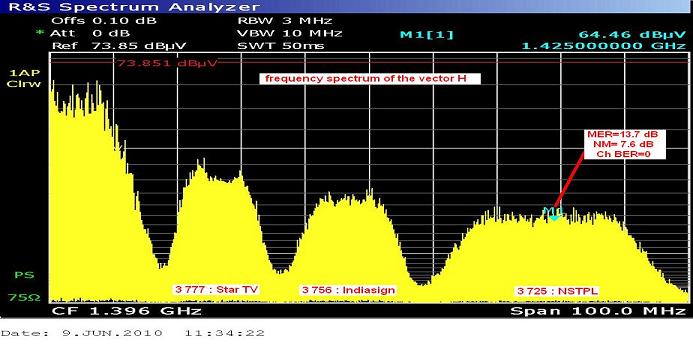

                           a, 3 725 H-Packet NSTPL India : Rohde & Schwarz ETL / spectral analysis

                                                                         click to enlarge
Insat 4A at 83.0 E _ wide footprint_spectral analysis of the vector H_n
.                                               range of spectrum analysis : 455 MHz
                     Insat 4A at 83.0 E _ wide footprint_full scale HInsat 4A at 83.0 E _ wide footprint_full scale H 02

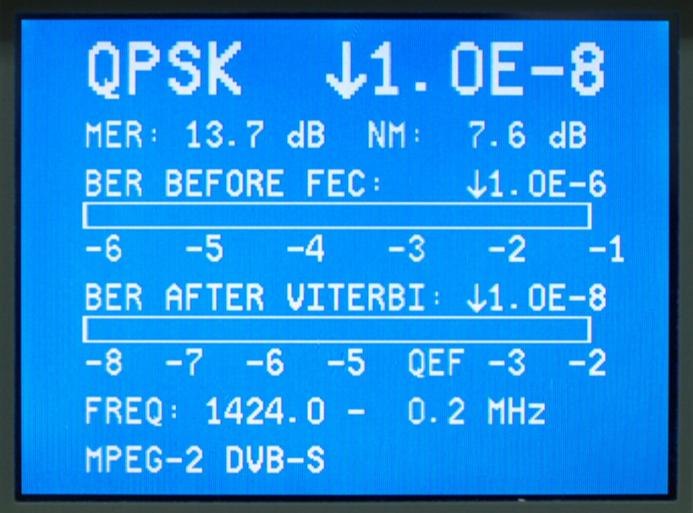

                                b, 3 725 H-Packet NSTPL India : quality analysis / Promax Prolink 4C premium

                MER , NM , Ch BER                                            C/N                                                 Channel Power
Insat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL_q analysisInsat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL_q analysis CNInsat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL_q analysis Channel Power
.

                                        c, 3 725 H_Packet NSTPL India : quality analysis / Tandberg TT1260

Insat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL_q analysis_Tandberg TT1260

                                                                 Tandberg TT1260  : quality analysis
                                                                                download pdf

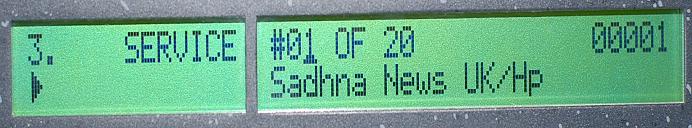

                                              d, 3 725 H_Packet NSTPL India : Network Information Table

       tt1260 NIT first

                                                                           Tandberg TT1260  : NIT
                                                                            download pdf

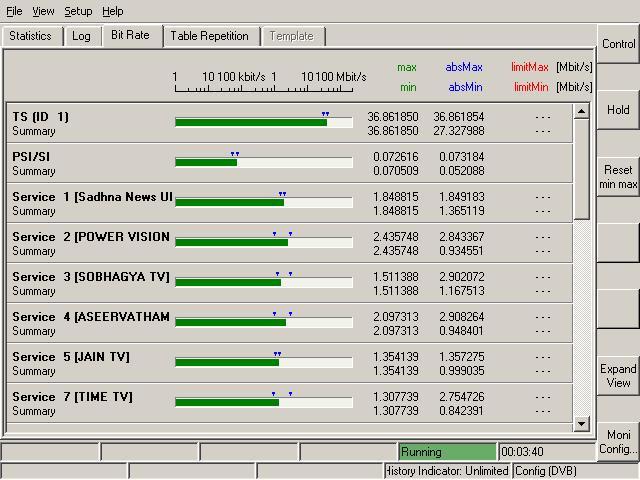

                                                            e, 3 725 H_Packet NSTPL India : BIT Rate

Insat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL_bit rate 01Insat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL_bit rate 02Insat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL_bit rate 03

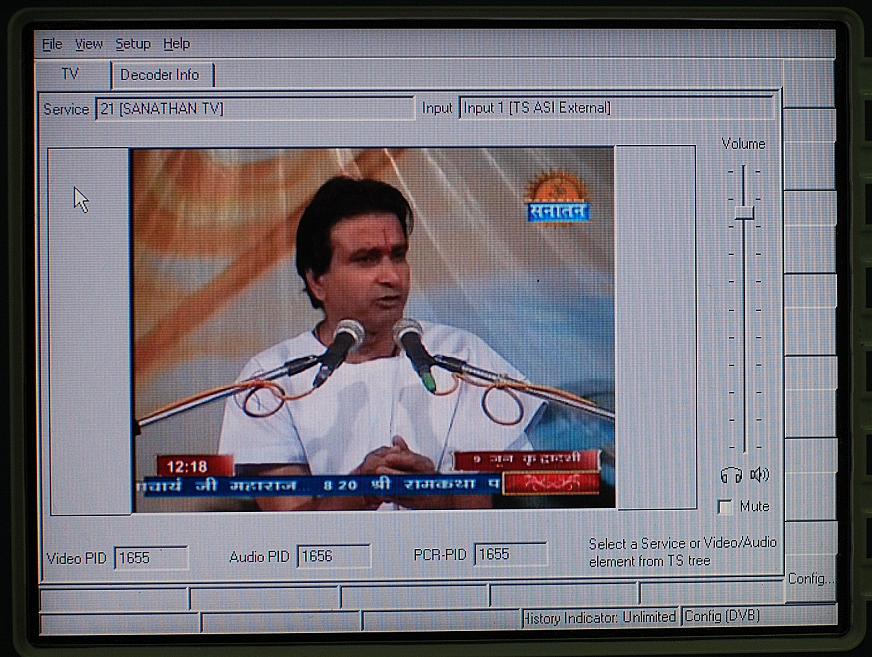

                                                            f, 3 725 H_Packet NSTPL India : VA pids

Insat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL_P7 news pids 01Insat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL_Bizz news pids 02Insat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL_Sanathan tv pids 03

                                                g, 3 725 H_Packet NSTPL India : quality analysis + NIT

Insat 4A at 83.0 E _ wide footprint_3 725 H Power Vision 01Insat 4A at 83.0 E _ wide footprint_3 725 H VOI 02Insat 4A at 83.0 E _ wide footprint_3 725 H Space TV 03
.

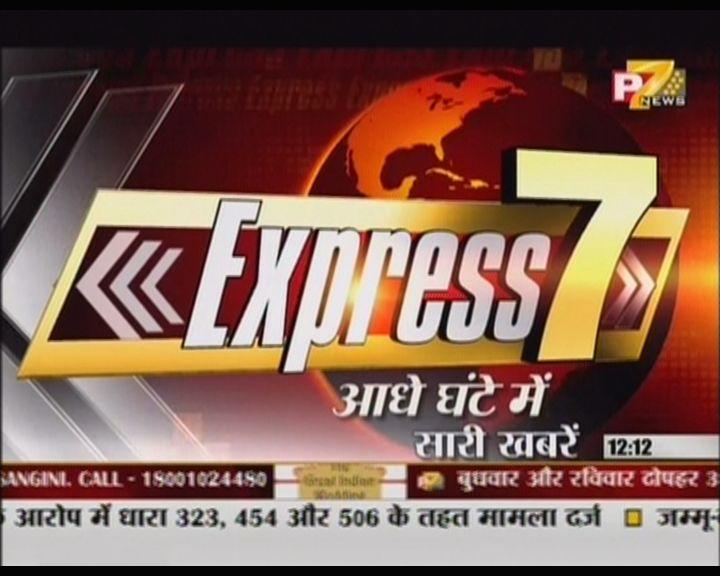

Insat 4A at 83.0°E - 4A wide footprint : 3 725 H_Packet NSTPL India_snapshots

.
Bhojpuriya_Magik_mpeg4_002Jain_TV_Mpeg4_001P7_News_mpeg4_001
Power_Vision_TV_002Raftaar_TV_mpeg4_002Sadhana_News_Bihar_mpeg4_001
Space_TV_001VOI-NATIONAL_002VON_TV_001
.

Insat 4A at 83.0°E - 4A wide footprint : 3 725 H_Packet NSTPL India_videos

.

.
author : Mr. Alberto Simao / Macau S.A.R.
.

Insat 4A at 83.0°E : 3 725 H_Packet NSTPL India_compare the quality of reception

.
                                                                          click to enlarge
                        Insat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL_3.7m dxsatcs 01 n

  Insat 4A at 83.0°E - wide footprint : measurements taken in the town of Lučenec / central Slovakia
                                             geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                          measurement results are derived from the 3.7 m diameter antenna
                                                                            elevation angle  : 8.8°

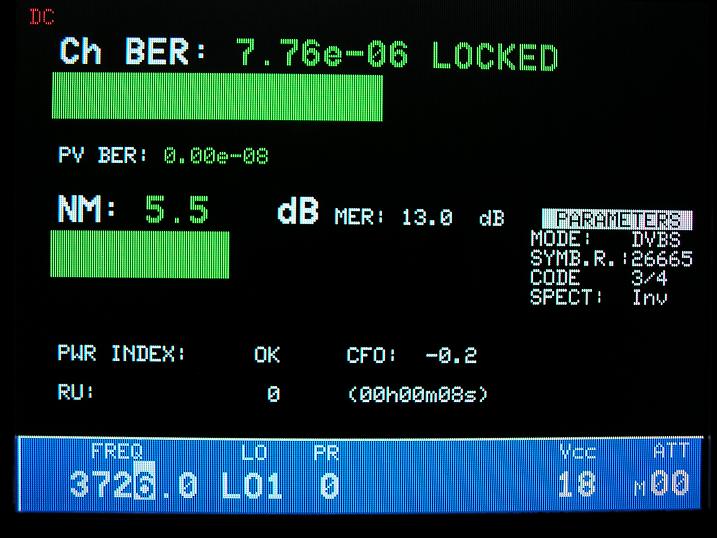

            location measurements                                PF Prodelin 3.7 m                                  quality analysis
insat 4A at 83.0 e_wide footprint_reception point at lucenec slovakiaInsat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL_3.7m dxsatcs 02Insat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL_3.7m dxsatcs 03
.

Insat 4A at 83.0°E - 4A wide footprint : measurements at the center Macau - 60 km w of Hong Kong
                            geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
                                        antenna tracking : AZ=236,076° and EL=46,299°
                           measurement results are derived from the 900 cm diameter antenna
                                                        elevation angle  : 46.299°

           location measurements                              PF Vertex RSI 9.0 m                                   quality analysis
Insat 4A at 83.0 E _ wide footprint_PF Vertex RSi 9.0 m at 83.0e_ measuring poinInsat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL_9.0m A Simao 01Insat 4A at 83.0 E _ wide footprint_3 725 H packet NSTPL_9.0m A Simao 02
