A. Simao-Macau-Intelsat 20-68.5°E-C band-PF Vertex 9.0m-PLL LNB Norsat 3220-Promax TV Explorer:the author analyzes the full spectrum of vertical waves from 3 708 to 4 178 MHz in the geographical area of South China _PREMIERE LEAGUE TV > MOVIES NOW
Intelsat 20 at 68.5°E - Global/Landmass footprint : measurement location Macau - 60 km west from Hong Kong
geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
antenna tracking : AZ=247 ° and EL=33°
measurement results are derived from the 900 cm diameter antenna
date of measurement : 15.7.2013
elevation angle : 33.055°
Intelsat 20 : PF Vertex RSI 9.0m Intelsat 20 global footprint Intelsat 20 : measurement location
Intelsat 20-68.5°E-Global/Landmass footprint -C- : -V- downlink range_installed high frequency chain
Vertex RSI 9.0 m PLL LNB Norsat 3220 Promax TV Explorer HD DTMB
Intelsat 20-68.5°E-Global/Landmass footprint -C- : -V- downlink range_spectrum analysis

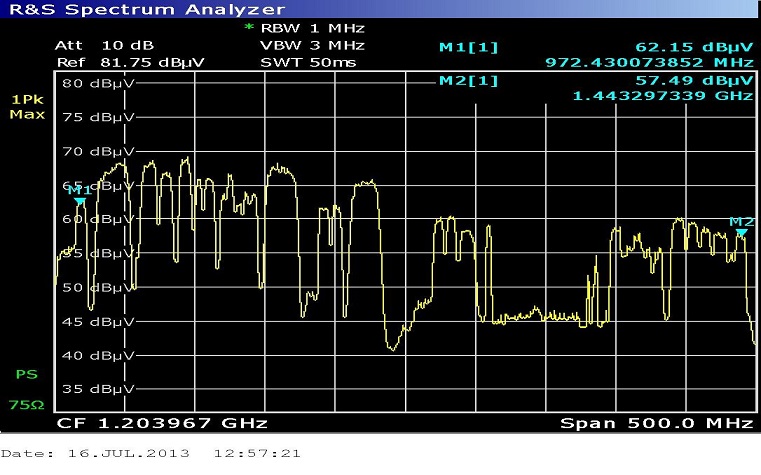

analysis of the spectrum of the vertical vector from 3 700 to 4 200 MHz / Rohde & Schwarz ETL (3 707-M2 > 4178 MHz-M1 )
Intelsat 20-68.5°E-Global/Landmass footprint -C- : -V- downlink range_spectrum,quality+stream analysis

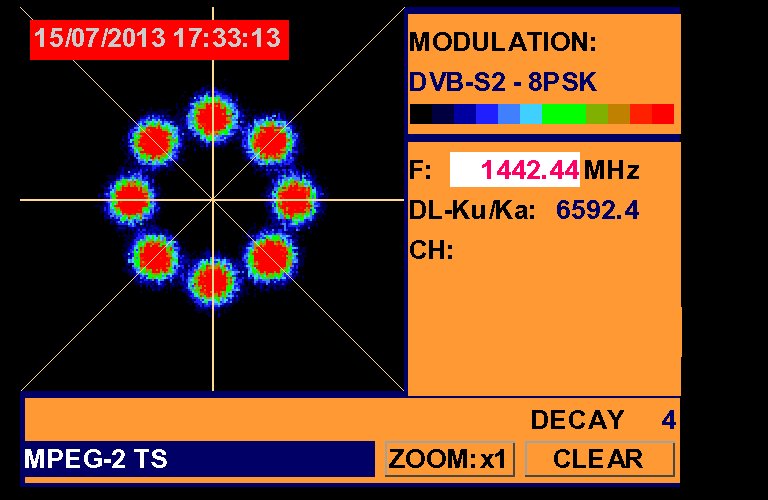

--- 3 708 H @ 1 442.44 MHz @ SPAN 50 MHz : 68.5°E Premiere League ---

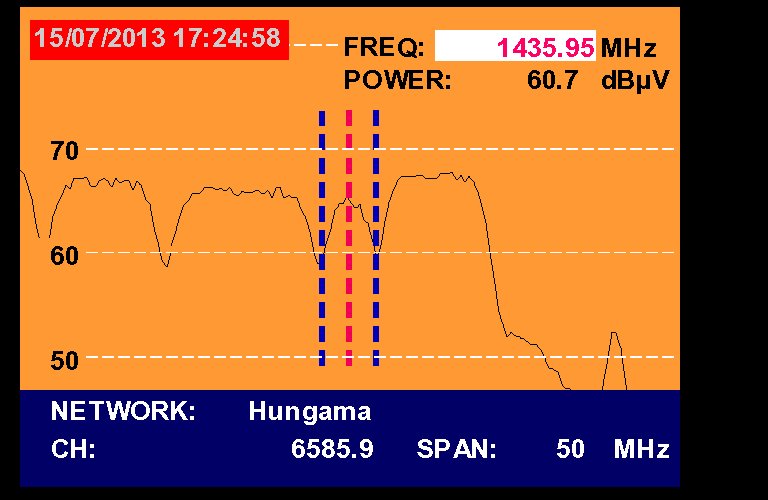

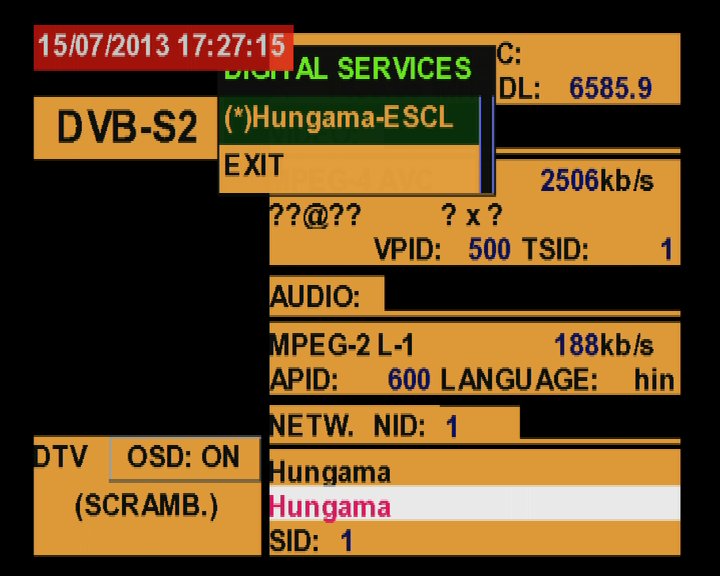

--- 3 714 H @ 1 435.95 MHz @ SPAN 50 MHz : 68.5°E Hungama TV ---

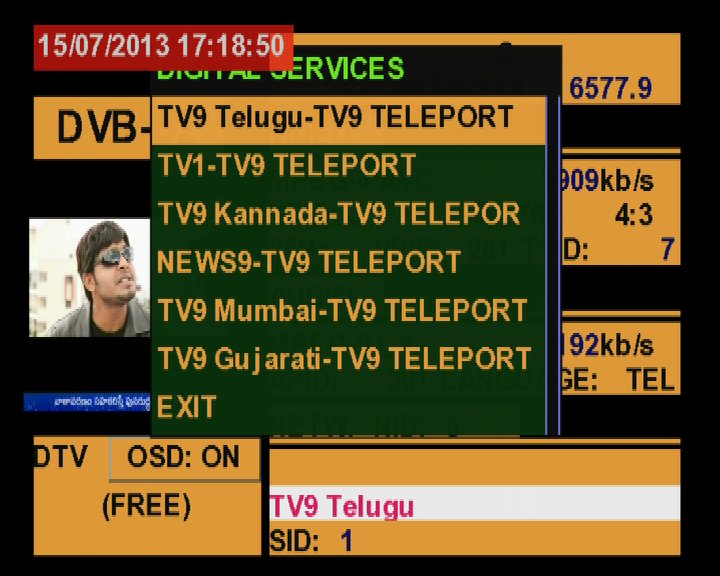

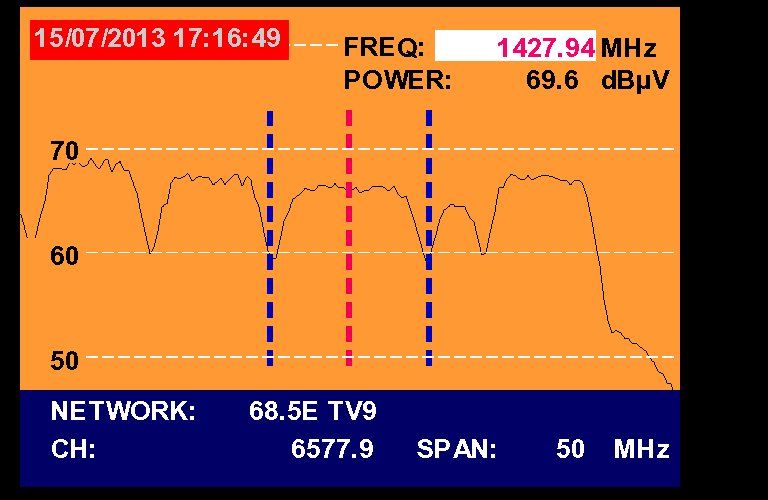

--- 3 722 H @ 1 427.94 MHz @ SPAN 50 MHz : 68.5°E TV9 India ---

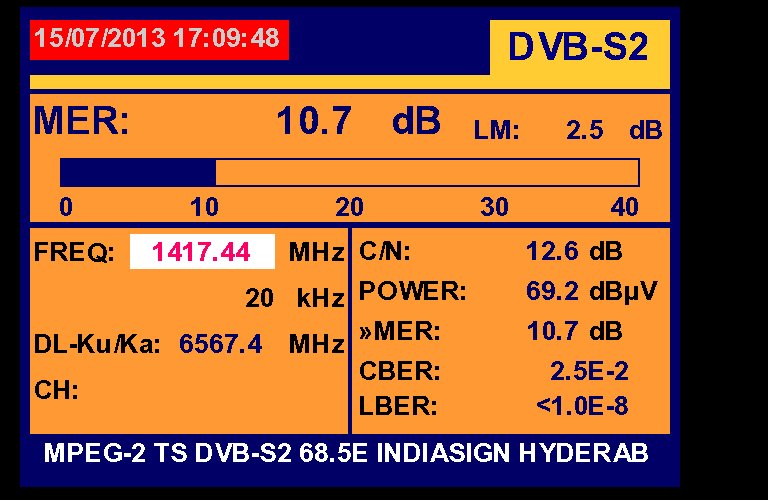

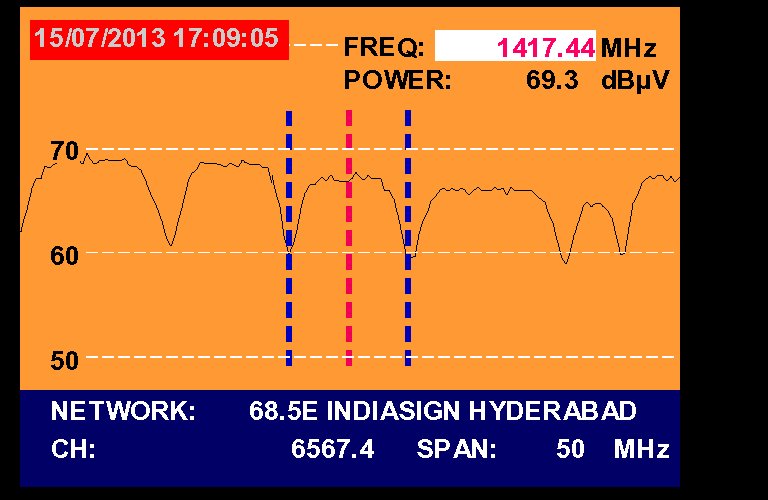

--- 3 733 H @ 1 417.44 MHz @ SPAN 50 MHz : 68.5°E IndiaSign Hyderabad ---
--- 3 742 V @ 1 408.48 MHz @ SPAN 50 MHz : 68.5°E Essel Shyam ---

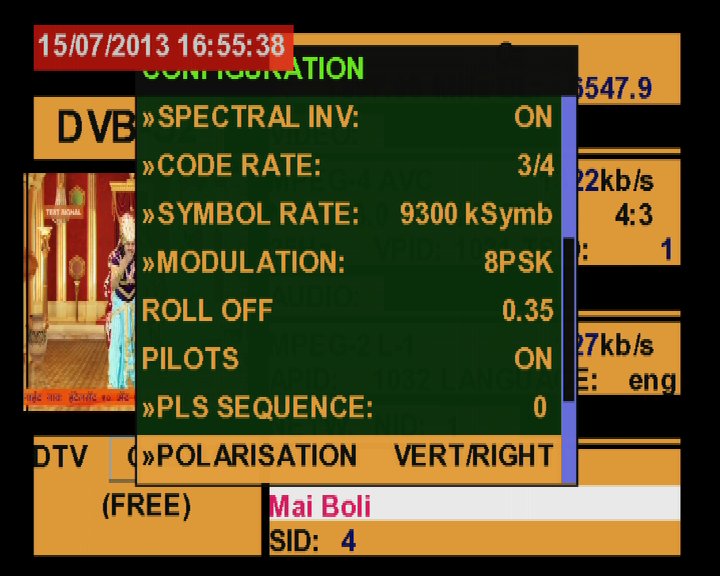

--- 3 752 V @ 1 397.98 MHz @ SPAN 50 MHz : 68.5°E Essel Shyam ---

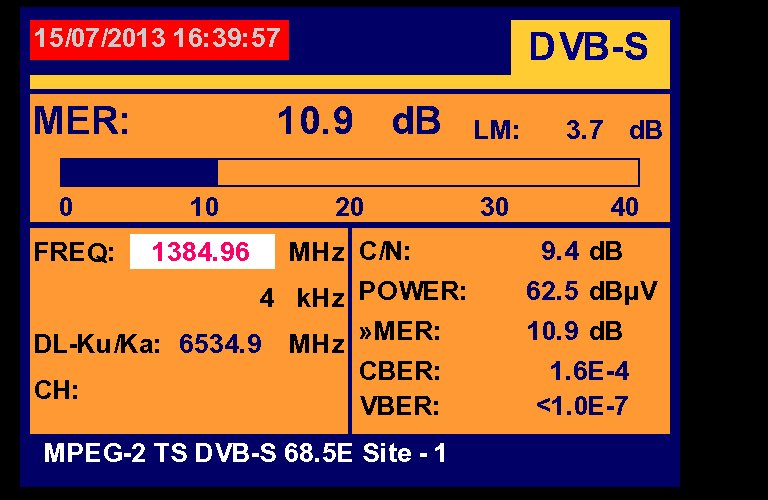

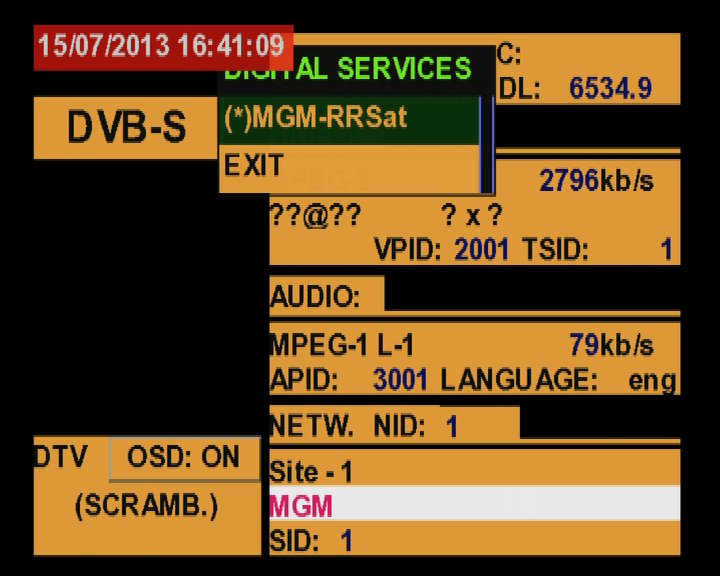

--- 3 765 V @ 1 384.96 MHz @ SPAN 50 MHz : 68.5°E MGM Channel India ---

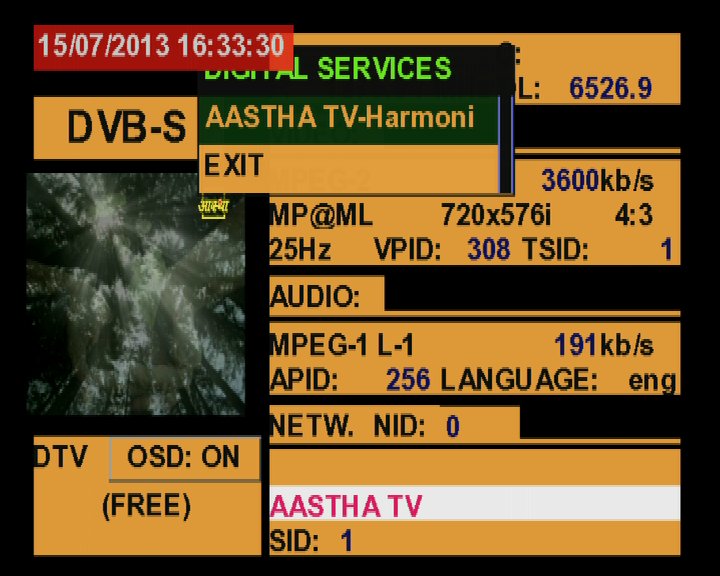

--- 3 774 V @ 1 376.94 MHz @ SPAN 50 MHz : 68.5°E Aastha ---

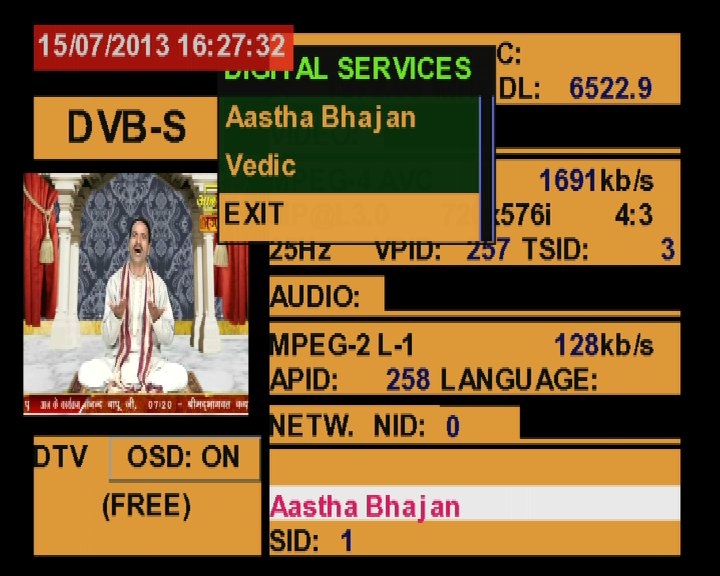

--- 3 777 V @ 1 372.99 MHz @ SPAN 50 MHz : 68.5°E Unn.network ---

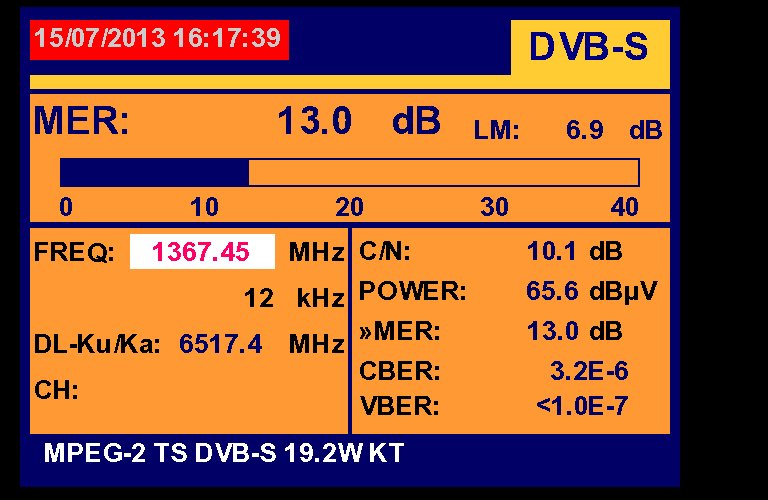

--- 3 783 V @ 1 367.45 MHz @ SPAN 32 MHz : 68.5°E CGN TV ---

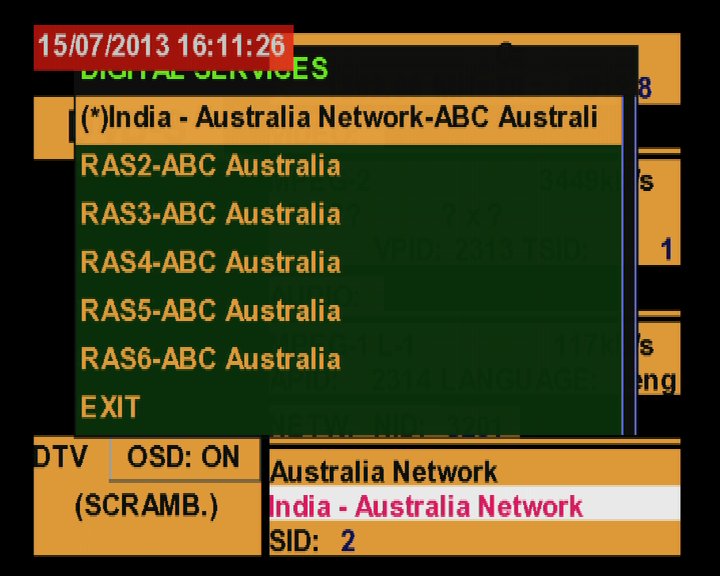

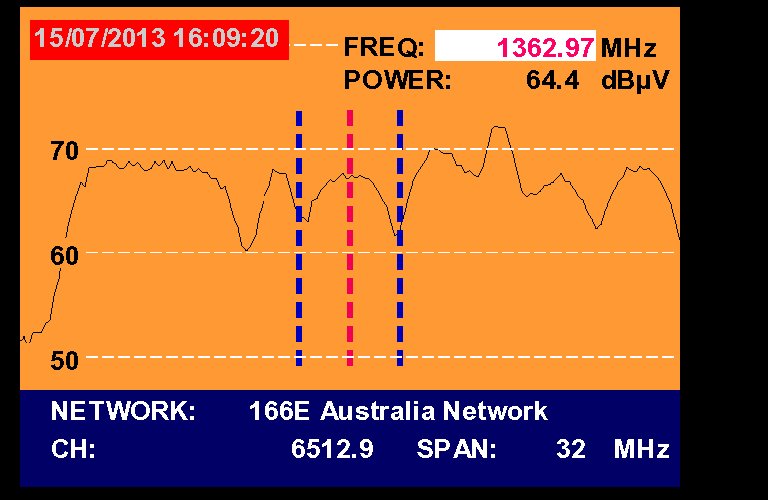

--- 3 787 V @ 1 362.97 MHz @ SPAN 32 MHz : 68.5°E ANI ---
--- 3 791 V @ 1 359.49 MHz @ SPAN 32 MHz : 68.5°E Spirit World ---

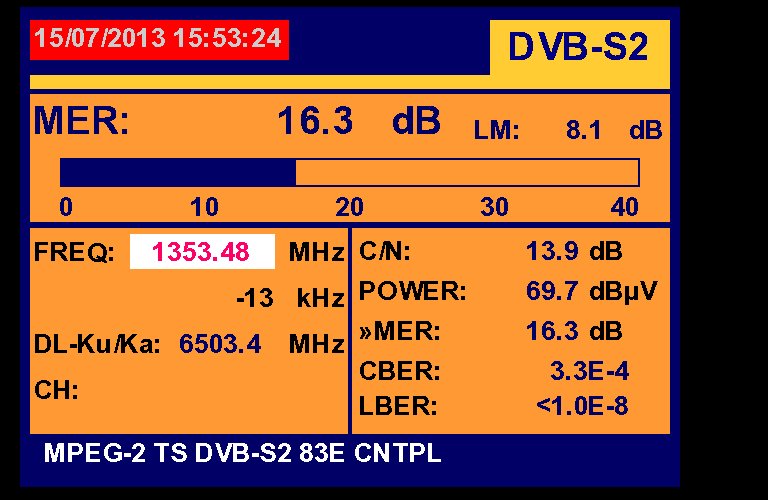

--- 3 797 V @ 1 353.48 MHz @ SPAN 32 MHz : 68.5°E CNTPL netw. ---

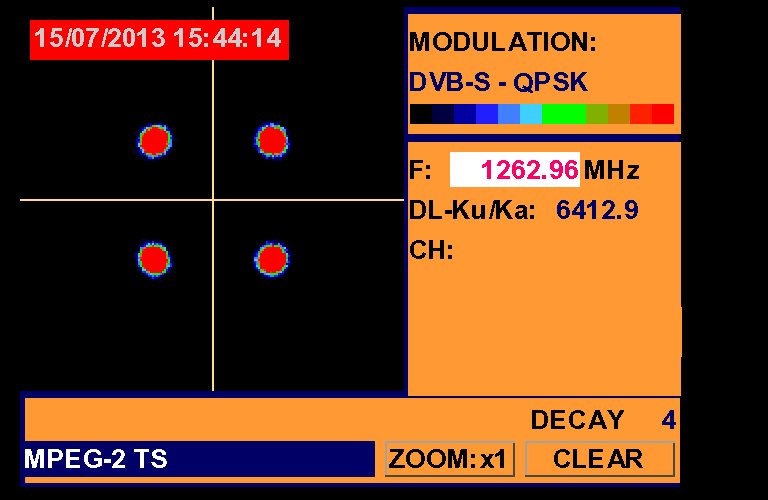

--- 3 889 V @ 1 262.96 MHz @ SPAN 100 MHz : 68.5°E RR SAT Global ---
--- 3 902 V @ 1 247.95 MHz @ SPAN 100 MHz : 68.5°E NEO Sport 1+2 ---
--- 3 914 V @ 1 236.46 MHz @ SPAN 100 MHz : 68.5°E KBS World ---
--- 3 923 V @ 1 227.47 MHz @ SPAN 100 MHz : 68.5°E India TV ---

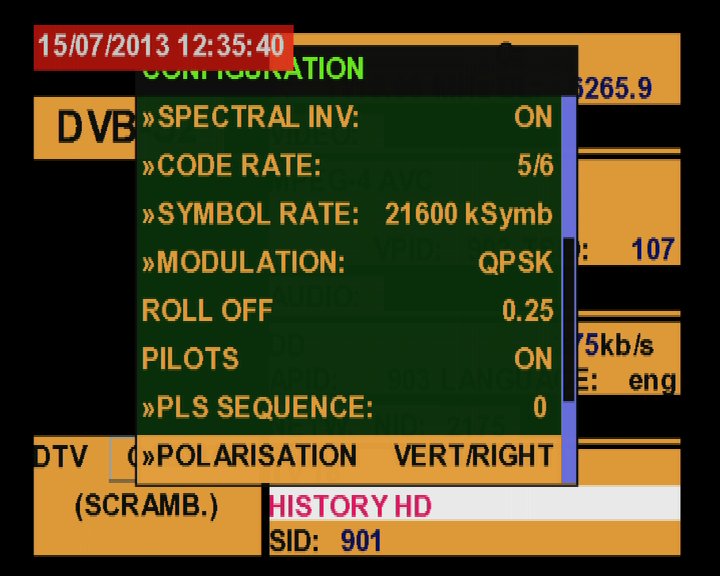

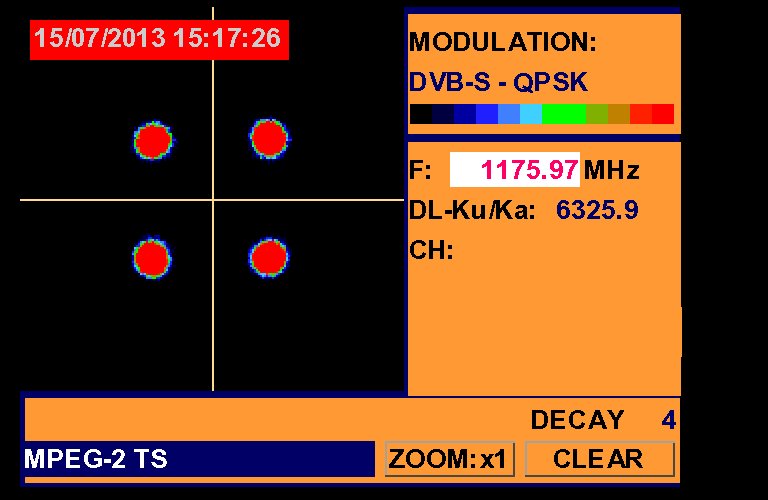

--- 3 974 V @ 1 175.97 MHz @ SPAN 100 MHz : 68.5°E Discovery netwok ---
--- 3 995 V @ 1 155.35 MHz @ SPAN 100 MHz : 68.5°E TV 18 network ---
--- 4 004 V @ 1 146.36 MHz @ SPAN 100 MHz : 68.5°E Lamhas network ---
--- 4 035 V @ 1 115.96 MHz @ SPAN 100 MHz : 68.5°E Network 18 ---

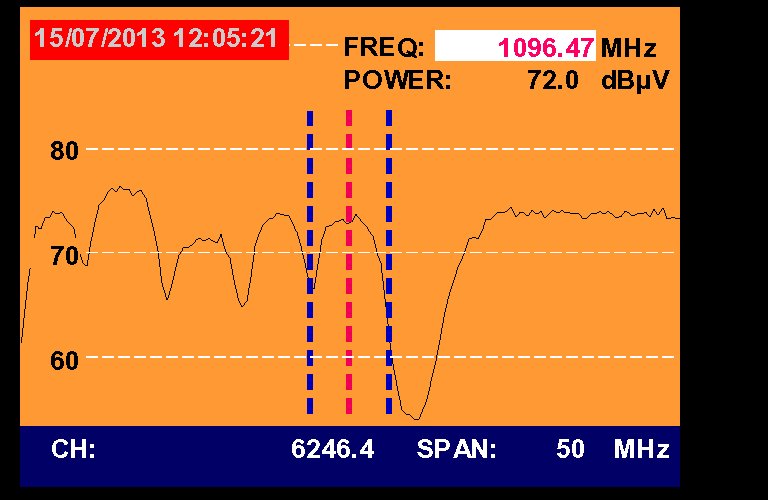

--- 4 054 V @ 1 096.47 MHz @ SPAN 100 MHz : 68.5°E Arirang World ---

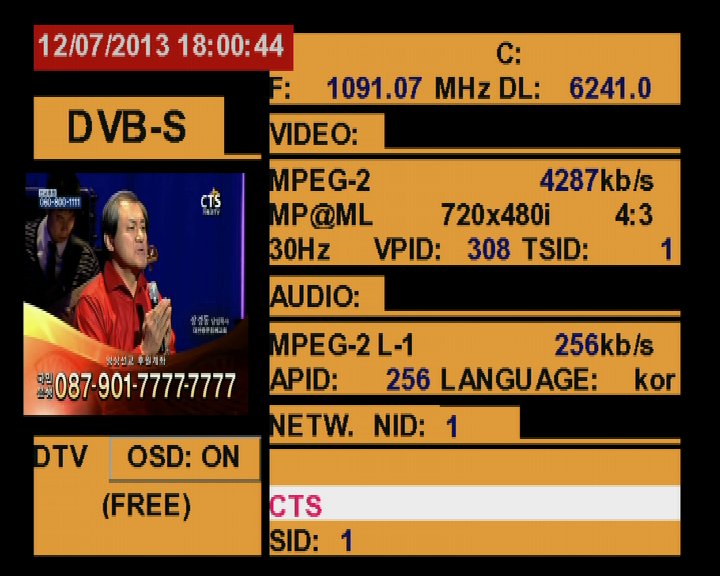

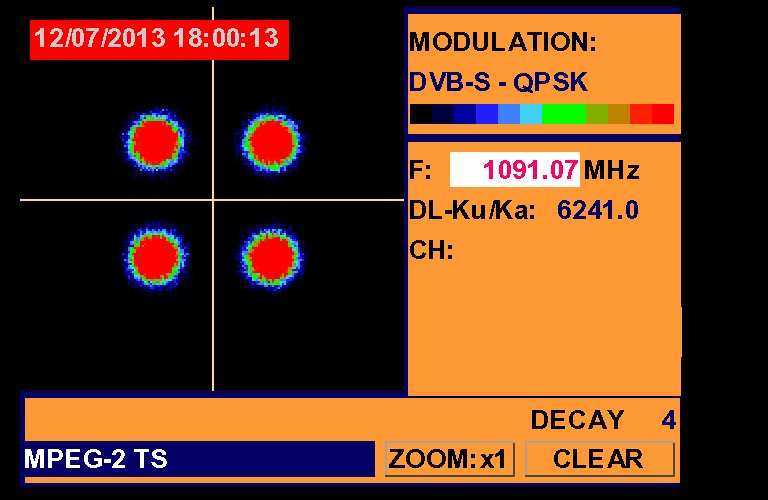

--- 4 059 V @ 1 091.07 MHz @ SPAN 50 MHz : 68.5°E CTS ---

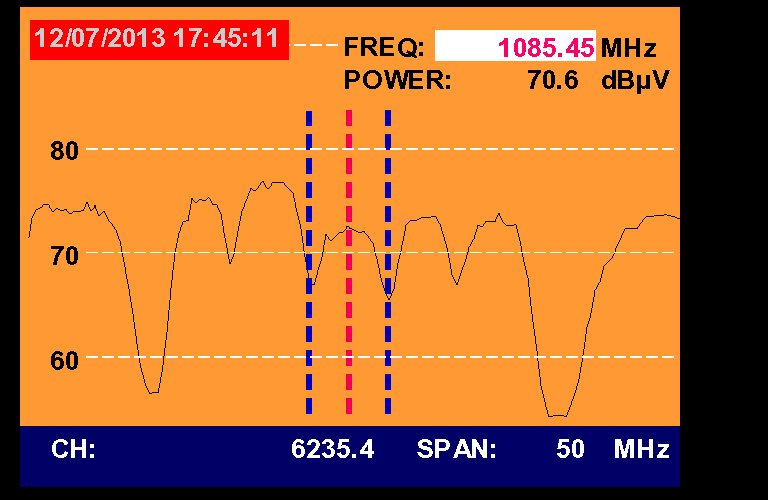

--- 4 064 V @ 1 085.45 MHz @ SPAN 50 MHz : 68.5°E Sanskar TV ---

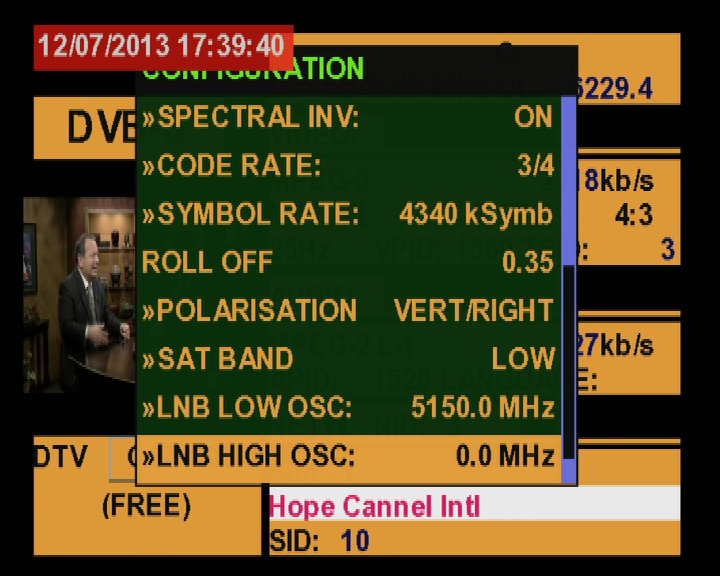

--- 4 070 V @ 1 079.47 MHz @ SPAN 50 MHz : 68.5°E Hope Channel ---

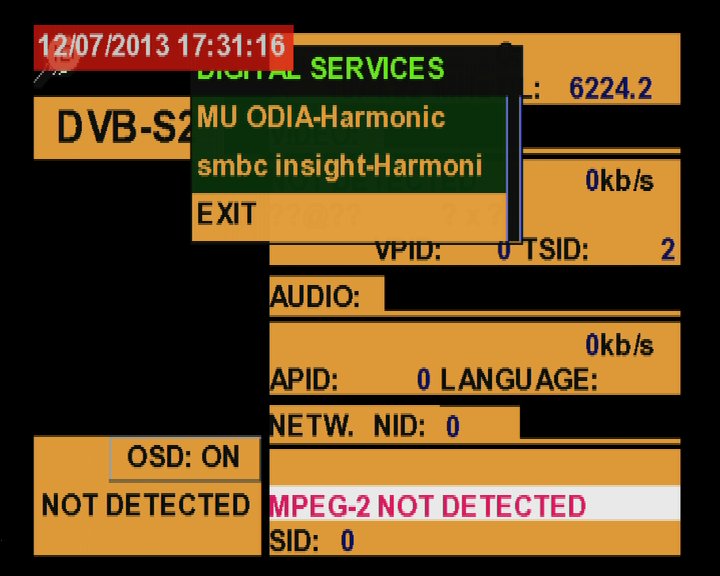

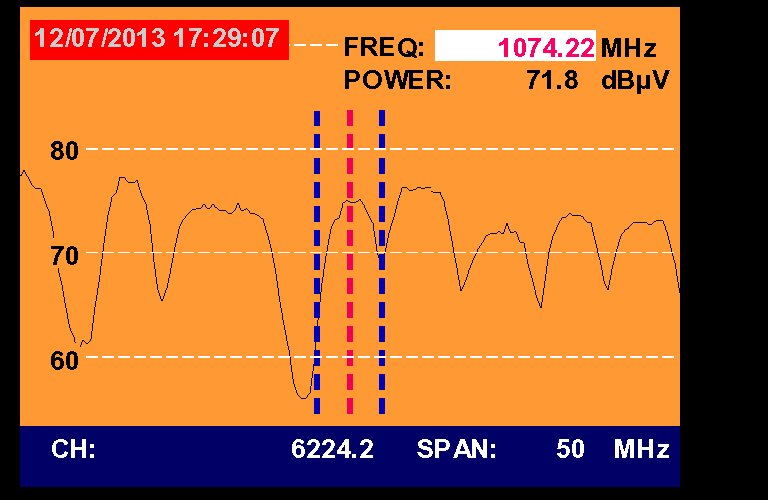

--- 4 075 V @ 1 074.22 MHz @ SPAN 50 MHz : 68.5°E Unn network. ---

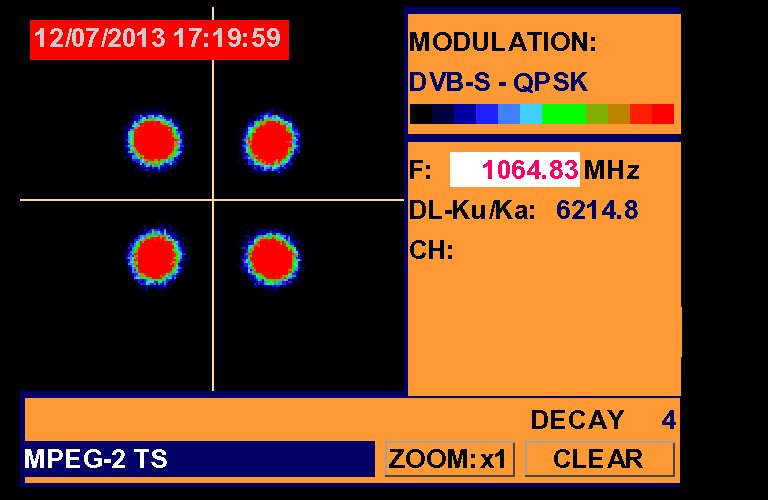

--- 4 085 V @ 1 064.73 MHz @ SPAN 100 MHz : 68.5°E China radio Int. ---

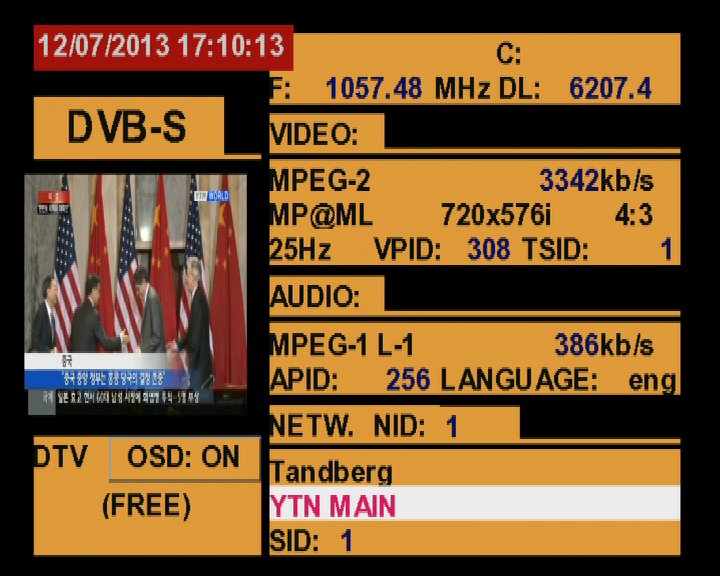

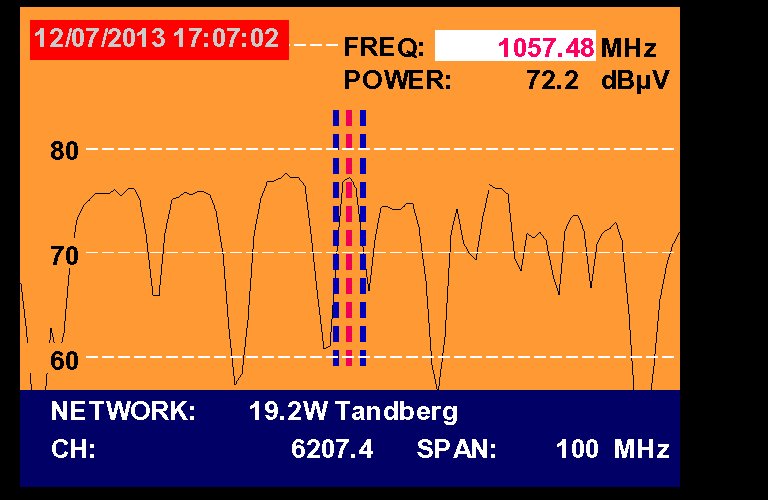

--- 4 092 V @ 1 057.48 MHz @ SPAN 100 MHz : 68.5°E YTN World ---
--- 4 102 V @ 1 047.46 MHz @ SPAN 100 MHz : 68.5°E India news network ---
--- 4 116 V @ 1 033.96 MHz @ SPAN 100 MHz : 68.5°E Peace TV network ---

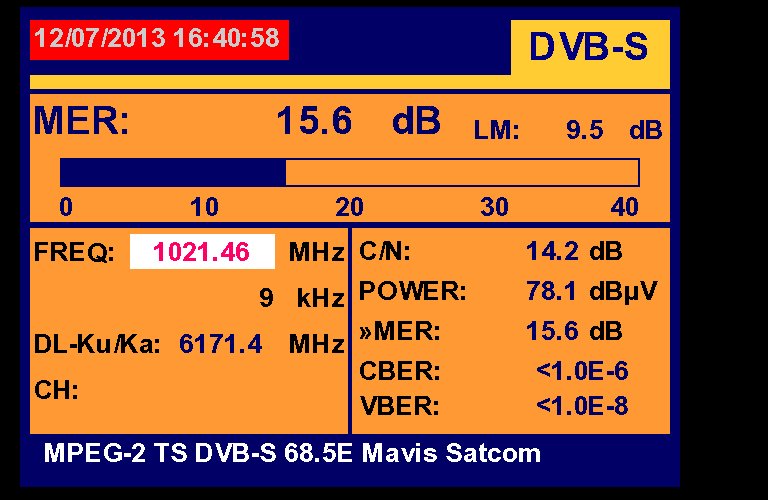

--- 4 128 V @ 1 021.46 MHz @ SPAN 100 MHz : 68.5°E Jaya TV network ---

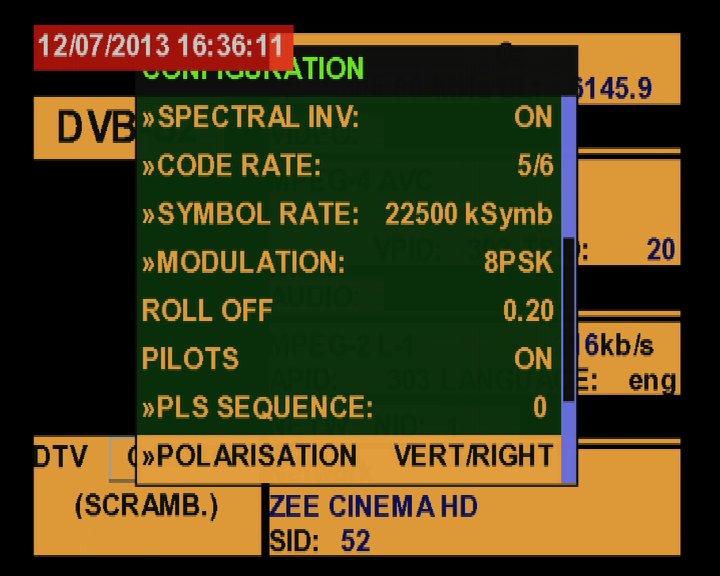

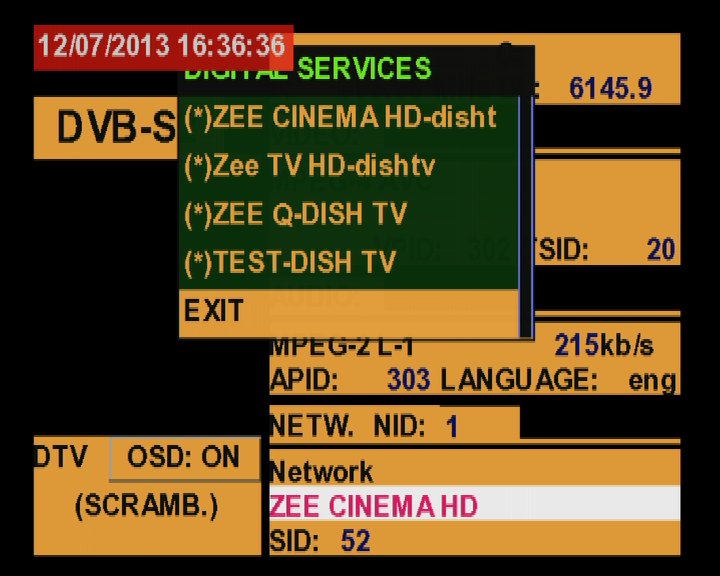

--- 4 154 V @ 995.96 MHz @ SPAN 100 MHz : 68.5°E ZEE network ---
--- 4 178 V @ 973.47 MHz @ SPAN 100 MHz : 68.5°E Movies NOW TGBC ---
