Turksat 2A/3A at 42.0°E
Turksat 2A/3A at 42,0°E : Technical data

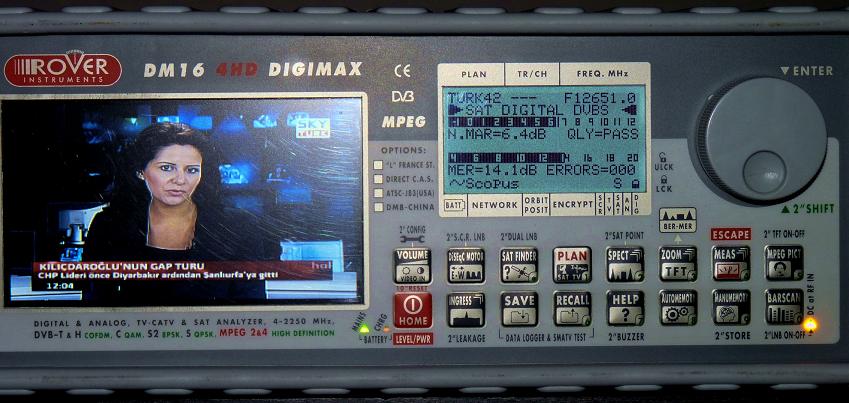

--- Turksat 3A at 42.0°E-3A West beam : 12 651 H SKY Turk / MERp=14.1 dB ---
click for enlarge
satellite : Turksat 3A - orbit : 42.0°E - TP : 24 KU - lifetime : from 12.6.2008 - 15 years
.

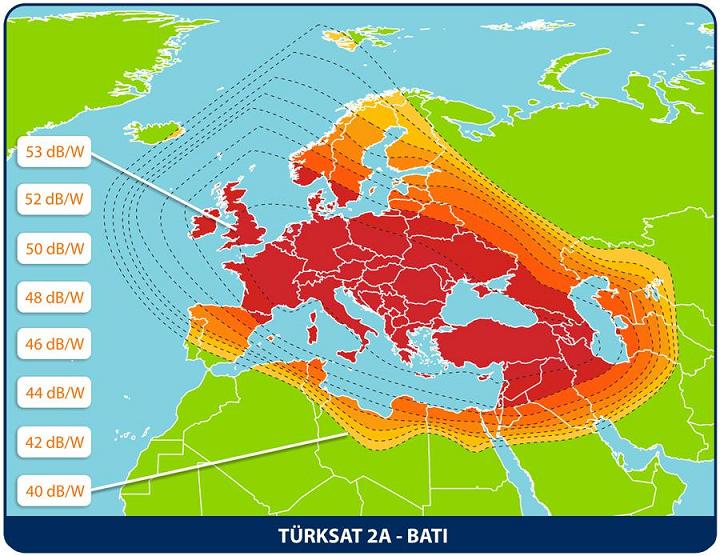

Turksat 2A at 42.0°E - West footprint : spectral analysis & measuring the quality
.
Turksat 2A at 42.0°E - West footprint : measurements at the center Lučenec/central Slovakia
geographical location : Latitude: 48.33° _ Longitude: 19.72°
measurement results are derived from the 3.7 m diameter antenna
date of measurement : 21.11 2010
Elevation angle : 30.5°
Turksat 2A : installed system Turksat 2A beam : Middle East Turksat 2A : research point
dxsatcs waveguide line coverage area town Lučenec / Slovak republic
Prodelin 3.7 m Middle East , Europe , West Asia ... 48.33° _ 19.72°

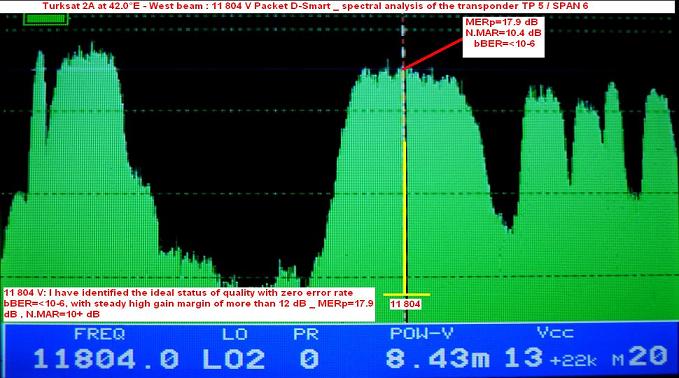

--- Turksat 2A at 42.0°E : spectral analysis of the transponder TP 5 / SPAN 6 ---
11 804 V : Packet D-Smart
click for enlarge
- time of measurement : 21.11. 2010 -
- defining the status of reception -
11 804 V-Packet D-Smart : I have identified the ideal status of quality with zero error rate bBER=<10-6, with steady high
gain margin of more than 12 dB _ MERp=17.9 dB , N.MAR=10+ dB
--- Turksat 2A/3A at 42.0°E : measurement results ---

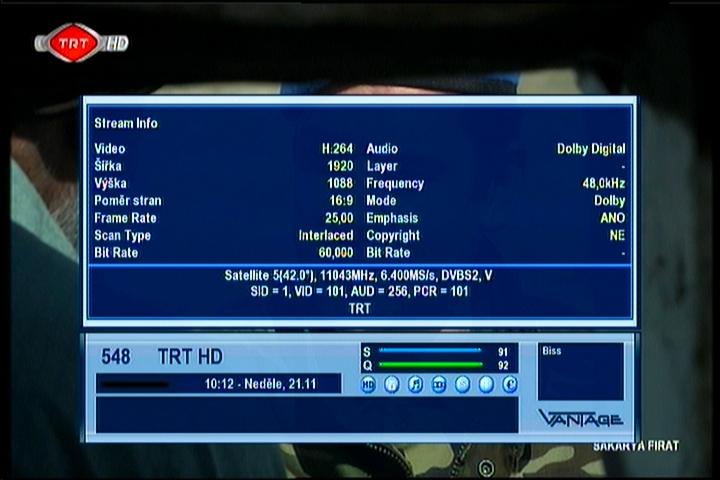

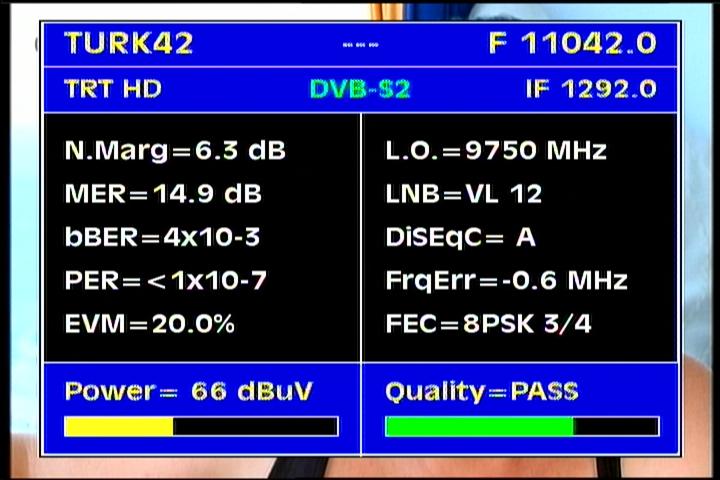

Turksat 2A/3A at 42.0°E : 11 042 V TRT HD
IF data Q data NIT data

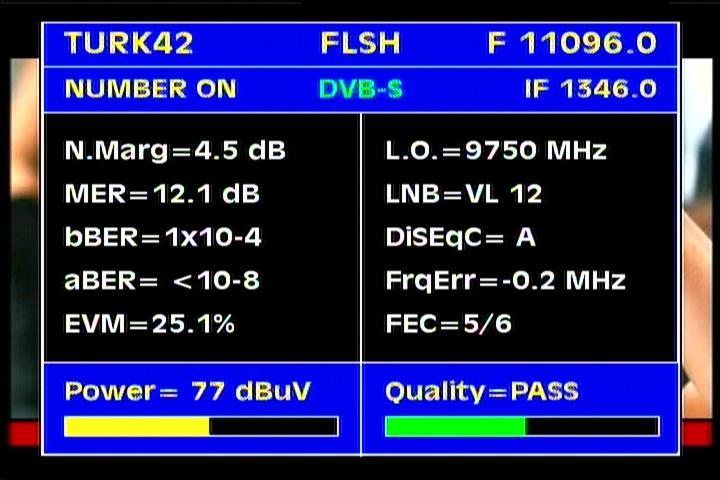

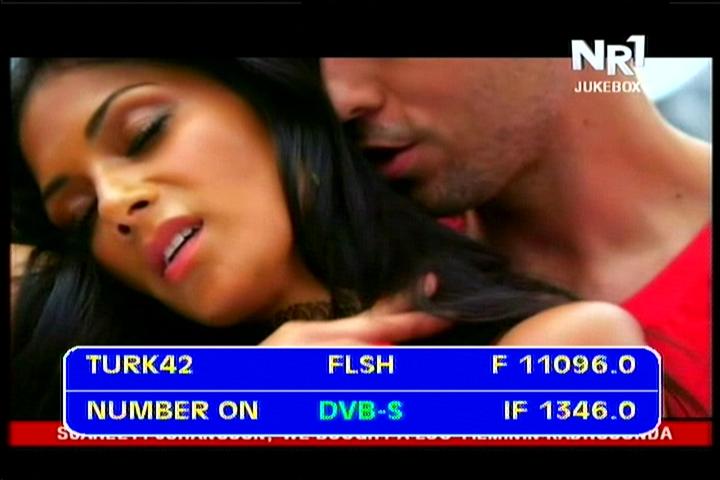

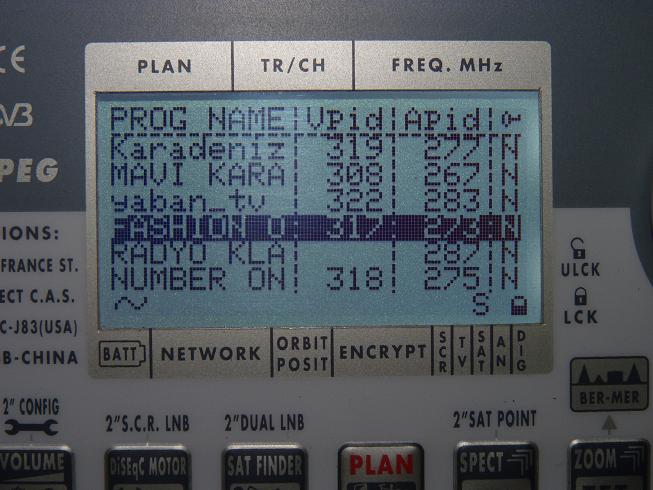

Turksat 2A/3A at 42.0°E : 11 096 V packet Turksat
IF data Q data NIT data

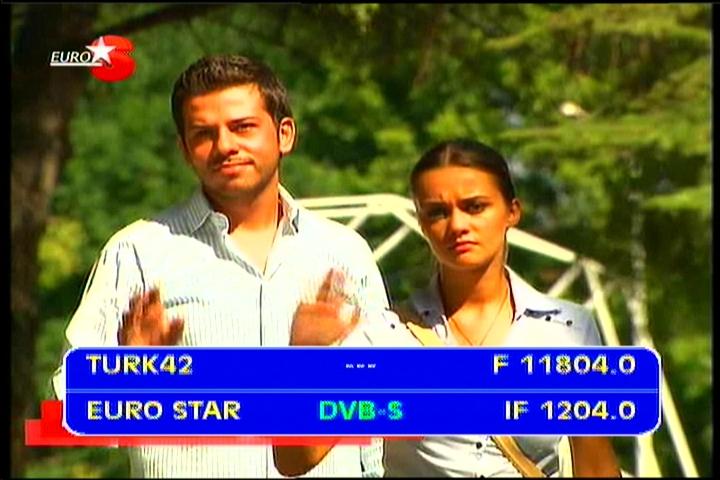

Turksat 2A/3A at 42.0°E : 11 804 V packet D-Smart
IF data Q data NIT data

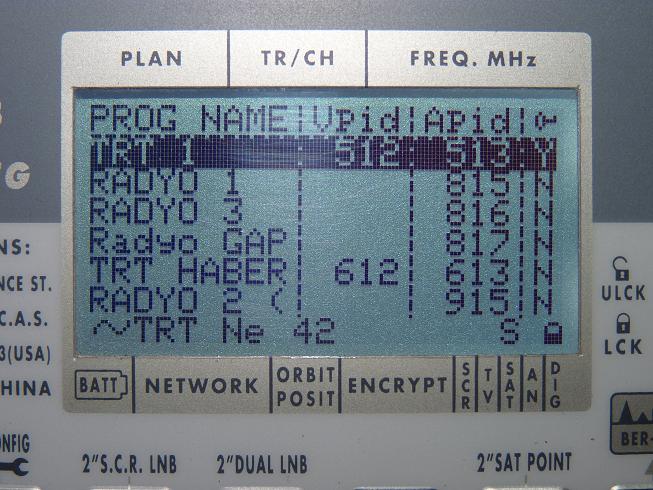

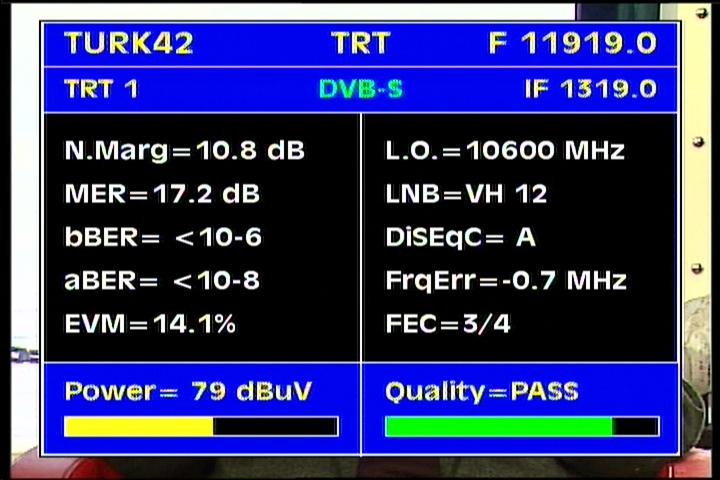

Turksat 2A/3A at 42.0°E : 11 919 V packet TRT
IF data Q data NIT data

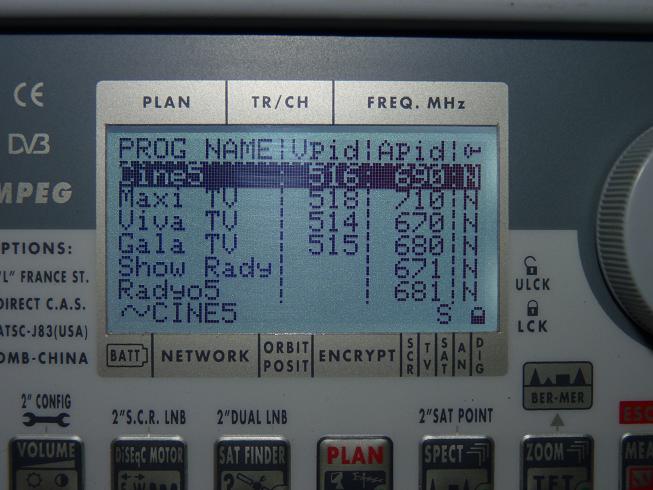

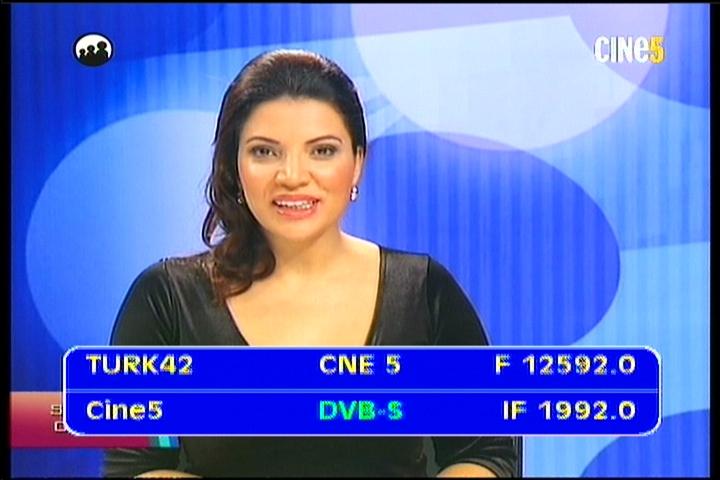

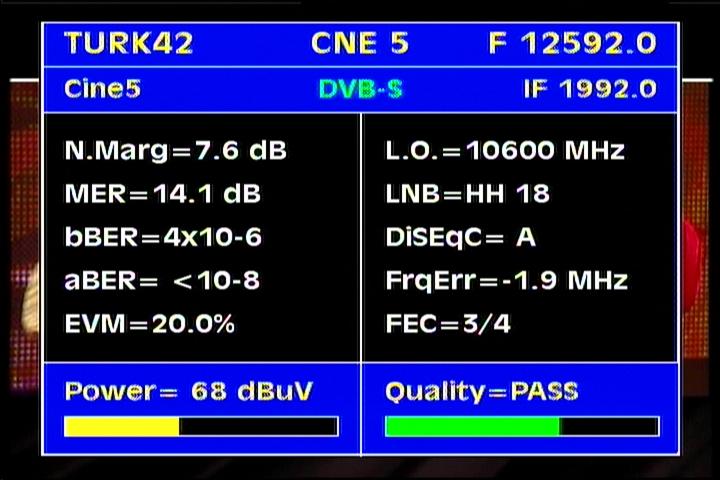

Turksat 2A/3A at 42.0°E : 12 592 H packet Cine+ Digital
IF data Q data NIT data

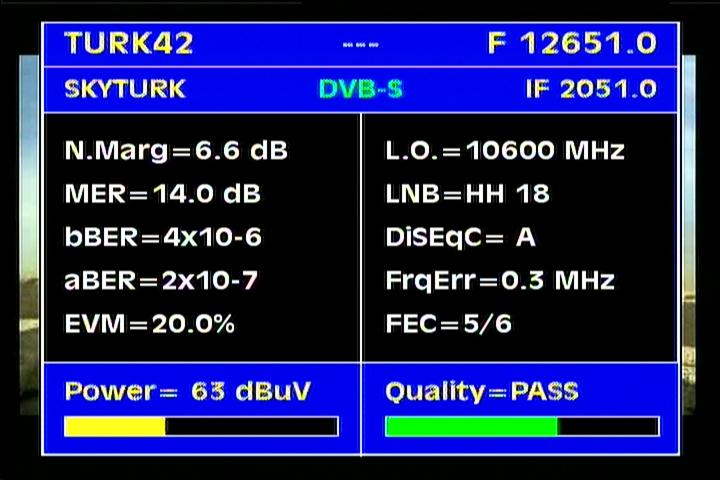

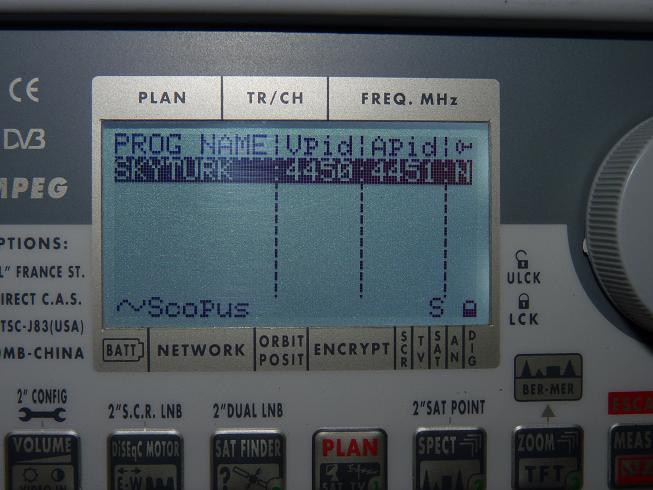

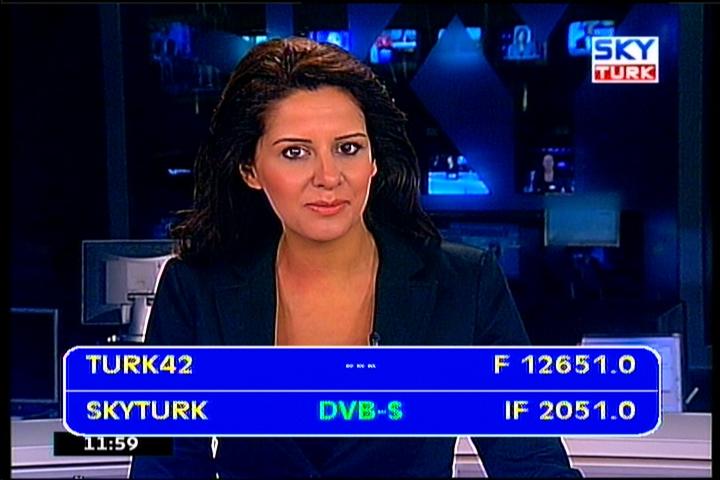

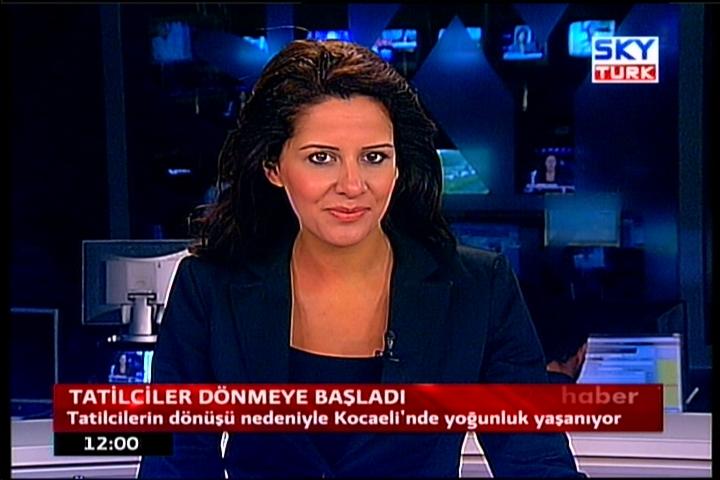

Turksat 2A/3A at 42.0°E : 12 651 H SKY Turk
IF data Q data NIT data

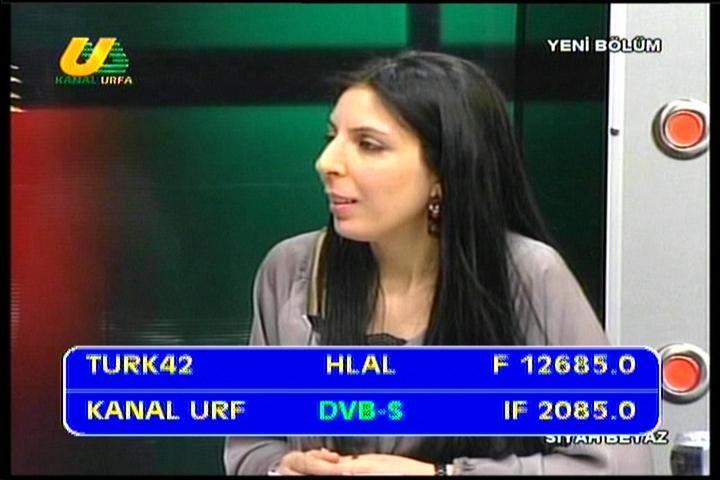

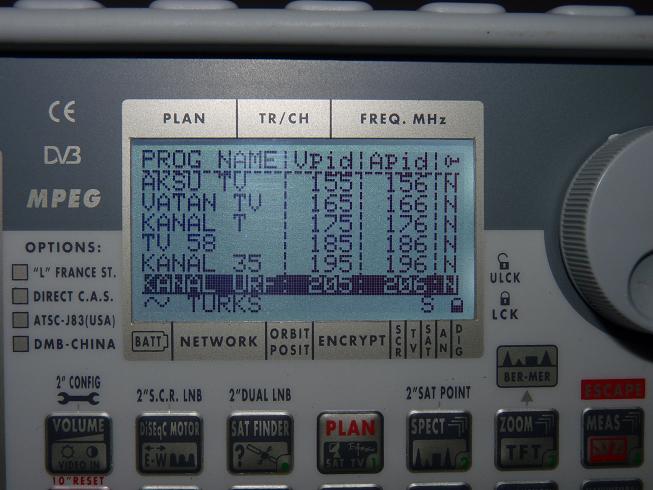

Turksat 2A/3A at 42.0°E : 12 685 H packet Turksat
IF data Q data NIT data
Turksat 2A/3A at 42.0°E : TV List
-Frequency-
|
----------Provider/Channel----------
|
---SR--- | ---FEC--- | ---Beam--- | ---Antenna--- | ---DVB/Encryption--- |
|
10 955-H- tp 20 |
2 960 | 5/6 | 3A East | 80-140+ cm | DVB-S | |
|
10 959-H- tp 20 |
EI TR |
2 222 | 3/4 | 3A East | 80-140+ cm | DVB-S |
|
10 968-H- tp 20 |
Unn. network |
11 200 | 5/6 | 3A East | 80-140+ cm | DVB |
| Space tv | FTA | |||||
| Azad tv | FTA | |||||
| AzTV | FTA | |||||
| Ictimai tv | FTA | |||||
| Idman tv | FTA | |||||
|
10 970 -V- tp 8 |
D-Smart | 30 000 | 5/6 | 3A West | 60-80+ cm | Videoguard |
| Max Smart tv | Videoguard | |||||
| Euro Futbol | Videoguard | |||||
| Style Network | Videoguard | |||||
| Universal ch. Turkey | Videoguard | |||||
| Fantasy ch soft /00-04/ | Videoguard | |||||
| ESPN Classic Europe | Videoguard | |||||
| Penthouse HD /0.30-04.00/ | Videoguard | |||||
| CNN Int. Europe | Videoguard | |||||
| Sports TV | Videoguard | |||||
| Tay TV | FTA | |||||
| Mixx TV | FTA | |||||
| Z TV | FTA | |||||
| Planet Turk | FTA | |||||
| Planet Cinema | FTA | |||||
| Medya Tv | FTA | |||||
| Anadolu Yurdum | FTA | |||||
| King | FTA | |||||
| Yildiz TV | FTA | |||||
|
10 982 -H- tp 20 |
9 600 | 5/6 | 3A West | 60-80+ cm | DVB | |
| Kanl Turk | FTA | |||||
| Bugun TV | FTA | |||||
|
11 012 -V- tp 9 |
D-Smart | 30 000 | 5/6 | 3A West | 60-80+ cm | Videoguard |
| promo D-Smart | FTA | |||||
| Plus Moda | FTA | |||||
| Kanal Biz | FTA | |||||
| Smart Cocuk | FTA | |||||
| Play TV | FTA | |||||
| Planet Pembe | FTA | |||||
| Planet Cocuk | FTA | |||||
| FX Turkiye | Videoguard | |||||
| D Yesilcam | Videoguard | |||||
| D Cocuk | Videoguard | |||||
| Pembe Smart /08-24/ | Videoguard | |||||
| Passion TV /02-05/ | Videoguard | |||||
| Movie 24 | Videoguard | |||||
| Loca | Videoguard | |||||
| Eros XXX | Videoguard | |||||
| Marc Dorcel XXX /00-04/ | Videoguard | |||||
| Eurosport | Videoguard | |||||
| KidsCo | Videoguard | |||||
| Moviesmart | Videoguard | |||||
| Da Vinci Learning | Videoguard | |||||
| Movie+ 2 | Videoguard | |||||
|
11 042-V- tp 10 |
6 400 | 3/4 | 3A West | 80+ cm | DVB-S2/8PSK/FTA MPEG-4/HD |
|
|
11 049 -V- tp 10 |
2 400 | 5/6 | 3A West | 80+ cm | DVB FTA | |
|
11 054 -H- tp 22 |
Dogus Grubu | 30 000 | 5/6 | 3A East | 80-140+ cm | DVB |
| NTV | FTA | |||||
| CNBC Europe | FTA | |||||
| NTV Sport | FTA | |||||
| E2 | FTA | |||||
| HD En | MPEG-4/HD/Videoguard | |||||
| Kral TV | FTA | |||||
| NBA TV | Biss | |||||
|
11 064 -V- tp 10 |
Samanyolu TV | 13 000 | 5/6 | 3A West | 80+ cm | DVB |
| Samanyolu TV | FTA | |||||
| Mehtap TV | FTA | |||||
| Samanyolu Haber | FTA | |||||
| Yumurcak TV | FTA | |||||
| Dunya TV | FTA | |||||
|
11 094 -H- tp 23 |
TRT | 30 000 | 5/6 | 3A East | 80+ cm | DVB |
| TRT 1 | FTA | |||||
| TRT Haber | FTA | |||||
| TRT Turk | FTA | |||||
| TRT Muzik | FTA | |||||
| TRT Cocuk | FTA | |||||
| TRT Avaz | FTA | |||||
| Euro News | FTA | |||||
| TRT Arapca | FTA | |||||
|
11 096 -V- tp 11 |
Turksat | 30 000 | 5/6 | 3A West | 60-80+ cm | DVB |
| Power Turk | FTA | |||||
| Tempo TV | ||||||
| Flash TV | FTA | |||||
| Cay TV | FTA | |||||
| Expo Channel | FTA | |||||
| NL Channel | FTA | |||||
| Rumeli TV | FTA | |||||
| Fashion One | FTA | |||||
| Number One | FTA | |||||
| Karadeniz TV | FTA | |||||
| Mavi Karadeniz TV | FTA | |||||
| Yaban TV | FTA | |||||
| Tempo TV | FTA | |||||
|
11 145 -H-tp 24 |
feeds AA ... | 4 444 | 5/6 | 3A West | 80-120+ cm | FTA/Biss/4:2:2 |
|
11 171 -V- tp 12 |
Akili TV | 2 190 | 5/6 | 3A West | 60-80+ cm | DVB FTA |
|
11 194 -H- tp 24 |
Ciner | 7 200 | 3/4 | 3A West | 60-80+ cm | DVB |
| Haberturk | FTA | |||||
| Bloomberg TV | FTA | |||||
|
11 470 -V-tp 5 |
feeds TRT ... | 3 500 | 5/6 | 3A West | 80-120+ cm | FTA/Biss/4:2:2 |
|
11 475 -V-tp 5 |
feeds TRT ... | 3 500 | 5/6 | 3A West | 80-120+ cm | FTA/Biss/4:2:2 |
|
11 526-V-tp 5 |
Ekin TV | 2 080 | 3/4 | 3A West | 80+ cm | DVB FTA |
|
11 628 -H- tp 19 |
ATV Turkiye | 6 666 | 5/6 | 3A East | 80-140+ cm | DVB FTA |
|
11 651 -H- tp 19 |
Arzu TV |
2 222 | 5/6 | 3A East | 80-140+ cm | DVB FTA |
|
11 658 -H- tp 19 |
Afghan TV | 2 222 | 5/6 | 3A East | 80-140+ cm | DVB FTA |
|
11 717 -V- tp 1 |
Nickelodeon Turkiye | 2 222 | 5/6 | 3A West | 60-80+ cm | DVB/Videoguard |
|
11 729 -V- tp 1 |
Digi Turk | 15 555 | 5/6 | 3A West | 60-80+ cm | DVB |
| Max TV | FTA | |||||
| SporMax | Irdeto 2/Cryptoworks | |||||
| Blue Hustler Europe |
Irdeto 2/Cryptoworks | |||||
| TurkMax | Irdeto 2/Cryptoworks | |||||
| Lig TV | Irdeto 2/Cryptoworks | |||||
| VIP TV /22-04/ | Irdeto 2/Cryptoworks | |||||
| Ask TV | FTA | |||||
| IZ TV | Irdeto 2/Cryptoworks | |||||
| Digi Kanal | FTA | |||||
|
11 746 -H- tp 2 |
Turksat | 27 500 | 5/6 | 2A West | 60-80+ cm | DVB |
| promo Turksat | FTA | |||||
| Al Jazeera Channel | FTA | |||||
| Al Jazeera English | FTA | |||||
| Asu TV | FTA | |||||
| TV 52 Ordu | FTA | |||||
| Teledunia promo | FTA | |||||
| Teledunia info | FTA | |||||
| Nat Geo Adventure | MPEG-4/Viaccess | |||||
|
11 777 -H- tp 4 |
Kanal 7 | 4 800 | 5/6 | 2A East | 80+ cm | DVB FTA |
|
11 790 -H- tp 4 |
16 000 | 5/6 | 2A East | 80-140+ cm | DVB | |
| ATV Turkiye | FTA | |||||
| test | FTA | |||||
| test | FTA | |||||
|
11 804 -V- tp 5 |
D-Smart | 24 444 | 5/6 | 2A West | 60-80+ cm | DVB |
| CNN Turk | FTA | |||||
| Euro D | FTA | |||||
| Sipsak Tv | FTA | |||||
| FB TV | FTA | |||||
| Euro Star TV | FTA | |||||
| Fix TV | FTA | |||||
| Max Club | ||||||
| Dream Turk | Videoguard / FTA | |||||
| Plus Muzik | FTA | |||||
| Fly TV | FTA | |||||
| TNT | FTA | |||||
| Sila TV | FTA | |||||
| DHA feed | FTA/Biss/4:2:2 | |||||
|
11 830 -V- tp 7 |
Kanal 7 | 7 200 | 5/6 | 2A West | 60-80+ cm | DVB |
| Kanal 7 Int. | FTA | |||||
| Yurdum TVT | FTA | |||||
| TVT | FTA | |||||
| Ulke TV | FTA | |||||
|
11 839 -V- tp 7 |
Turkmeneli | 4 444 | 3/4 | 2A West | 80+ cm | DVB FTA |
|
11 845 -V- tp 7 |
Turksat promo | 2 222 | 3/4 | 2A West | 60-80+ cm | DVB FTA |
|
11 857 -V- tp 7 |
TGRT EU | 3 150 | 5/6 | 2A West | 60-80+ cm | DVB FTA |
|
11 862 -H- tp 8 |
D-Smart | 27 500 | 5/6 | 2A East | 80+ cm | DVB |
| Kanal D | FTA | |||||
| Star TV | FTA | |||||
| D Shopping | FTA | |||||
| NHK World | FTA | |||||
| Dream TV | FTA | |||||
| Cartoon Netw. | FTA | |||||
| TRF TV | FTA | |||||
| Kocaeli TV | FTA | |||||
| Fashion TV Turkey | Videoguard | |||||
| Discovery Channel Turkiye | Videoguard | |||||
| Animal Planet | Videoguard | |||||
| Discovery World | Videoguard | |||||
| Discovery Science | Videoguard | |||||
| Discovery T&L | Videoguard | |||||
| Discovery Investigation | Videoguard | |||||
|
11 870 -V- tp 9 |
TV 8 Turkey | 8 888 | 3/4 | 2A West | 60-80+ cm | DVB FTA |
|
11 879 -V- tp 9 |
Ihlas network | 2 815 | 5/6 | 2A West | 60-80+ cm | DVB |
| TR 1 | FTA | |||||
| Cool TV | FTA | |||||
|
11 887 -V- tp 9 |
DigiTurk | 9 200 | 5/6 | 2A West | 80+ cm | DVB FTA |
| Moviemax speed | Irdeto 2/Cryptoworks | |||||
| JoJo /06-23/ | Irdeto 2/Cryptoworks | |||||
| Intimacy X /23-05/ | Irdeto 2/Cryptoworks | |||||
| National Geographic ch. | Irdeto 2/Cryptoworks | |||||
| Nurs Lokman | FTA | |||||
| Denge TV | FTA | |||||
|
11 906 -H- tp 10 |
Samanyolu TV | 4 800 | 5/6 | 2A East | 80+ cm | DVB FTA |
|
11 919 -V- tp 11 |
TRT | 24 444 | 3/4 | 2A West | 60-80+ cm | DVB |
| TRT 1 | FTA | |||||
| TRT Haber | FTA | |||||
| TRT Turk | FTA | |||||
| TRT 3 | FTA | |||||
| TRT Cocuk | FTA | |||||
| TRT Belgesel | FTA | |||||
|
11 934 -H- tp 12 |
D-Smart | 20 000 | 3/4 | 2A East | 80+ cm | DVB-S2/8PSK/MPEG-4 |
| Kanal D HD | MPEG-4/HD/Videoguard | |||||
| Eurosport HD | MPEG-4/HD/Videoguard | |||||
| Smart HD | MPEG-4/HD/Videoguard | |||||
| Discovery HD Europe | MPEG-4/HD/Videoguard | |||||
| Animal HD | MPEG-4/HD/Videoguard | |||||
| Star Tv | MPEG-4/HD/Videoguard | |||||
|
11 949 -H- tp 12 |
7 500 | 5/6 | 2A East | 80+ cm | DVB | |
| Dizi Smart | Videoguard | |||||
| Luli | Videoguard | |||||
| Bebegim TV /23-07/ |
Videoguard | |||||
| Fashion tv Turkiye | Videoguard | |||||
| ESPN America | Videoguard | |||||
|
11 962 -V- tp 13 |
Turksat promo |
3 333 | 3/4 | 2A West | 60-80+ cm | DVB FTA |
|
11 964 -H- tp 14 |
Show TV | 5 925 | 3/4 | 2A East | 60-80+ cm | DVB FTA |
|
11 972 -H- tp 14 |
Fox Turkiye | 7 200 | 3/4 | 2A East | 80+ cm | DVB FTA |
|
11 981 -H- tp 14 |
Ihlas network | 5 200 | 5/6 | 2A East | 80+ cm | DVB |
| TGRT Pazarlama | FTA | |||||
| TGRT Haber | FTA | |||||
|
11 996 -V- tp 15 |
MCD network | 27 500 | 5/6 | 2A West | 60-80+ cm | DVB |
| MTV Turkie | FTA | |||||
| Sci Tech TV | Biss | |||||
| Sinema TV | Videoguard | |||||
| Sinema TV 2 | Videoguard | |||||
| Sinema TV Aile | Videoguard | |||||
| Sinema TV HD | MPEG-4/Videoguard | |||||
| Sinema TV HD2 | MPEG-4/Videoguard | |||||
|
12 015 -H- tp 16 |
2A network | 27 500 | 5/6 | 2A East | 80+ cm | DVB |
| Kanal 13 | FTA | |||||
| Bengu Turk | FTA | |||||
| TMB | FTA | |||||
| Karadeniz Turk | ||||||
| 6 News | FTA | |||||
| test | ||||||
| testcard | MPEG-4/test | |||||
| Universal Channel | PowerVu | |||||
|
12 130 -V- tp 21 |
Turksat | 27 500 | 5/6 | 2A West | 60-80+ cm | DVB |
| Kon TV | FTA | |||||
| Halk TV | FTA | |||||
| Kackar TV | FTA | |||||
| Smart | FTA | |||||
| Toprak | FTA | |||||
| Shopping TV | FTA | |||||
| 67 Kanal | FTA | |||||
| Samsun Aks TV | FTA | |||||
| Kral Karadeniz | FTA | |||||
| Ulusal Kanal | FTA | |||||
| Akdeniz TV | FTA | |||||
| Tempo Tatlises | FTA | |||||
|
12 517 -V-tp 1 |
feeds TRT D16 4:2:2 ... | 4 444 | 5/6 | 3A West | 80-120+ cm | FTA/Biss/4:2:2 |
|
12 525 -V- tp 1 |
Turksat |
30 000 | 5/6 | 2A West | 80+ cm | DVB |
| Genc TV | FTA | |||||
| Yol TV | FTA | |||||
| Dem TV | FTA | |||||
| Hayat TV | FTA | |||||
| TMB | FTA | |||||
| MMC Turk | FTA | |||||
| Berat TV | FTA | |||||
| Dugun TV | FTA | |||||
| Ekin Turk | FTA | |||||
| MPL TV | FTA | |||||
|
12 544 -H- tp 13 |
Turksat |
24 000 | 5/6 | 3A West | 80+ cm | FTA |
| Bayrak Haber | FTA | |||||
| Bayrak Aile | FTA | |||||
| Ada Tv | FTA | |||||
| Avrasya TV | FTA | |||||
| Kibris Genc | FTA | |||||
| Kanal T | FTA | |||||
| Kibris TV | FTA | |||||
| Kanal Sim | FTA | |||||
| As TV | FTA | |||||
| TNC | FTA | |||||
| Ezgi TV | FTA | |||||
| Sufi TV | FTA | |||||
|
12 562 -V- tp 1 |
Turksat | 25 000 | 5/6 | 3A West | 80+ cm | DVB |
| HRT | FTA | |||||
| Aba TV | FTA | |||||
| Akili TV | FTA | |||||
| IMC | FTA | |||||
| Dijle TV | FTA | |||||
| SRT | FTA | |||||
| Kastamonu test | FTA | |||||
| Avrupa | FTA | |||||
|
12 592 -H- tp 14 |
Turksat | 8 888 | 3/4 | 2A West | 80+ cm | DVB |
| Cine 5 | FTA | |||||
| Maxi TV | FTA | |||||
| Viva | FTA | |||||
| Gala | FTA | |||||
|
12 596 -V- tp 2 |
Rustavi 2 | 3 700 | 5/6 | 3A West | 60-80+ cm | DVB FTA |
|
12 598 -V-tp 2
|
feeds EGE TV ... | 2 222 | 5/6 | 3A West | 80-120+ cm | FTA/Biss/4:2:2 |
|
12 601 -H- tp 14 |
Kanal A | 4 400 | 3/4 | 3A West | 60-80+ cm | DVB FTA |
|
12 601 -V- tp 2 |
Georgia 1 TV | 2 962 | 3/4 | 3A West | 60-80+ cm | DVB FTA |
|
12 607 -H- tp 14 |
Olay TV | 2 950 | 5/6 | 3A West | 60-80+ cm | DVB FTA |
|
12 609 -V- tp 2 |
Imedi TV | 3 700 | 5/6 | 3A West | 60-80+ cm | DVB FTA |
|
12 615 -V- tp 2 |
ATV | 4 800 | 5/6 | 2A West | 60-80+ cm | DVB |
|
12 617 -H- tp 14 |
Azad TV | 2 800 | 5/6 | 3A West | 60-80+ cm | DVB FTA |
|
12 620 -V- tp 2 |
Yeni Asir TV | 2 400 | 5/6 | 3A West | 60-80+ cm | DVB FTA |
|
12 624 -V-tp 2 |
feeds IST ISTANBUL ... | 3 699 | 5/6 | 3A West | 80-120+ cm | FTA/Biss/4:2:2 |
|
12 630 -V- tp 2 |
Adjara TV | 3 740 | 5/6 | 3A West | 60-80+ cm | DVB FTA |
|
12 640 -V- tp 2 |
Ege TV | 2 400 | 5/6 | 3A West | 60-80+ cm | DVB FTA |
|
12 643 -H- tp 14 |
3A Network | 4 800 | 5/6 | 2A West | 60-80+ cm | DVB |
| NTV International | FTA | |||||
| Kral TV Avrupa | FTA | |||||
|
12 650 -H- tp 14 |
Sky Turk | 4 250 | 5/6 | 3A West | 60-80+ cm | DVB FTA |
|
12 652 -V- tp 2 |
TV Net |
4 444 | 5/6 | 3A West | 60-80+ cm | DVB FTA |
|
12 656 -H- tp 14 |
Show Turk | 4 444 | 5/6 | 3A West | 60-80+ cm | DVB FTA |
|
12 671 -V-tp 3 |
feeds 24 ANKARA BURO ... | 2 278 | 5/6 | 3A West | 80-120+ cm | FTA/Biss/4:2:2 |
|
12 679 -V- tp 3 |
3A Network | 8 888 | 3/4 | 2A West | 60-80+ cm | DVB |
| 24 | FTA | |||||
| Karamel Tv | FTA | |||||
|

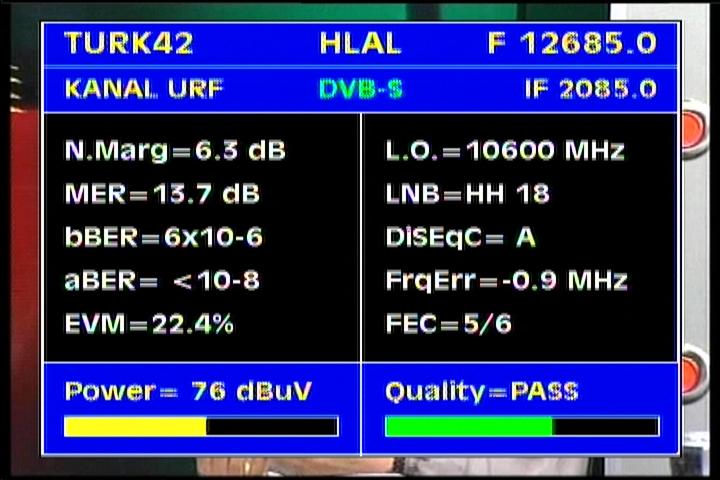

12 685 -H- tp 15 |
Turksat | 30 000 | 5/6 | 3A West | 60-80+ cm | DVB |
| Vuslat TV | FTA | |||||
| Gaziantep Olay | FTA | |||||
| Kanal Turk | FTA | |||||
| Kanal 3 | FTA | |||||
| Tempo tv | FTA | |||||
| Hilal TV | FTA | |||||
| Aksu TV | FTA | |||||
| Vatan TV | FTA | |||||
| Kanal T | FTA | |||||
| Tv 58 | FTA | |||||
| Kanal 35 | FTA | |||||
| Kibriz ADA TV | FTA | |||||
| Kanal Urfa | FTA | |||||
| TRT 6 | FTA | |||||
| Tek Rumeli TV | ||||||
|
12 729 -V- tp 4 |
Turksat | 30 000 | 5/6 | 3A West | 60-80+ cm | FTA |
| TV Kayseri | FTA | |||||
| Kanal B | FTA | |||||
| Baghdad Sat Channel | FTA | |||||
| Kanal 9 | FTA | |||||
| TVSA | FTA | |||||
| Olay Tv | FTA | |||||
| Semerkand TV | FTA | |||||
| Turk C | FTA | |||||
| TV 1 | FTA | |||||
| Beyaz TV | FTA | |||||
|
12 729 -H- tp 16 |
Turksat | 30 000 | 5/6 | 3A West | 60-80+ cm | DVB |
| TRT Anadolu | FTA | |||||
| Meltem TV | FTA | |||||
| Mesaj TV | FTA | |||||
| Koy Tv | FTA | |||||
| Kadirga TV | FTA | |||||
| Cem TV | FTA | |||||
| Dost TV | FTA | |||||
| TV 5 | FTA | |||||
| Business Channel | FTA | |||||
| Turksat promo | FTA |

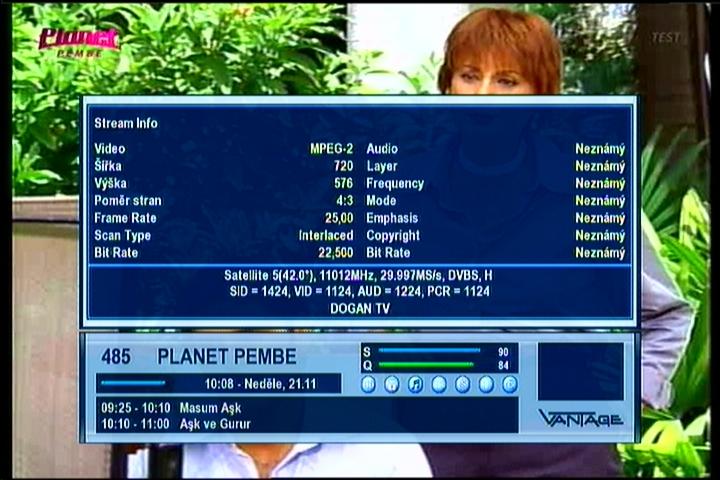

Turksat 2A/3A at 42.0°E : relative quality
Turksat 2A/3A at 42.0°E : video presentation
Go to Video section :
Turksat 2A/3A at 42.0°E : update prepare
CZECH & SLOVAK DX SATELLITE CLUB
international professional portal
think-tank
Roman Dávid - author & founder
mail : roman.david@dxsatcs.com
Turksat 2A/3A at 42.0°E : East/West beam

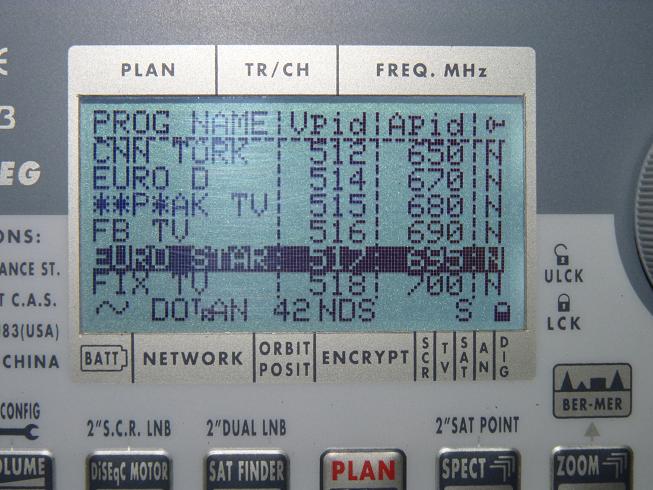

Turksat 2A/3A at 42.0°E : Snapshots
