ChinaSat 5A at 87.5°E

ChinaSat 5A at 87.5°E : Technical data

                      ChinaSat 5A at 87.5°E-Global footprint in C band : 3 734 H Myawady TV_MERp=13.4 dB

                    Satellite : ChinaSat 5A - Orbit : 87.5°E - TP : C_12x36 & 6x72 MHz - EIRP peak 44 dBW

ChinaSat 5A at 87.5°E - Global C footprint : spectral analysis & defining the status of reception

      ChinaSat 5A at 87.5°E - Global C footprint : measurements at the center Lučenec_central Slovakia
                                      geographical location : Latitude: 48.33° _   Longitude: 19.72°
                                          measurement results are derived from the 3.7 m diameter antenna
                                                        date of measurement : 8.8 2010
                                                                        elevation angle : 3.1°

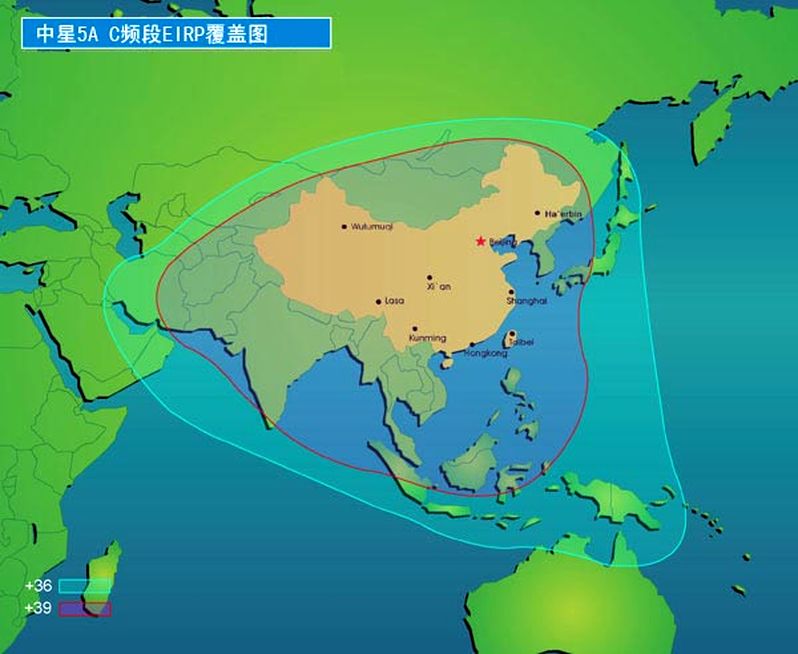

     ChinaSat 5A : installed system              ChinaSat 5A : theoretical footprint         ChinaSat 5A : measurement point

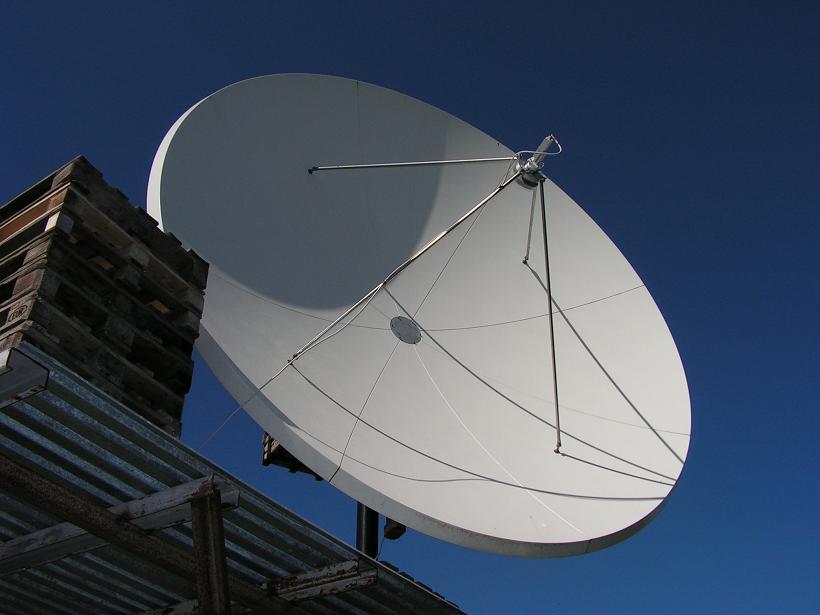

    PF Prodelin 3.7 m+Norsat 8215           coverage area:Asia,Europe,Africa...          town Lučenec / Slovak republic

                                       --- chinasat 5A spectral analysis : transponder TP 1A ---
                                                                                click for enlarge

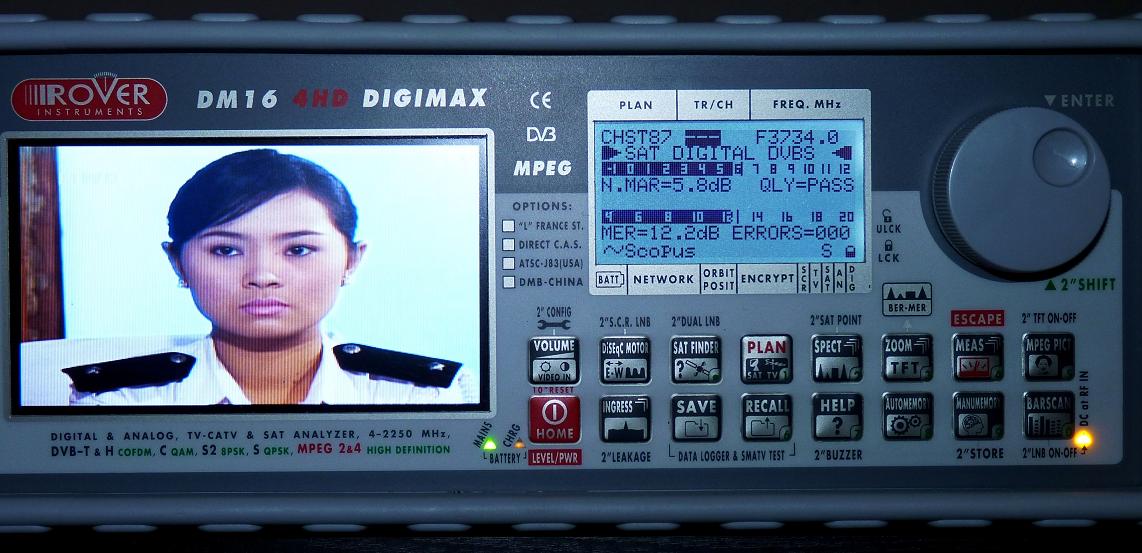

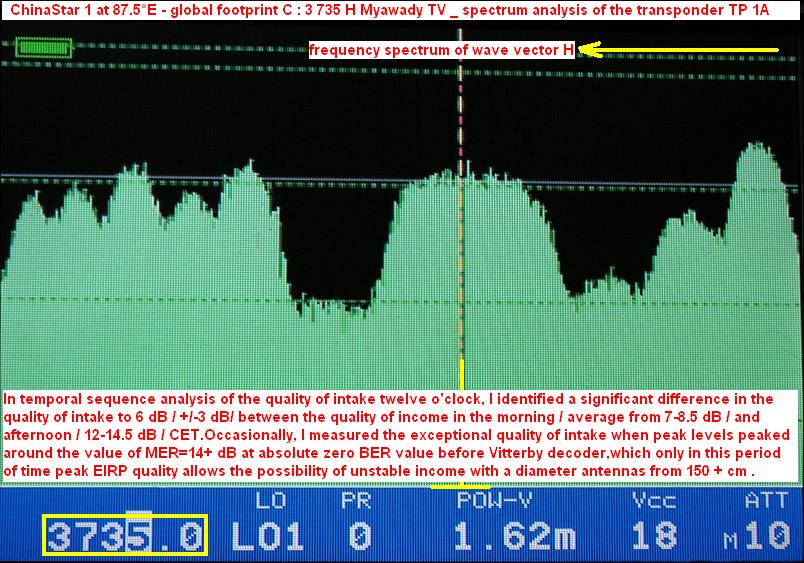

                                                        - time of measurement : 8.8.2010 -
                                                                      - defining the status of reception -

- In temporal sequence analysis of the quality of intake twelve o'clock, I identified a significant difference in the quality of
intake to 6 dB _+/-3 dB_ between the quality of income in the morning /average from 7-8.5 dB/ and afternoon /12-14.5 dB/ CET.
Occasionally, I measured the exceptional quality of intake when peak levels peaked around the value of MER=14+ dB at absolute
zero BER value before Viterbi decoder,which only in this period of time peak EIRP quality allows the possibility of unstable reception
with a diameter antennas from 140 + cm .

                           ChinaSat 5A at 87.5°E - global footprint in C band : 3 735 H Myawady TV Myanmar

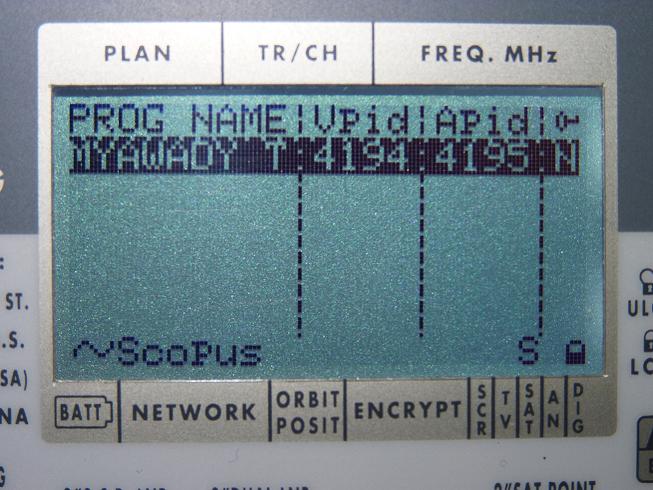

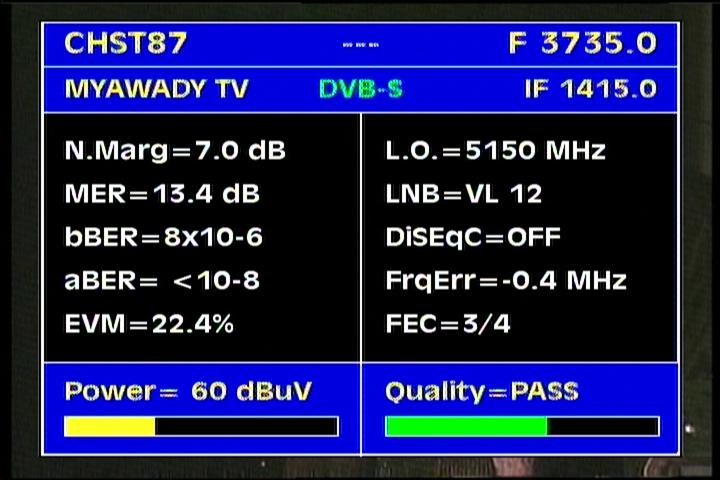

                       IF data                                        Q diagnostics                                              NIT table

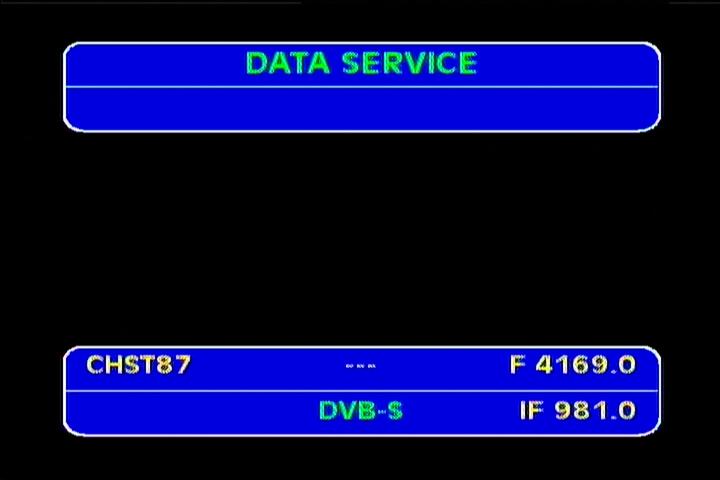

ChinaSat 5A at 87.5°E - global footprint in C band : 4 169 V Unnamed MPEG-2 data

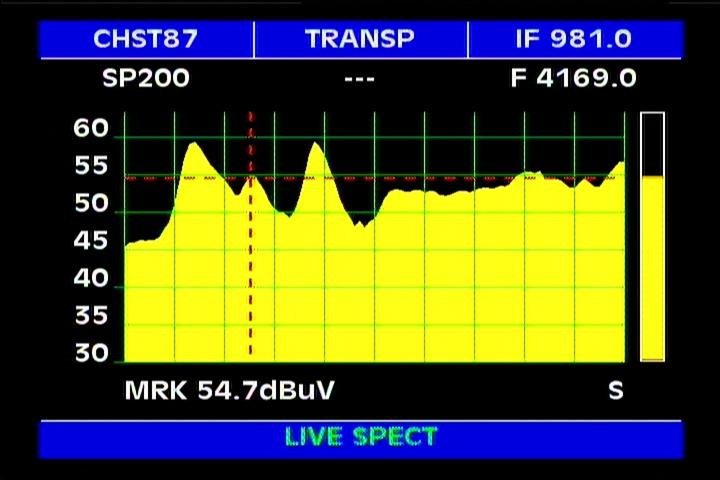

spectral analysis IF data Q data

ChinaSat 5A at 87.5°E : TV LIST

ChinaSat 5A at 87.5 e_global C footprint_PF Prodelin 3.7 m

----Frequency----	----------Provider/Channel----------	---SR---	---FEC---	----Footprint----	---Antenna---	---Video/Encryption---
3 735 -H- tp 1A	Myawady TV Myanmar	5 925	3/4	C SPOT	180-240+ cm	DVB FTA
4 169 -V- tp 9B	Unnamed Data	2 206	3/4	C SPOT	220-240+ cm	MPEG-2/data

ChinaSat 5A at 87.5°E : relative Q

ChinaSat 5A at 87.5°E : Video presentations

   ChinaStar 1 Videos

ChinaSat 5A at 87.5°E : Update drawn up
