Measat 3 at 91.5°E-Reliance Digital TV : footprint , measurement point , HF system ...

.
     Measat 3 at 91.5°E - South Asia beam : measurements taken in the town of Lučenec / central Slovakia
                                   a, geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                                   b, measurement results are derived from the 3.7 m diameter antenna
                                   c, ground without obstacles in the horizon length to 1000 m
                                   d, date of measurement : 5.11.2010 & 31.12.2010
                                   e, elevation angle : 3.3°
                                   d, weather conditions : 5.11-clear skies with light winds & 31.12-light snow
                                   e, air temperature : 5.11_+10°C & 31.12_-12°C
                                   f, altitude : 185 m /asl
.

                                           --- Measat 3 at 91.5°E-footprint : South Asia beam ---

                                                         practice verified signal coverage :

coverage area with the possibility of reception,depending on antenna diameter from 180 to 800+ cm , with the highly unstable
and continuously oscillating signal level in the geographical locations with elevation angle less than 10 degrees :

      Middle East / D=180-250+ cm - West Asia+East Europe / D=300-360+ cm - Central Europe / D=360-500+ cm
                                                           Central Africa / D=600-800+ cm
.

                                      Measat 3 at 91.5°E : South Asian footprint in the KU band


                            --- Measat 3 at 91.5°E : HF system , geographical location of measurement ---
.
                  installed HF system                             theoretical footprint                               research point
    a, PF Prodelin 3.7 m                                                                                                 a, state : Slovak republic / Europe
    b, dxsatcs waveguide line                                                                                        b, town : Lučenec
    c, Norsat 4206 BF+ UNI LNB                                                                                     c, geo. location : 48.33°_19.72°

.

Measat 3 at 91.5°E-Reliance Digital TV : identification of the satellites in orbit by ULPC Beacon -f-
                                                       in a central European zone

.

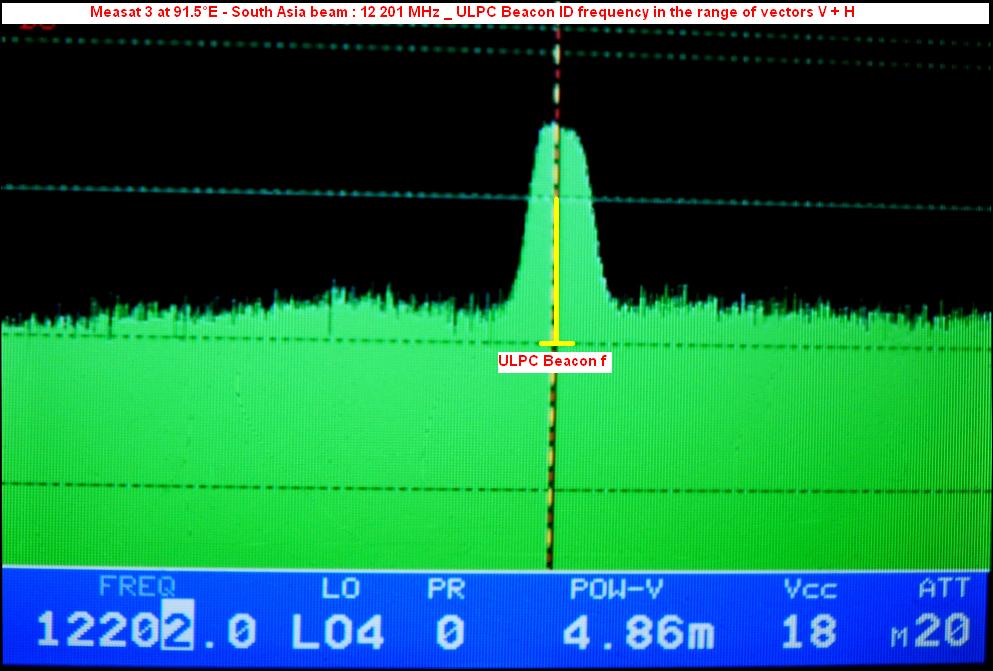

Measat 3 /ULPC Beacon ID in KU band : precise identification of the satellites in orbit at the research point

              12 201 MHz  V+H : ULPC Beacon frequency-identification beacon frequency in the spectrum of H vector
                                                                             click for enlarge

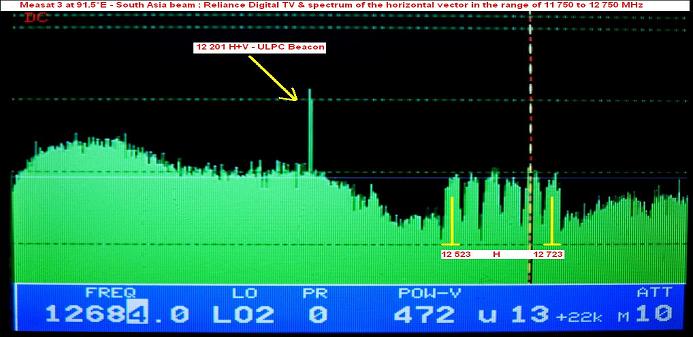

                              --- Spectrum of the horizontal vector in the range of 11 750 to 12 750 MHz ---
                                                                             click for enlarge


.

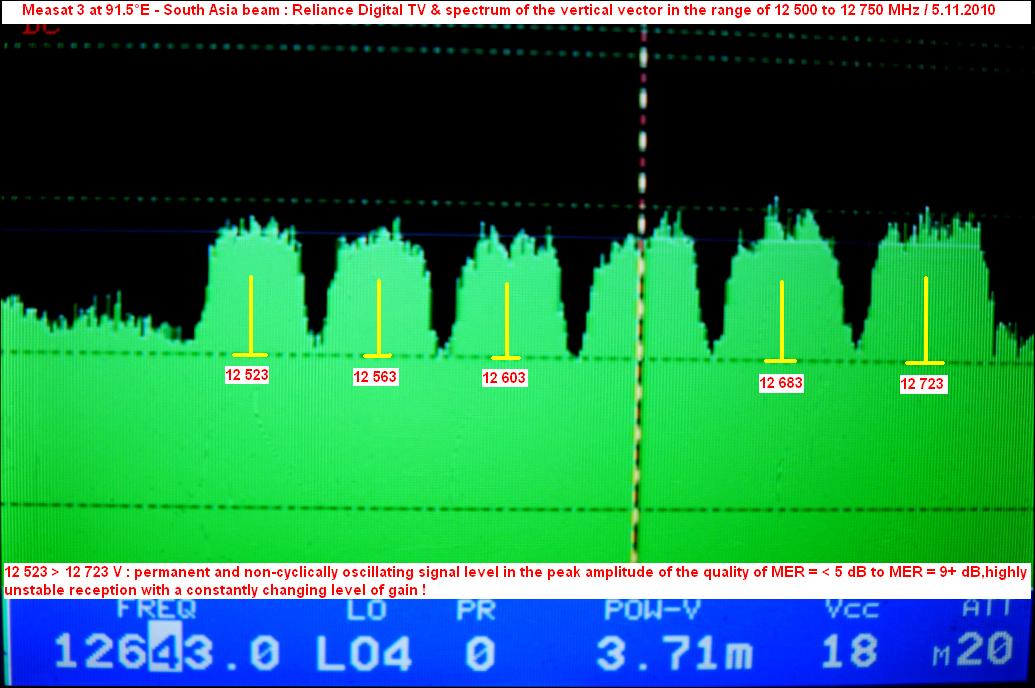

Measat 3 at 91.5°E-Reliance Digital TV : analysis of the spectrum from 12 500 to 12 750 MHz_V

.
                        Spectrum of the vertical vector in the range of 12 500 to 12 750 MHz / 5.11.2010
                                                                        click for enlarge

                       Spectrum of the vertical vector in the range of 12 523 to 12 643 MHz / 31.12.2010
                                                                        click for enlarge

             ---- Spectrum analysis in "LIVE" : No.1=5.11.10-V spectrum & No.2=31.12.10-V spectrum ---

.

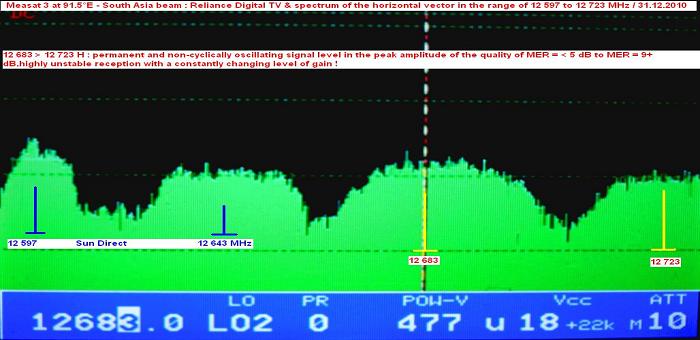

Measat 3 at 91.5°E-Reliance Digital TV : analysis of the spectrum from 12 500 to 12 750 MHz_H

.
                          Spectrum of the horizontal vector in the range of 12 500 to 12 750 MHz / 5.11.2010
                                                                               click for enlarge

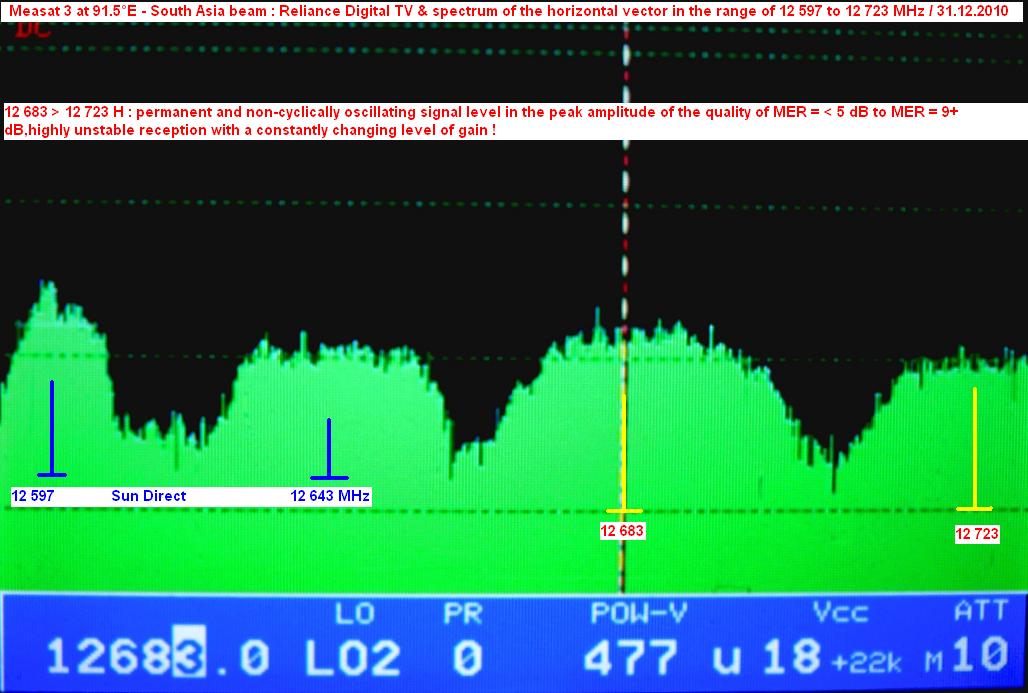

                         Spectrum of the horizontal vector in the range of 12 597 to 12 723 MHz / 31.12.2010
                                                                             click for enlarge

           ---- Spectrum analysis in "LIVE" : No.1=5.11.10-H spectrum & No.2=31.12.10-H spectrum ---

.

Measat 3 at 91.5°E-Reliance Digital TV : curent quality status in central Europe

.

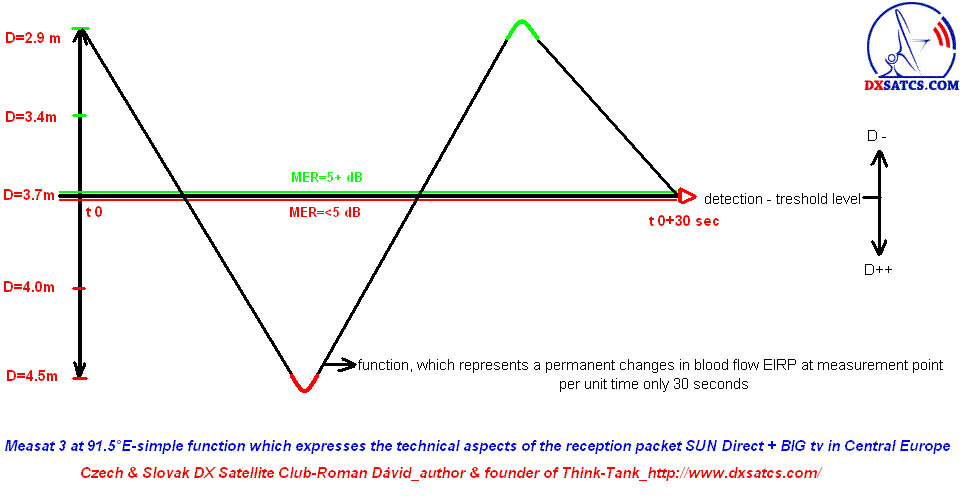

         RELIANCE Digital TV - simple function which defines the technical aspect of reception in Central Europe
                                                                  click for enlarge


curent quality status on 2011 : then the operator has made changes to transmission parameters during the last
year (FEC,SR,f), occurred in October last year to further increase the number of channels in individual packets,
which ultimately resulted in a significant decrease in quality of reception in Central Europe and the quality
condition persists to this day !

quality status on 09.2010 : lock the carriers is unstable and non-cyclical oscillates in one second intervals in a wide
range of amplitudes of the quality from MER=5 dB (what is the level of detection for FEC protocol 5/6 ) to MER= 8+dB
which is the fair gain margin of more than MER=2 dB ! Even when the level of radiated power EIRP continuously oscillates
in the measuring point, measuring results over a period of 120 min. confirmed that the average level of gain on DVB-S
carriers BIG TV  was about 1.5-2 dB dB lower than the packet carriers SUN Direct.On the basis that the period of
measurement and aggregation of data was only 120 minutes, I can not objectively say that the quality of the reception
packets from a broadcaster Sun Direct is higher by an average of MER=1.5-2 dB,compared with Reliance BIG TV .This
qualitative status I identified only in a defined period of time
