Insat 4A at 83.0°E Tata Sky

Insat 4A at 83.0°E-footprint in KU band-packet TATA Sky : technical data of satellite Insat 4A

                  Insat 4A : launch                               Insat 4A : clean room                           Insat 4A : exploded view

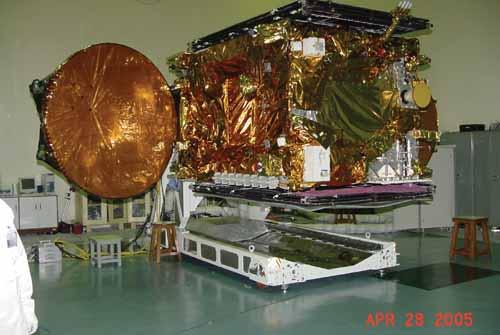

insat 4A at 83.0 e_satellite launch_source-optique video CSG_esa-cnes-arianspaceinsat 4A at 83.0 e_ 4A clean room_ISRO sourceinsat 4A at 83.0 e_exploded view_ISRO source

  • Name : Insat 4A
  • Orbital position : 83° East
  • Launched : 21.12.2005
  • Launch vehicle : Ariane 5V169
  • Manufacturer/Provider : ISRO India
  • Transponders in C band : 12xC (6/4 GHz,12x36 MHz) EIRP=39 dBW
  • Transponders in KU band : 12xKU (14/12 GHz,12x36 MHz) EIRP=52 dBW



Insat 4A at 83.0°E-footprint in KU band-packet TATA Sky : point measurements and research

.
                                                                           click to enlarge
insat 4A at 83.0 e_indian footprint in ku band_tata sky_reception point at lucenec slovakia_n

.

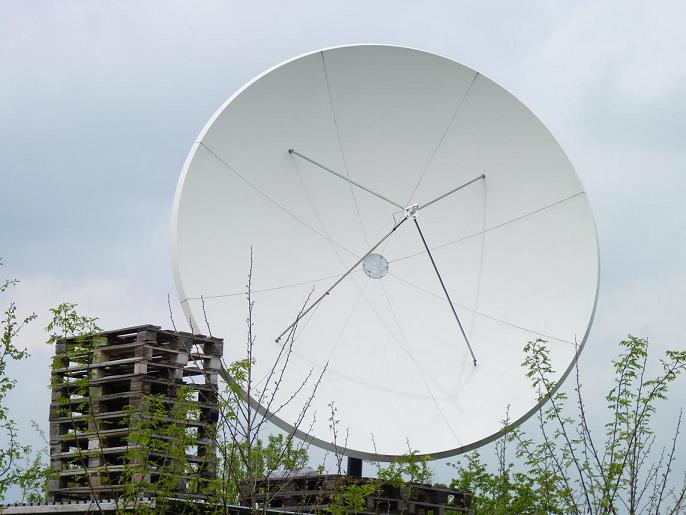

Insat 4A at 83.0°E-footprint in KU band-packet TATA Sky:installed antenna-PF Prodelin 3.7m

.

                               PF Prodelin 3.7 m+LNB Norsat 4206 CF+dxsatcs waveguide line
insat 4A at 83.0 e_indian footprint in ku band_tata sky_PF Prodelin 3.7 m

.

Insat 4A at 83.0°E-footprint in KU band-packet TATA Sky : value of the elevation angle

.
                    Insat 4A : value of the elevation angle of orbital position 83.0°E in the european region
insat 4A at 83.0 e_indian footprint in ku band_tata sky_value of the elevation angle_

.

Insat 4A at 83.0°E-footprint in KU band : theoretically defined footprint by the operator ISRO

.
                                - theoretically defined footprint by the operator ISRO -

                                    coverage area : Asia , Middle East , Africa , Europe
Insat 4A at 83.0 e_KU band_tata sky_theoretical footprint
