Express AM1 at 40.0°E

Express AM1 at 40.0°E : Technical data

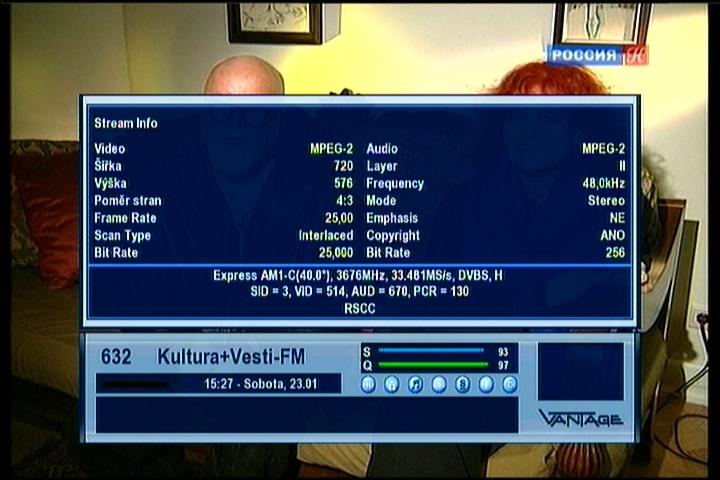

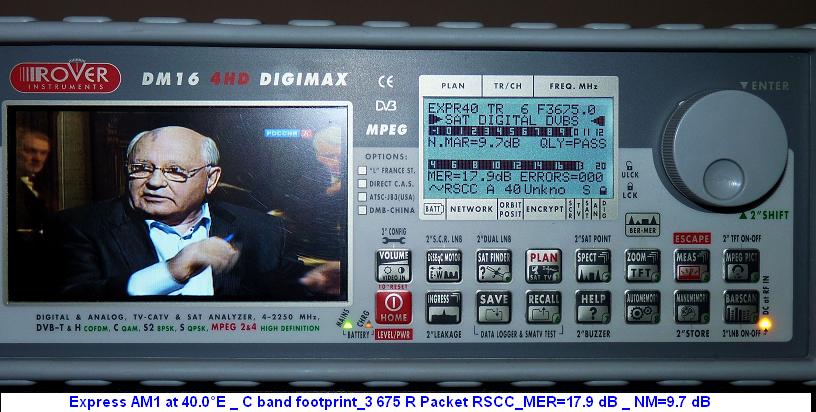

                                Express AM1 at 40.0°E : 3 675 R Packet RSCC Russia-qualitative peak MER=18 dB

                     satellite : Express AM1 - orbit : 40.0°E - TP : 10 C/16 KU - lifetime : from 28.1.2008 - 12 years

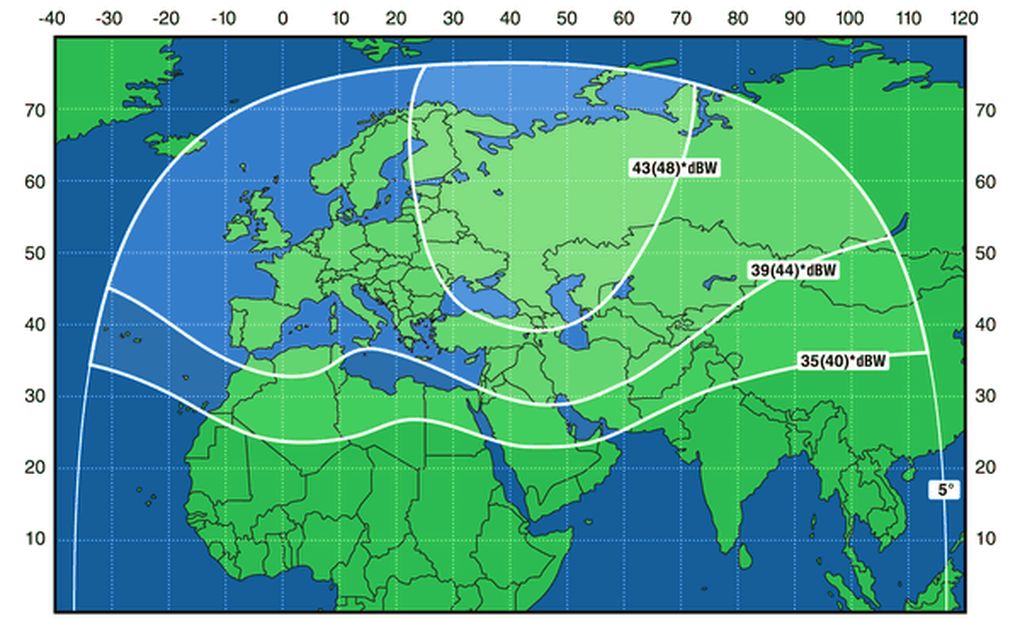

Express AM1 at 40.0°E - footprint in C band : 6 TP spectrum analysis and measurement results

.
      Express AM1 at 40.0°E - footprint in C band : measurements at the center Lučenec_central Slovakia
                                      geographical location : Latitude: 48.33° _   Longitude: 19.72°
                                    measurement results are derived from the 3.7 m diameter antenna
                                                               date of measurement : 5.9.2010
                                                                       elevation angle : 31°

      Express AM1 footprint_C band            Express AM1 : installed system         Express AM1 : research point
              coverage area                           Prodelin 3.7 m,LNB Norsat 8215            town Lučenec / Slovak republic
   Europe,Asia,Middle East,part of Africa                                                                                 48.33° _ 19.72°

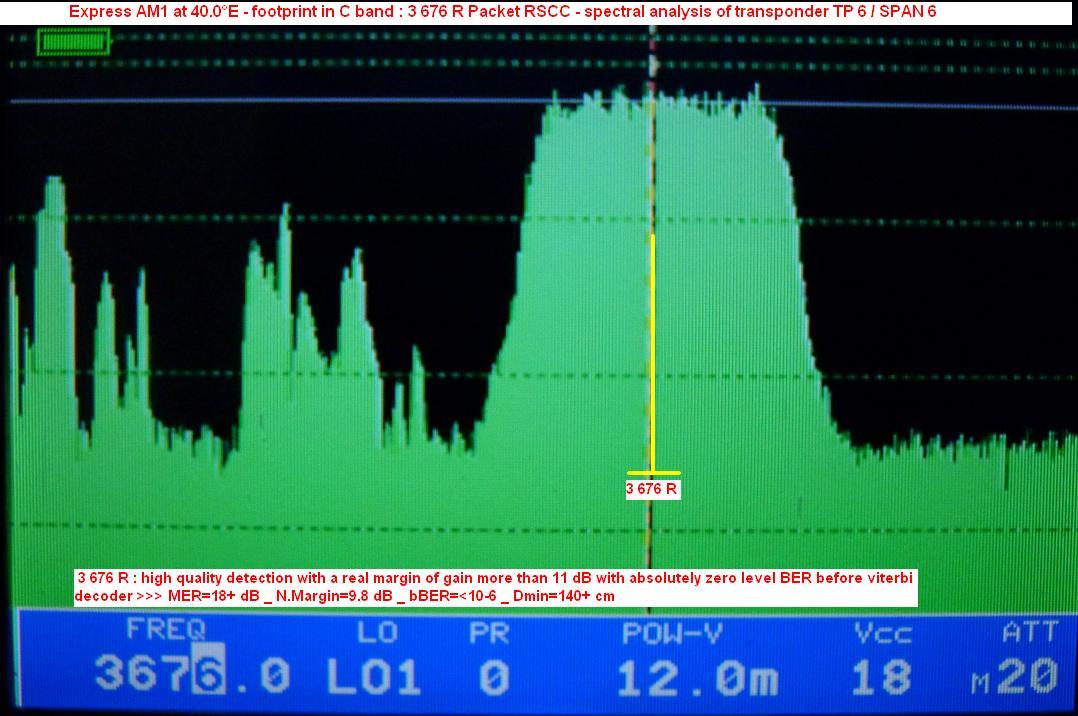

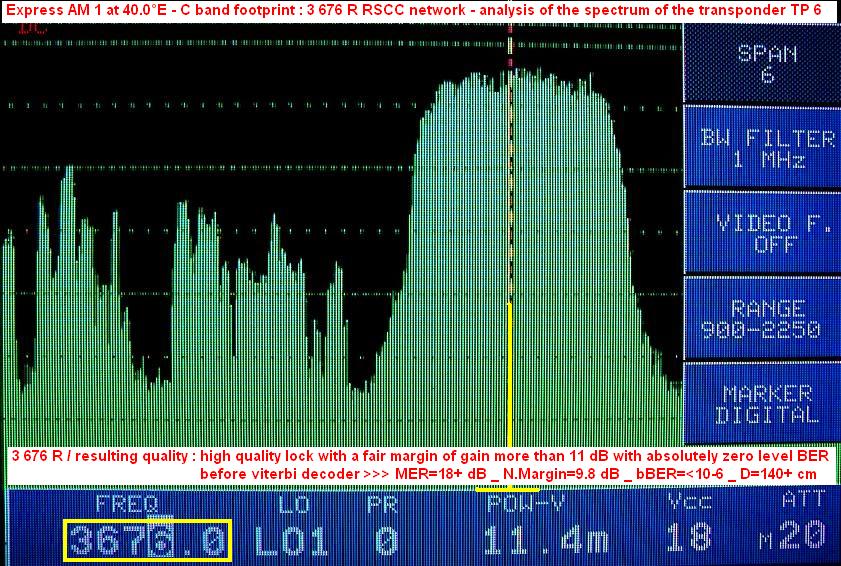

                                            --- express am1 : TP 6 - spectral analysis ---
                                                                                  click for enlarge

                                                            - time of measurement : 5.9.2010 -
                                                                  - defining the status of reception -

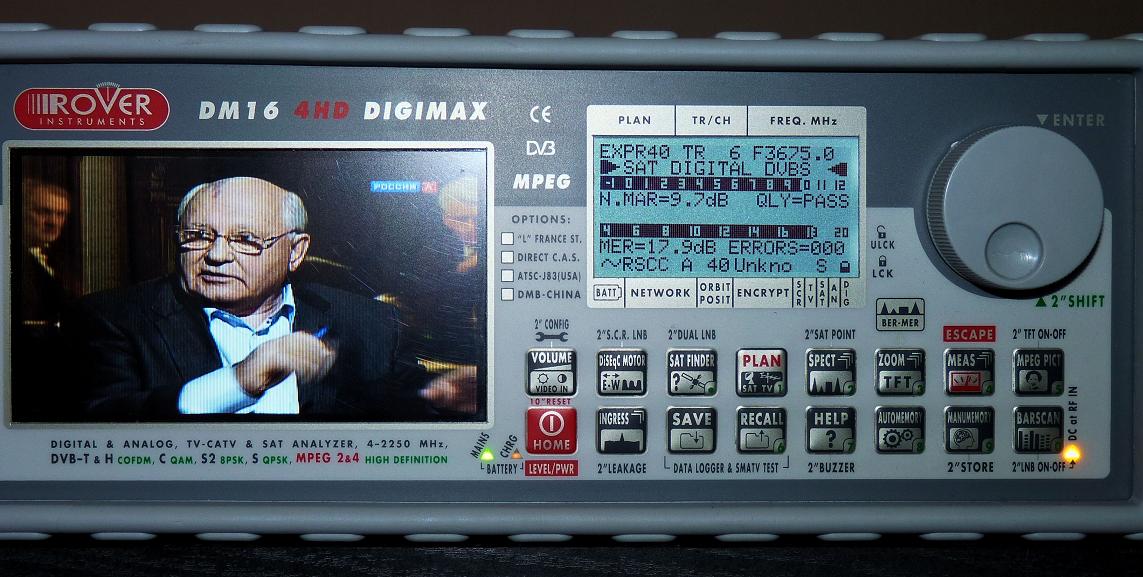

3 675 R / resulting quality : high quality detection with a real margin of gain more than 11 dB with absolutely zero level BER
before viterbi decoder >>> MER=18+ dB _ N.Margin=9.8 dB _ bBER=<10-6 _ Dmin=140+ cm

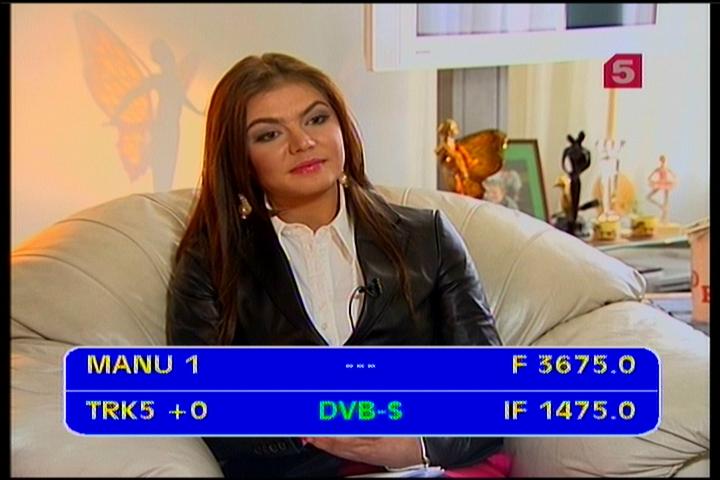

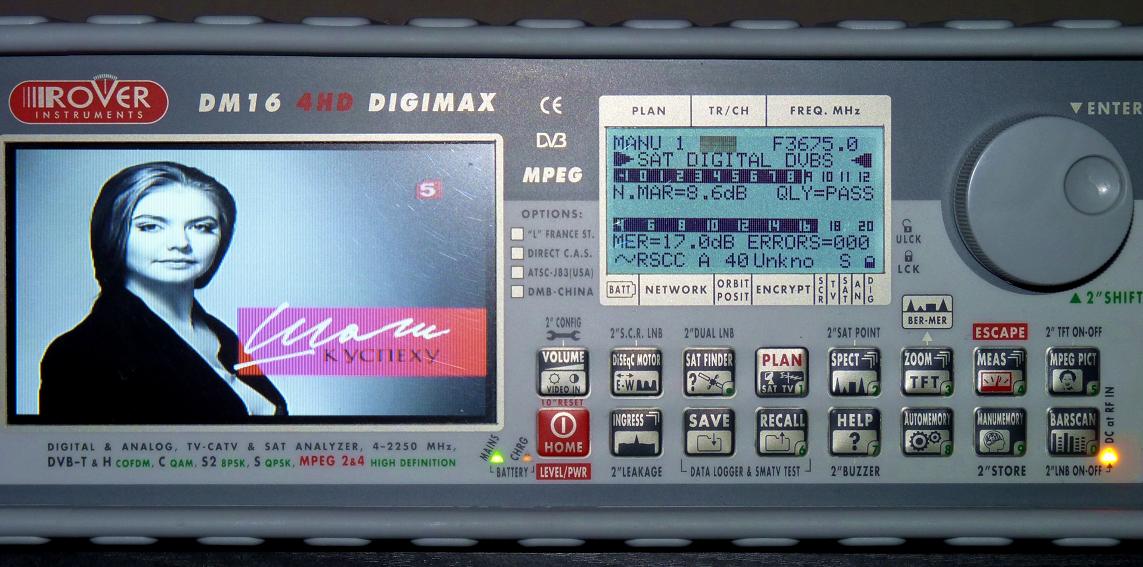

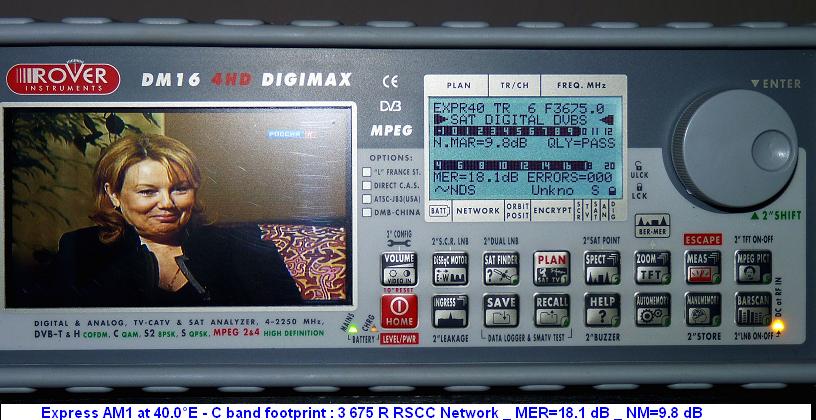

Express AM1 at 40.0°E - C band footprint : 3 675 R RSCC Network

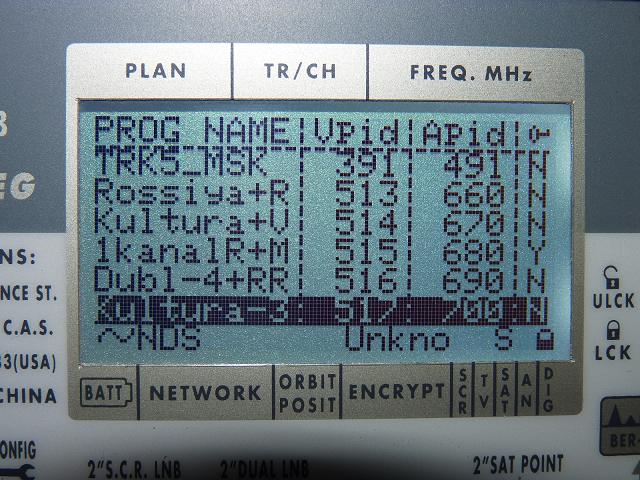

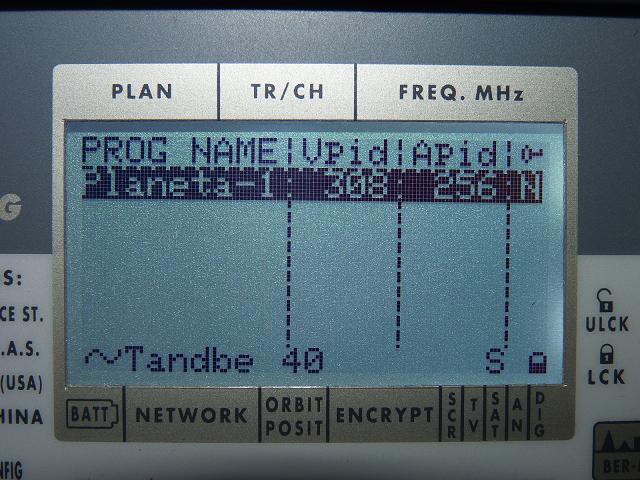

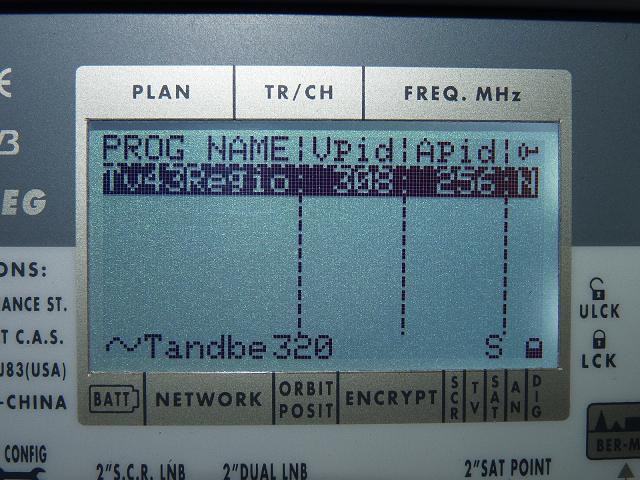

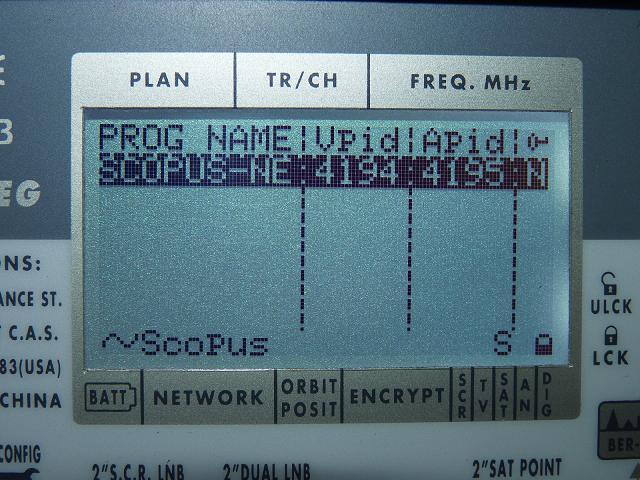

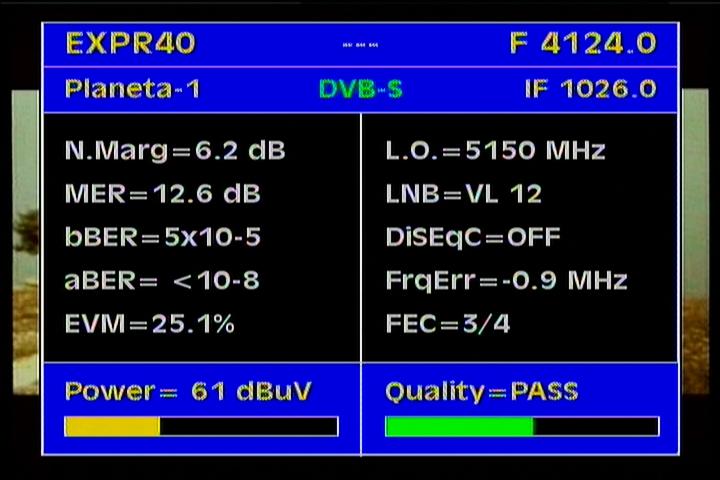

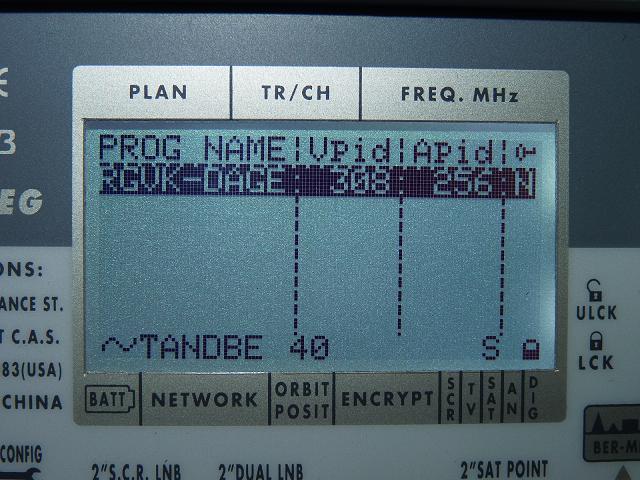

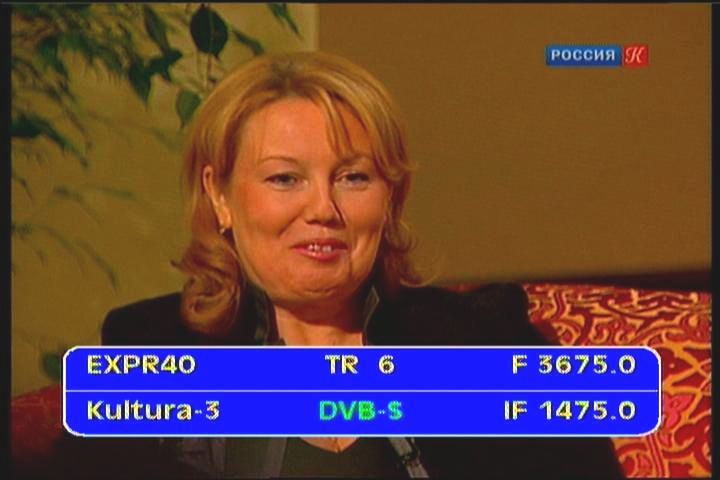

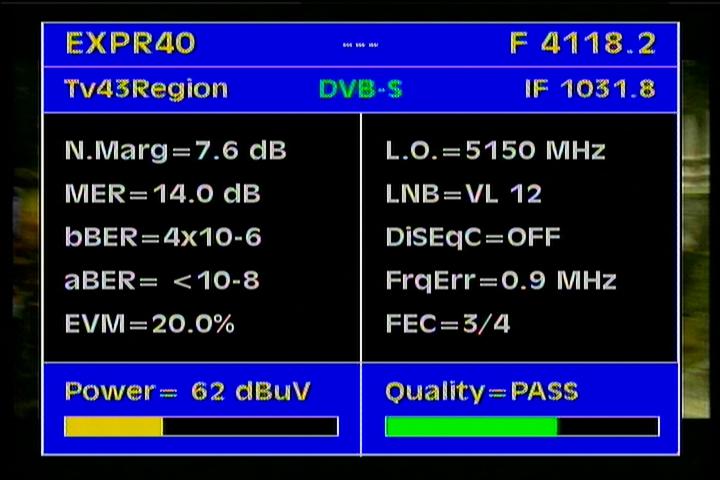

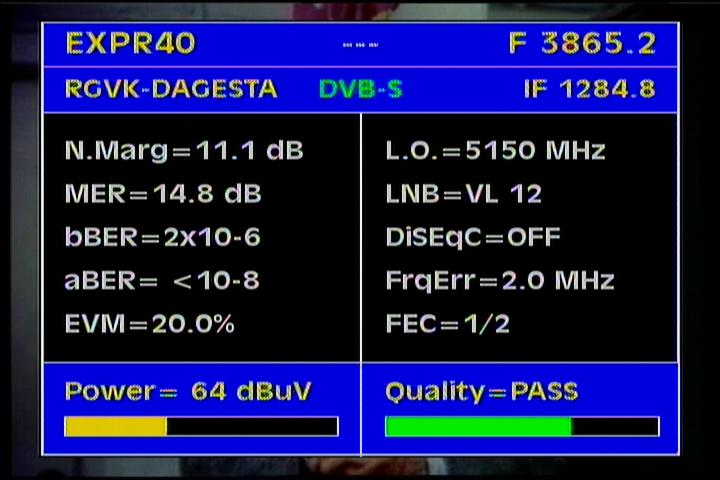

IF data Q data NIT data

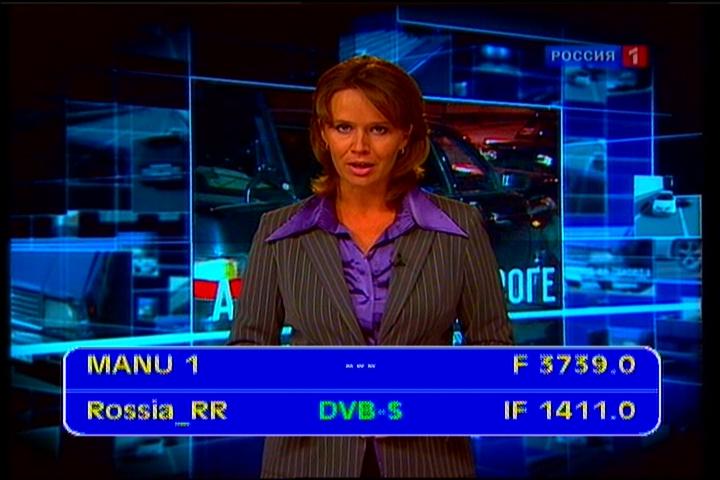

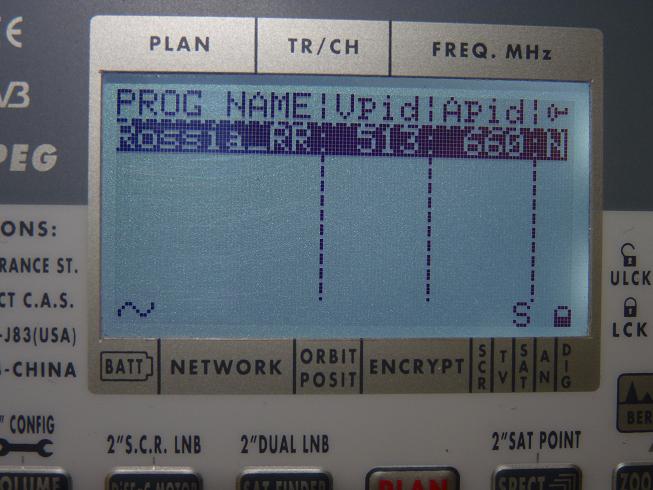

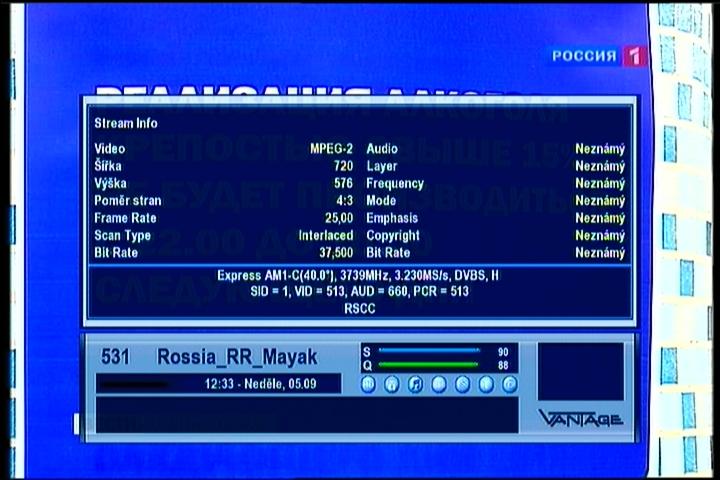

Express AM1 at 40.0°E - C band footprint : 3 739 R Rossia RR Mayak
IF data Q data NIT data

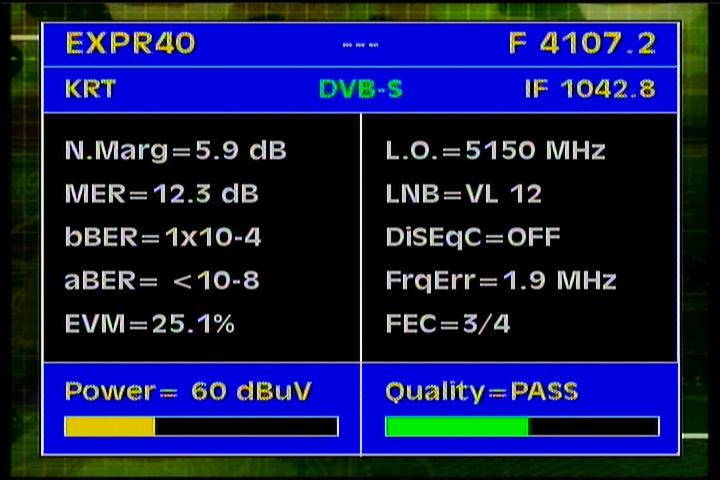

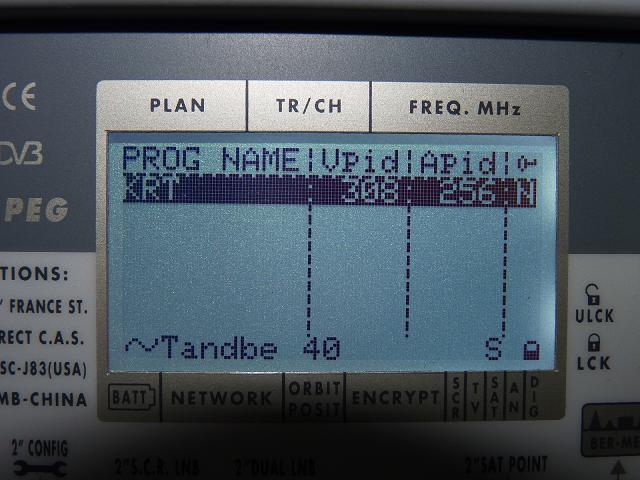

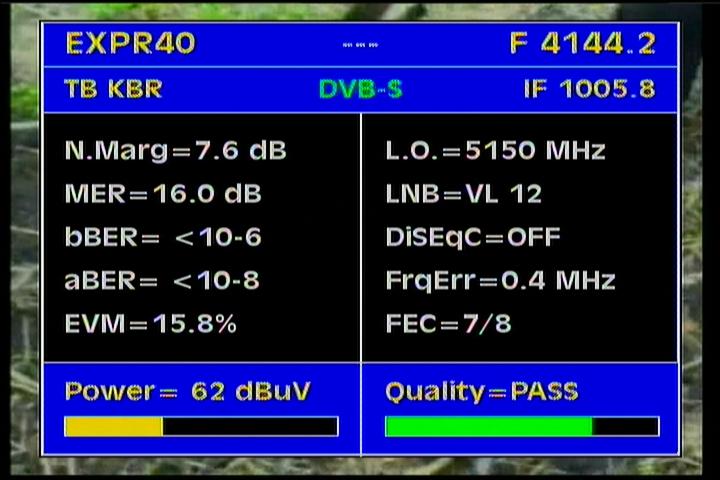

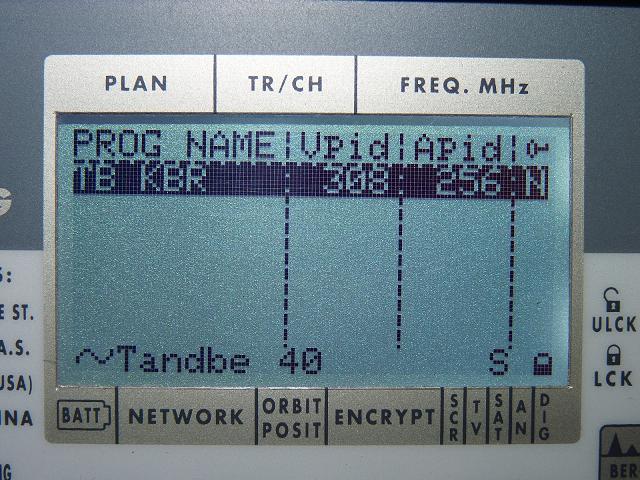

Express AM1 at 40.0°E - C band footprint : 4 107 R KRT
IF data Q data NIT data

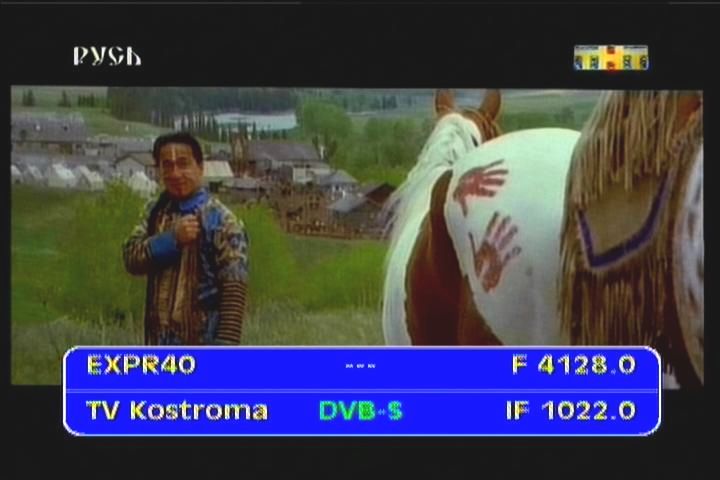

Express AM1 at 40.0°E - C band footprint : 4 128 R TV Kostroma
IF data Q data NIT data

Express AM1 at 40.0°E : TV List

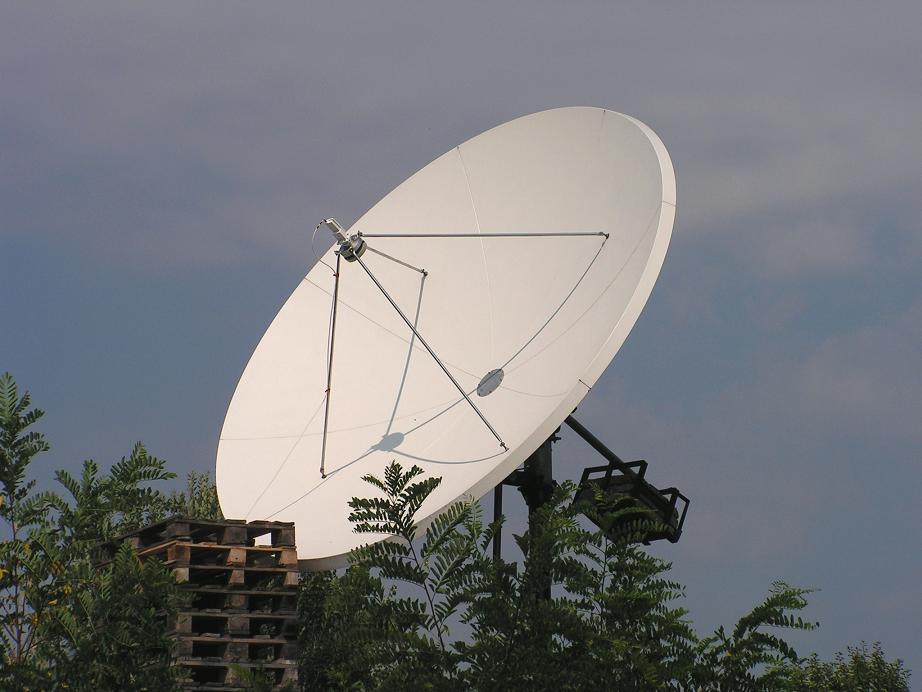

Express AM1 at 40.0 e _ C band footprint _PF Prodelin 3.7 m

---Frequency---	----------Provider/Channel----------	---SR---	---FEC---	---footprint---	---Antenna---	---Video/Encryption---
3 675 -R- tp 6	RSCC	33 483	7/8	C	140-180+ cm	DVB
	TRK 5_MSK					FTA
	TLK Rossiya +RR					Biss
	Kultura+Vesti-F					FTA
	1KanalR+Mayak					Rosscrypt
	Dubl-4+RRD4					Biss
	Kultura-3					FTA
	Podmoskovye					Biss
	Orbita-4R+Yunos					Rosscrypt
3 739 -R- tp 8	Rossia RR Mayak	3 230	3/4	C	180+ cm	DVB FTA
4 108 -R- tp 17	KRT	3 215	3/4	C	180+ cm	DVB FTA
4 114 -R- tp 17	GTRK Kursk	4 285	3/4	C	180+ cm	Biss
4 128 -R- tp 17	Kostroma TV	3 230	3/4	C	220+ cm	DVB FTA
4 132 -R- tp 17	GTRK Kostroma	3 219	3/4	C	180+ cm	Biss

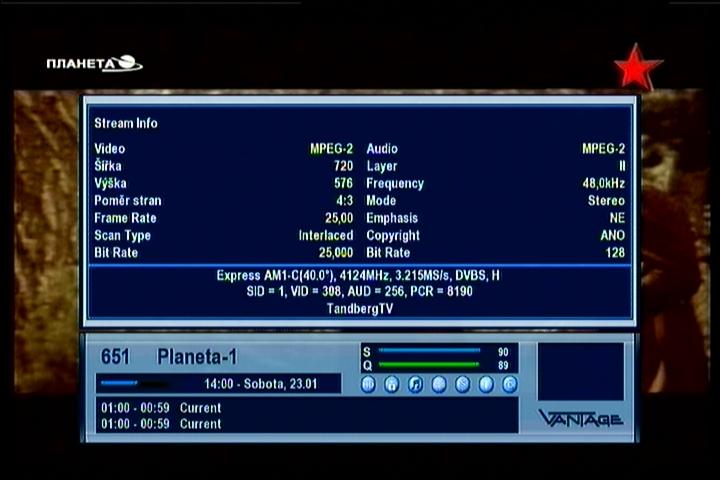

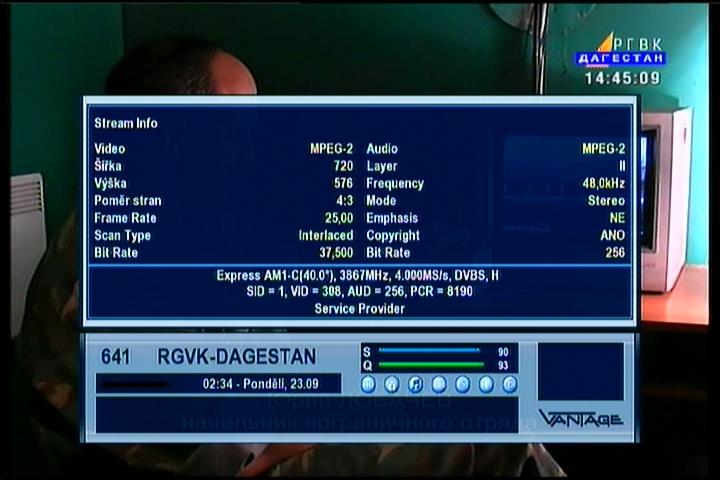

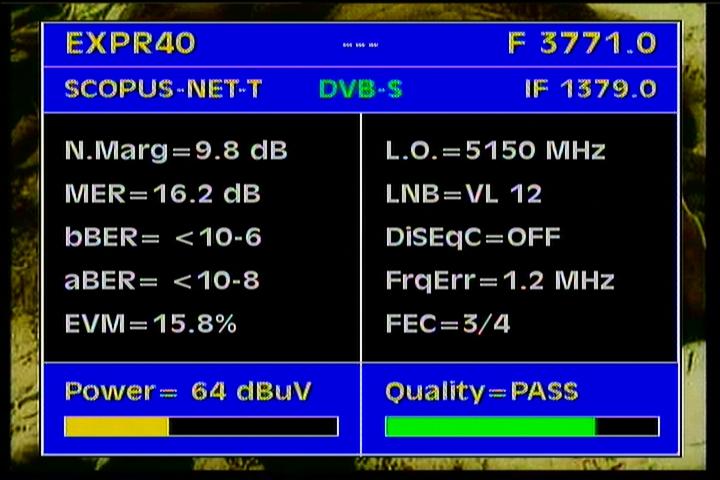

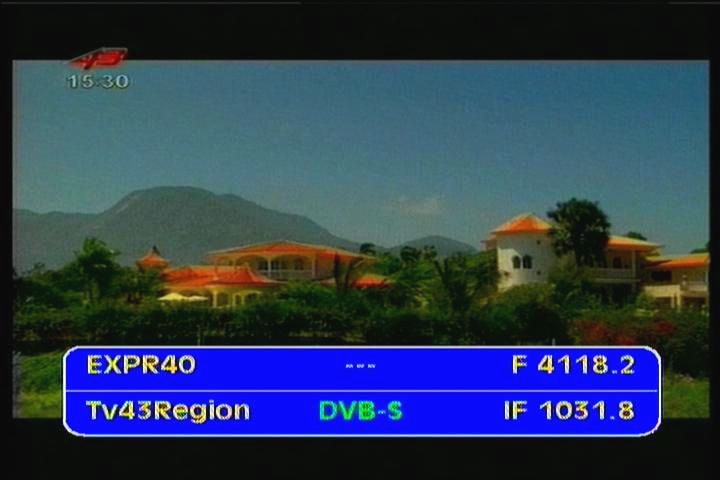

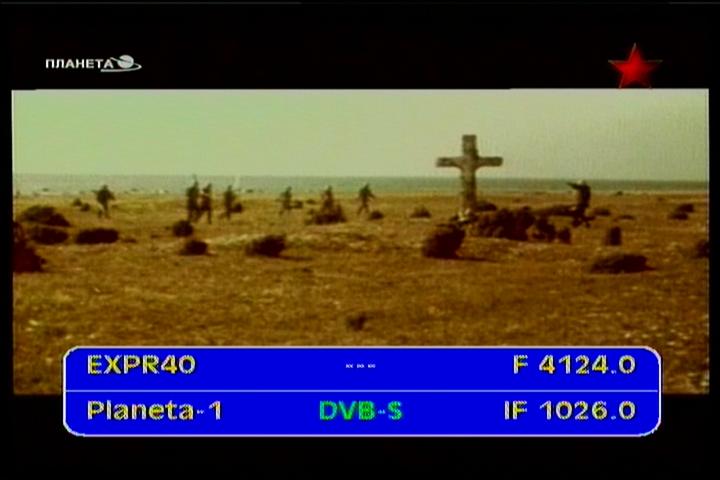

Express AM1 at 40.0°E: relative quality

Express AM1 at 40.0°E: Video presentation

        Go to Video section :

Express AM1 at 40.0°E: update prepared
