a,Measat 3 at 91.5°E - 3 920 V PACKET GlobeCast : installed system,elevation limit,footprint,coverage area
b,Measat 3 at 91.5°E - 3 920 V PACKET GlobeCast : spectral analysis of the transponder TP 11C / vertical vector
c,Measat 3 at 91.5°E - 3 920 V PACKET GlobeCast : results of quality measurement and reception conditions
d,Measat 3 at 91.5°E - 3 920 V PACKET GlobeCast : practical demonstration of the quality of reception
e,Measat 3 at 91.5°E - 3 920 V PACKET GlobeCast : snapshots of HD video broadcasting
f,Measat 3 at 91.5°E - 3 920 V PACKET GlobeCast : video preview of HD broadcasts from Singapore > Hong Kong
.
A , FASHION one HD in the packet GlobeCast : installed system,elevation limit,footprint,coverage area
.
Measat 3 at 91.5°E - global footprint in C band : measurements at the center Lučenec_central Slovakia
___ basic facts which are related to the measurements ___
geographical location : Latitude: 48.33° _ Longitude: 19.72°
measurement results are derived from the 3.7 m diameter antenna
ground without obstacles in the horizon length to 1000 m
weather conditions : cloudy
date of measurement : 16-17.10.2010
elevation angle : only 3.1°
.

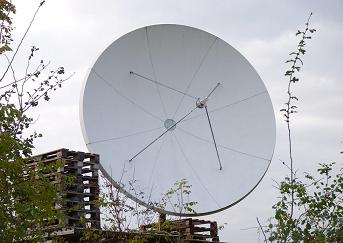

Measat 3 : installed system Measat 3 : research point
PF Prodelin 3.7 m , LNB Norsat 8215 town Lučenec / Slovak republic : 48.33° _ 19.72°
click for enlarge click for enlarge

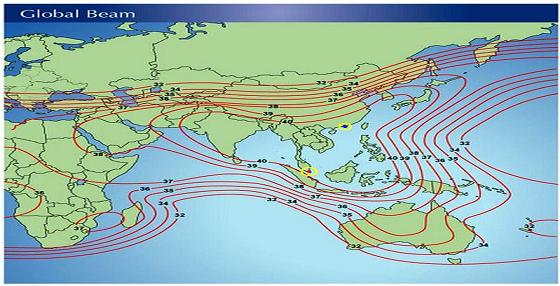

--- Measat 3 at 91.5°E : global footprint in the C band ---
coverage area : Asia , Australia , Middle East , Africa , Europe ...
signal path :Parkview Square/Singapore-digital hub > GlobeCast's global fiber link >
GlobeCast's teleport Chaiwan/Hong kong
start broadcasting on satellite : 15.10.2010
click for enlarge

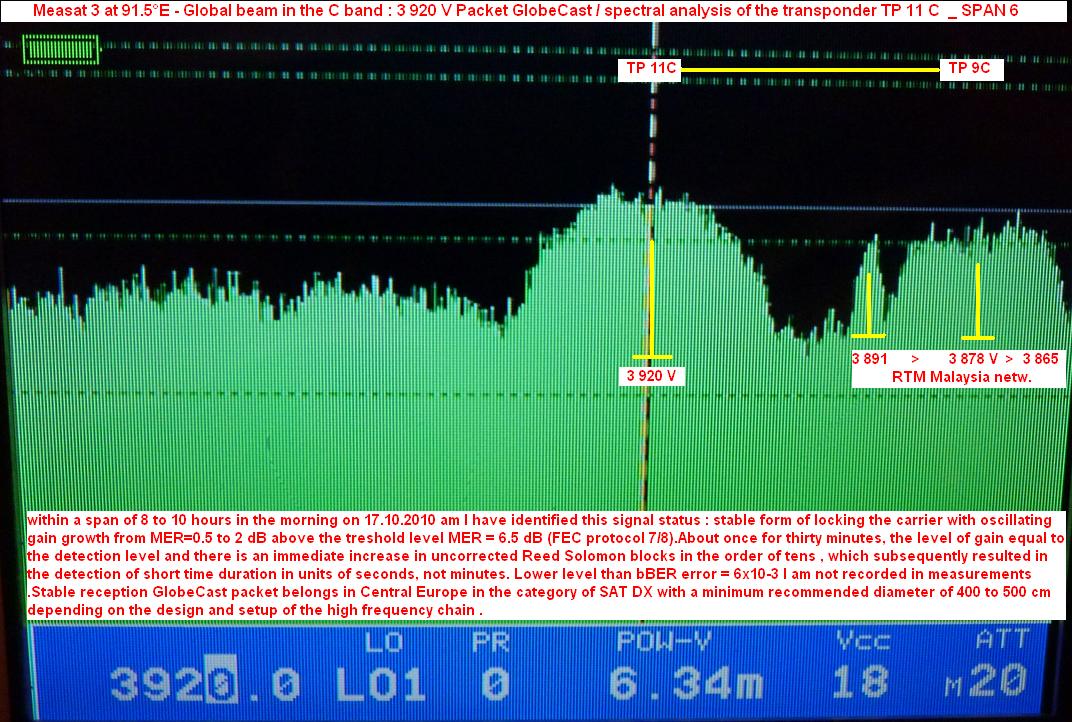

B , FASHION one HD in the packet GlobeCast : spectral analysis of the transponder TP 11C
.
--- part of the spectrum of vertical vector : TP 9C-RTM Malaysia > TP 11C-GlobeCast Hong Kong ---
click for enlarge
.

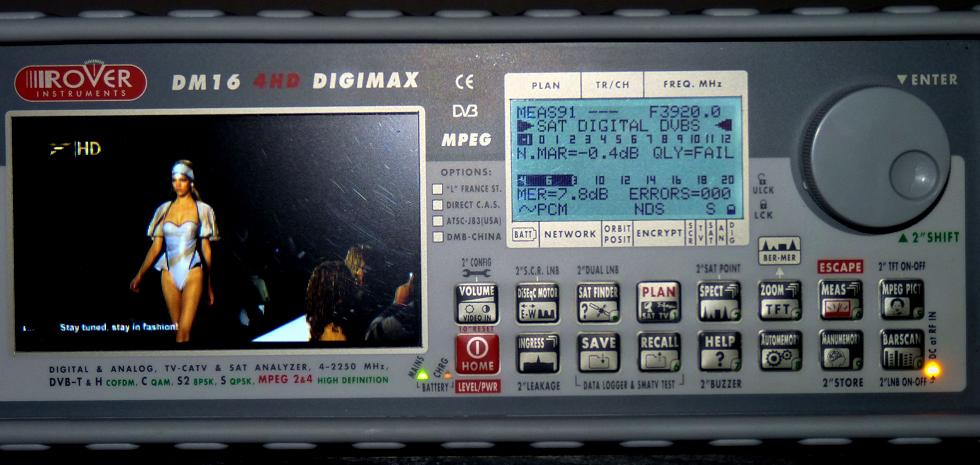

C , FASHION one HD-packet GlobeCast : results of quality measurement and reception conditions
.

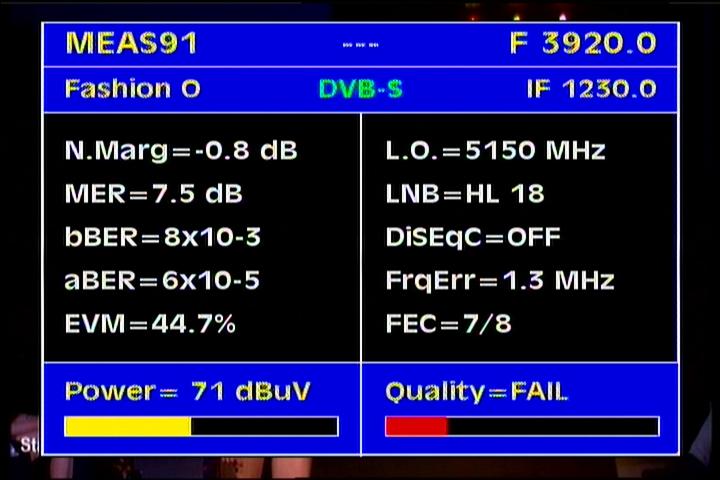

--- Fashion one HD USA in the packet GlobeCast Hong Kong : current quality MER=7.8 dB ---
Fashion one HD USA-relative quality Fashion one HD USA-current quality Fashion one HD USA / packet GlobeCast
95 % _ 83 % bBER=8x10-3 _ MER=7.5 dB 3 920 V : current NIT
- identification problem on 17.10.2010 -
I have done a detailed analysis of the entire HF string, which revealed a permanent source of interference in next sequence:
secondary radiant > primary radiant > LNB > coax cable > analyzer.For obvious reasons I will not be mentioned in detail the
source of interference but was associated with the noise temperature of the secondary radiant at elevation angle of only 3°.
The result of negating the source of interference was the status : occasional lock carrier is changed to stable lock,modest gain
growth in amplitude of 0.5 dB is increased by 0.6-0.8 dB / MER.If I would not reveal the source of interference, it would not
be recorded even a 5 sec video sequence because the carrier lock was unstable without any gain margin > (FEC=7/8) !
___ reception status of 17.10.2010 ___
within a span of 8 to 10 hours in the morning on 17.10.2010 am I have identified this signal status :
stable form of locking the carrier with oscillating gain growth from MER=0.5 to 2 dB above the treshold level MER = 6.5 dB
(FEC Protocol 7/8).About once for thirty minutes, the level of gain equal to the detection level and there is an immediate
increase in uncorrected Reed Solomon blocks in the order of tens , which subsequently resulted in the detection of short
time duration in units of seconds, not minutes. Lower level than bBER error = 6x10-3 I am not recorded in measurements.
Stable reception GlobeCast packet belongs in Central Europe in the category of SAT DX with a minimum recommended
diameter of 370 to 500 cm depending on the design and setup of the high frequency chain .
.
D , FASHION one HD-packet GlobeCast : practical demonstration of the quality of reception
.
___ Mr. Roman Dávid as the founder of the dxsatcs.com think-tank in action ___
--- 3 920 V Fashion one HD USA in the packet GlobeCast : reception quality LIVE 01 ---
.
--- 3 920 V Fashion one HD USA in the packet GlobeCast : reception quality LIVE 02 ---
.
E , FASHION one HD-packet GlobeCast : snapshots of HD & 3D video broadcasting
.
--- 3 920 V Fashion one HD USA in the packet GlobeCast : ABOUT ---
3D format 3D format 3D format
.
F , FASHION one HD-packet GlobeCast : video preview of HD broadcasts
.
--- Fashion one HD channel : typical video quality in HD format 14-16 Mbit/sec ---
--- Fashion one HD channel : samples video I recorded on 17.10.2010_9-10 hour am ---
.
.
.
