a,HISPASAT 1E, a Spanish communications satellite, was launched from Kourou on 2010 December 29 at 21:27 UT
by an Ariane 5 rocket. HISPASAT 1E will provide Hispasat with additional capacity, enabling it to offer a broader
range of video and data transmission services with European and pan-American coverage.
The satellite carries 53 Ku-band transponders and a Ka-band capability. Using its on-board engine to circularize
the orbit, in the coming days it will park in a geostationary orbit over the equator at 30° W longitude alongside
Hispasat 1C and 1D. HISPASAT 1E has a design life of 18 years.
b,The initial orbital parameters were period = 1,436.08 minutes, apogee = 35,797.7 km, perigee = 35,774.8 km,
inclination = 0.0° on 2011 Mar 28 at 05:00:51 UTC. (source : hispasat.com + nasa.gov)

                                             Hispasat 1E-KA band reception : 20 191 MHz _ LHCP vector
                                                               an unspecified number of streams

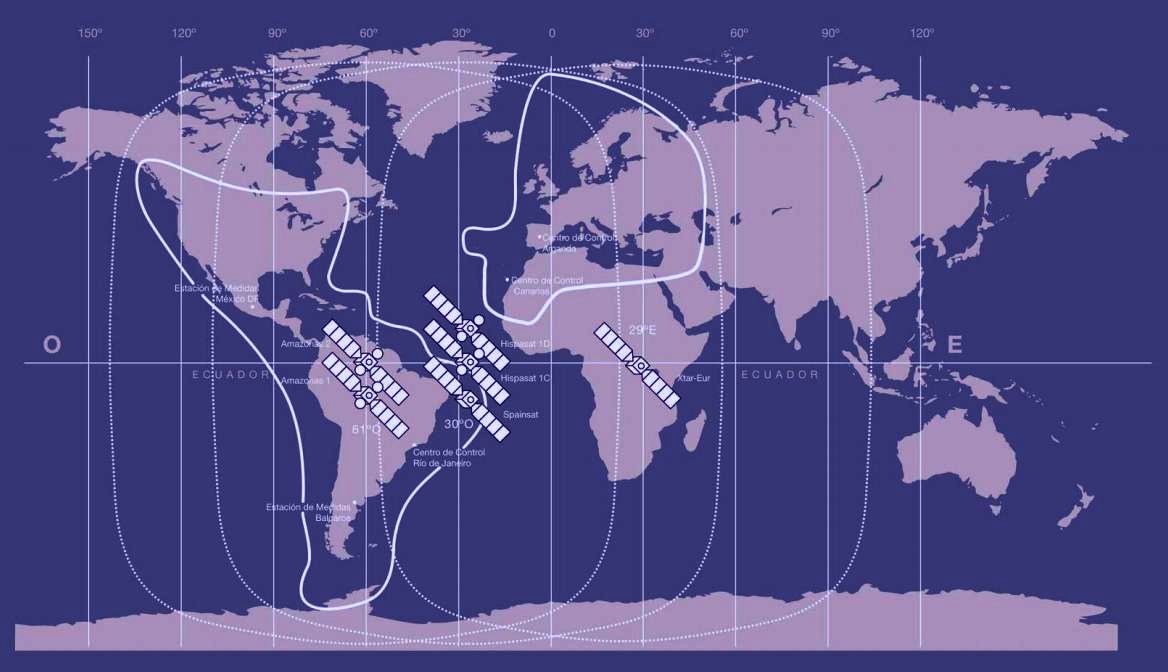

►Hispasat 1E-KA band-general description : spacecraft , payload , satellite coverage , monitoring stations (source : hispasat.com )



the spectrum of the horizontal vector in the range from 5 to 50 mh
►Hispasat 1E-KA band-beacon frequency : 19 769 MHz / RHCP  - 1x beacon frequency
                    (arguably-I do not have this information confirmed from official sources)


                     f0=19 769 MHz                                         f0=19 769 MHz                                     f0=19 769 MHz
                      SPAN 100 kHz                                          SPAN 200 kHz                                      SPAN 1000 kHz

►Hispasat 1E-KA band reception :  komentár autora Romana Dávida

Aj napriek tomu že dva geostacionárne objekty,konkrétne X-TAR-LANT a Hispasat 1E,ktoré sú identicky poziciované na 30°
západnej dĺžky a operujú v KA pásme,doteraz verejne nepublikovali tabuľku frekvenčného plánovania,ktorá by vylúčila
akékoľvek pochynosti z ktorého objektu sa uskutočňuje vysielanie,jestvuje tu určitá miera pravdepodobnosti že komerčný
poskytovateľ širokopásmových služieb internetu AOL America online,ktorý autor identifikoval na f=19 722 MHz vysiela
práve z TP družice Hispasat 1E pre KA pásmo a nie z objektu  X-TAR-LANT-Spainsat .

použité zdroje informácií :

1, wikipédia.org
2, xtar.com
3, hispasat.com
4, výskumná činnosť Romana Dávida


►►Hispasat 1E-λ=-30°W-KA band : HF string , footprint , geographical location ...

►Installed dish / secondary radiant [D] : PRODELIN 4.5m AZ/EL RxO 1451 (4096-345) _ N48°19719' , E19°40148' , Lučenec , Slovak republic



►Hispasat 1E-30°W-KA band footprint-beam-coverage : European beam , geographical location of the measurement
                                                              (source : hispasat.com )

There is a high degree of probability that also in the Ka-band applies only one wide coverage diagram,like in the Ku-band and not
                                                                      amount of spot diagrams

                  European coverage                            measurement: N48°19719' , E19°40148'


►►Hispasat 1E-λ=-30°W-KA band reception : analysis of the RHCP spectrum

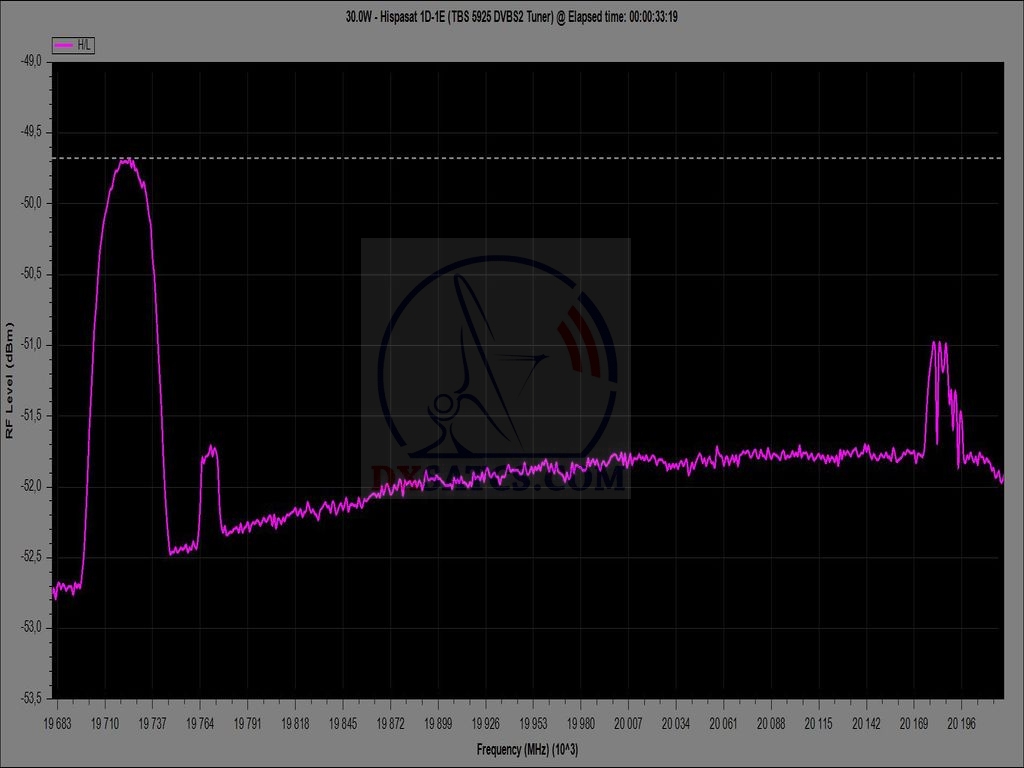

►The complete range of the -RHCP- vector in the KA band from 19 200 to 20 200 MHz : quantification of RHCP pectrum

                                19 200-20 200 MHz                                                                         19 700 - 20 200 MHz


►Hispasat 1E-30°W-KA band-reception : the analysis of the quality and quantification of packets (current status 2015)

►19 722 MHz_RHCP : DVB-S2/ACM Data
