Mr. Alberto Simao-Macau S.A.R_ Intelsat 10 at 68.5°E-Global footprint in C band : 3 808 V RRSat Global & 4 034 V DD Doordarshan India_current status of quality derived from the antenna diameter 900 cm in South Asia with equipment Rohde & Schwarz

intelsat 10 at 68.5e C band

Intelsat 10 at 68.5°E - Global footprint : measurements at the center Macau - 60 km w of Hong Kong
                            geographical location : Latitude: 22.1987°_ Longitude: 113.5439°
                           measurement results are derived from the 900 cm diameter antenna
                                               date of measurement : 19.4.2010
                                                         elevation angle  : 33.055°

                                   Intelsat 10 at 68.5°E : PF Vertex 900 cm / antenna tracking
Intelsat 10 at 68.5 e_global footprint in C band_PF Vertex 900 cm_antenna tracking n

     Intelsat 10 : PF Vertex RSI 9.0m               Intelsat 10 global footprint                Intelsat 10 : measuring point
Intelsat 10 at 68.5 e_global footprint in C band_PF Vertex 900 cmIntelsat 10 at 68.5 e_global footprint in C bandIntelsat 10 at 68.5 e_global footprint in C band_PF Vertex 900 cm_ measuring poin

.
Intelsat 10 at 68.5°E-Global footprint : spectral & quality analysis with the Rohde & Schwarz ETL / Promax Prolink

.
                                                                    1 -  3 808 V : Packet RRSat Global
                Intelsat 10 at 68.5 e_global footprint in C band_3 808 V RRSat Global_spectral analysis n

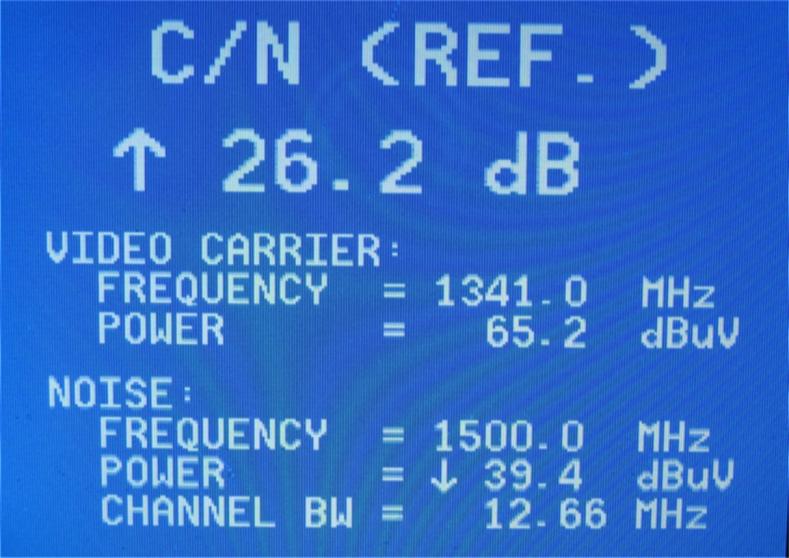

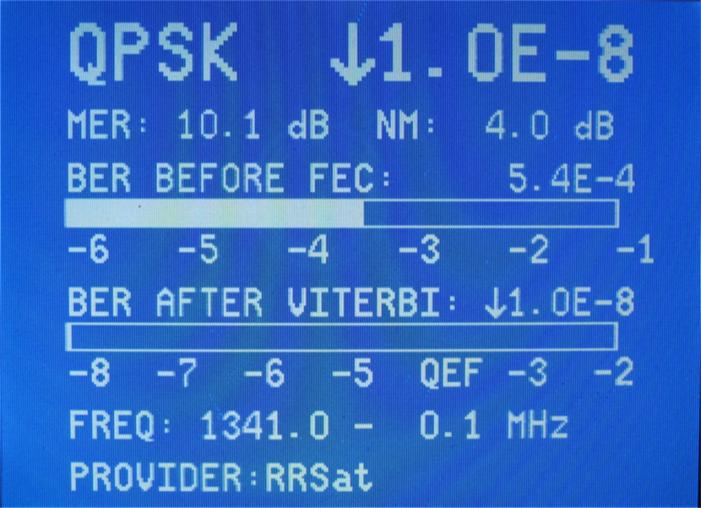

              3 808 V : Q anaylsis                            3 808 V : Channel Power                             3 808 V : C/N
Intelsat 10 at 68.5 e_global footprint in C band_3 808 V RRSat Global_Q analysis 01Intelsat 10 at 68.5 e_global footprint in C band_3 808 V RRSat Global_Ch power 02Intelsat 10 at 68.5 e_global footprint in C band_3 808 V RRSat Global_CN 03

       3 808 V : Packet RRSat Global                       3 808 V : NIT nr.1                                 3 808 V : NIT nr.2
Intelsat 10 at 68.5 e_global footprint in C band_3 808 V RRSat Global_ q and nit 01Intelsat 10 at 68.5 e_global footprint in C band_3 808 V RRSat Global_ nit 02Intelsat 10 at 68.5 e_global footprint in C band_3 808 V RRSat Global_ nit 03

                                                                        3 808 V : Packet RRSat Global
                                                                              download pdf

                                                      Tandberg TT 1260 : download measurement results

                                                           2 - 4 034 V : Packet DD Doordarshan India
        Intelsat 10 at 68.5 e_global footprint in C band_4 034 V DD Doordarshan_spectral analysis n

                4 034 V : Q data                                  4 034 V : Channel Power                                4 034 V : C/N
Intelsat 10 at 68.5 e_global footprint in C band_4 034 V DD Doordarshan_Q analysis  01Intelsat 10 at 68.5 e_global footprint in C band_4 034 V DD Doordarshan_Ch power 02Intelsat 10 at 68.5 e_global footprint in C band_4 034 V DD Doordarshan_CN 03

            Transport stream 01                                 Transport stream 02                              Transport stream 03
Intelsat 10 at 68.5 e_global footprint in C band_4 034 V DD Doordarshan_TS ASI data 01Intelsat 10 at 68.5 e_global footprint in C band_4 034 V DD Doordarshan_TS ASI data 02Intelsat 10 at 68.5 e_global footprint in C band_4 034 V DD Doordarshan_TS ASI data 03

                                                                             4034 V : DD Doordarshan
                                                                                download pdf

                                                       Tandberg TT 1260 : download measurement results

Intelsat 10 at 68.5°E - Global footprint in C band : 3 808 V & 4 034 V / snapshots

.
3 808 V Star Music 014 034 V DD India 024 034 V DD News 03
4 034 V DD News 044 034 V DD Sports 054 034 V DD Sports 06

.
Intelsat 10 at 68.5°E - Global footprint in C band : 3 808 V & 4 034 V / video presentation

.

author : Mr. Alberto Simao / Macau S.A.R.
