Thaicom 5 at 78.5°E

Thaicom 5 at 78.5°E: Technical data


                             Thaicom 5 - asian beam : 3 845 V ROSE 4050 channel promo / qualitative peak MER=6 dB
Thaicom 5 at 78.5 e-asian beam-first-n                                                             Satellite : Thaicom 5 - Orbit : 78.5°E - TP : 25 C/14 KU - Lifetime : from 27.5.2006 - 12 years



Thaicom 5 at 78.5°E-regional & global footprint : analysis of the spectrum and measurement results


         Thaicom 5 at 78.5°E  : research activities and the measurement is in town Lučenec-Slovakia
                                  geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                             measurement results are derived from the 3.7 m diameter antenna
                                                         date of measurement : 25.9.2010
                                                                elevation angle  : 11.5°

                         Thaicom 5 : installed system                                  Thaicom 5 : research point
                     Prodelin 3.7 m,LNB Norsat 8215                         Slovak republic : 48.33° _ 19.72°
                 Thaicom 5 at 78.5e-installed system               Thaicom 5 at 78.5e-measurement point

           --- Thaicom 5 at 78.5°E & coverage area : C-global_H polarization & D-asian region_V polarization ---
           --- GLOBAL BEAM & coverage area : Asia , Middle East , Australia , large part of Europe and Africa ---
         --- ASIAN/REGIONAL BEAM & coverage area : Asia , Middle East , Europe+Africa > D=300-500+ cm ---

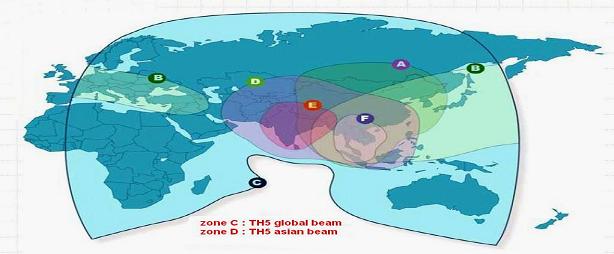

                                                                         thaicom 5 footprint
                  Thaicom 5 at 78.5 e _footprint-n

               --- Thaicom 5 - asian beam / regional : spectral analysis of transponders TP 6VS > 7VS > 8VS ---
                                                                            click for enlarge
      Thaicom 5 at 78.5 e-asian beam-spectral analysis-n

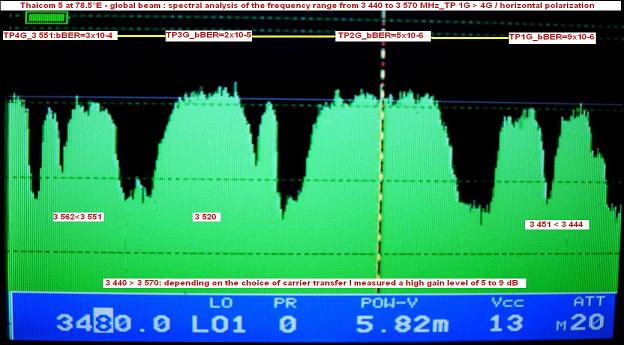

                          --- Thaicom 5 - global beam : spectral analysis of transponders TP 1G > 4G ---
                                                                           click for enlarge
          Thaicom 5 at 78.5 e-global beam-spectral analysis-n
                                                             - time of measurement : 25.9.2010 -
                                                               - defining the status of reception -

asian beam / regional :

3 960 V : unstable gain growth in amplitude within 1 dB at FEC=5/6 with occasional pixelation error

3 977 V : stable gain level of around 1.5 dB without pixelation errors

TP 2>3>4>5>6VS : constellation and bBER analysis on broadcasts of transponders confirmed the presence of significant
interference with unknown origin (whose source is likely to neighboring satellite Express MD1) which did not allow carrying
out an objective analysis of the quality of reception

global beam : depending on the choice of carrier transfer I measured a high gain level of 5 to 9 dB

                                    --- DIAGRAM D-regional/asian beam : results of measurements ---

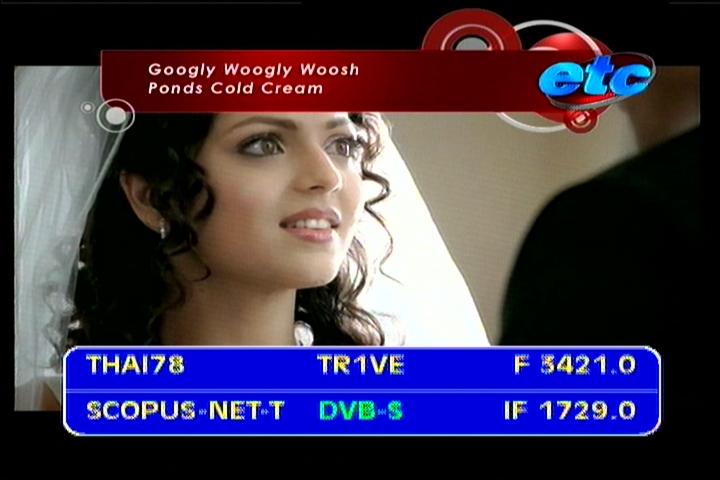

                                     Thaicom 5 at 78.5°E - regional footprint : 3 421 V Packet ETC India
                          IF data                                                       Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ V regional footprint_ 3 421 V ETC netw._IF dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 421 V ETC netw._Q dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 421 V ETC netw._NIT data

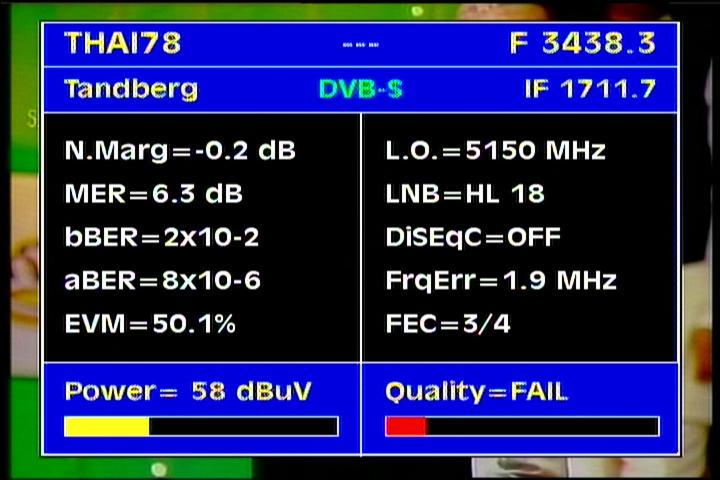

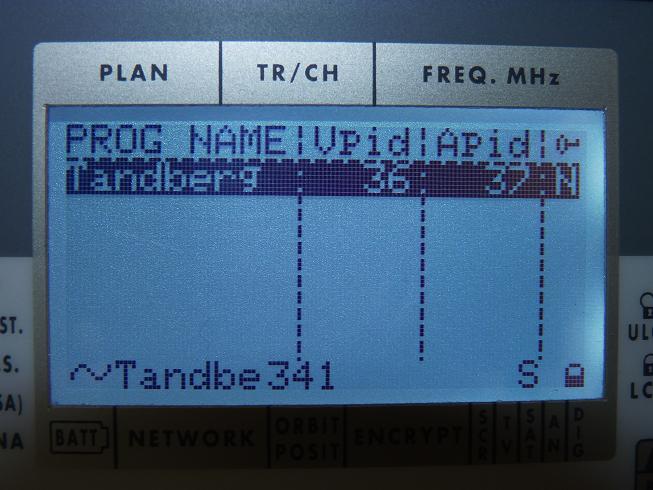

                                             Thaicom 5 at 78.5°E - regional footprint : 3 438 V Terai TV
                          IF data                                                       Q data                                                   NIT data
Thaicom 5 at 78.5 e-asian beam-3 438 V Terai TV-IF dataThaicom 5 at 78.5 e-asian beam-3 438 V Terai TV-Q dataThaicom 5 at 78.5 e-asian beam-3 438 V Terai TV-NIT data

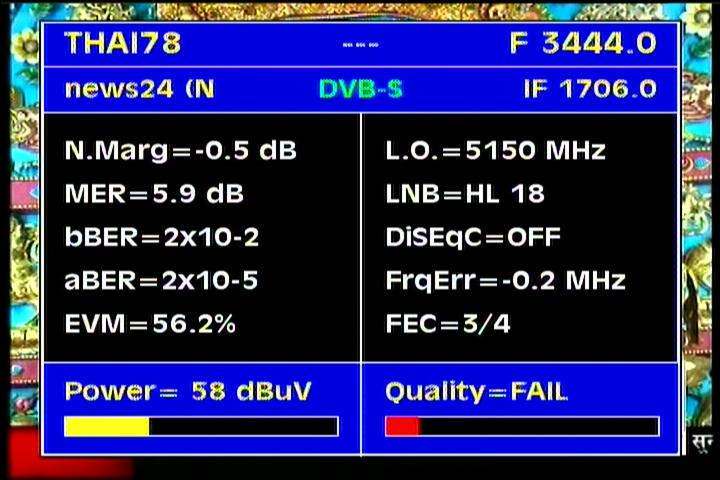

                                             Thaicom 5 at 78.5°E - regional footprint : 3 444 V News 24
                          IF data                                                       Q data                                                   NIT data
Thaicom 5 at 78.5 e-asian beam-3 444 V News 24-IF dataThaicom 5 at 78.5 e-asian beam-3 444 V News 24-Q dataThaicom 5 at 78.5 e-asian beam-3 444 V News 24-NIT data

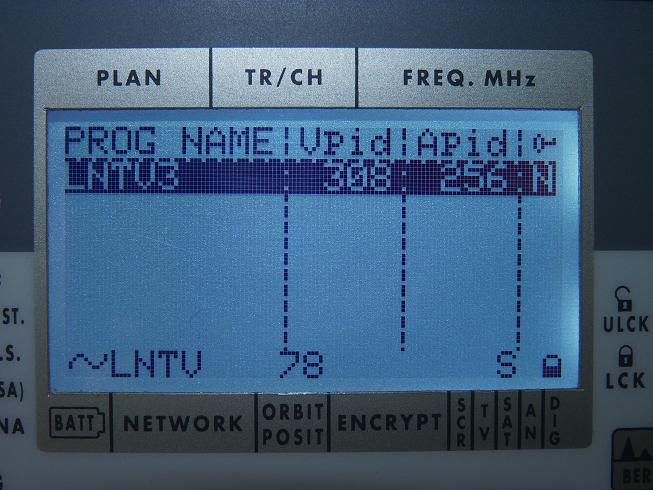

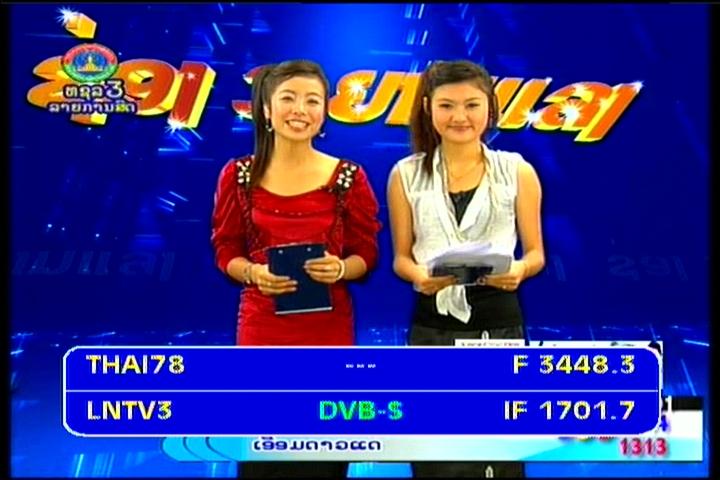

                                                 Thaicom 5 at 78.5°E - regional footprint : 3 448 V LNTV
                          IF data                                                       Q data                                                   NIT data
Thaicom 5 at 78.5 e-asian beam-3 448 V LNTV 3-IF dataThaicom 5 at 78.5 e-asian beam-3 448 V LNTV 3-Q dataThaicom 5 at 78.5 e-asian beam-3 448 V LNTV 3-NIT data

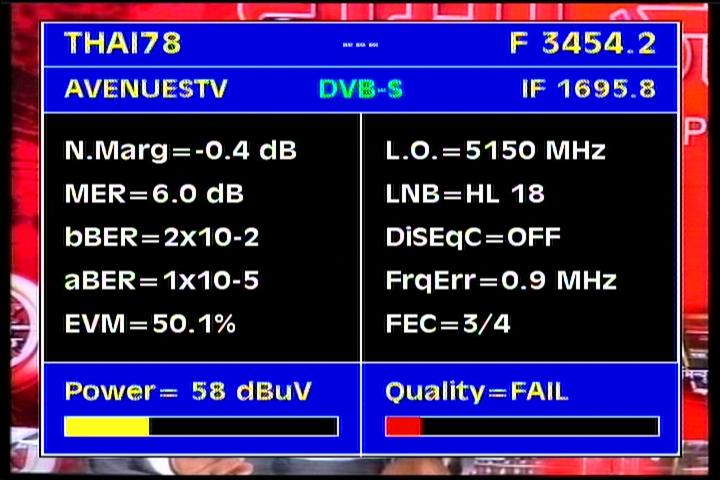

                                          Thaicom 5 at 78.5°E - regional footprint : 3 454 V Avenues TV
                          IF data                                                       Q data                                                   NIT data
Thaicom 5 at 78.5 e-asian beam-3 454 V Avenues TV-IF dataThaicom 5 at 78.5 e-asian beam-3 454 V Avenues TV-Q dataThaicom 5 at 78.5 e-asian beam-3 454 V Avenues TV-NIT data

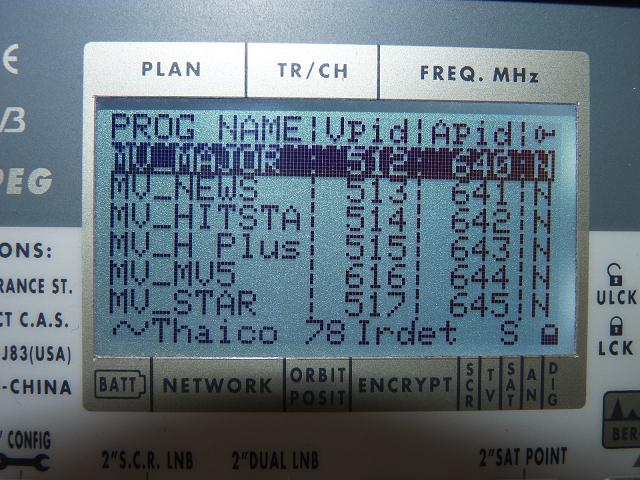

                                 Thaicom 5 at 78.5°E - regional footprint : 3 585 V Packet Thaicom network
                          IF data                                                       Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ V regional footprint_ 3 585 V Packet Thaicom _ IF dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 585 V Packet Thaicom _ Q dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 585 V Packet Thaicom _ NIT data

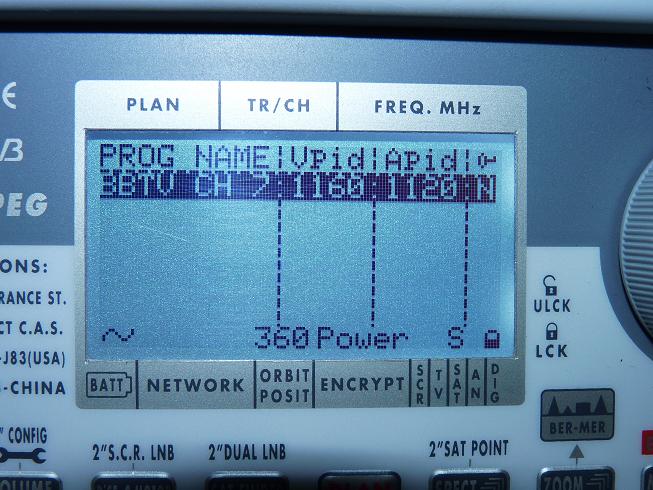

                                              Thaicom 5 at 78.5°E - regional footprint : 3 764 V BBTV Ch 7
                          IF data                                                       Q data                                                   NIT data
Thaicom 5 at 78.5 e-asian beam-3 764 V BBTV Ch 7-IF dataThaicom 5 at 78.5 e-asian beam-3 764 V BBTV Ch 7-Q dataThaicom 5 at 78.5 e-asian beam-3 764 V BBTV Ch 7-NIT data

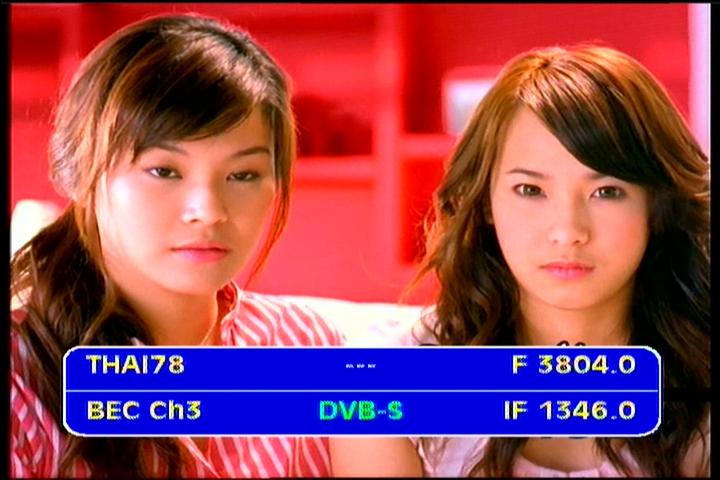

                                            Thaicom 5 at 78.5°E - regional footprint : 3 804 V BBTV Ch 3
                          IF data                                                       Q data                                                   NIT data
Thaicom 5 at 78.5 e-asian beam-3 804 V BEC Ch 3-IF dataThaicom 5 at 78.5 e-asian beam-3 804 V BEC Ch 3-Q dataThaicom 5 at 78.5 e-asian beam-3 804 V BEC Ch 3-NIT data

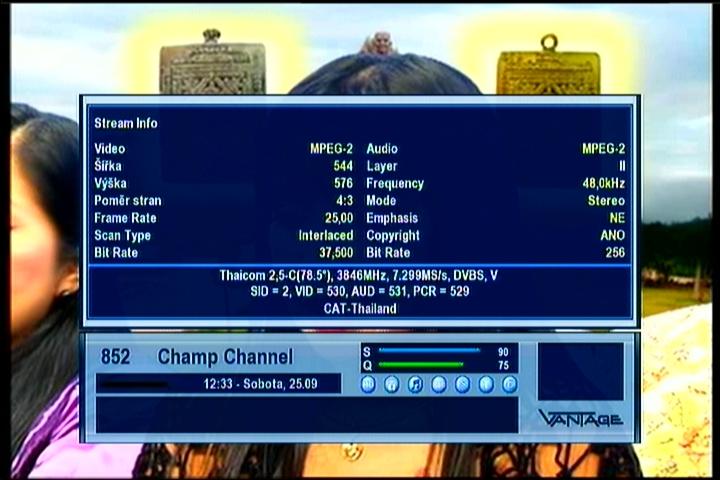

                                   Thaicom 5 at 78.5°E - regional footprint : 3 845 V Packet CAT Telecom
                          IF data                                                       Q data                                                   NIT data
Thaicom 5 at 78.5 e-asian beam-3 845 V Dodee Channel-IF dataThaicom 5 at 78.5 e-asian beam-3 845 V Dodee Channel-Q dataThaicom 5 at 78.5 e-asian beam-3 845 V Dodee Channel-NIT data

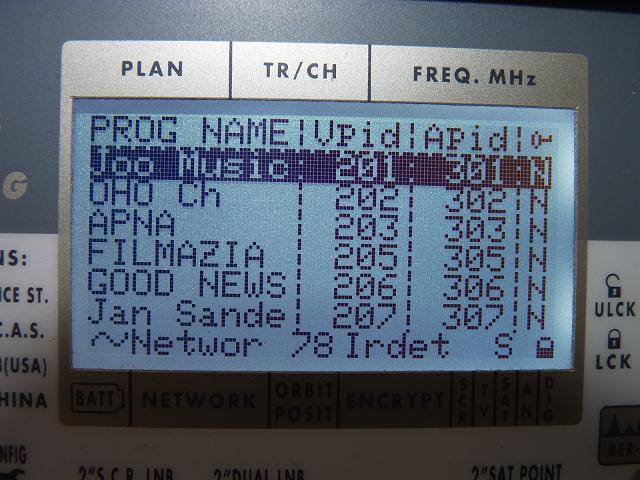

                                 Thaicom 2/5 at 78.5°E - regional footprint : 3 960 V Packet Shinsat Network
                          IF data                                                       Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ V regional footprint_ 3 960 V Packet Thaicom _ IF dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 960 V Packet Thaicom _ Q dataThaicom 2-5 at 78.5 e _ V regional footprint_ 3 960 V Packet Thaicom _ NIT data

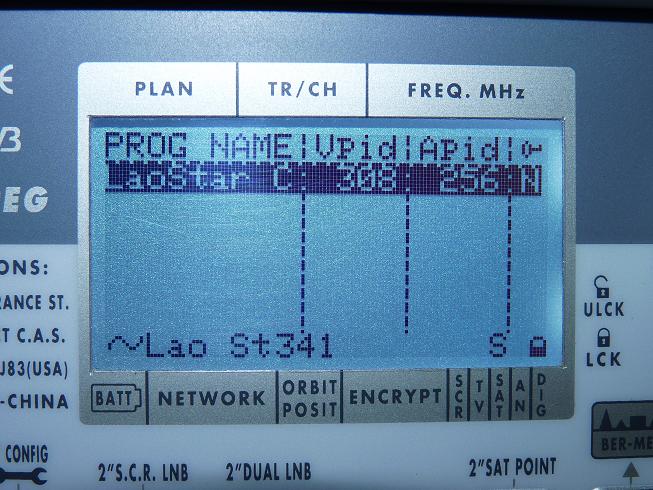

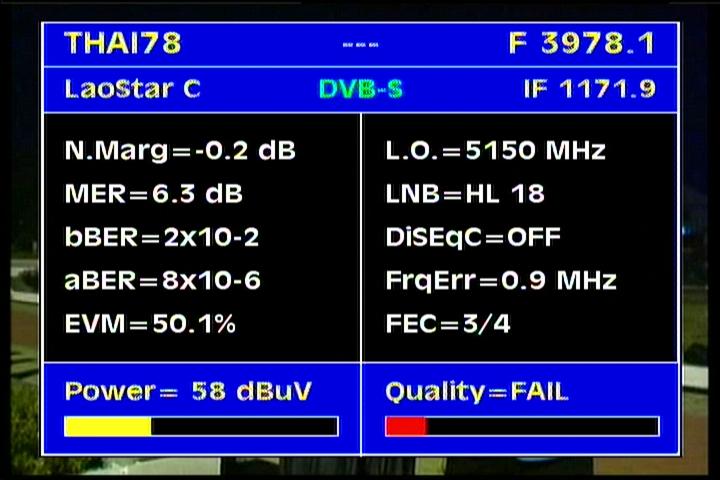

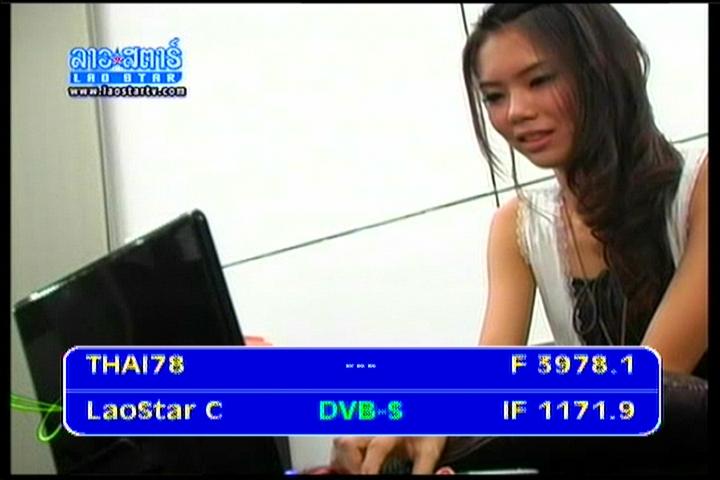

                                           Thaicom 5 at 78.5°E - regional footprint : 3 978 V Lao Star ch.
                          IF data                                                       Q data                                                   NIT data
Thaicom 5 at 78.5 e-asian beam-3 978 V LaoStar-IF dataThaicom 5 at 78.5 e-asian beam-3 978 V LaoStar-Q dataThaicom 5 at 78.5 e-asian beam-3 978 V LaoStar-NIT data

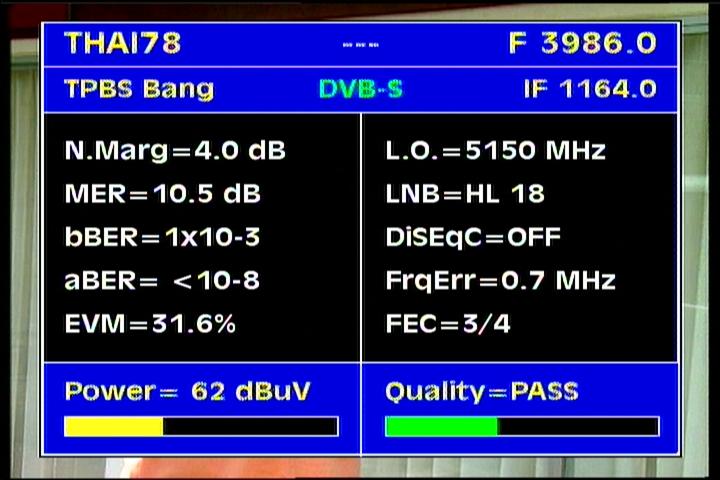

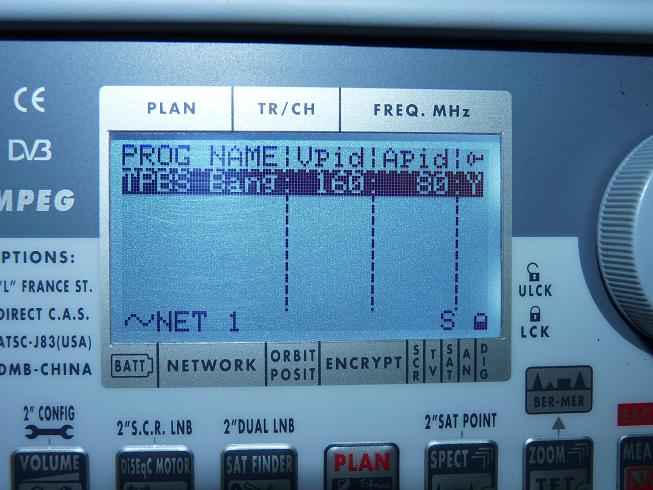

                                             Thaicom 5 at 78.5°E - regional footprint : 3 986 V Thai PBS
                          IF data                                                       Q data                                                   NIT data
Thaicom 5 at 78.5 e-asian beam-3 986 V Thai PBS-IF dataThaicom 5 at 78.5 e-asian beam-3 986 V Thai PBS-Q dataThaicom 5 at 78.5 e-asian beam-3 986 V Thai PBS-NIT data

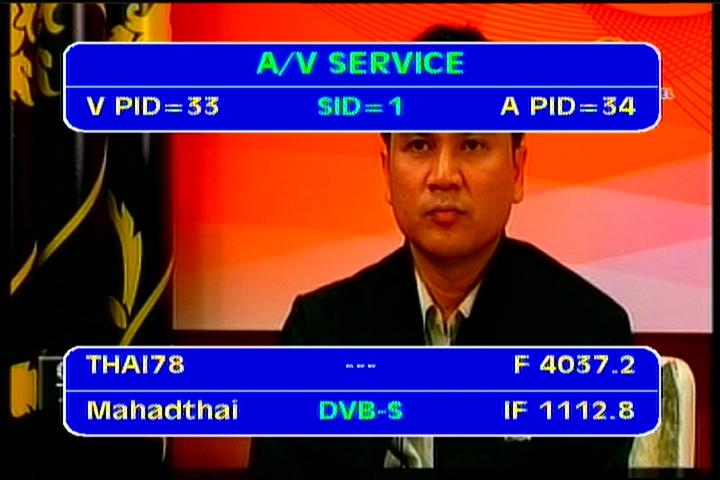

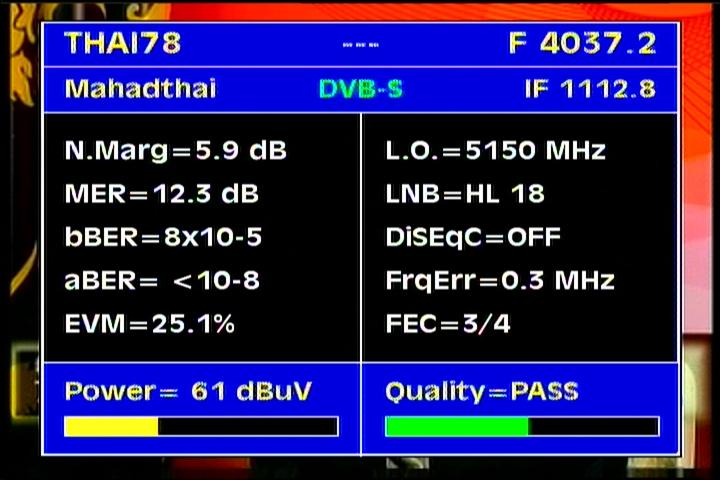

                                               Thaicom 5 at 78.5°E - regional footprint : 4 037 V Mahadthai tv
                          IF data                                                       Q data                                                   NIT data
Thaicom 5 at 78.5 e-asian beam-4 037 V Mahadthai tv-IF dataThaicom 5 at 78.5 e-asian beam-4 037 V Mahadthai tv-Q dataThaicom 5 at 78.5 e-asian beam-4 037 V Mahadthai tv-NIT data

                                             --- DIAGRAM C-global beam : results of measurements ---

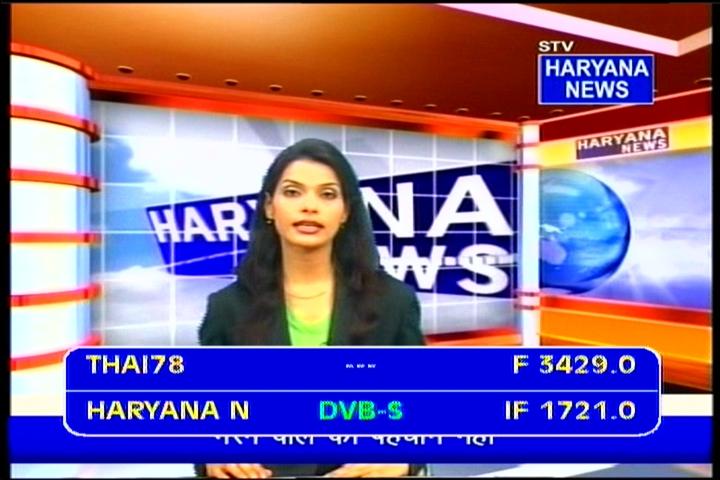

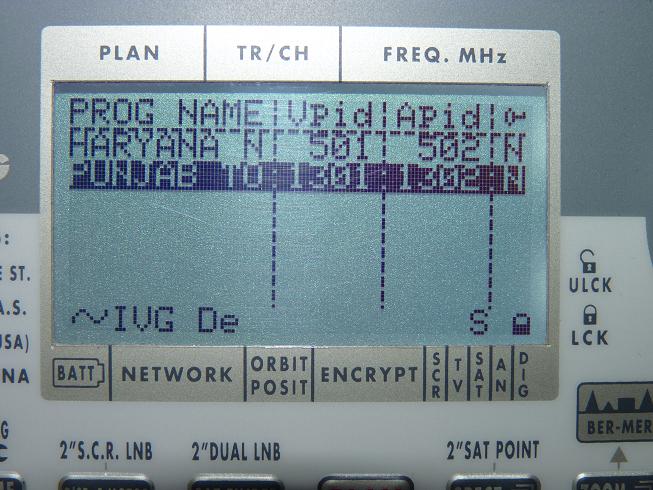

                                             Thaicom 5 at 78.5°E - Global footprint : 3 429 H Packet STV
                          IF data                                                     Q data                                                   NIT data
Thaicom 5 at 78.5 e-global beam-3 429 STV-IF dataThaicom 5 at 78.5 e-global beam-3 429 STV-IF dataThaicom 5 at 78.5 e-global beam-3 429 STV-NIT data

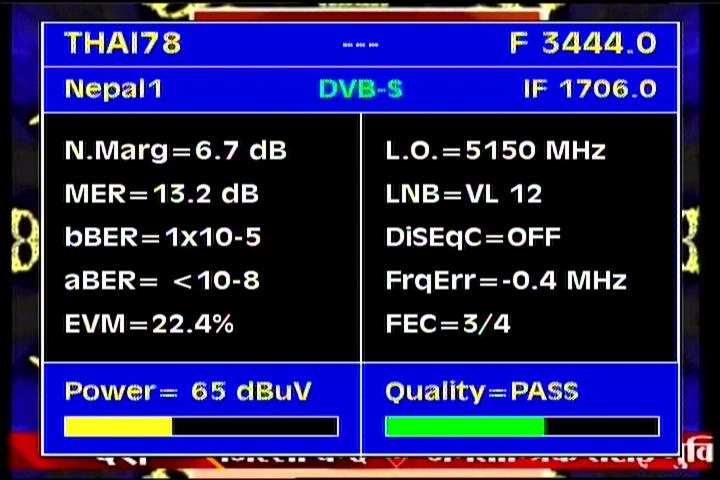

                                          Thaicom 5 at 78.5°E - Global footprint : 3 444 H Packet Thaicom
                          IF data                                                     Q data                                                   NIT data
Thaicom 5 at 78.5 e-global beam-3 444 H Nepal 1-IF dataThaicom 5 at 78.5 e-global beam-3 444 H Nepal 1-Q dataThaicom 5 at 78.5 e-global beam-3 444 H Nepal 1-NIT data

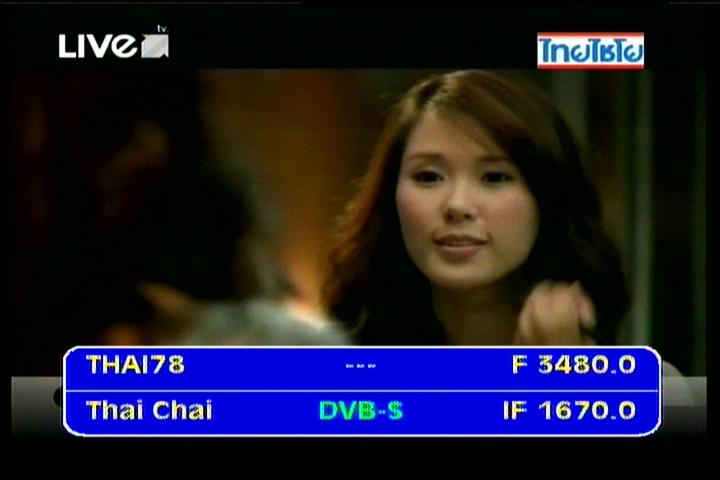

                                           Thaicom 5 at 78.5°E - Global footprint : 3 480 H Packet Thaicom
                          IF data                                                     Q data                                                   NIT data
Thaicom 5 at 78.5 e-global beam-3 480 H Thai Ch-IF dataThaicom 5 at 78.5 e-global beam-3 480 H Thai Ch-Q dataThaicom 5 at 78.5 e-global beam-3 480 H Thai Ch-NIT data

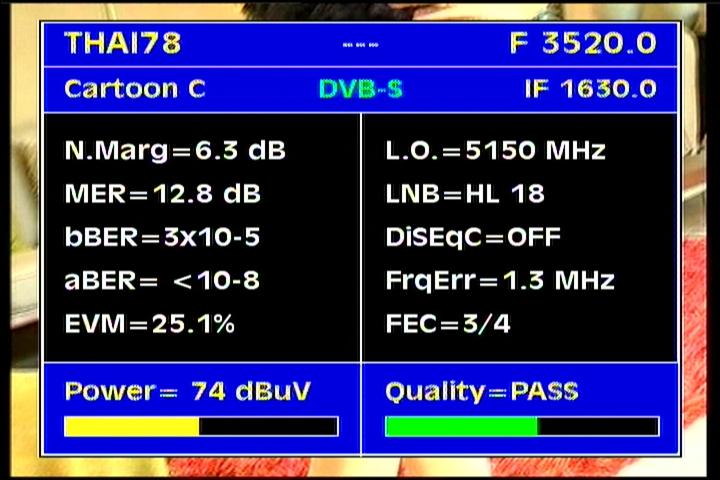

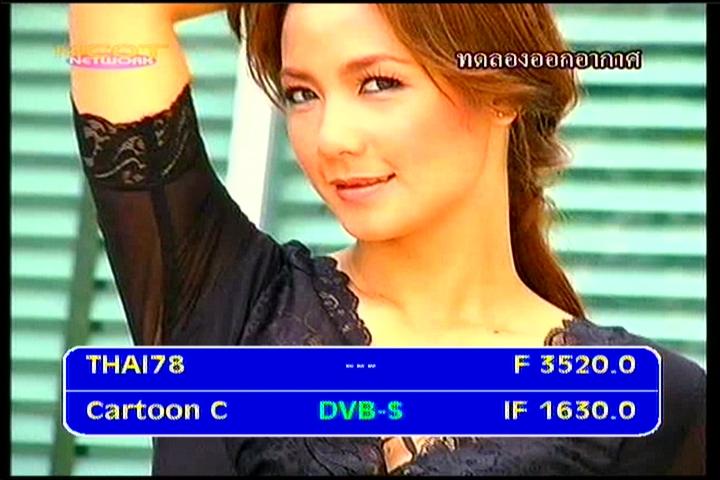

                                          Thaicom 5 at 78.5°E - Global footprint : 3 520 H Packet MCOOT
                          IF data                                                     Q data                                                   NIT data
Thaicom 5 at 78.5 e-global beam-3 520 H Modernine tv-IF dataThaicom 5 at 78.5 e-global beam-3 520 H Modernine tv-Q dataThaicom 5 at 78.5 e-global beam-3 520 H Modernine tv-NIT data

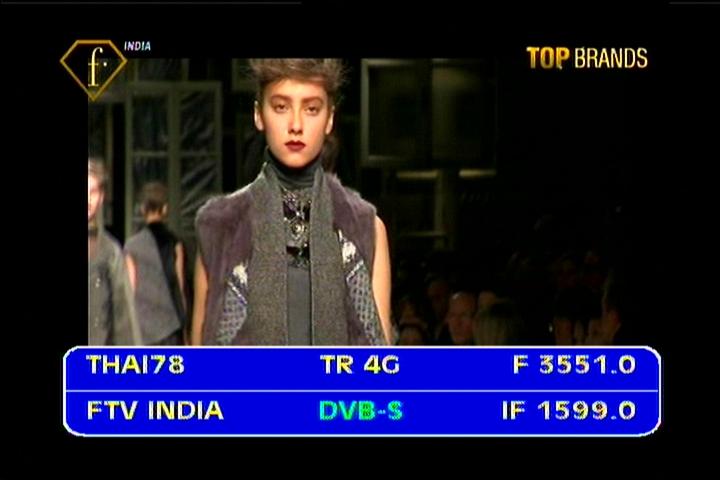

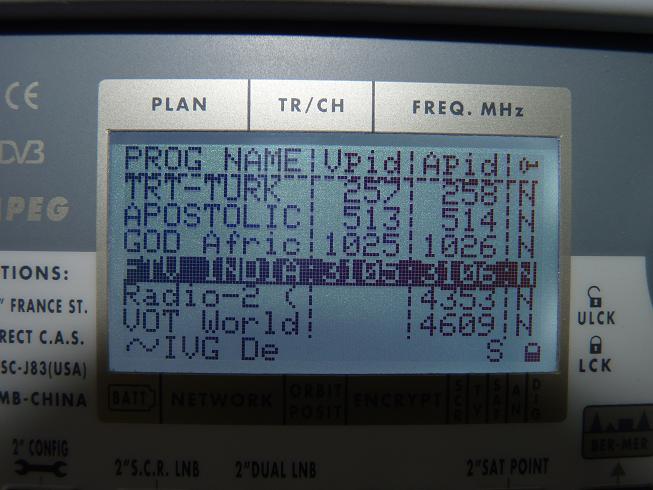

                                     Thaicom 5 at 78.5°E - Global footprint : 3 551 H Packet RRSat Global
                          IF data                                                     Q data                                                   NIT data
Thaicom 5 at 78.5 e-global beam-3 551 H RRSat netw.-IF dataThaicom 5 at 78.5 e-global beam-3 551 H RRSat netw.-Q dataThaicom 5 at 78.5 e-global beam-3 551 H RRSat netw.-NIT data

                                          Thaicom 5 at 78.5°E - Global footprint : 3 562 H VTV Maldives
                          IF data                                                     Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ H global footprint_ 3 563 H VTV Maldives _IF dataThaicom 2-5 at 78.5 e _ H global footprint_ 3 563 H VTV Maldives _Q dataThaicom 2-5 at 78.5 e _ H global footprint_ 3 563 H VTV Maldives _NIT data

                                          Thaicom 5 at 78.5°E - Global footprint : 3 574 H Packet MRTV
                          IF data                                                     Q data                                                   NIT data
Thaicom 2-5 at 78.5 e _ H global footprint_ 3 574 H MRTV netw._IF dataThaicom 2-5 at 78.5 e _ H global footprint_ 3 574 H MRTV netw._Q dataThaicom 2-5 at 78.5 e _ H global footprint_ 3 574 H MRTV netw._NIT data

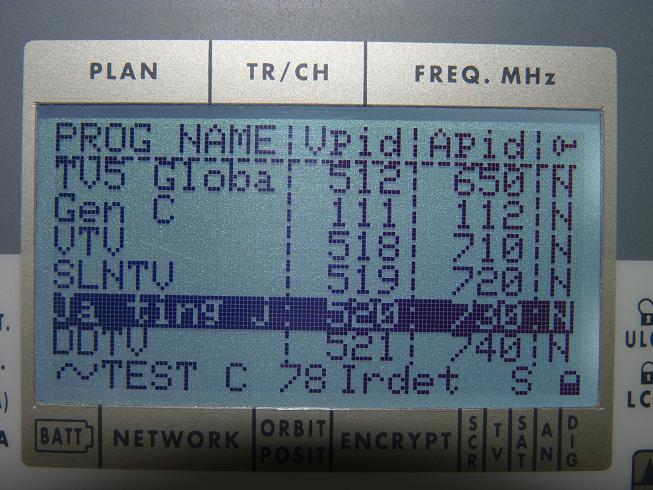

                                         Thaicom 5 at 78.5°E - Global footprint : 3 600 H Packet Thaicom
                          IF data                                                     Q data                                                   NIT data
Thaicom 5 at 78.5 e-global beam-3 600 H Thaicom network-IF dataThaicom 5 at 78.5 e-global beam-3 600 H Thaicom network-Q dataThaicom 5 at 78.5 e-global beam-3 600 H Thaicom network-NIT data

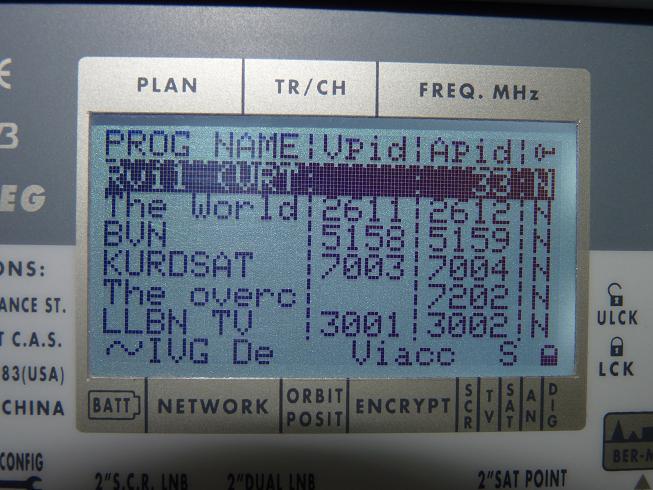

                                 Thaicom 5 at 78.5°E - Global footprint : 3 640 H Packet RRSat Global
                          IF data                                                     Q data                                                   NIT data
Thaicom 5 at 78.5 e-global beam-3 640 H Thaicom network-IF dataThaicom 5 at 78.5 e-global beam-3 640 H Thaicom network-Q dataThaicom 5 at 78.5 e-global beam-3 640 H Thaicom network-NIT data


Thaicom 2/5 at 78.5°E : TV List

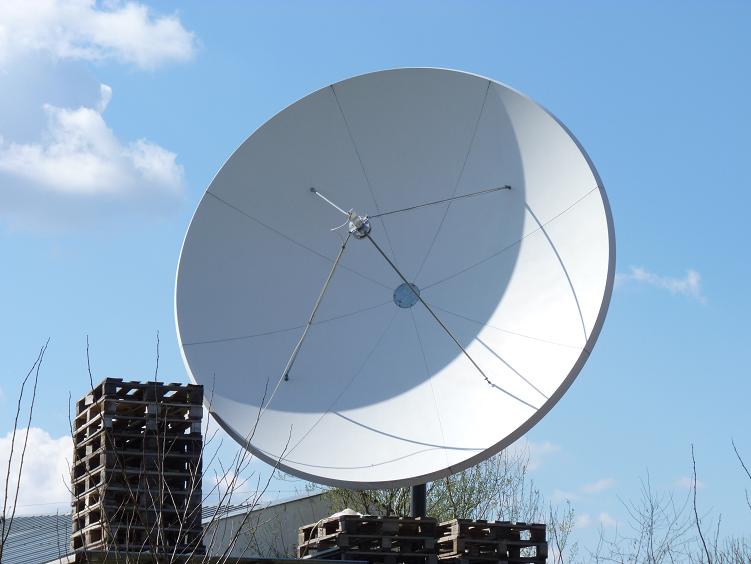

Thaicom 2-5 at 78.5 e _ regional global footprint_PF Prodelin 3.7 m


---Frequency---


--------Provider/Channel--------

---SR--- --FEC-- -----Footprint-----  --Antenna-- Video/Encryption

3 409 -V- tp 1VE

 Thaicom 5 network 4 444 3/4 Th.5 V Central Asia 300-600+ cm DVB
  TV 5 Cambodia         FTA
  test card         FTA

3 414 -V- tp 1VE

National TV Nepal

 3 333 3/4 Th.5 V Central Asia 300-600+ cm DVB FTA

3 422 -V- tp 1VE

 ETC India 6 667 3/4 Th.5 V Central Asia 300-600+ cm DVB
  ETC / SCOPUS-NET-TECO   watch video         FTA
  ETC Punjabi / SCOPUS  watch video         FTA

3 429 -H- tp 1G

STV network

 6 104 3/4 Th.5 H Global 220-250+ cm DVB
  Haryana News         FTA
  Punjab Today         FTA

3 433 -V- tp 1VE

 Nepal TV 6 667 3/4 Th.5 V Central Asia 340-600+ cm DVB
  Nepal Television         FTA
  Nepal Television         FTA

3 438 -V- tp 1VE

 Terai TV watch video   watch video
Tandberg service		 3 333 3/4 Th.5 V Central Asia 300-600+ cm DVB FTA

3 444 -V- tp 1VE

News 24 NBC

 3 111 3/4 Th.5 V Central Asia 300-600+ cm DVB/MPEG-4

3 444 -H-tp 1G

Thaicom network

 5 185 3/4 Th.5 H Global 220-250+ cm DVB
  Nepal 1         FTA
  365 Din TV         FTA
  Kalaignar TV         FTA

3 448 -V- tp 2VE

 LNTV3    watch video 2 917 2/3 Th.5 V Central Asia 300-600+ cm DVB FTA

3 451 -H- tp 1G

 EMP Europe Media Port
 		 7 188 2/3 Th.5 H Global 220-250+ cm DVB
  Manmin TV         FTA
  Hadi TV         FTA

3 451 -V- tp 2VE

RU TV 2

 1 085 3/4 Th.5 V Central Asia 300-600+ cm DVB

3 454 -V- tp 2VE

 Avenues TV     watch video 3 333 3/4 Th.5 V Central Asia 300-600+ cm DVB FTA

3 457 -V- tp 2VE

 One Channel 2 222 3/4 Th.5 V Central Asia 300-600+ cm DVB FTA

3 459 -V- tp 2VE



RU TV 1

 1 085 3/4 Th.5 V Central Asia 300-600+ cm DVB FTA

3 462 -V- tp 2VE

Panyapiwat

 2 857 3/4 Th.5 V Central Asia 300-600+ cm DVB
  Panyapiwat 1         Biss
  Panyapiwat 2         Biss

3 480 -H- tp 2G

3BB 360 Sky network / Live

 26 667 3/4 Th.5 H Global 220-250+ cm DVB
  AFC Asian Food Channel          Irdeto 2
  Fame          FTA
  Ch3_Miti 4          FTA
  Pop Channel          FTA
  Thai Chaiyo          FTA
  Earth          Irdeto 2
  Football +          Irdeto 2
  Sports +          Irdeto 2
  2 Tango          FTA
  Baby TV Asia          Irdeto 2
  Live tv preview          FTA
  Click Asia          FTA

3 489 -V- tp 3VE

 Sagarmatha TV 3 333 3/4 Th.5 V Central Asia 300-600+ cm DVB FTA

3 504 -H- tp 3G

 KCTV-Korean Central TV 3 367 2/3 Th.5 H Global 220-250+ cm DVB FTA

3 520 -H- tp 3G

MCOT network

 20 000 3/4 Th.5 H Global 220-250+ cm DVB
  Modernine TV         FTA
  Asean TV         FTA
  Farm Channel         FTA
  Cartoon Club         FTA
  Miracle Channel         FTA
  M Channel         FTA
  T Sports Channel         FTA

3 545 -V- tp 4VE

 Thaicom 30 000 5/6 Th.5 V Central Asia 360-600+ cm DVB
  TV Pool channel         FTA
  SBB TV         FTA
  Media Channel         Irdeto 2
  Muslim tv Thailand         FTA
  Mongkol Channel         FTA
  Chinese/Bangkok Channel         FTA
  Supercheng tv         FTA
  Neo TV         FTA
  Kaset Channel         FTA
  Voice TV         FTA
  K Channel         FTA
  Bang TV         FTA
  Green Channel         FTA
  ACTS Channel         FTA
  Fan TV / Thai Variety Ch.         FTA
  Dara Channel         FTA
  In tv         FTA
  Jawelry TV         FTA
  Saha Channel         FTA
  You2 Play         FTA

3 551 -H- tp 4G

 RRSat Global Network 13 333 3/4 Th.5 H Global 220-250+ cm DVB
  TRT Turk         FTA
  Apostolic Oneness         FTA
  God TV Africa         FTA
  FTV India    watch video         FTA

3 562 -H- tp 4G

 Island Broadcasting 4 444 1/2 Th.5 H Global 220-250+ cm DVB
  VTV Maldives         FTA

3 574 -H- tp 4G

 MRTV Myanmar 7 492 2/3 Th.5 H Global 220-250+ cm DVB
  MRTV         FTA
  MRTV 3         FTA
  IP DATA 1         data
  IP DATA 2         data

3 585 -V- tp 5VE

 Thaicom 26 667 3/4 Th.5 V Central Asia 340-600+ cm DVB
  MV_Major         FTA
  MV_News         FTA
  MV_HIT STATION         FTA
  MV_H Plus Channel         FTA
  MV_MV5      watch video         FTA
  MV_Star         FTA
  ETC PUNJABI         FTA
  ETC    watch video         FTA
  MV_Yim TV         FTA
  TTN         Irdeto

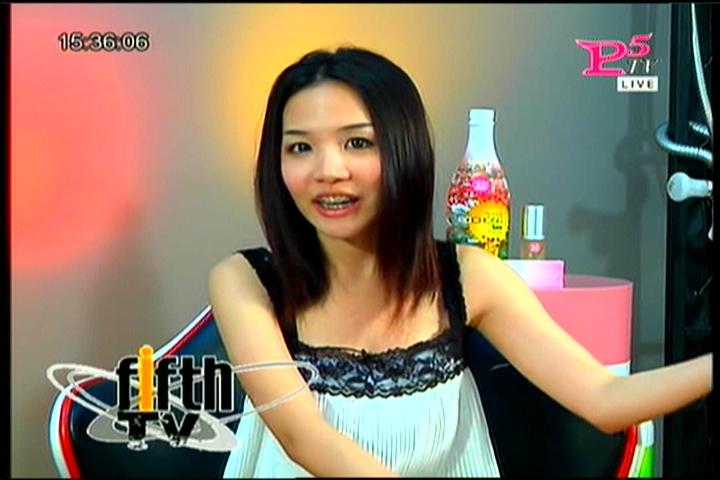

  P5 TV         FTA
  AI-NET Channel
         FTA
  MV_Hi         FTA
  MV_MyTV         FTA
  MV_Variety         FTA
  MV_OK TV         FTA

3 600 -H- tp 5G

 Thaicom 26 667 3/4 Th.5 H Global 220-250+ cm DVB
  TV5 Global         FTA
  Click Asia         FTA
  Gen C         FTA
  Modernine 9TV         FTA
  VTV         FTA
  SLNTV         FTA
  Ja Ting Ja Tv         FTA
  DDTV         FTA
  Nice Channel         FTA

3 606 -V- tp 6VE

Dhi TV

 3 121 7/8 Th.5 V Central Asia 500-700+ cm DVB

3 617 -V- tp 6VE

 MRTV Myanmar 12 500 7/8 Th.5 V Central Asia 500-700+ cm DVB
  MRTV         FTA
  MRTV 3         FTA
  MRTV 4         FTA
  5 Cartoon         Conax
  5 Movies         Conax
  5 Series         Conax
  5 Series 2         Conax
  Multi Max         Conax
  ESPN Asia         Conax
  Star Sports Asia         Conax

3 635 -V- tp 6VE

Thailand radios

  2 592  1/2 Th.5 V Central Asia 300-500+ cm  DVB FTA

3 640 -H- tp 6G

 RRSat Global Network 28 066 3/4 Th.5 H Global 220-250+ cm DVB
  The Word network         FTA
  BVN TV         FTA
  KurdSat         FTA
  LLBN TV         FTA
  Emmanuel tv         FTA
  SVT World         Viaccess 2.6
  3ABN International         FTA
  Daystar TV         FTA
  HCTV Horn Cable TV         FTA
  Russia Today         FTA
  Universal TV         FTA

3 642 -V- tp 6VE

Dhi TV

 4 444 2/3 Th.5 V Central Asia 340-600+ cm DVB FTA

3 665 -H- tp 7G

 TVK Cambodia 3 704 3/4 Th.5 H Global 250+ cm DVB FTA

3 692 -H- tp 7G

Asian update

 3 333 2/3 Th.5 H Global 250+ cm DVB FTA

3 695 -H- tp 7G

Korean Central TV

 3 367 2/3 Th.5 H Global 250+ cm DVB FTA

3 764 -V- tp 3VS

 BBTV Channel 7 Thailand   watch video 5 900 3/4 Th.5 V Regional 220+ cm DVB FTA

3 804 -V- tp 3VS

 BEC Ch3 4 551 3/4 Th.5 V Regional 220+ cm DVB FTA

3 824 -V- tp 4VS

ATV T Channel / No name

 2 222 3/4 Th.5 V Regional 220+ cm DVB FTA

3 827 -V- tp 4VS

SBT TV

 1 445 7/8 Th.5 V Central Asia 270+ cm DVB FTA

3 839 -V- tp 4VS

 cat telecom
 		 3 895 3/4 Th.5 V Regional 220-300+ cm DVB
  CAT TEST 1         FTA
  CAT TEST 2         FTA

3 845 -V- tp 4VS

CAT telecom

 7 300 3/4 Th.5 V Central Asia 340-600+ cm DVB
  Dodee Channel         FTA
  Champ Channel         FTA
  ChokDee Channel         FTA
  ROSE-4050 channel promo         FTA


3 854 -V- tp 5VS

ABTV

 5 925  3/4 Th.5 V Central Asia 400-600+ cm DVB
  tcnn / TCN Network Channel         FTA
  mb / MB Channel         FTA
  Justice         FTA
  DDTV         FTA

3 905 -H- tp 5H

 ATV CH-5 Thailand     watch video 6 250 3/4 Th.5 V Regional 220+ cm DVB

3 960 -V- tp 7VS

 Shinsat Network 30 000 5/6 Th.5 V Central Asia 340-600+ cm DVB
  Joo Music Ch.         FTA
  Oho Channel         FTA
  APNA Channel         FTA
  Music Pool         FTA
  Filmazia         FTA
  Good news         FTA
  You Channel         FTA
  Sabaidee   watch video         FTA
  Silver Screen         FTA
  Starlite TV         FTA
  Nation Channel         FTA
  FilmWorld    watch video         FTA
  INTV/TV D         FTA
  Pink TV         FTA
  U Campus         FTA
  Mango TV         FTA
  Shop at Home Channel         FTA
  Spring News TV         FTA

3 977 -V- tp 7VS

Lao Star Channel

 2 917 3/4 Th.5 V Regional 270+ cm DVB FTA

3 986 -V- tp 8VS

TPBS Bangkok

 4 815 3/4 Th.5 V Regional 270+ cm DVB FTA

4 037 -V- tp 9VS

Mahadthai Channel

 2 025 3/4 Th.5 V Regional 220-270+ cm DVB FTA

4 080 -V- tp 10VS

unn. network

 2 400 7/8 Th.5 V Regional 300-500+ cm DVB
  Ten TV         FTA
  i Channel         FTA

4 103 -V- tp 11VS

NBT Chiangmai

 2 530 3/4 Th.5 V Regional 240-360+ cm DVB FTA

4 107 -V- tp 11VS

NBT Phitsanulok

 2 530 3/4 Th.5 V Regional 240-360+ cm DVB FTA


4 113 -V- tp 11VS

NBT Ubon

 2 530 3/4 Th.5 V Regional 240-360+ cm DVB FTA

4 122 -V- tp 11VS

NBT TV

 4 688 3/4 Th.5 V Regional 240-360+ cm DVB FTA

4 126 -V- tp 11VS

NBT Suratthani

 2 530 3/4 Th.5 V Regional 240-360+ cm DVB FTA

4 130 -V- tp 11VS

NBT Songkhla

 2 530 3/4 Th.5 V Regional 240-360+ cm DVB FTA

4 133 -V- tp 11VS

NBT Chantaburi

2 530 3/4 Th.5 V Regional 240-360+ cm DVB FTA

4 136 -V- tp 11VS

NBT Kanchanaburi

2 530 3/4 Th.5 V Regional 240-360+ cm DVB FTA

4 153 -V- tp 12VS

PSI Channel

2 222 3/4 Th.5 V Regional 240-360+ cm DVB FTA

4 157 -V- tp 12VS

GangCartoon

1 852 3/4 Th.5 V Regional 240-360+ cm DVB FTA


4 160 -V- tp 12VS

 Kasikorn TV /10-18/ 2 000 3/4 Th.5 V Regional 240-360+ cm Biss

Thaicom 5 at 78.5°E : relative quality

relative q 01relative q 02relative q 03


Thaicom 5 at 78.5°E: Video presentations


   Go  to Video Section:
button


Thaicom 5 at 78.5°E : Update drawn up


                                         dxsatcs
                                              CZECH & SLOVAK DX SATELLITE CLUB
                                                   international professional portal
                                                                   think-tank
                                                   Roman Dávid - author & founder
                                                   mail : roman.david@dxsatcs.com

Thaicom 5 at 78.5°E footprint : Global + Regional V

         Thaicom 5 footprint


Thaicom 5 at 78.5°E: snapshots

bec tv ch 3 01MV hit channel 02P5 tv 03

FTV India 08NTV 06Thai Tv5 05
