Intelsat 15 at 85.2°E : Technical data

                                  12 523 V : DVB-S2/8PSK/MPEG-2 Unn. russian network _ MER peak=18.8 dB

                   Intelsat 15 - Orbit : 85.2°E - TP : 22+8 in KU band - Service life : from 30.11.2009 >15-17 years


Intelsat 15 at 85.2°E - russia & middle east footprint : spectral analysis & measurement results

Intelsat 15 at 85.2°E - Russia & Middle East footprint : measurements taken in the town of Lučenec / Slovakia
                             geographical location : Latitude: 48.33°  _   Longitude: 19.72°
                        measurement results are derived from the 3.7 m diameter antenna
                                               date of measurement : 31.7>1.8.2010
                                                              elevation angle : 7.5°

                             High frequency unit                                      measurement point
                               PF Prodelin 3.7 m                               all research and measurements
               dxsatcs waveguide line+Norsat 4206 CF                I carried out at this point


             --- Intelsat 15 :  spectral analysis & footprint & defining the status of reception ---

                      Intelsat 15 at 85.2° footprint                         Intelsat 15 at 85.2° footprint
                 Middle East beam & coverage area                    Russia beam & coverage area
                  Middle East , Asia , Africa , Europe                           Russia , Europe , Asia

                                            +                                                                       +
             10 986 H : Al Masar TV_H wave vector      12 516>12 524>12 534 : V wave vector

                                                 - time of measurement : 31.7-1.8.2010 -
                                                       - defining the status of reception -

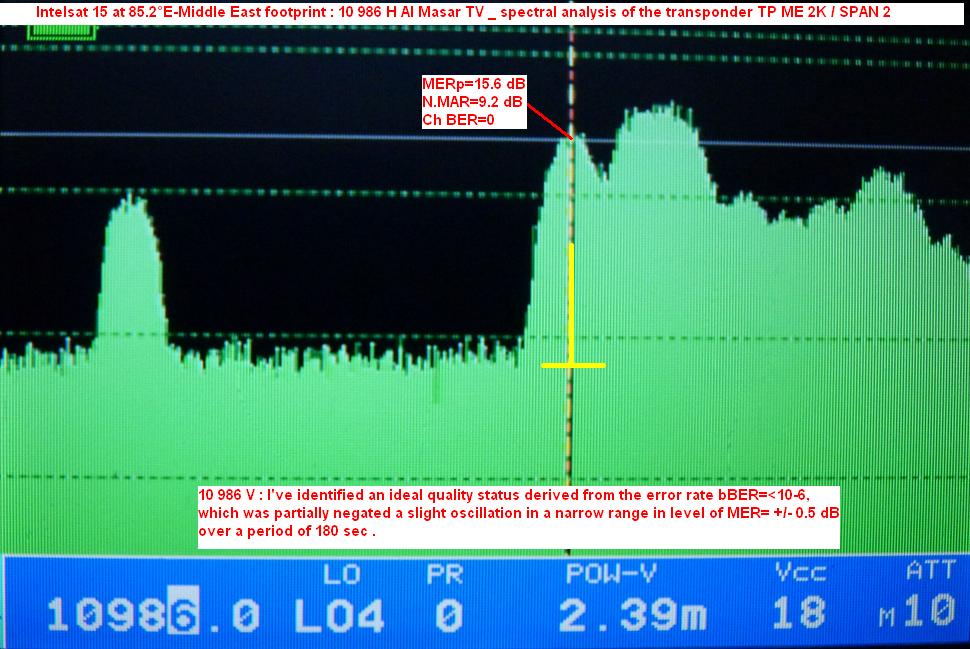

Middle East beam / 10 986 V : I've identified an ideal quality status derived from the error rate bBER=<10-6,
which was partially negated a slight oscillation in a narrow range in level of MER= +/- 0.5 dB over a period of 180 sec .

Russia beam / 12 516>12 524>12 534 : for each of the three carrier in the frequency range of the transponder
TP RU 7, I measured a high gain growth in the range of MER=9-11 dB .

                                                              --- Intelsat 15 : measurement results ---

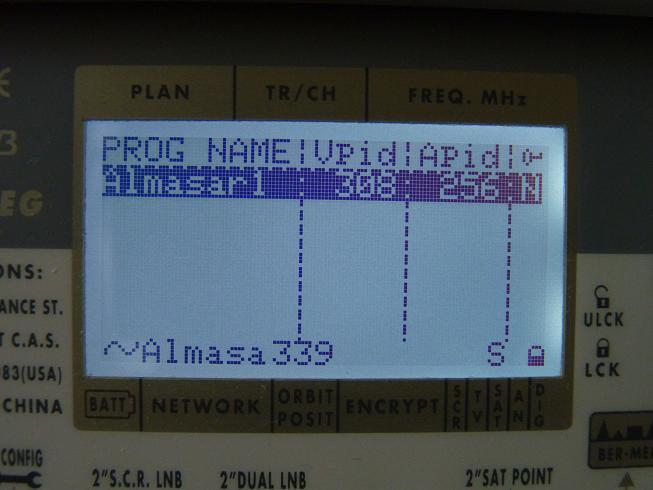

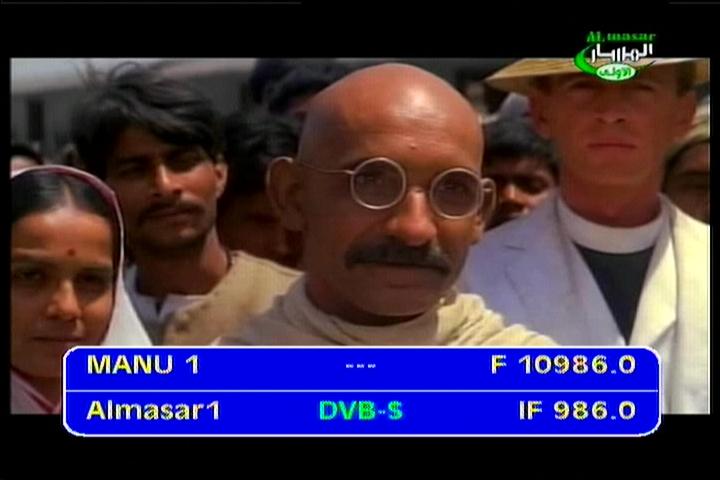

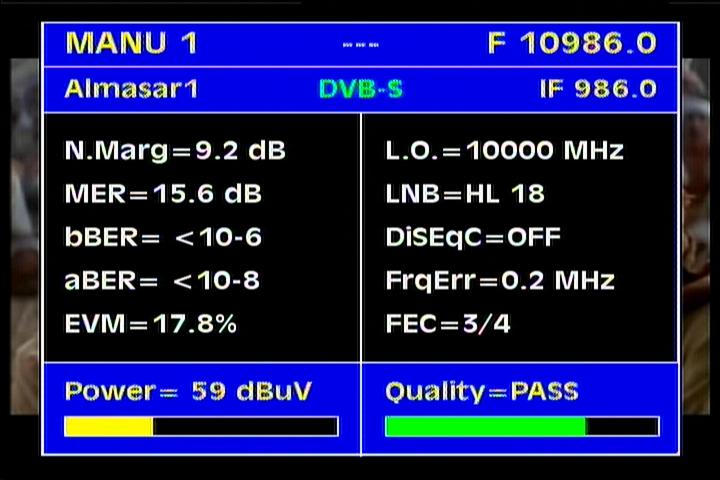

                                         Intelsat 15 at 85.2°E-Middle East beam : 10 986 H Al Masar TV
                         IF data                                                    Q data                                                    NIT data

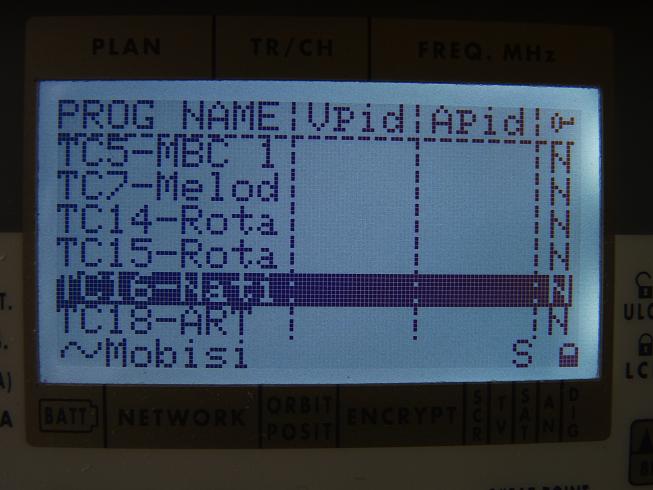

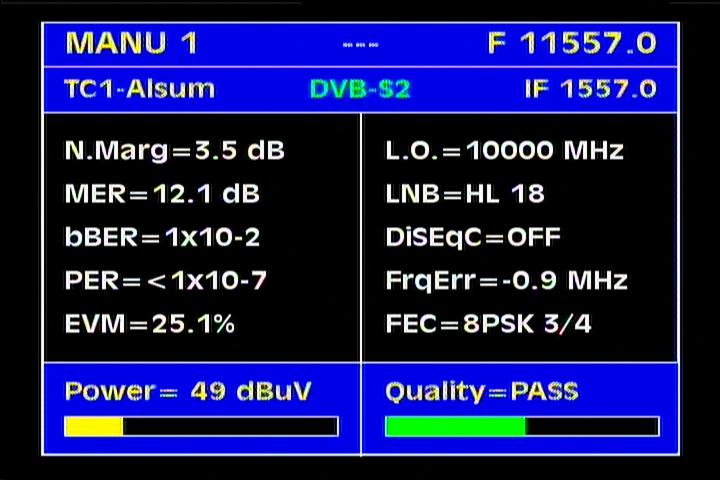

               Intelsat 15 at 85.2°E-Middle East beam : 11 557 H DVB-S2/8PSK Data Mobision  network
                 spectral analysis                                            Q data                                                  NIT data

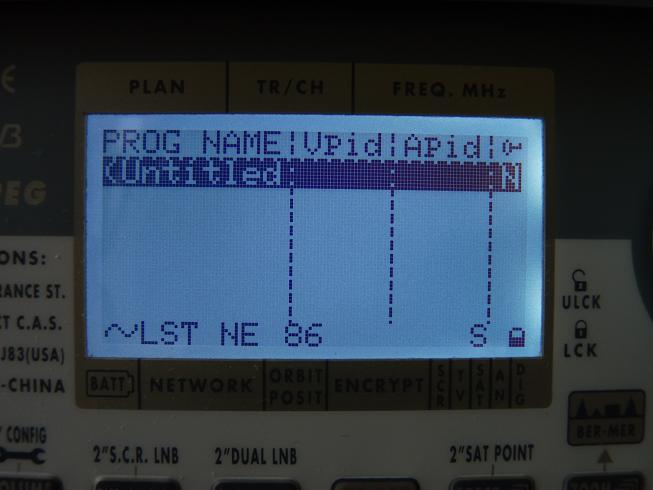

                                             Intelsat 15 at 85.2°E-Middle East beam : 11 625 H DVB-S Data
                  spectral analysis                                            Q data                                                  NIT data

                                                   Intelsat 15 at 85.2°E-Russia beam :12 516 V BST TV
                         IF data                                                    Q data                                                    NIT data

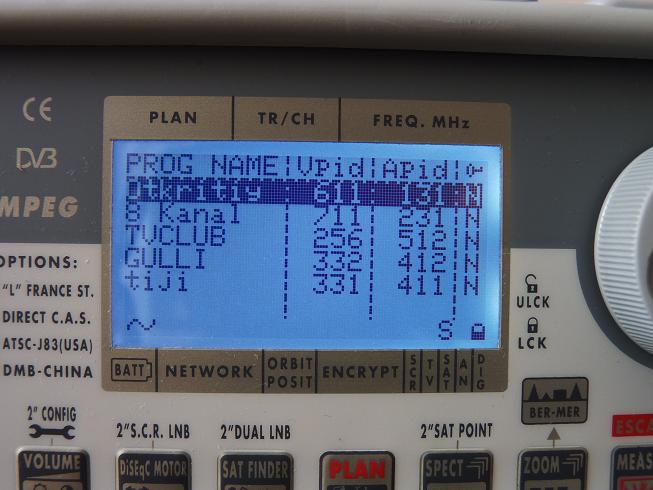

                           Intelsat 15 at 85.2°E-Russia beam :12 523 V DVB-S2/8PSK Unn. russian network
                         IF data                                                    Q data                                                    NIT data

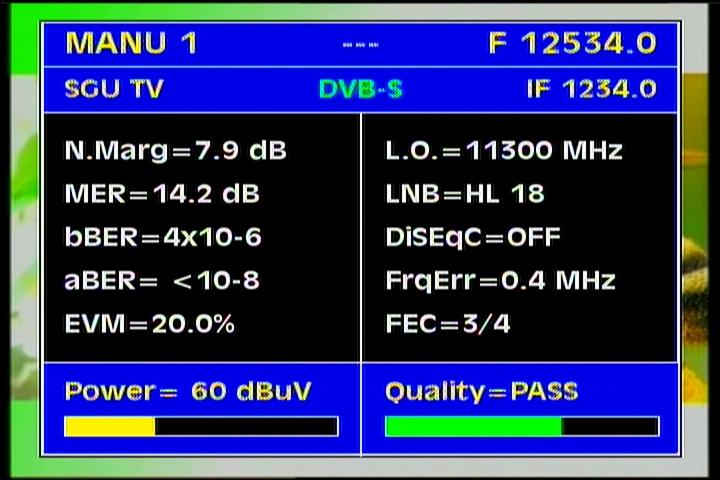

                                                    Intelsat 15 at 85.2°E-Russia beam :12 534 V SGU TV
                         IF data                                                    Q data                                                    NIT data

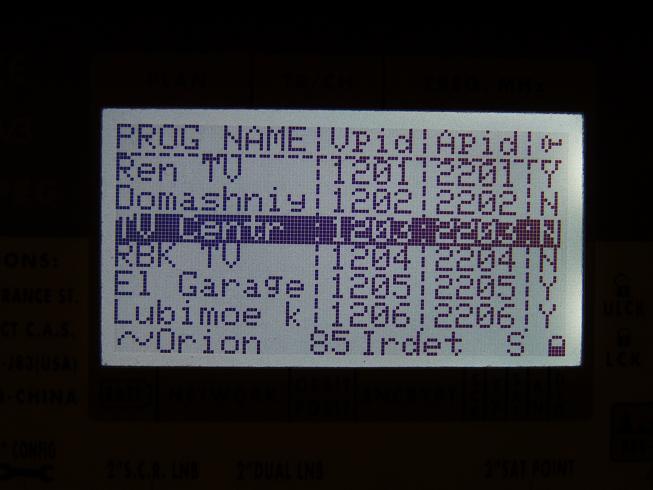

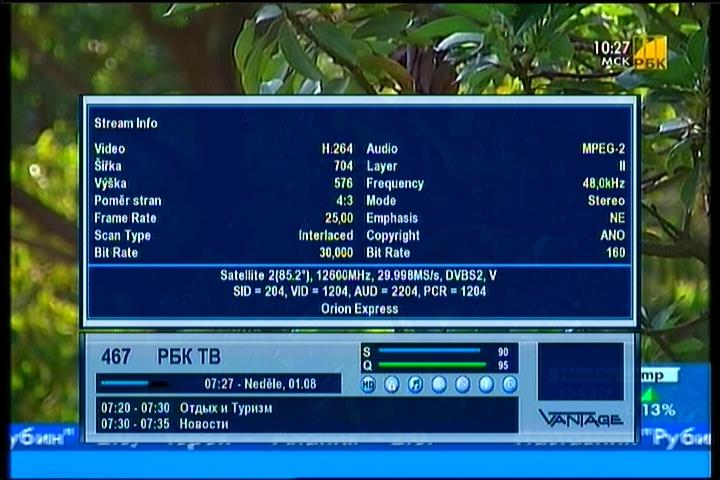

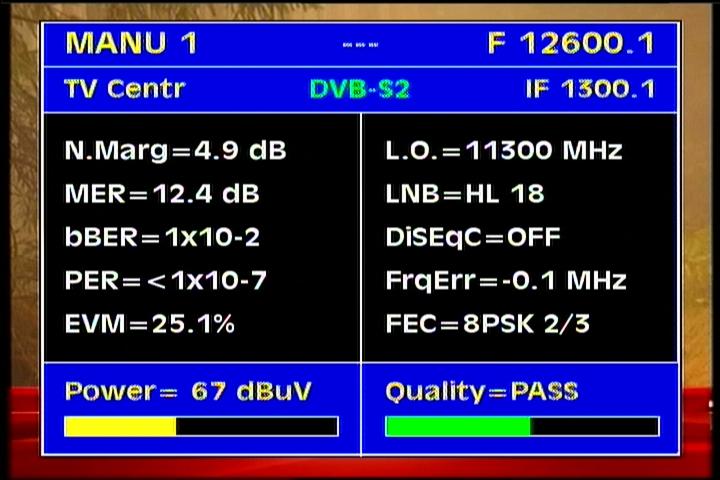

                            Intelsat 15 at 85.2°E-Russia beam :12 600 V DVB-S2/8PSK Packet Kontinent TV
                         IF data                                                    Q data                                                    NIT data

Intelsat 15 at 85.2°E : TV LIST

-----Frequency-----	---------Provider/Channel---------	---SR---	---FEC---	------Footprint------	---Antenna---	---DVB/Encryption---
10 986 -H- tp ME2K	Al Masar TV	2 100	3/4	Middle East/Europe	80-140+ cm	DVB-S / FTA
11 557 -H-tp ME18K	Mobision data network	4 466	3/4	Middle East/Europe	120+ cm	DVB-S2/8PSK/data
	INT 1					data stream
	TC1-Alsum...					data stream
	TC2-Kurdi...					data stream
	TC3-Iraqi...					data stream
	TC4-Iraqi...					data stream
	TC6-Al Arab...					data stream
	TC8-Melody...					data stream
	TC9-Al Ja...					data stream
	TC10-Moga...					data stream
	TC11-Al E...					data stream
	TC12-Fash...					data stream
	TC13-Rota...					data stream
	TC-17-Art...					data stream
	ESG					data stream
	EMM					data stream
	TC5-MBC 1...					data stream..
11 625 -H-tp ME20K	LST Data network	5 425	1/2	Middle East/Europe	60+ cm	DVB-S / data
12 515 -V-tp RU7	BST TV	3 660	3/4	Russia	80+ cm	DVB-S / FTA
12 524-V-tp RU7	Unn.russian network	9 950	5/6	Russia	80-120+ cm	DVB-S2/8PSK   MPEG-2/FTA
	Otkritiy Mir					MPEG-2/FTA
	8 Canal					MPEG-2/FTA
	TV Club					MPEG-2/FTA
	Gulli					MPEG-2/FTA
	Tiji					MPEG-2/FTA
12 534-V-tp RU7	unn. network	6 666	3/4	Russia	80+ cm	DVB-S / FTA
	SGU TV					FTA
	SGA TV					FTA
12 565 -V-tp RU9	Data	6 564	5/6	Russia	80+ cm	DVB-S / data
12 600-V-tp RU11	Kontinent TV	30 000	2/3	Russia	80-120+ cm	DVB-S2/8PSK      MPEG-4
	REN TV					MPEG-4/Irdeto 2
	Domashniy telekanal					MPEG-4/FTA
	Centr TV					MPEG-4/FTA
	RBK TV					MPEG-4/FTA
	El Garage					MPEG-4/Irdeto 2
	Lubimoe Kino					MPEG-4/Irdeto 2
	Universal Channel					MPEG-4/Irdeto 2
	TV3					MPEG-4/Irdeto 2
	Telekanal 2x2					MPEG-4/Irdeto 2
	SET					MPEG-4/Irdeto 2
	TV XXI					MPEG-4/Irdeto 2
	AXN Sci-Fi					MPEG-4/Irdeto 2
	Mir Seriala					MPEG-4/FTA
	Futbol					MPEG-4/Irdeto 2
	Eurosport					MPEG-4/Irdeto 2
	Eurosport 2					MPEG-4/Irdeto 2
	Extreme Sports					MPEG-4/Irdeto 2
	Discovery Science					MPEG-4/Irdeto 2
	Discovery World					MPEG-4/Irdeto 2
	Discovery Travel					MPEG-4/Irdeto 2
	Detskij Mir					MPEG-4/Irdeto 2
	VH1 Classic					MPEG-4/Irdeto 2
	MTV Hits					MPEG-4/Irdeto 2
	National Geographic					MPEG-4/Irdeto 2
	Telecafé					MPEG-4/Irdeto 2
	Ocean TV					MPEG-4/Irdeto 2
	1 Rock TV test					MPEG-4/FTA
	Shason TV					MPEG-4/Irdeto 2
	Zee TV Russia					MPEG-4/Irdeto 2
12 640 -V-tp RU13	Kontinent TV	30 000	5/6	Russia	80-120+ cm	DVB-S / MPEG-2       Irdeto 2
	Kontinent TV					Irdeto 2
	Perviy Kanal					Irdeto 2
	Rossiya 1					Irdeto 2
	Rossiya K					Irdeto 2
	Telekanal Zvezda					FTA
	Rossiya 24					Irdeto 2
	Rossiya 2					Irdeto 2
	5 Kanal					Irdeto 2
	Bibigon					Irdeto 2
	KHL TV					Irdeto 2
	STS					Irdeto 2
	Hallmark TV					Irdeto 2
	Discovery Channel					Irdeto 2
	Animal Planet					Irdeto 2
	Kids Co					Irdeto 2
	Muzhskoy					Irdeto 2
	Uspech					Irdeto 2
	Zagorodnaya Zhizn					Irdeto 2
