ABS-S System

ABS-S Advanced Broadcasting System-Satellite / dxsatcs experimental waveguide line

Posted December 1st, 2009 by Roman Dávid.

Chinasat 9 at 92.2°E - Asian footprint : proposal for high-frequency unit for receiving a circular wave vector L

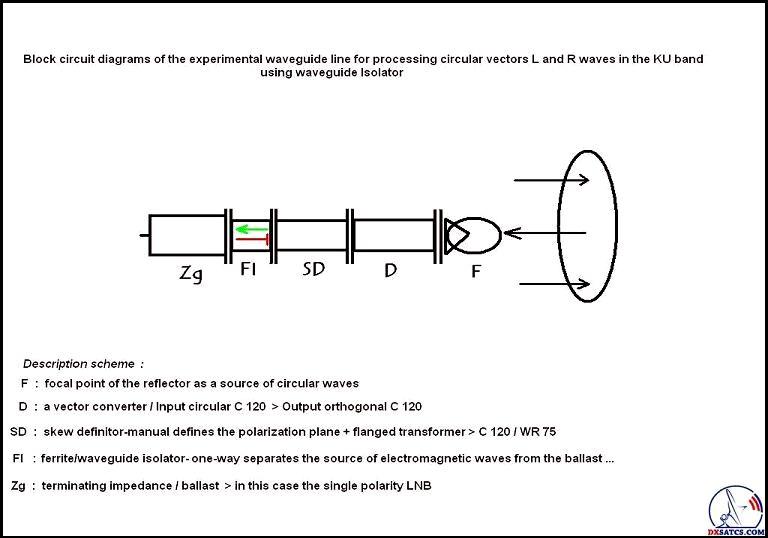

-diagram of the theoretical proposal for an experimental waveguide line, which I installed in the intake packet format ABS-S-

      --- waveguide line invented and designed : Roman Dávid _ author & founder of http://www.dxsatcs.com/ ---

                                                                Click on the picture for high resolution
chinasat-9-at-92.2-abs-s-dxsatcs-waveguide-line-first-n
.

                                            --- practical implementation of theoretical proposal ---

          --- check the quality of the waveguide line taken ABS-S packets from the orbital position 92.2° East ---

-Video records of measurements and analysis of packets in the standard ABS-S in place of reception Lučenec_Slovakia-

.
                      23.10.2010                                                          23.10.2010

                       24.4.2010                                                             24.4.2010

                      28.11.2009                                                            28.11.2009

                             ---  Web dxsatcs.com founder  Roman Dávid  in action ---
.

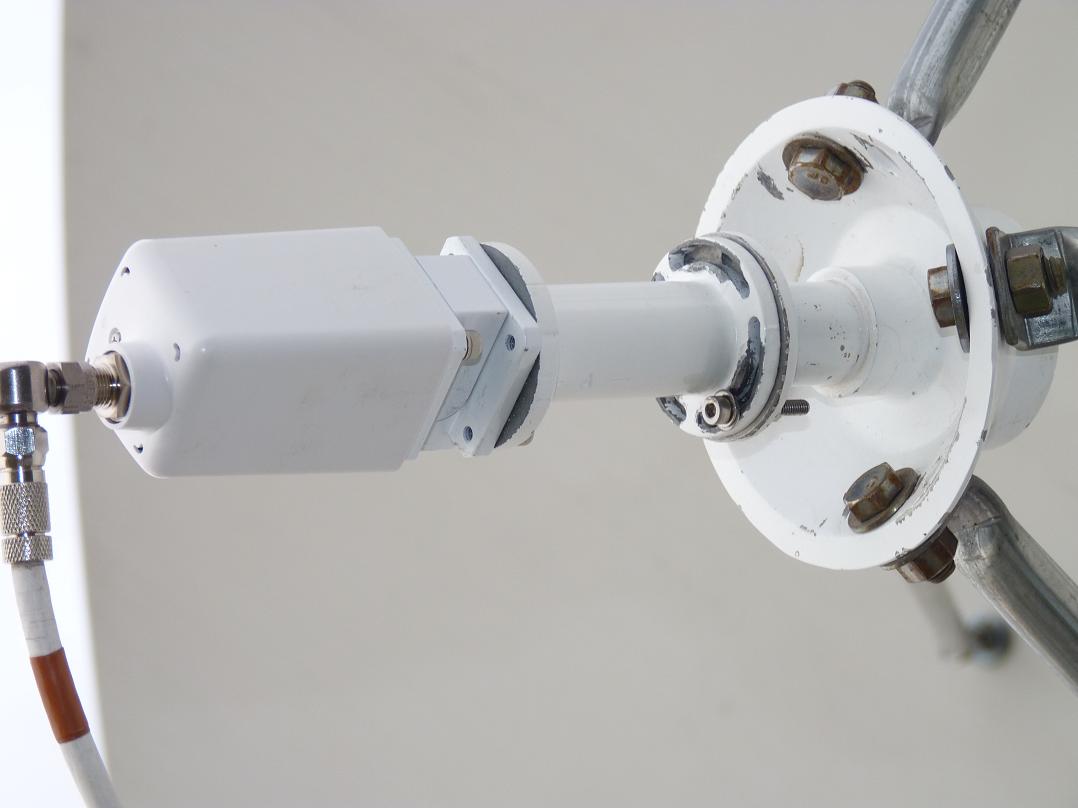

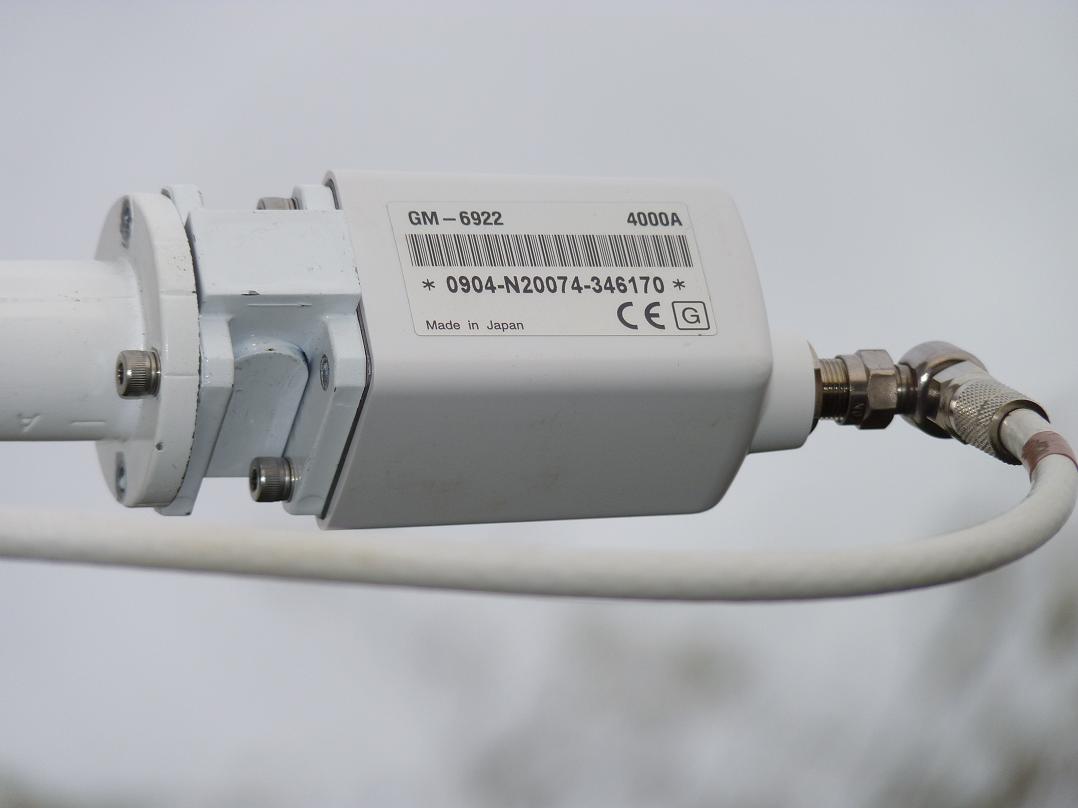

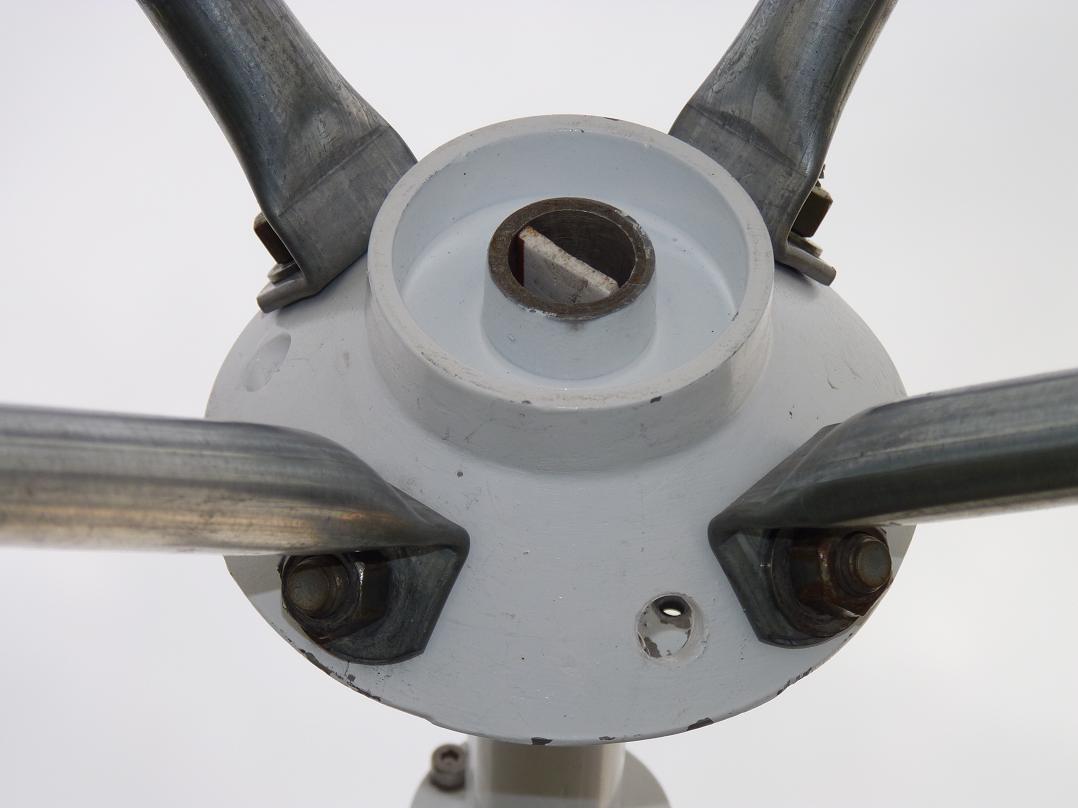

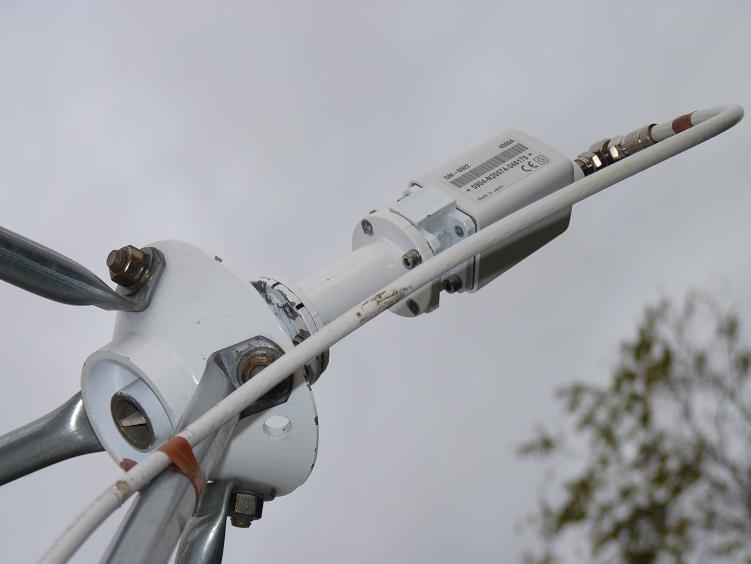

Chinasat 9 at 92.2°E : dxsatcs waveguide line of third generation with LNB Norsat 4206 AF

.
                                                                              click for enlarge
chinasat 9 at 92.2e-abs-s system-dxsatcs waveguide line of third generation-00n
                                                               --- date of first tests : 23.10.2010 ---

chinasat 9 at 92.2e-abs-s system-dxsatcs waveguide line of third generation-01chinasat 9 at 92.2e-abs-s system-dxsatcs waveguide line of third generation-02chinasat 9 at 92.2e-abs-s system-dxsatcs waveguide line of third generation-03
chinasat 9 at 92.2e-abs-s system-dxsatcs waveguide line of third generation-04chinasat 9 at 92.2e-abs-s system-dxsatcs waveguide line of third generation-05chinasat 9 at 92.2e-abs-s system-dxsatcs waveguide line of third generation-06
chinasat 9 at 92.2e-abs-s system-dxsatcs waveguide line of third generation-07chinasat 9 at 92.2e-abs-s system-dxsatcs waveguide line of third generation-08chinasat 9 at 92.2e-abs-s system-dxsatcs waveguide line of third generation-09
.

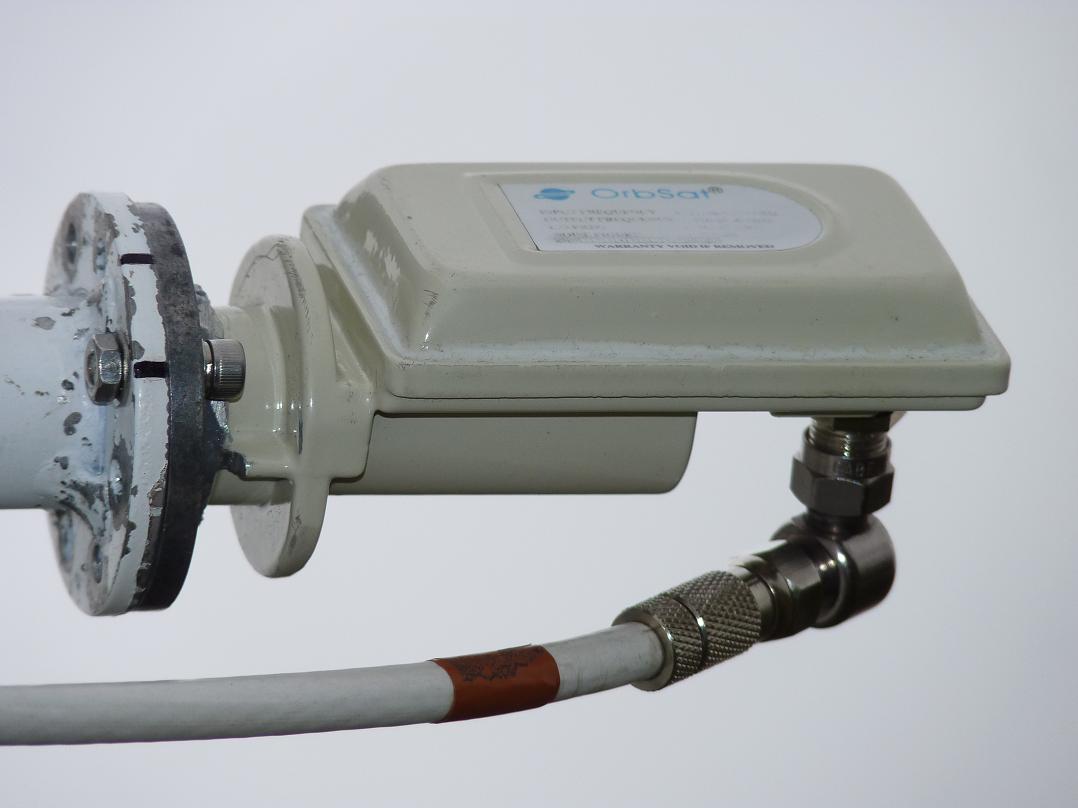

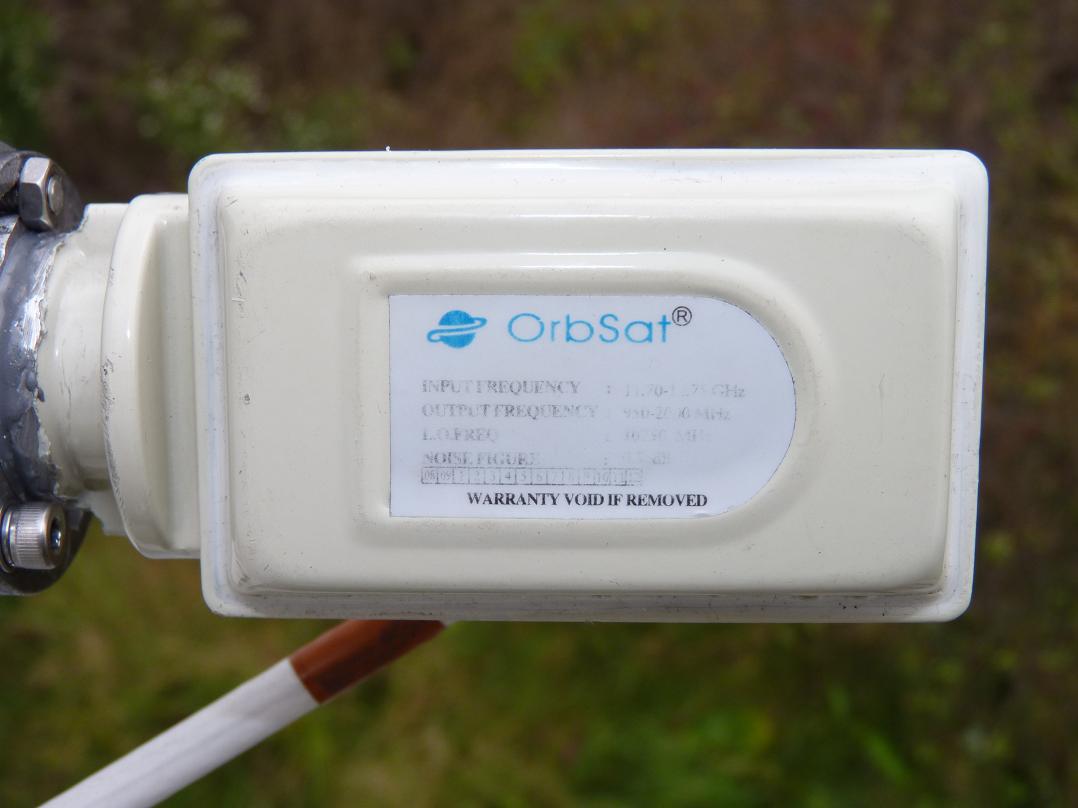

ChinaSat 9 at 92.2°E:unusual single-polarity converter OrbSat O.SB 25 with waveguide flange C120

.
                                                   --- Orbsat O.S B25-technical data from manufacturer ---
.
Input frequency : 11.7 - 12.75 GHz
Output frequency : 950-2000 MHz
LOF frequency : 10 750 MHz
Noise Figure : 0.5 dB / f
Conversion Gain : 60 dB

.

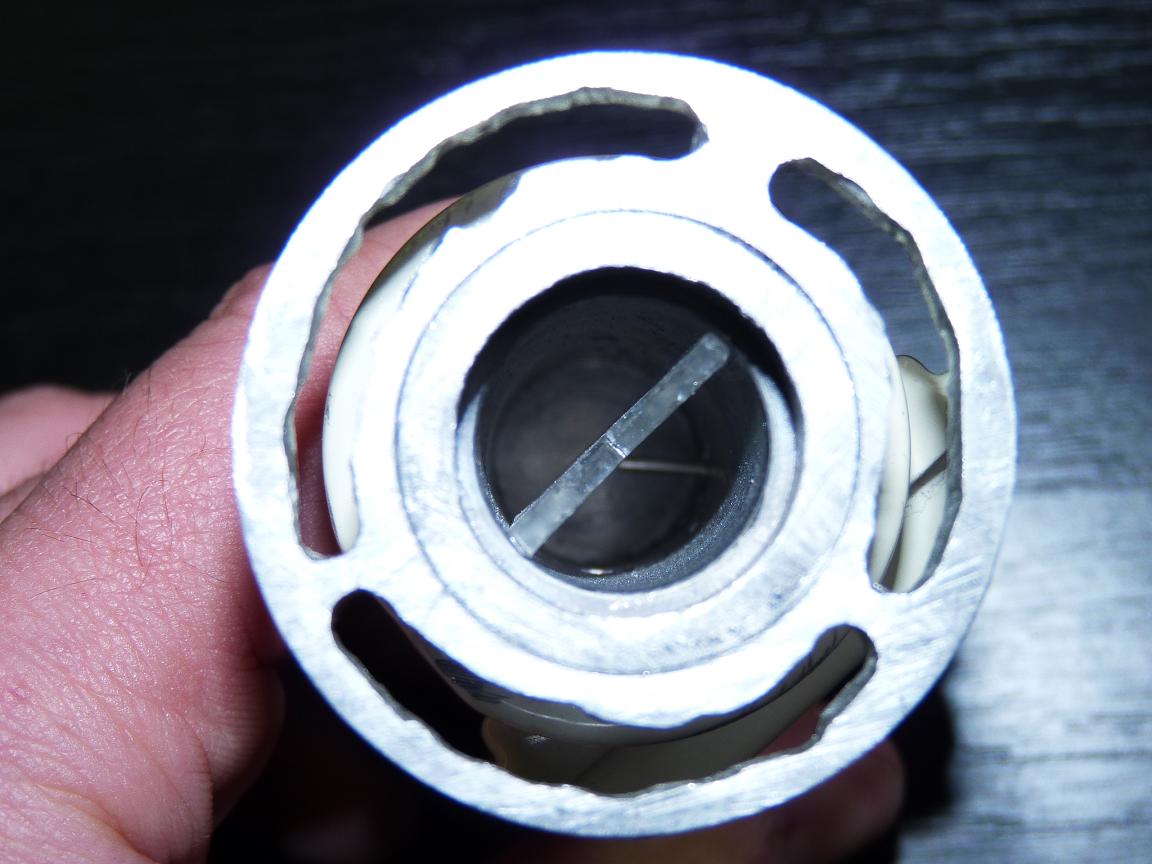

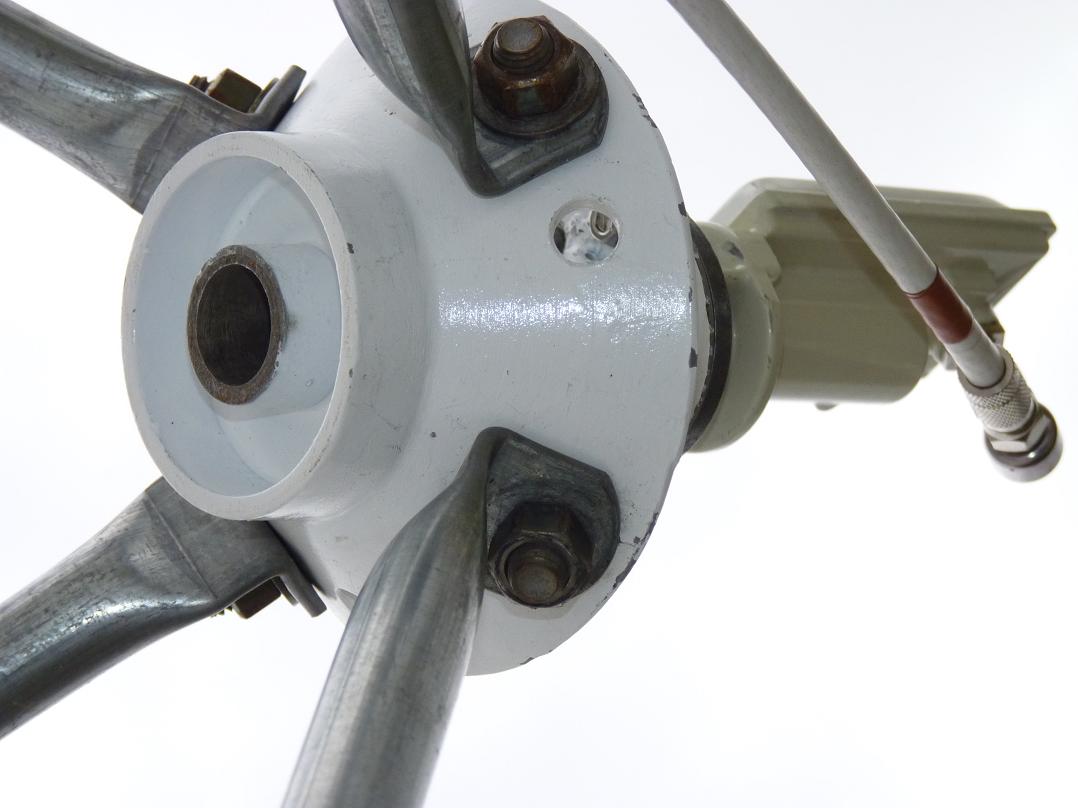

                                           --- small adjustment of the converter, which conducted the author ---
-unusual converter for offset types of antennas with a small diameter was initially designed to receive waves of
left-circular polarization of the satellite Chinasat 9 at 92.2°E.Author proposed a simple adjustment made
in order to install the converter for PF feedhorn with waveguide flange type C120.But all the measurements and
analysis, I performed only with the dxsatcs waveguide line of third generation .

                                                                             click for enlarge
chinasat 9 at 92.2e-abs-s system-single polarity lnb orbsat for part of KU band-00n
chinasat 9 at 92.2e-abs-s system-single polarity lnb orbsat for part of KU band-01chinasat 9 at 92.2e-abs-s system-single polarity lnb orbsat for part of KU band-02chinasat 9 at 92.2e-abs-s system-single polarity lnb orbsat for part of KU band-03
chinasat 9 at 92.2e-abs-s system-single polarity lnb orbsat for part of KU band-04chinasat 9 at 92.2e-abs-s system-single polarity lnb orbsat for part of KU band-05chinasat 9 at 92.2e-abs-s system-single polarity lnb orbsat for part of KU band-06
chinasat 9 at 92.2e-abs-s system-single polarity lnb orbsat for part of KU band-07chinasat 9 at 92.2e-abs-s system-single polarity lnb orbsat for part of KU band-08chinasat 9 at 92.2e-abs-s system-single polarity lnb orbsat for part of KU band-09
chinasat 9 at 92.2e-abs-s system-single polarity lnb orbsat for part of KU band-10chinasat 9 at 92.2e-abs-s system-single polarity lnb orbsat for part of KU band-11chinasat 9 at 92.2e-abs-s system-single polarity lnb orbsat for part of KU band-12
chinasat 9 at 92.2e-abs-s system-single polarity lnb orbsat for part of KU band-13chinasat 9 at 92.2e-abs-s system-single polarity lnb orbsat for part of KU band-14chinasat 9 at 92.2e-abs-s system-single polarity lnb orbsat for part of KU band-15
.

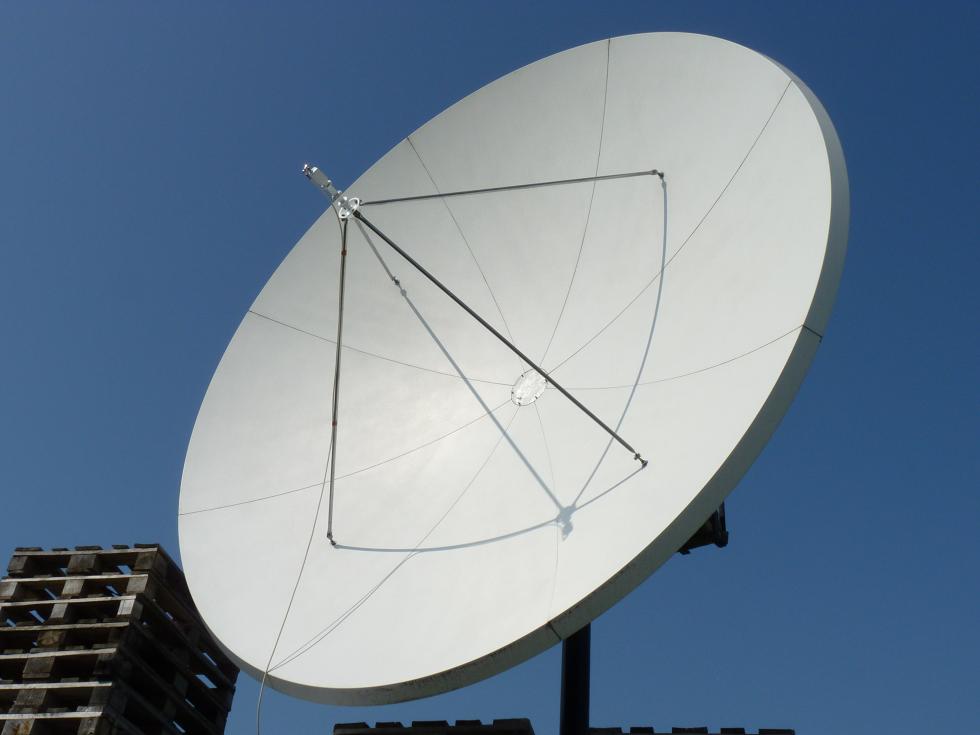

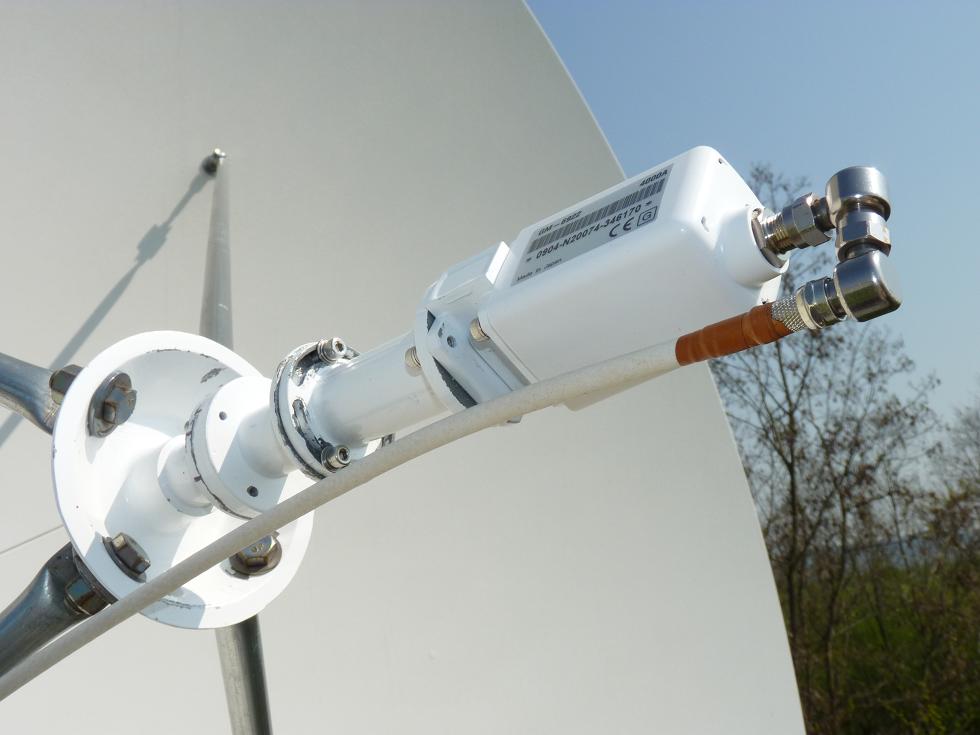

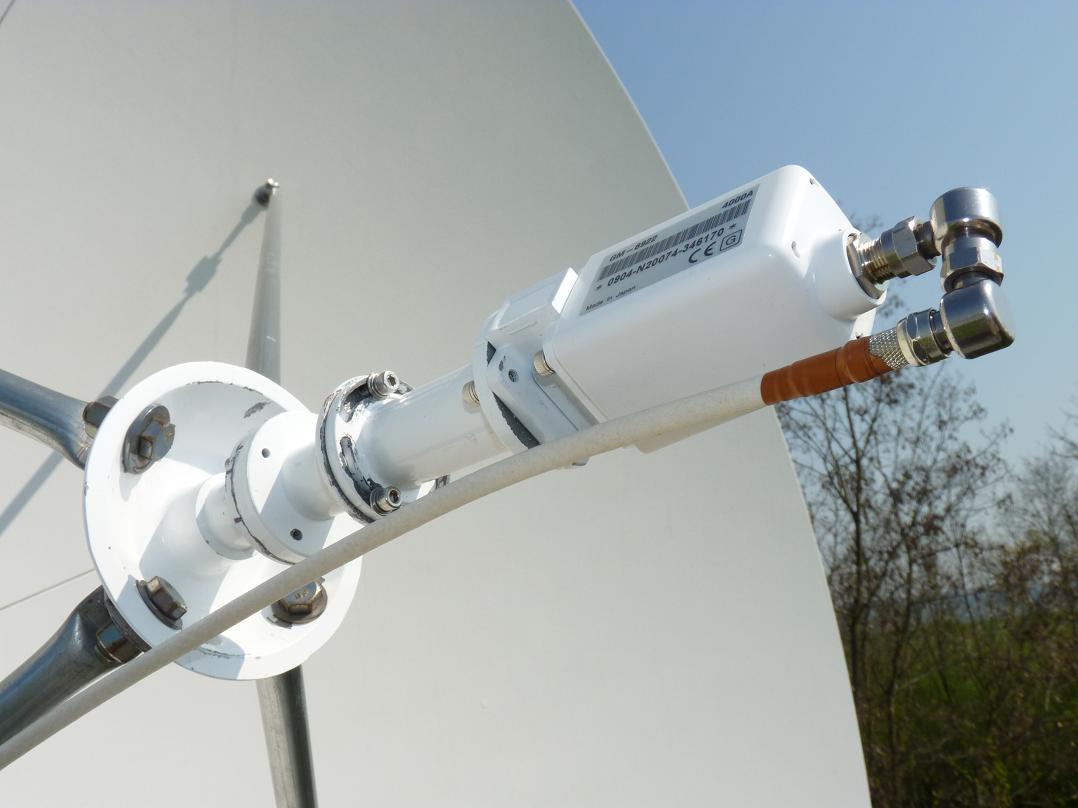

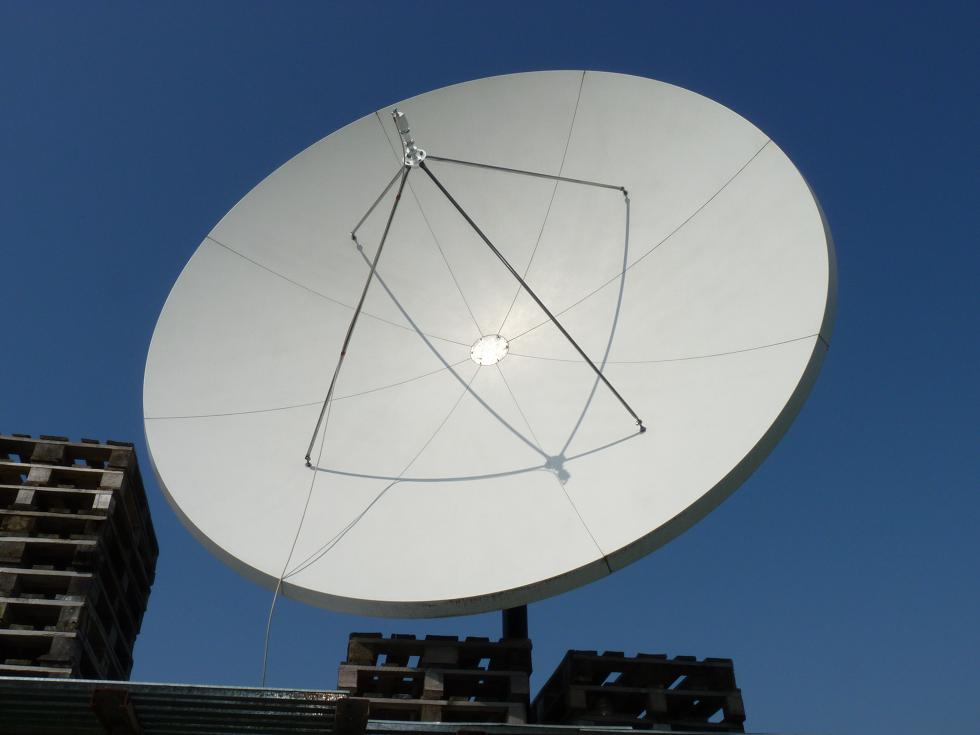

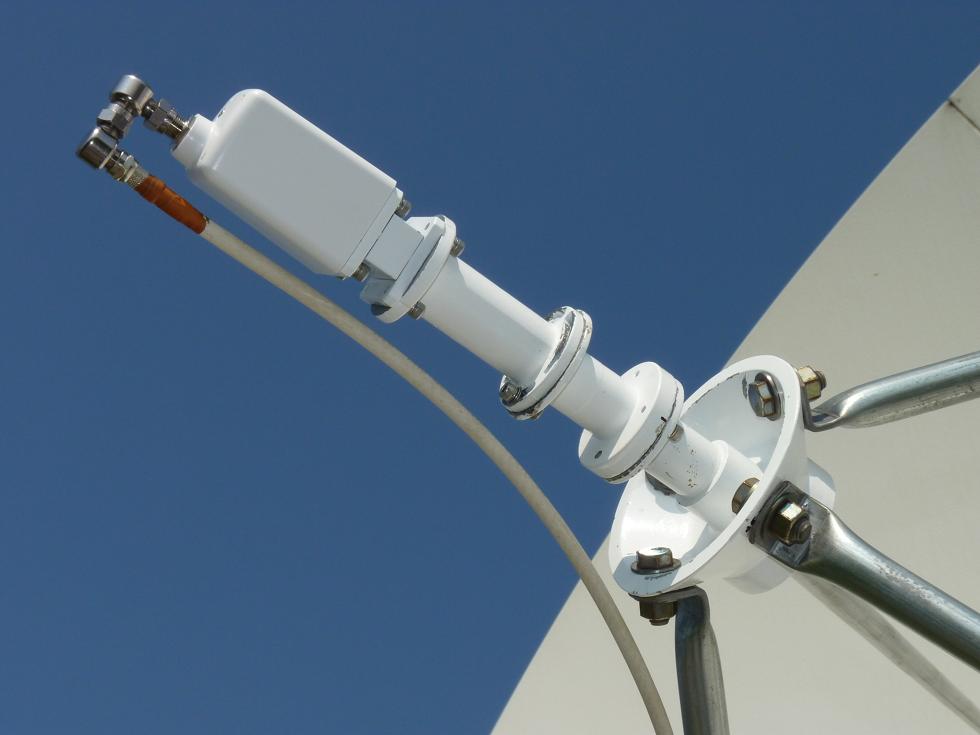

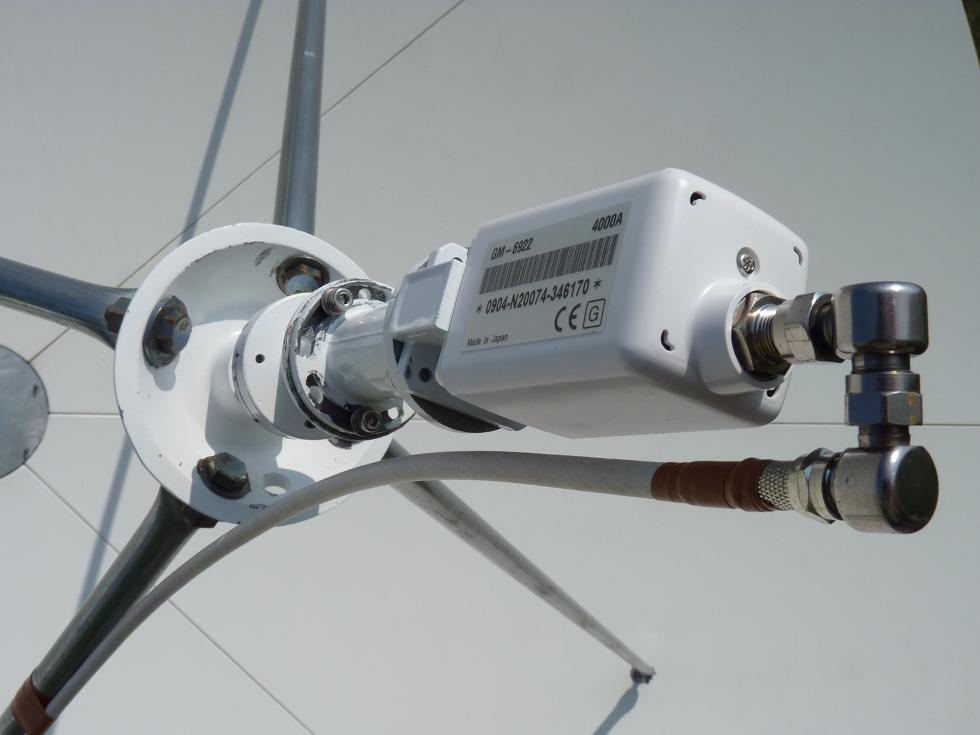

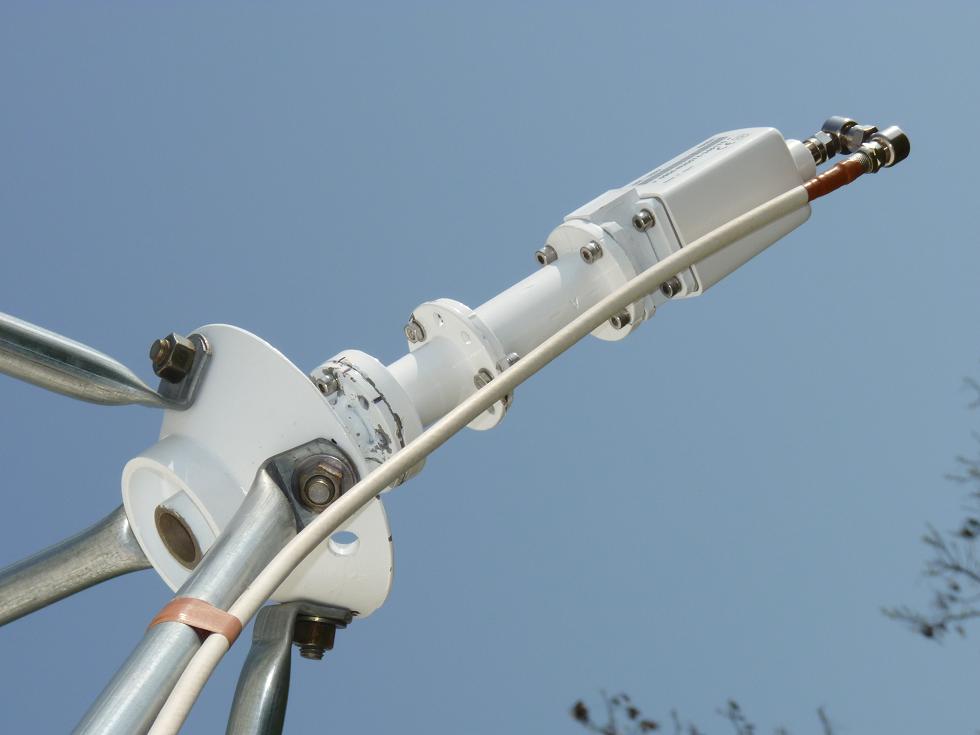

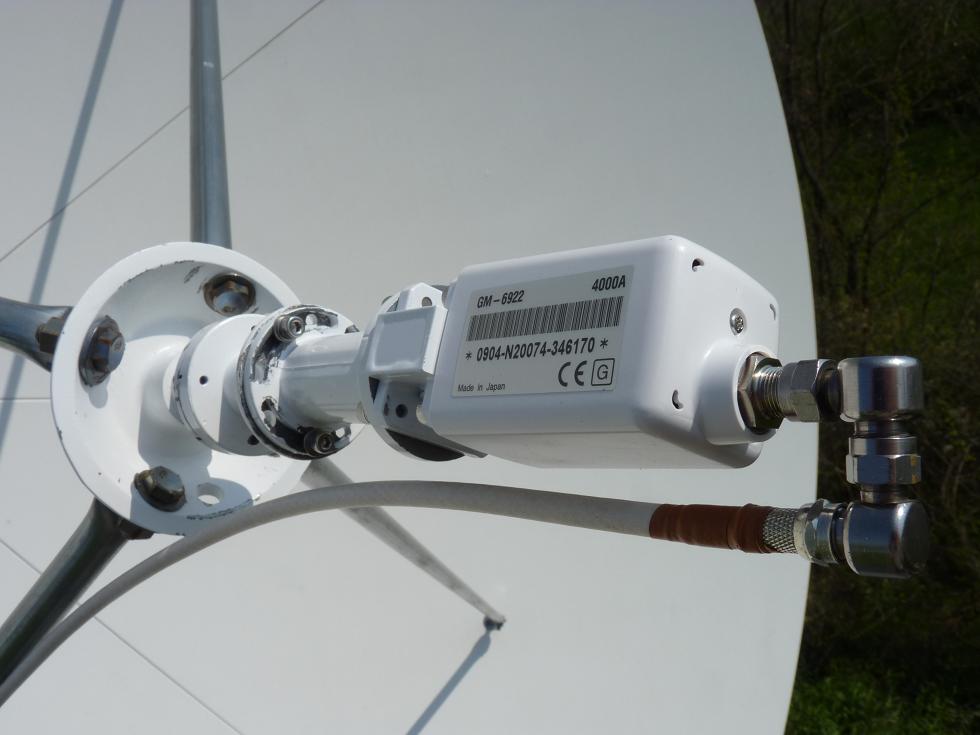

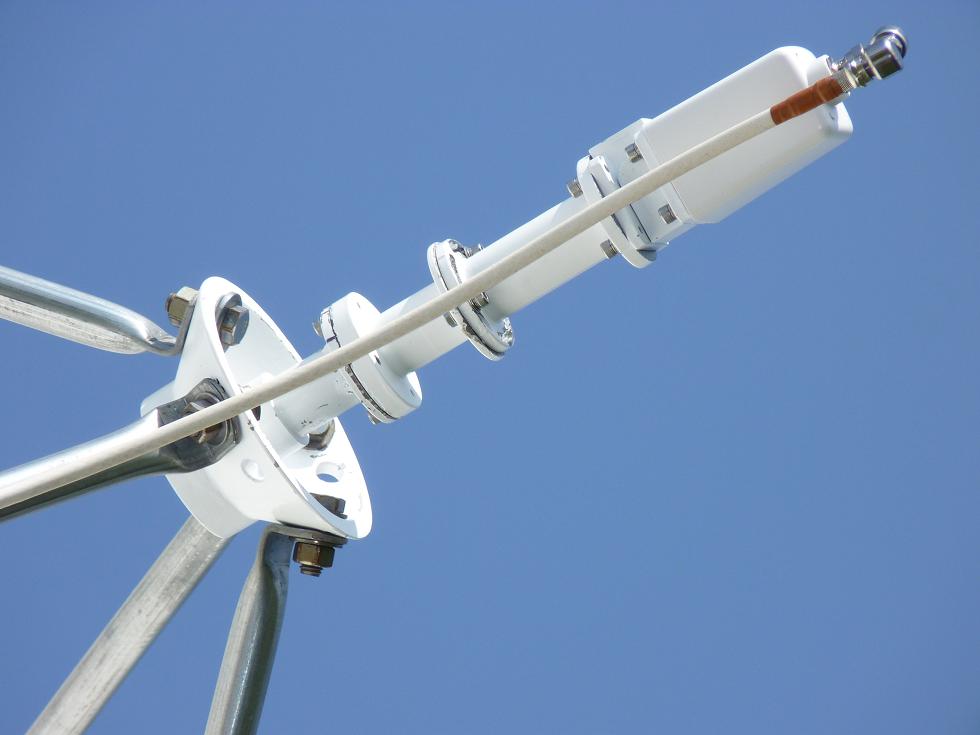

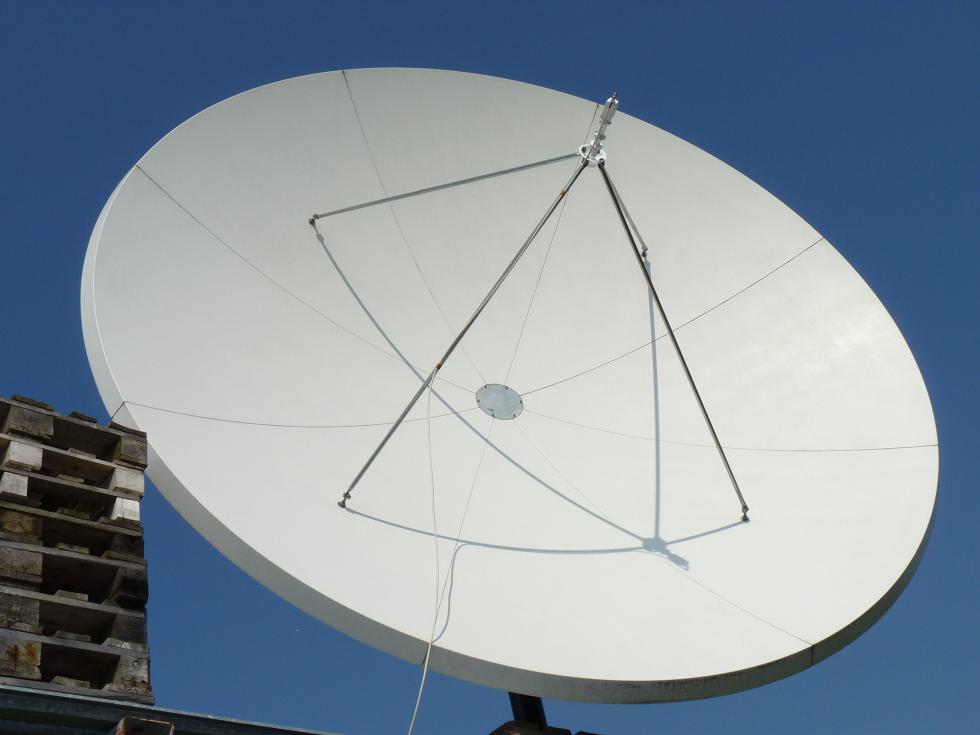

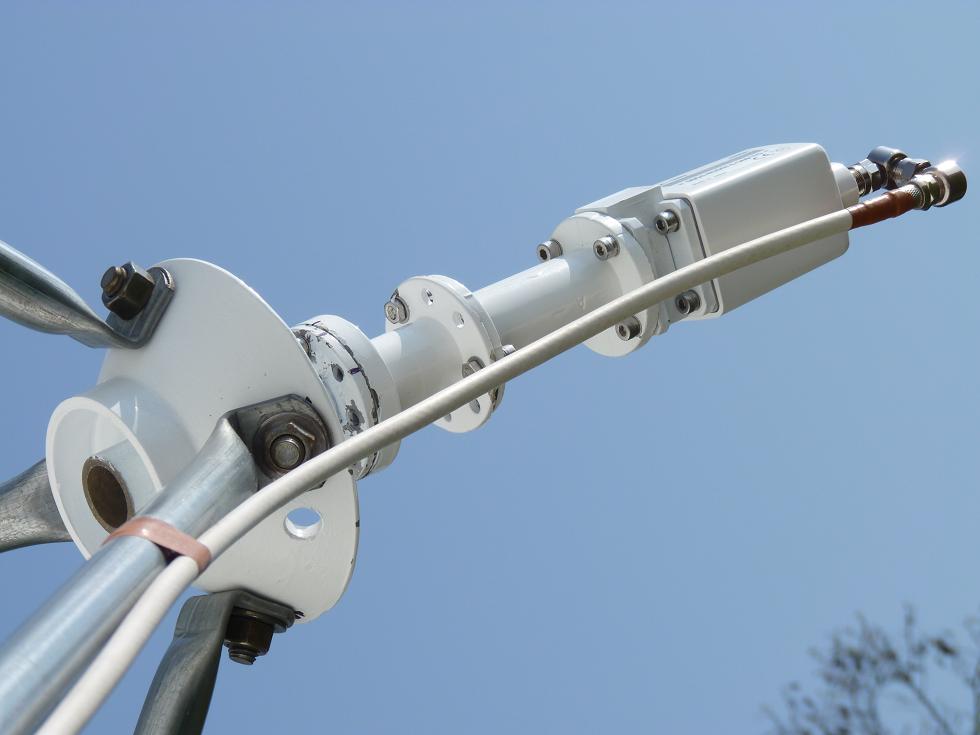

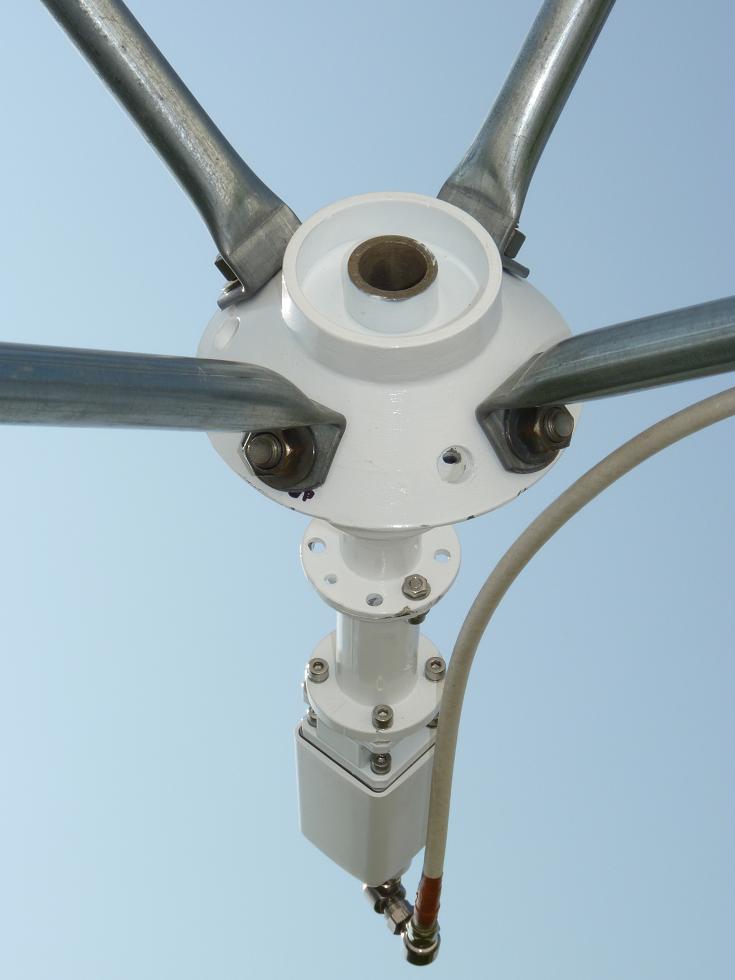

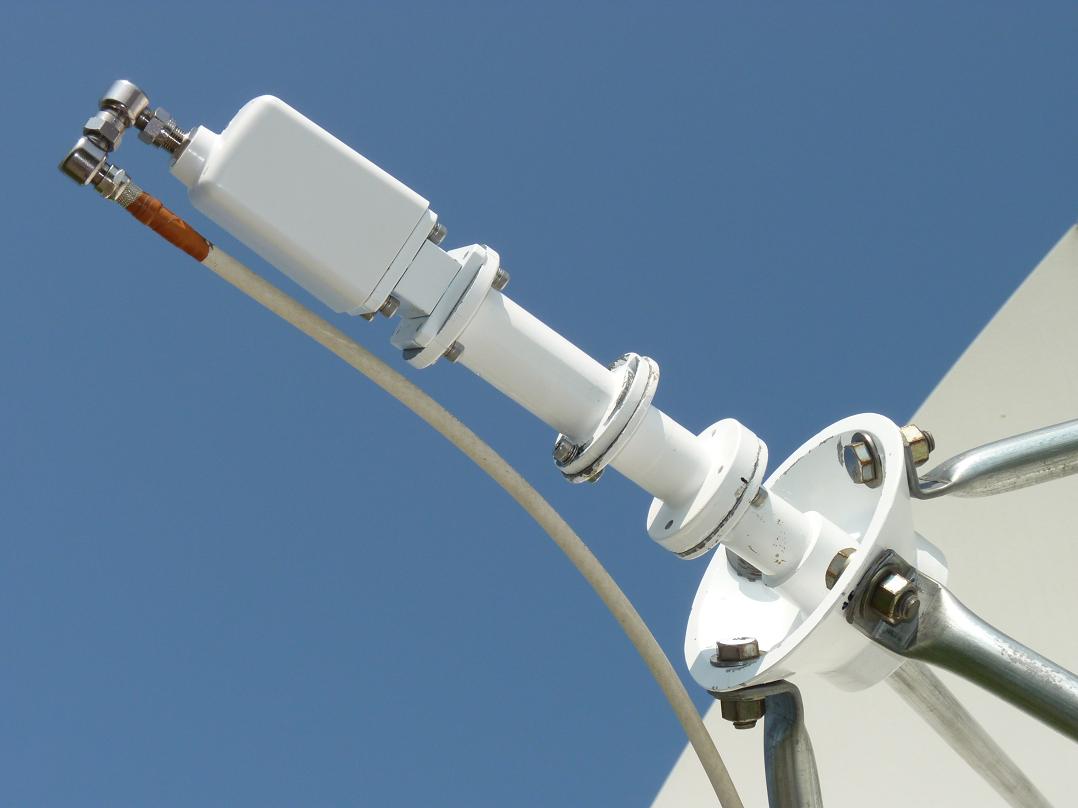

Chinasat 9 at 92.2°E : dxsatcs waveguide line of second generation with Norsat 4206 AF

                                                                       Click for higher quality
Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _002

                                                                           download pdf

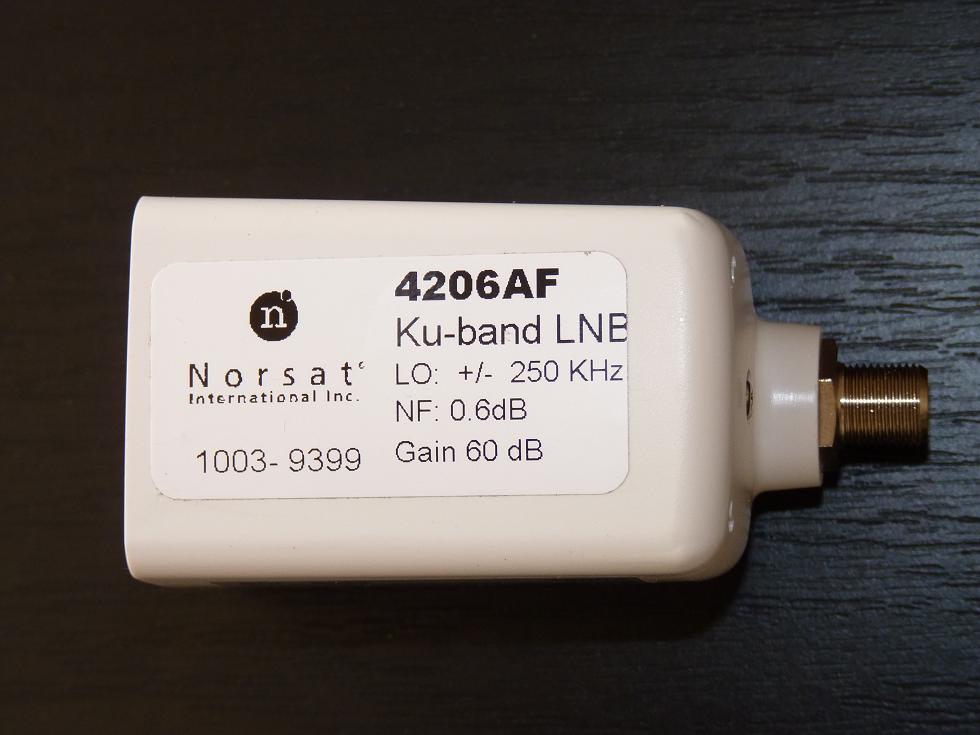

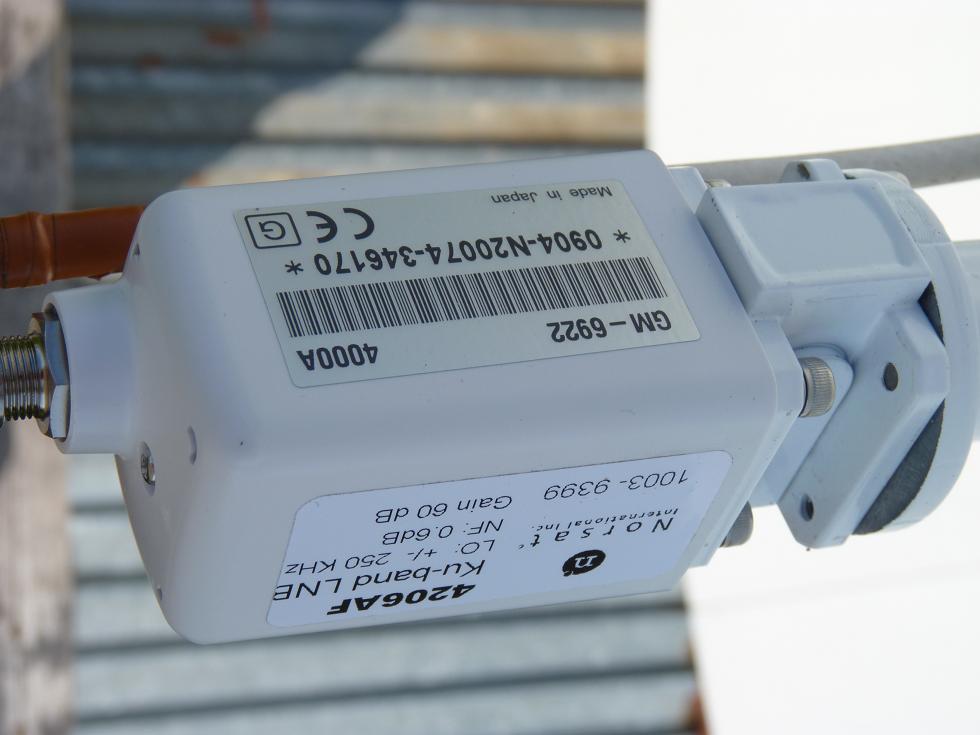

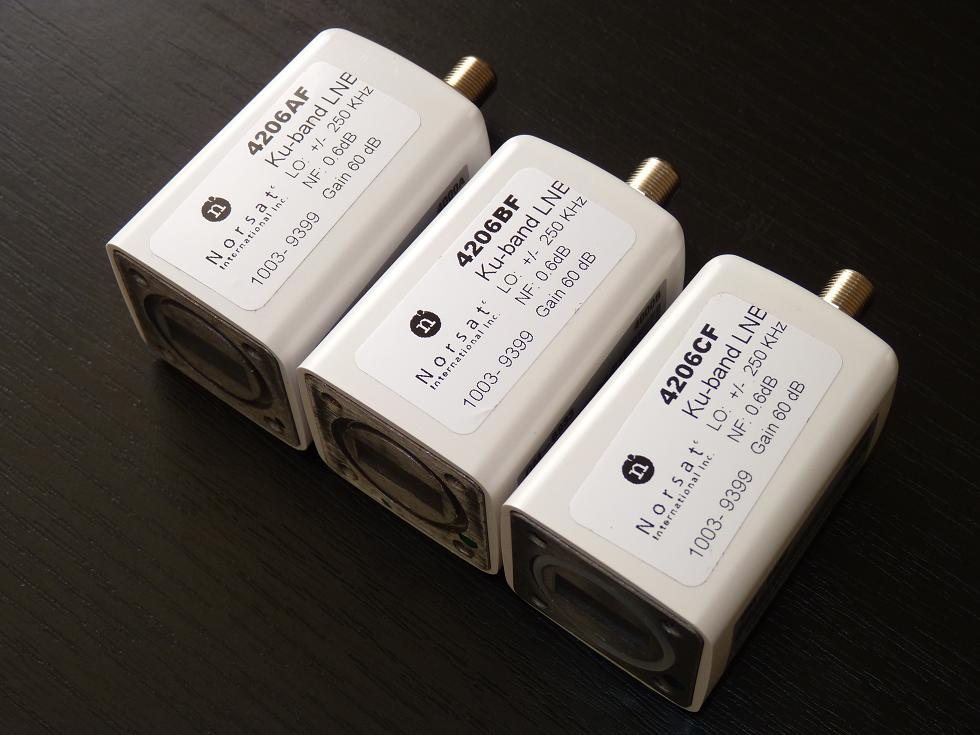

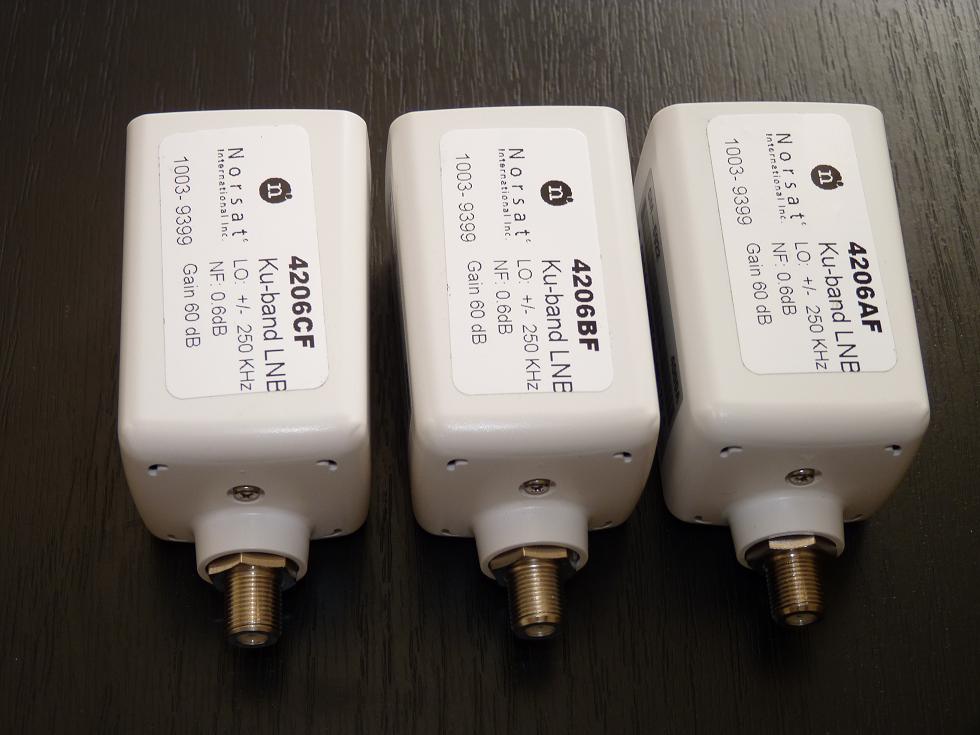

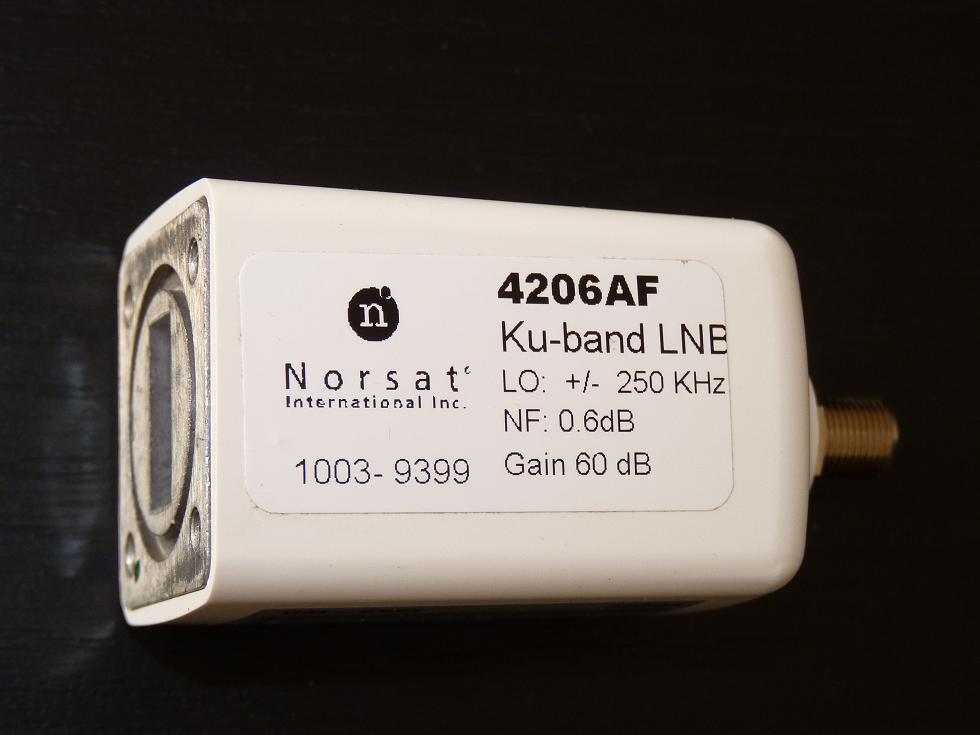

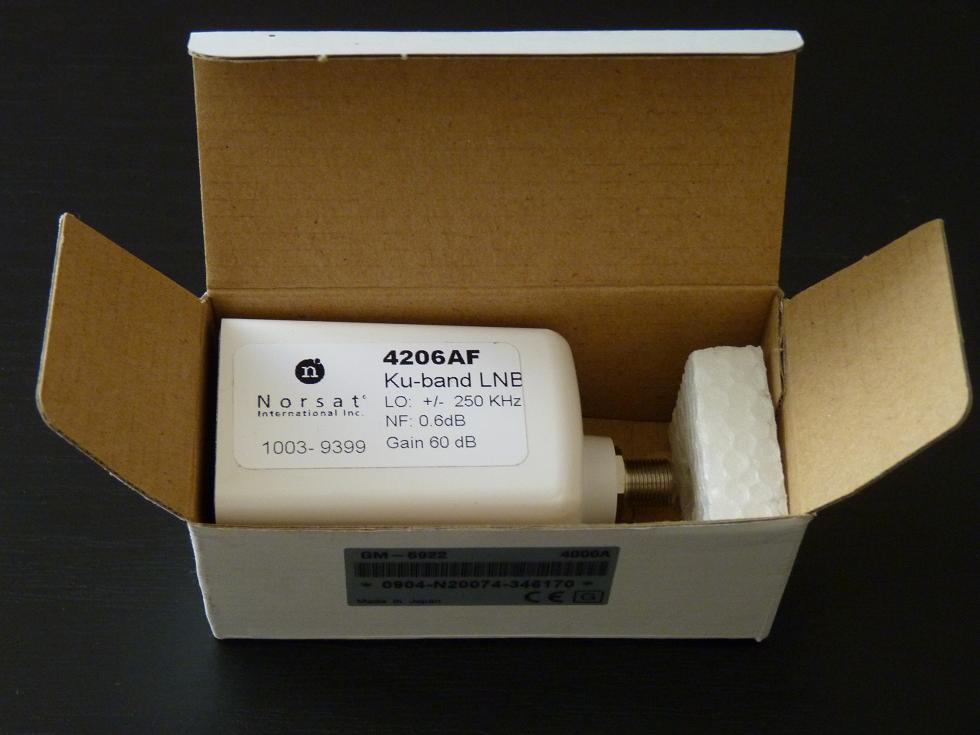

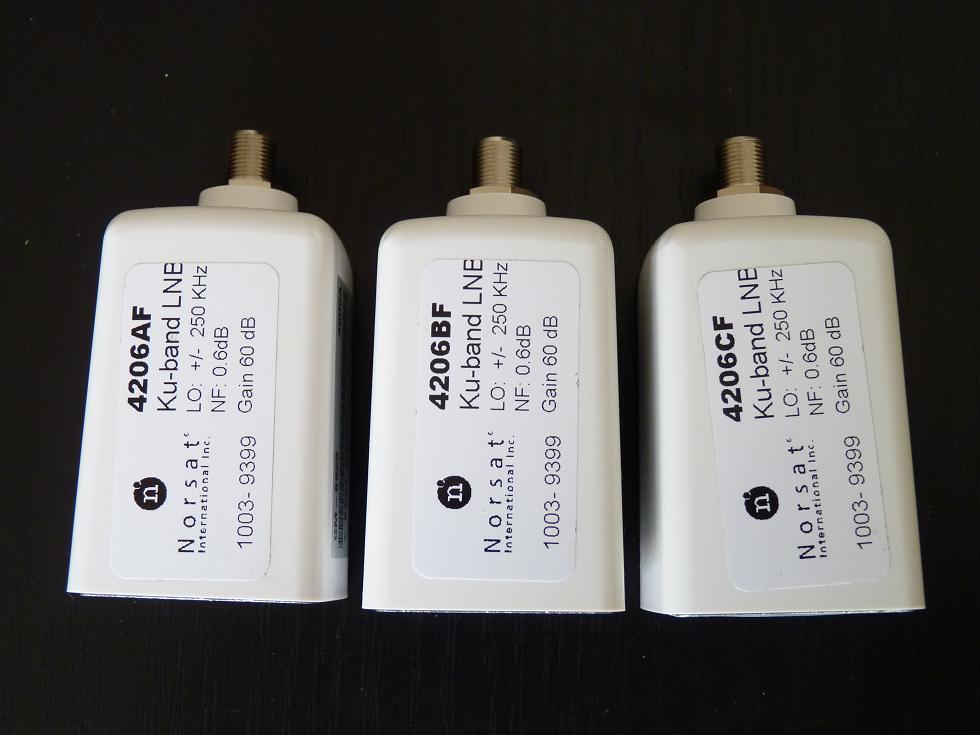

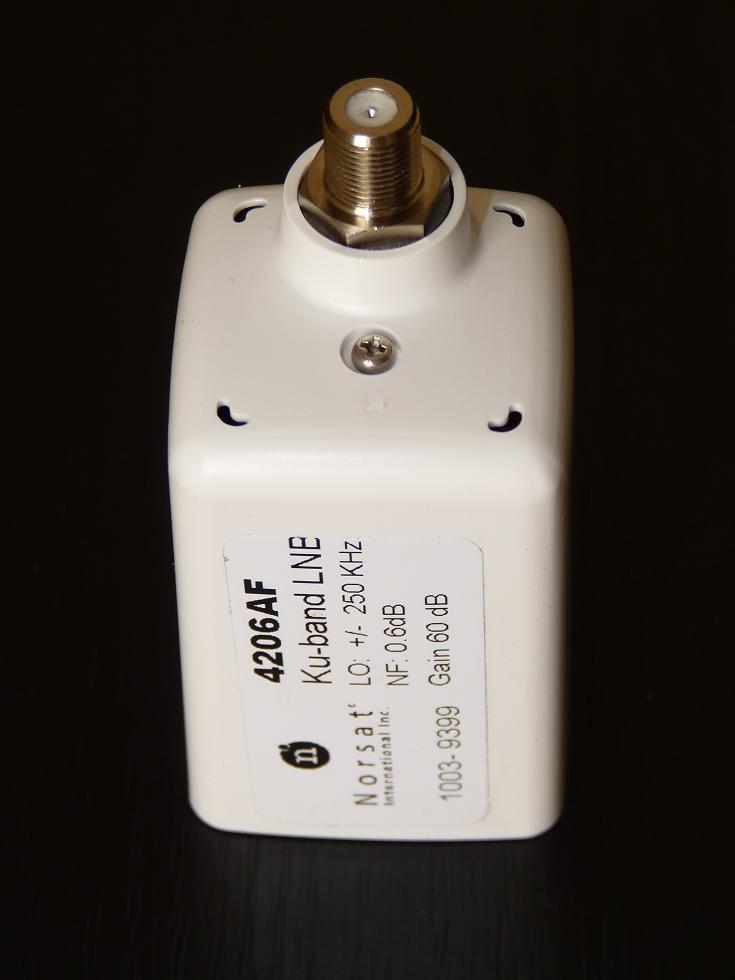

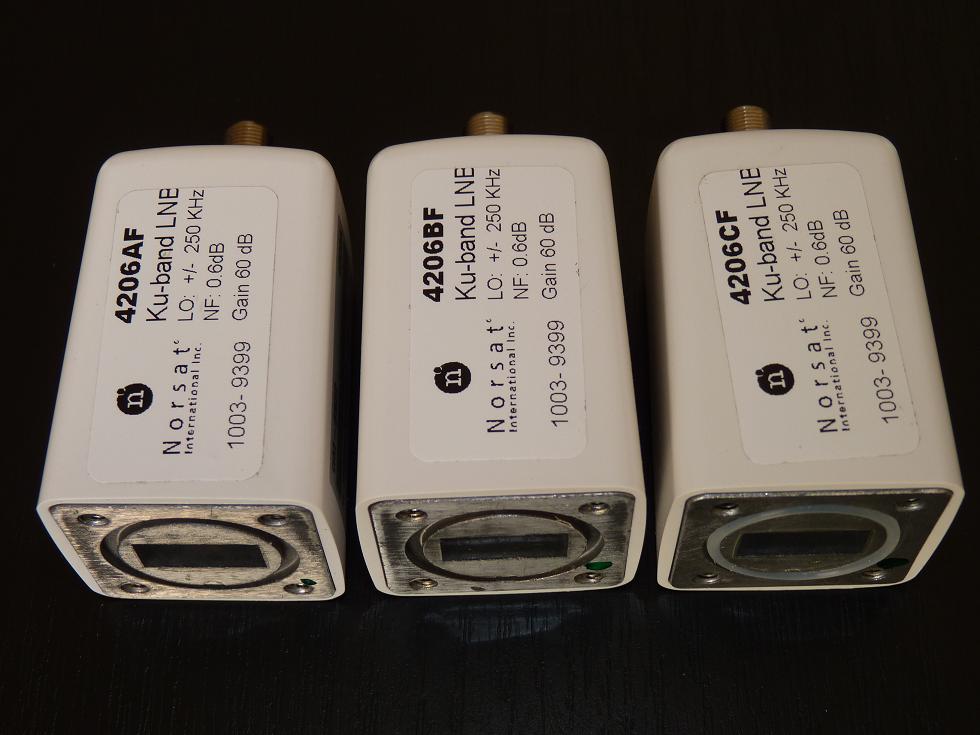

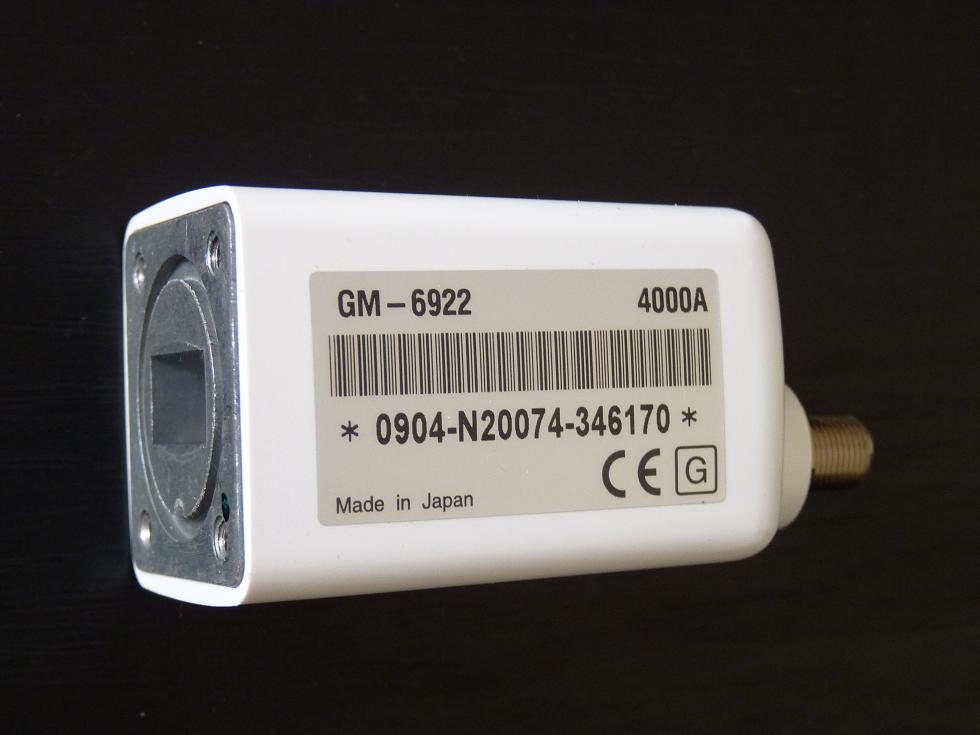

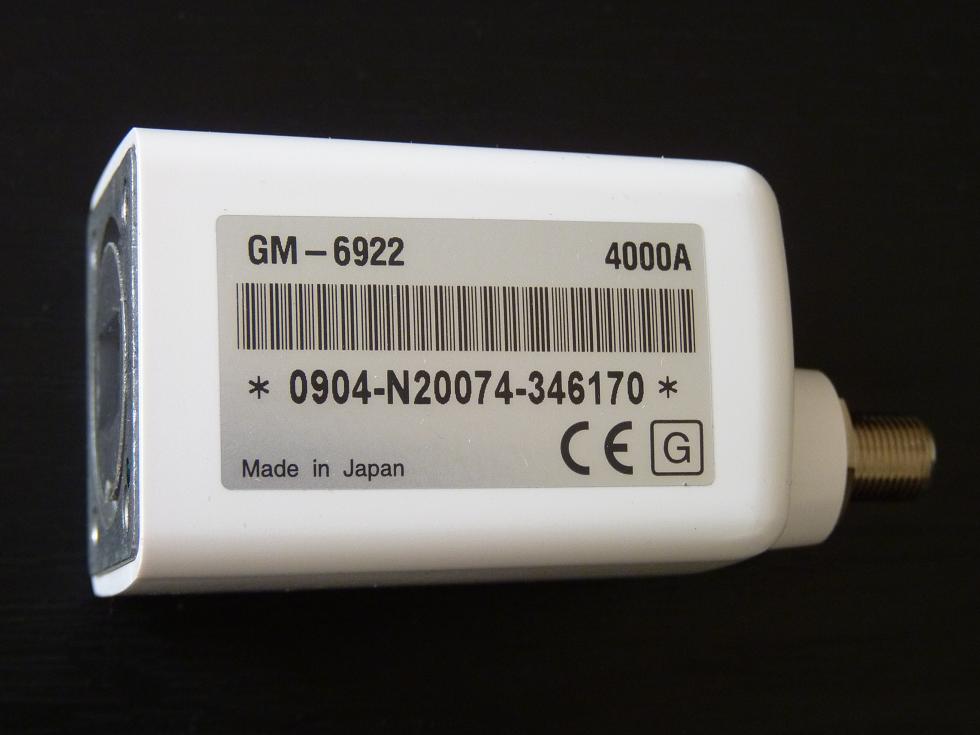

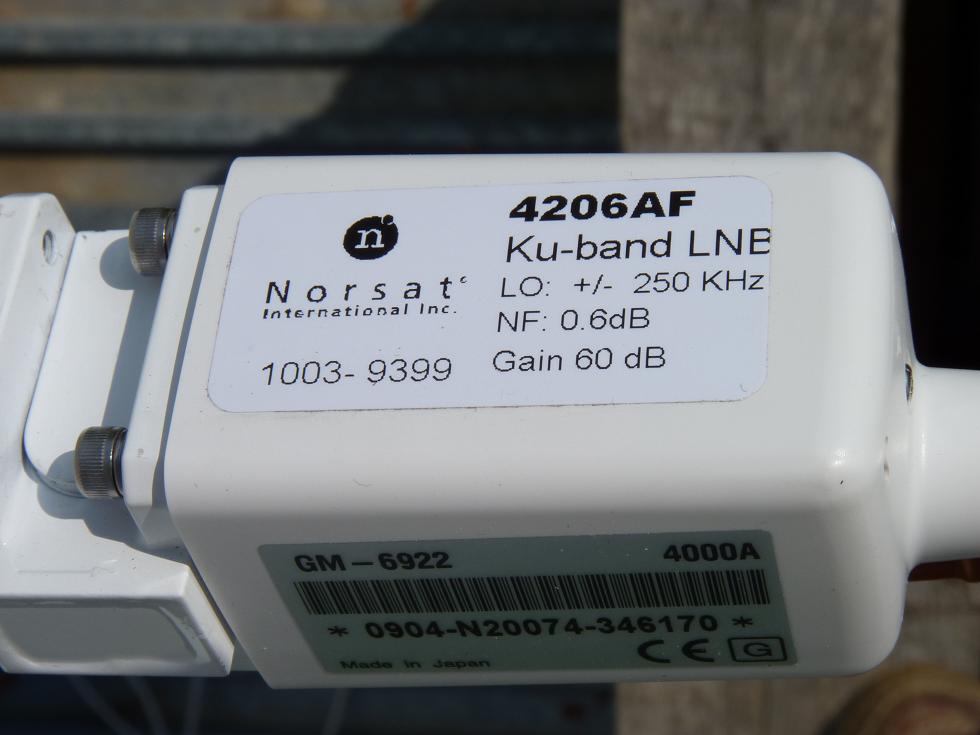

                            LNB Norsat 4206 AF : DRO,LOF stability +/-250 kHz,Gain 60 dB,IF=11.7-12.2 GHz

Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _16Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _17Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _18
Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _19Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _20Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _21
Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _22Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _23Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _24
Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _25Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _26Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _27
Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _28Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _29Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _30
Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _31Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _32Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _33
Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _34Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _35Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line _36

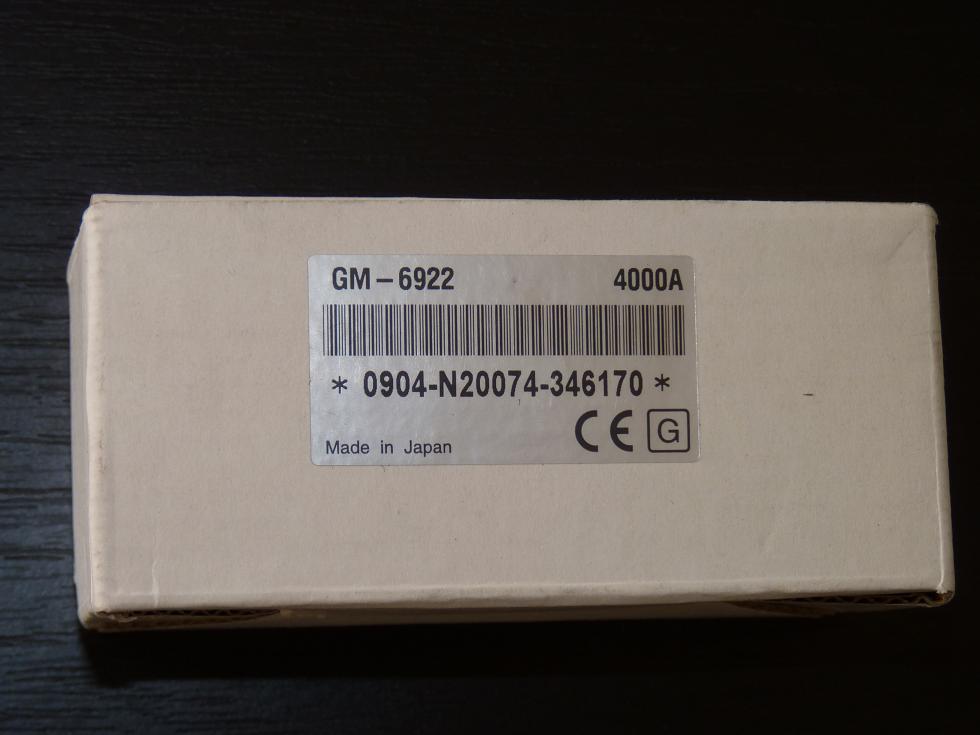

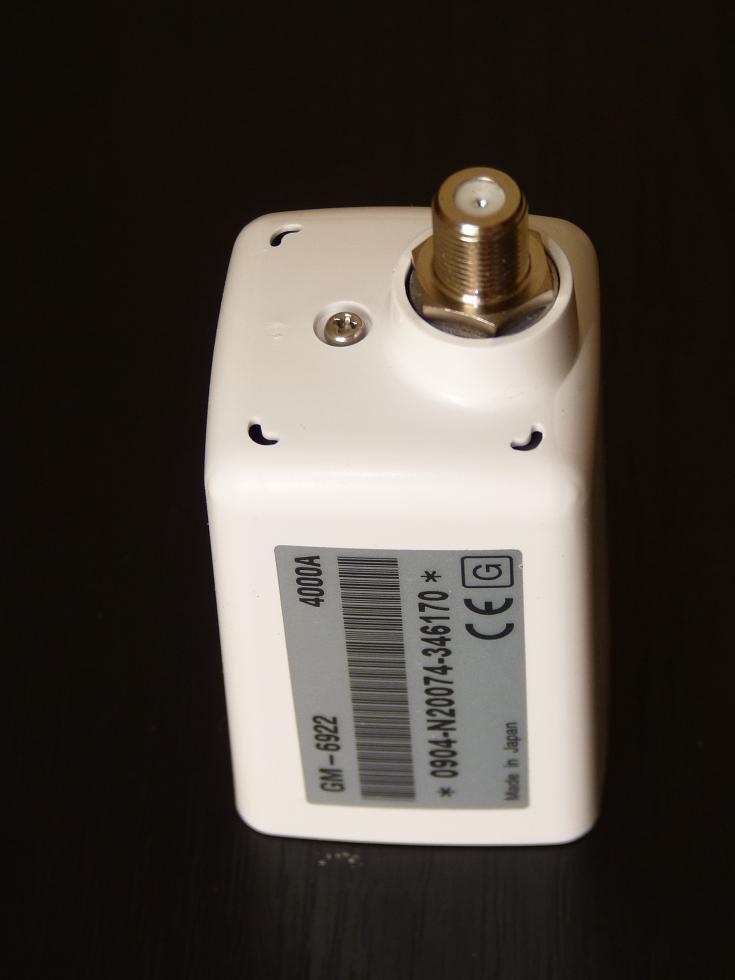

Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line_LNB Norsat 4206 AF_01Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line_LNB Norsat 4206 AF_02Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line_LNB Norsat 4206 AF_03
Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line_LNB Norsat 4206 AF_04Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line_LNB Norsat 4206 AF_05Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line_LNB Norsat 4206 AF_06
Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line_LNB Norsat 4206 AF_07Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line_LNB Norsat 4206 AF_08Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line_LNB Norsat 4206 AF_09
Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line_LNB Norsat 4206 AF_10Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line_LNB Norsat 4206 AF BF CF_11Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line_LNB Norsat 4206 AF BF CF_12
Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line_LNB Norsat 4206 AF BF CF_13Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line_LNB Norsat 4206 AF BF CF_14Chinasat 9 at 92.2 e _ abs-s system_ dxsatcs waveguide line_LNB Norsat 4206 AF BF CF_15
